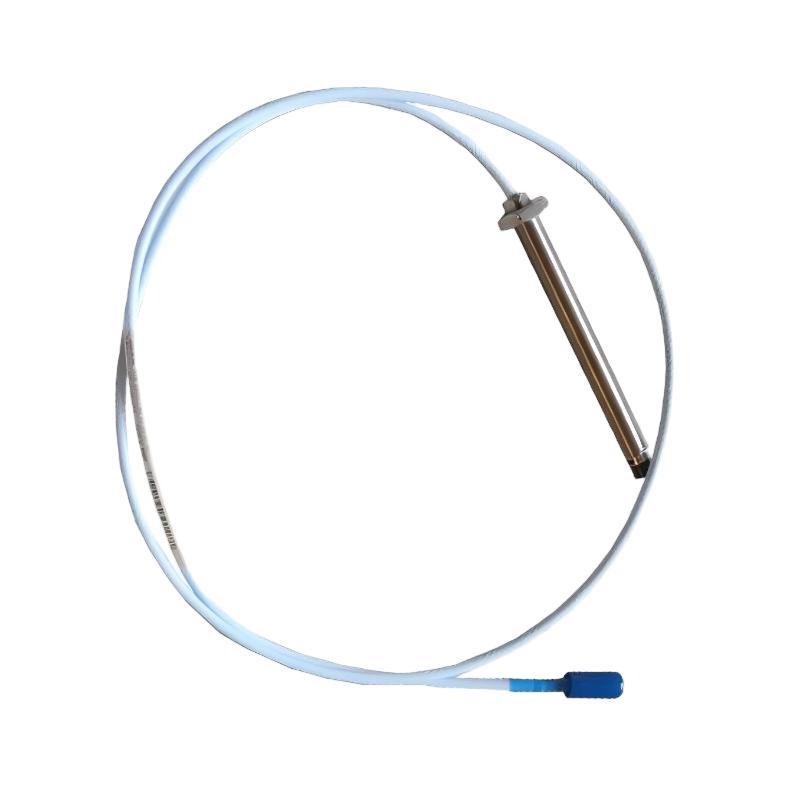

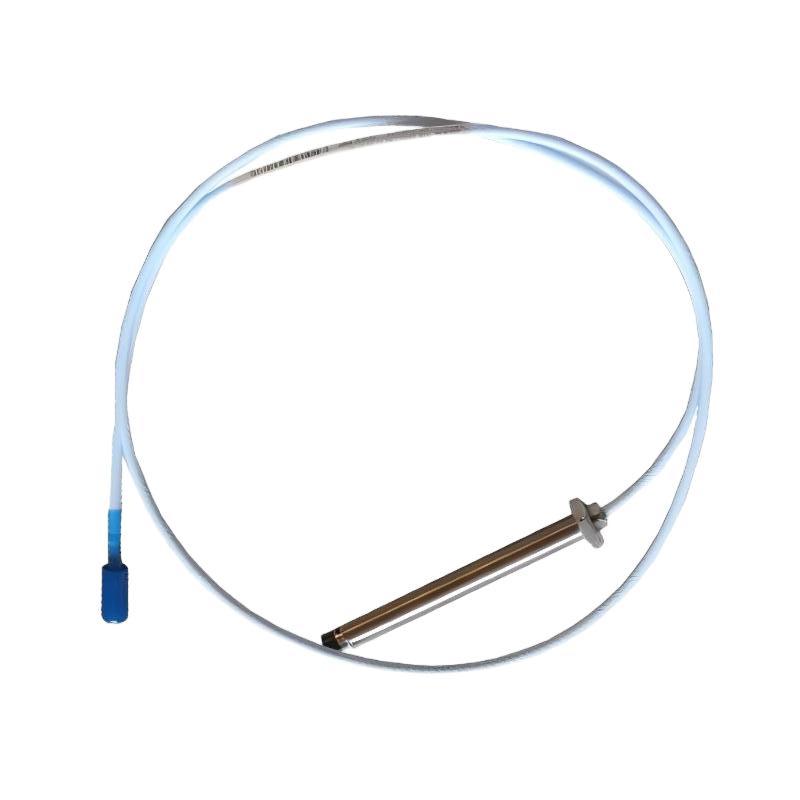

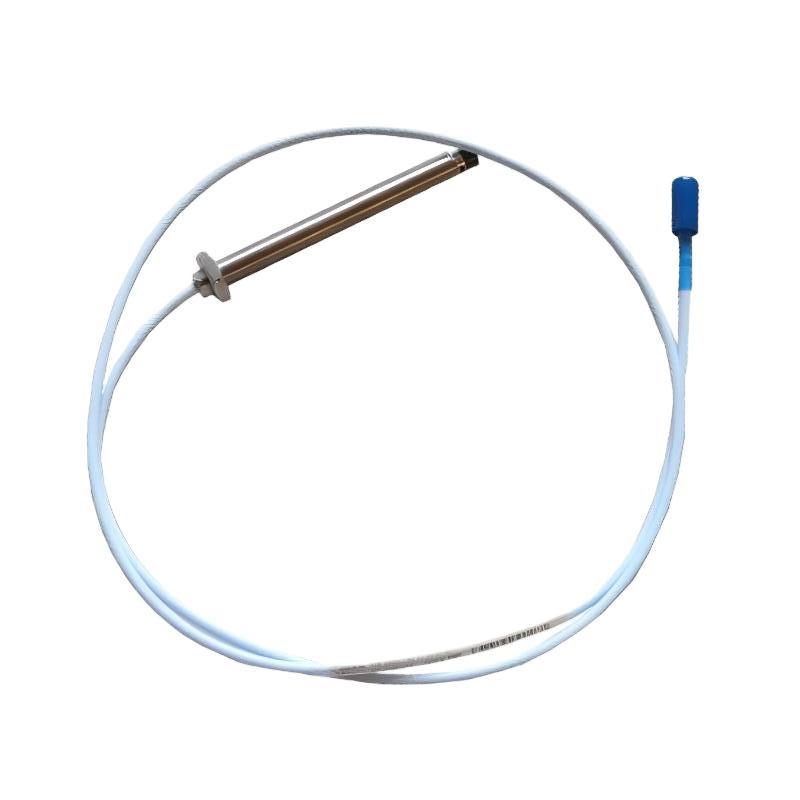

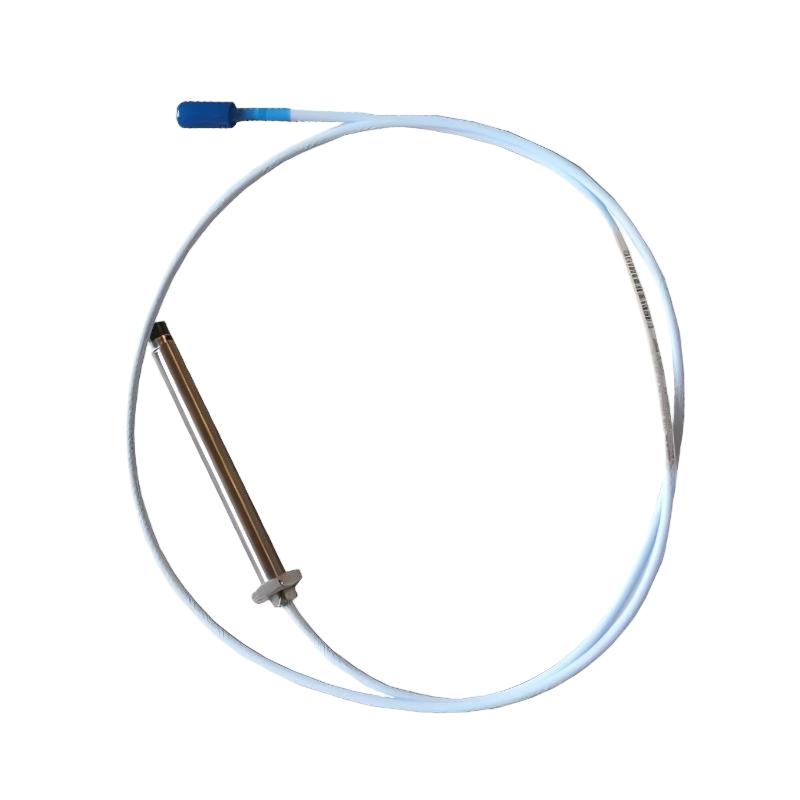

Bently Nevada 330101-32-57-05-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-32-57-05-01-05 3300 XL 8 mm Proximity Probe
0.0
Points
Brand:Bently Nevada PLC Item No.:330101-32-57-05-01-05 Product Origin:USA Product Dimensions:Total Length: 0.5 meters Product Weight:0.162 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330101-32-57-05-01-05 3300 XL 8 mm Proximity Probe is engineered for precise, non-contact vibration and displacement monitoring. With a compact 0.5-meter cable, it allows installation in tight or restricted spaces while delivering the high reliability expected from the 3300 XL series. Its rugged construction and stable signal output make it an excellent solution for protecting critical rotating machinery in demanding industrial environments.
Technical Specifications
Parameter
Specification
Product Type
Proximity Probe
Series
3300 XL
Model
330101-32-57-05-01-05
Probe Diameter
8 mm
Total Cable Length
0.5 meters
Measurement Technology
Eddy Current
Target Material
Conductive Metallic Surfaces
Monitoring Functions
Vibration, Position, Displacement
System Compatibility
3300 XL Monitoring Systems
Installation Type
Non-contact Probe
Weight
0.162 kg (0.36 lb)
Dimensions
8 mm probe diameter; total assembly length 0.5 meters
Applications
The Bently Nevada 330101-32-57-05-01-05 3300 XL 8 mm Proximity Probe is designed for high-precision monitoring of rotating machinery, particularly in compact installations:
Shaft vibration and radial displacement monitoring in turbines, generators, and compressors
Rotor eccentricity and imbalance detection in high-speed equipment
Bearing condition surveillance in fluid-film bearing machines
Speed and Keyphasor reference signal acquisition
Predictive maintenance and asset reliability programs
Machinery protection in oil & gas, power generation, and industrial manufacturing
Its compact 0.5-meter total length makes it ideal for tight installation spaces without compromising measurement accuracy.
Advantages
8 mm eddy current sensing ensures precise displacement and vibration measurements
Compact cable length allows flexible installation in confined areas
Seamless compatibility with 3300 XL systems for easy integration
Rugged industrial-grade construction withstands harsh operating conditions
Stable, reliable output signals for continuous machinery protection
Non-contact measurement method minimizes wear and extends service life
Technical FAQs
What is the sensing principle of this probe?
Eddy current induction enables non-contact detection of shaft movement and vibration.
Which system is this probe compatible with?
Fully compatible with the Bently Nevada 3300 XL Proximitor System.
Can it measure both vibration and shaft position?
Yes, it provides dynamic vibration and static displacement monitoring.
What target materials can it detect?
Conductive metallic shafts, including steel and alloy materials.
Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 monitoring of critical machinery.
What type of output does it generate?
Works as part of the 3300 XL system to provide voltage proportional to shaft displacement.
Does it require field calibration after installation?
No calibration is required when used within the 3300 XL system.
Can it operate in high-vibration environments?
Yes, it is engineered to handle heavy-duty rotating machinery conditions.
Which industries commonly deploy this probe?
Power generation, petrochemical, oil & gas, industrial manufacturing, and aerospace.
Does cable length impact accuracy?
The 0.5-meter cable length is optimized for standard system configurations, maintaining full accuracy.
