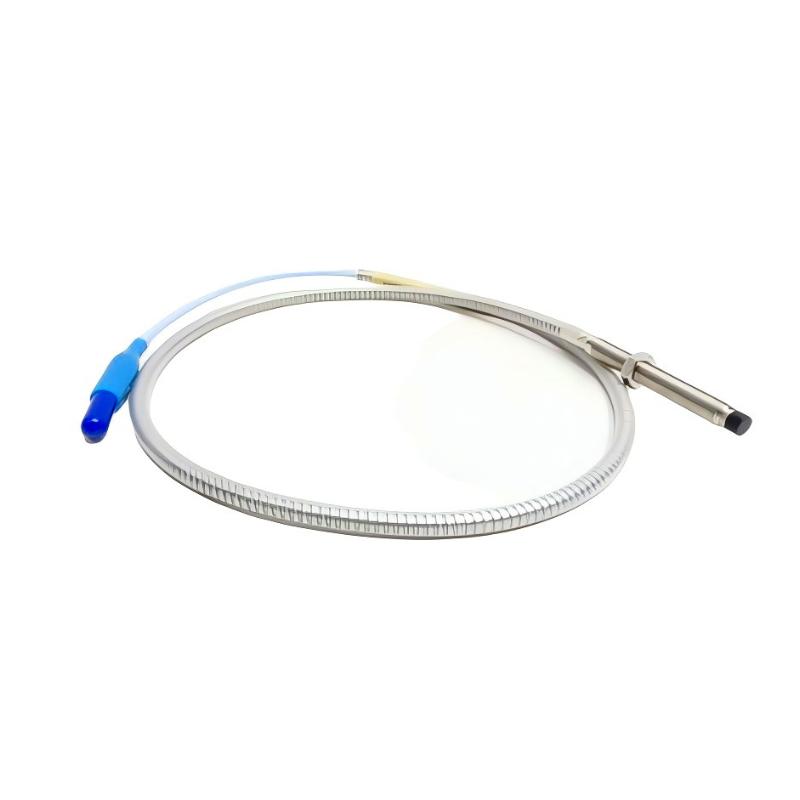

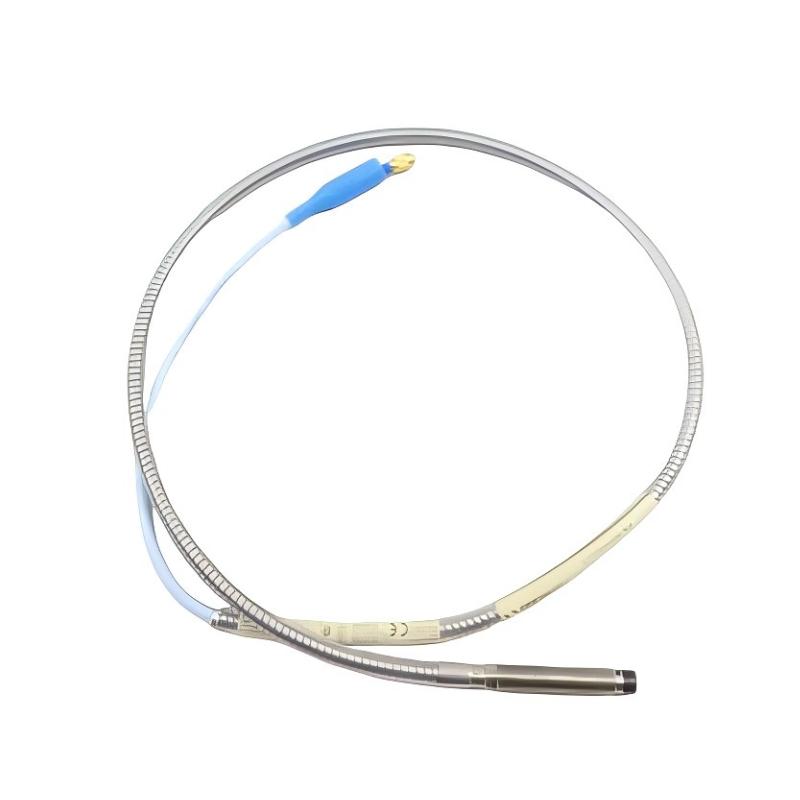

The Bently Nevada 330102-30-65-10-02-00 is a 3300 XL 8 mm proximity probe designed for continuous, non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It is used as part of a complete proximity transducer system with a compatible Proximitor sensor and extension cable.
This probe is engineered for industrial condition monitoring applications where mechanical robustness, stable signal output, and long-term operational reliability are essential for protecting critical rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-30-65-10-02-00 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm System |
| Measurement Principle | Eddy Current Non-contact Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Probe Construction | Armored design |
| Connector Type | Miniature ClickLoc coaxial connector |
| System Requirement | Requires Proximitor sensor + extension cable |
| Application | Vibration, displacement, position monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | 3.0 in (code 30) |
| Case Length | 6.5 in (code 65) |
| Total System Length | 1.0 m (3.3 ft class) |
| Net Weight | Approx. 0.323 kg |
| Shipping Weight | Approx. 1.3–2.0 kg (packed assembly dependent) |
| Packaging Type | Industrial protective carton |
