Brand:Bently Nevada PLC Item No.:3500/33M Product Origin:USA Product Dimensions:241 x 24.4 x 242 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

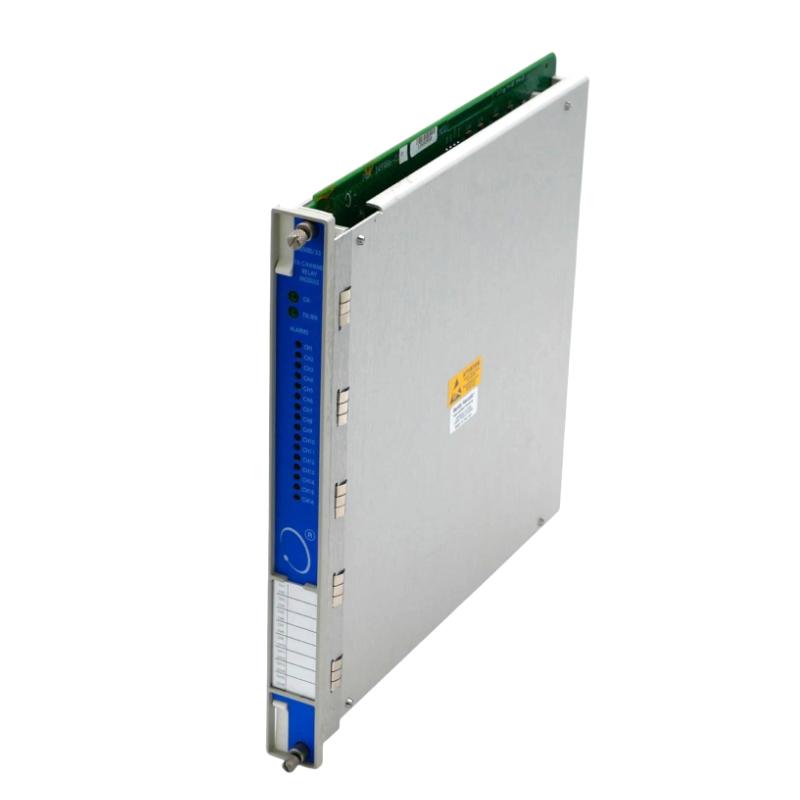

The Bently Nevada 3500/33M 149986-01 16-Channel Relay Output Module is an essential component for extending the output capability of advanced machinery protection systems. It is engineered to deliver reliable relay-based communication between monitoring modules and external plant equipment.
Featuring 16 configurable relay outputs, this module allows operators to integrate machine condition information into broader protection and automation strategies. Its modular structure supports efficient installation, system expansion, and simplified maintenance in industrial environments.
Designed for applications where equipment availability and operational reliability are priorities, the 3500/33M 149986-01 provides a dependable solution for managing critical alarm and control signals from rotating machinery monitoring systems.
Technical Specifications
Specification
Details
Product Model
Bently Nevada 3500/33M 149986-01
Product Type
16-Channel Relay Output Module
System Platform
Bently Nevada 3500 Machinery Protection System
Relay Output Channels
16
Module Function
Relay Output Expansion and Control Interface
Installation Type
3500 Rack Module Installation
Dimensions (H × W × D)
241 × 24.4 × 242 mm
Weight
0.70 kg (1.54 lb)
Application
Machinery Protection, Alarm Management, Industrial Control
The Bently Nevada 3500/33M 149986-01 16-Channel Relay Output Module provides a reliable and flexible solution for industrial machinery protection applications. With advanced relay output capability, strong system integration, and dependable performance, it helps organizations improve alarm response, strengthen equipment protection, and maintain stable operations in critical industrial environments.
Industrial Applications and System Integration
The Bently Nevada 3500/33M 149986-01 16-Channel Relay Output Module is designed to provide reliable relay output expansion for the Bently Nevada 3500 Machinery Protection System. With 16 independent relay channels, this module enables monitored machine conditions, alarms, and system events to be transferred efficiently to external control systems, annunciation devices, and protective equipment.
This module is widely used in industries where rotating equipment reliability is critical. It provides an effective interface between machinery monitoring systems and plant-level response equipment, helping operators achieve faster decision-making and improved asset protection.
Application Area
Function
Power Generation Systems
Provides alarm and protection outputs for turbines and generators
Oil & Gas Facilities
Supports compressor and rotating equipment monitoring
Petrochemical Plants
Connects machinery alarms with automation systems
Industrial Manufacturing
Enhances equipment status communication and control
Heavy Machinery Applications
Supports reliable protection strategies for critical assets
Performance Advantages and Operational Benefits
The Bently Nevada 3500/33M 149986-01 combines flexible relay output capability with the proven modular design of the 3500 platform. Its 16-channel architecture allows engineers to manage multiple alarm and control signals while maintaining an efficient and scalable machinery protection configuration.
Advantage
Description
16 Independent Relay Outputs
Provides multiple channels for alarm and control signal transmission
Flexible Configuration Capability
Supports customized relay assignments for different applications
Reliable Industrial Performance
Designed for continuous operation in demanding environments
Efficient Alarm Management
Enables quick communication of critical machine conditions
Modular System Design
Allows easy integration into existing 3500 rack systems
Improved Equipment Protection
Helps support timely response to abnormal operating conditions
With dependable relay functionality and strong system compatibility, the module helps industrial facilities improve monitoring efficiency, enhance operational safety, and maintain reliable equipment performance.
Technical FAQs
1. What is the main function of the Bently Nevada 3500/33M 149986-01 module?
The module provides relay output channels for transferring alarm, status, and control signals from the 3500 monitoring system to external devices.
2. How many relay output channels does the module provide?
The module provides 16 independent relay output channels.
3. Which system is the 3500/33M 149986-01 designed for?
The module is designed for integration with the Bently Nevada 3500 Machinery Protection System.
4. Can each relay channel be configured separately?
Yes. Each relay output can be configured according to specific monitoring requirements and operating conditions.
5. What types of external systems can be connected to the relay outputs?
The relay outputs can interface with alarm panels, shutdown systems, PLCs, and other industrial control equipment.
6. How does the module support machinery protection applications?
It provides a reliable connection between internal monitoring decisions and external protective actions.
7. Can the relay outputs respond to different alarm conditions?
Yes. Relay functions can be assigned to different alarm states and system events.
8. Is the module compatible with other 3500 series modules?
Yes. It is designed to operate together with other compatible modules installed within the 3500 rack.
9. What configuration method is used for this module?
Relay logic and output functions are configured through compatible Bently Nevada 3500 system configuration tools.
10. Why are relay output modules important in industrial monitoring systems?
They provide a direct electrical interface that allows monitoring information to trigger external control and protection responses.
