Introduction

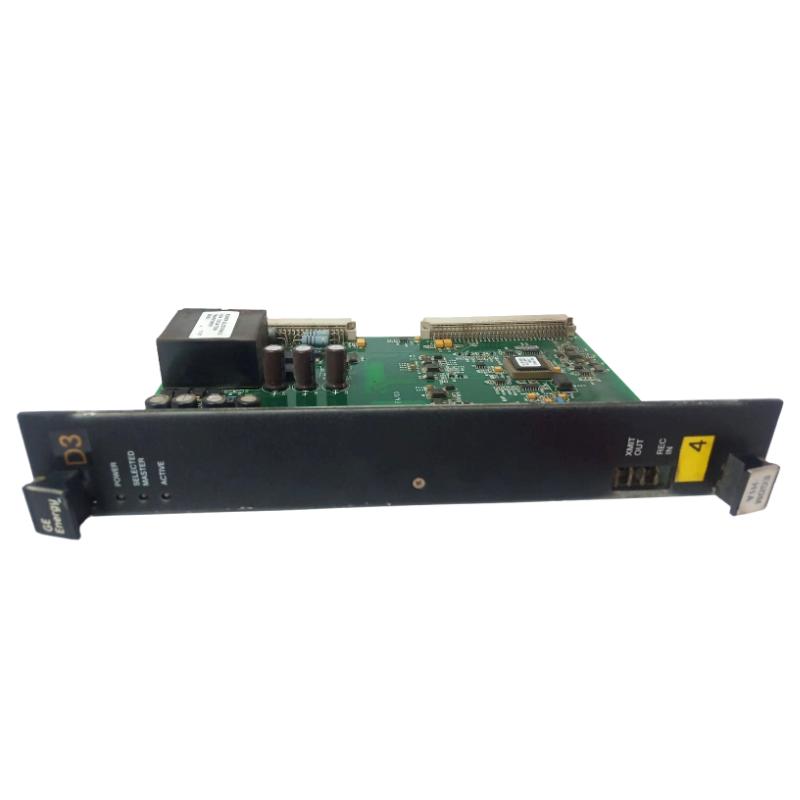

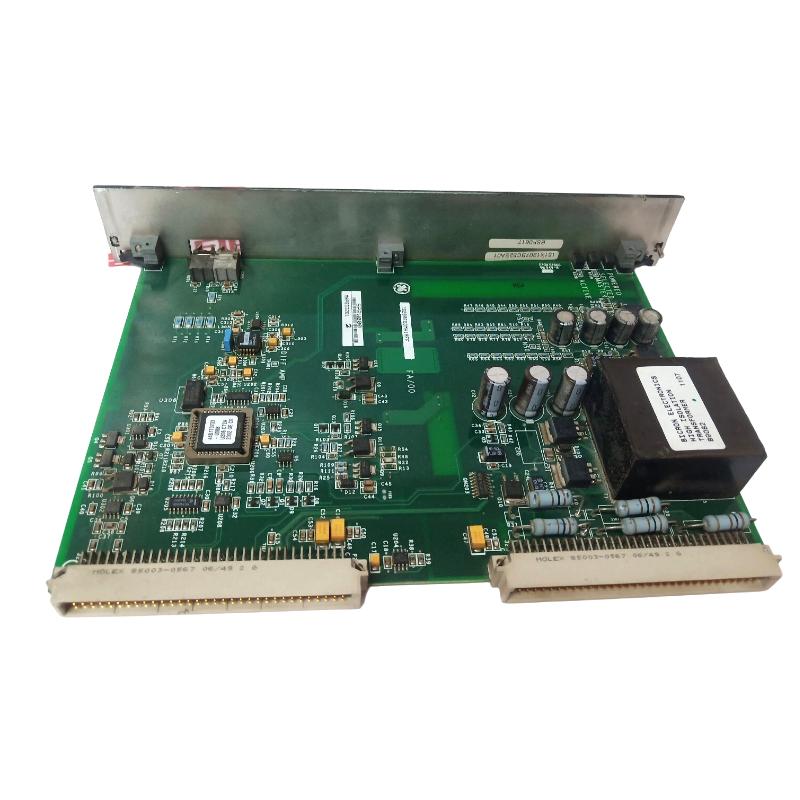

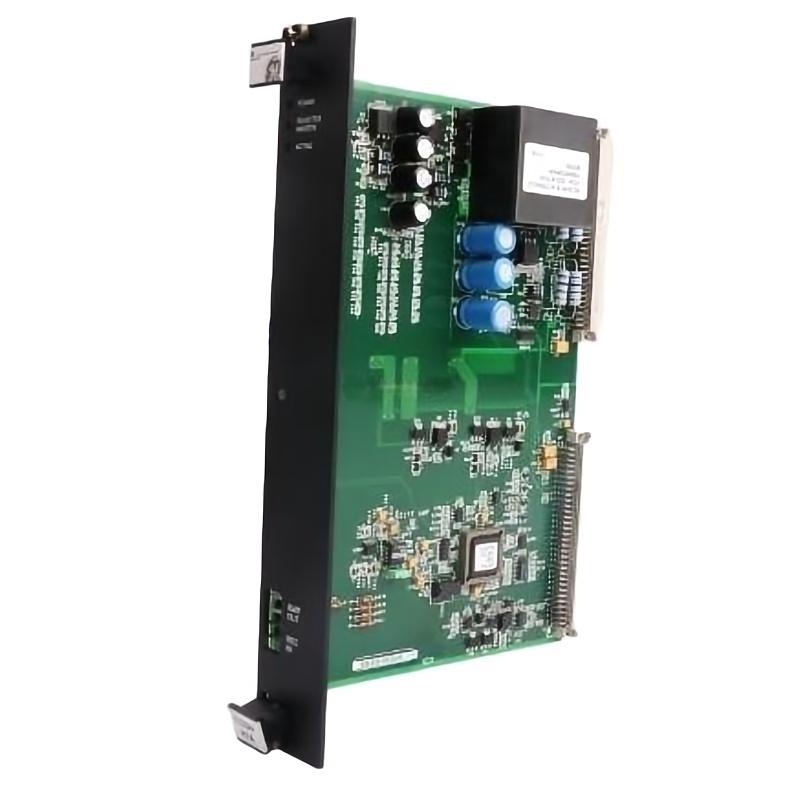

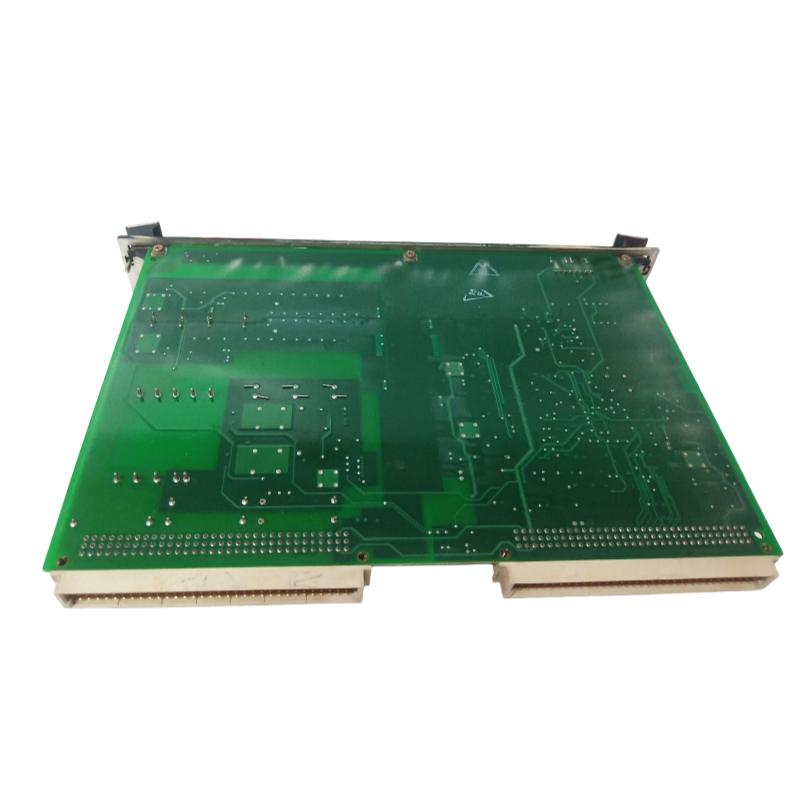

The GE Fanuc IS200EGDMH1A Exciter Grounding Detector Module is a high-reliability solution for industrial exciter monitoring. By detecting grounding faults early, it helps protect generators, motors, and other critical equipment from electrical damage. Designed for seamless integration with GE Fanuc IS200 PLC systems, this module delivers fast, accurate, and reliable fault detection in industrial environments. Its robust construction ensures stable performance even under harsh electrical and mechanical conditions.

Technical Specifications

Specification	Details
Module Type	Exciter Grounding Detector
Compatible Systems	GE Fanuc IS200 Series PLC
Detection Range	Low-level ground faults
Response Time	Milliseconds to seconds
Operating Temperature	-20°C to 70°C (-4°F to 158°F)
Weight	0.8 kg
Dimensions	267 x 216 x 25 mm
Connectivity	Screw terminals, compatible with IS200 racks
Certifications	CE Compliant

Recommended Related Models

GE Fanuc IS200EXC Excitation Control Module
IS200CPU Central Processing Unit
IS200IO Digital/Analog I/O Modules

Popular Related Models

GE Fanuc IS200EGDMH2A Grounding Detector Module
IS200PSU Power Supply Module
IS200RTU Remote Terminal Unit

Applications

The GE Fanuc IS200EGDMH1A Exciter Grounding Detector Module is designed for monitoring and detecting grounding faults in exciter circuits of industrial equipment. Typical applications include:

Monitoring generator exciters in power plants
Ensuring safe operation in large motor control systems
Protecting turbines and synchronous machines from ground faults
Industrial automation systems requiring precise grounding detection
Any critical electrical system where early fault detection prevents downtime

Advantages

Fast Fault Detection: Quickly identifies grounding faults to minimize risk to equipment.
High Sensitivity: Detects even low-level ground leakage currents accurately.
Seamless Integration: Compatible with GE Fanuc IS200 series control systems.
Robust Industrial Design: Built to withstand vibration, electrical noise, and temperature extremes.
Enhanced Safety: Reduces the likelihood of unplanned downtime or catastrophic failure.

Technical FAQs

What is the primary function of the IS200EGDMH1A?
- Detects grounding faults in exciter circuits of generators and motors.
Is it compatible with all GE Fanuc IS200 systems?
- Yes, it integrates fully with IS200 series PLC and monitoring systems.
What type of signals does it monitor?
- Exciter ground currents and voltage deviations.
Does it provide real-time alerts?
- Yes, it outputs fault signals to the main control system immediately.
What is the operating temperature range?
- -20°C to 70°C (-4°F to 158°F).
Does it require regular calibration?
- Minimal; periodic verification is recommended for optimal accuracy.
Is it suitable for high-voltage applications?
- Yes, designed to safely monitor exciter circuits in industrial generators.
What is the response time for ground fault detection?
- Typically within milliseconds to seconds, depending on system configuration.
Are there visual indicators for faults?
- Yes, onboard LEDs indicate normal operation and detected faults.
What maintenance is required?
- Inspect connections periodically and ensure the module remains securely mounted.
