Brand:Schneider PLC Item No.:TSXDSZ08R5 Product Origin:France Product Dimensions:260 x 180 x 55 mm Product Weight:0.361 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

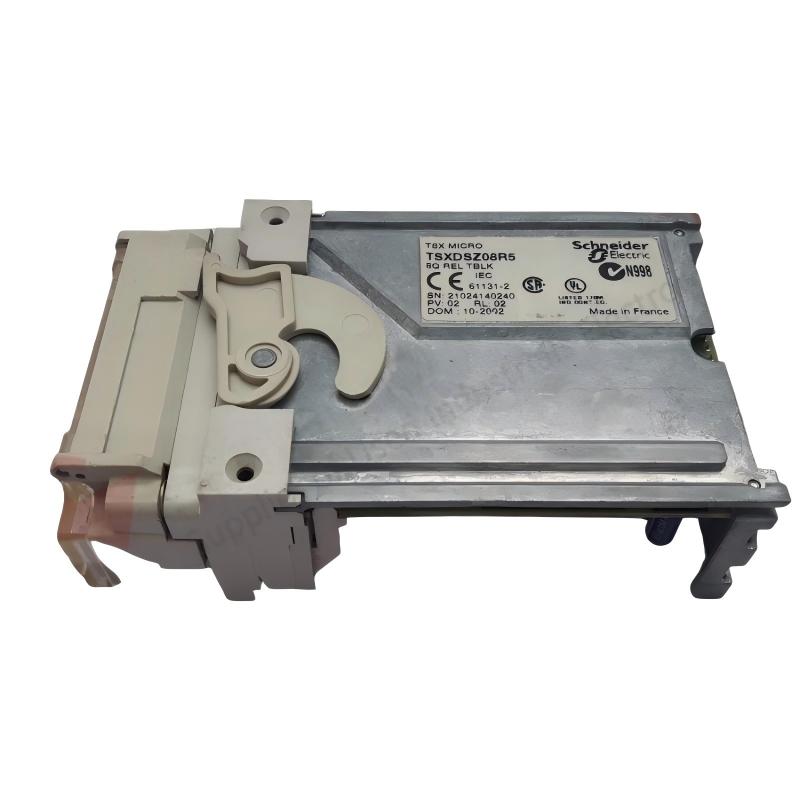

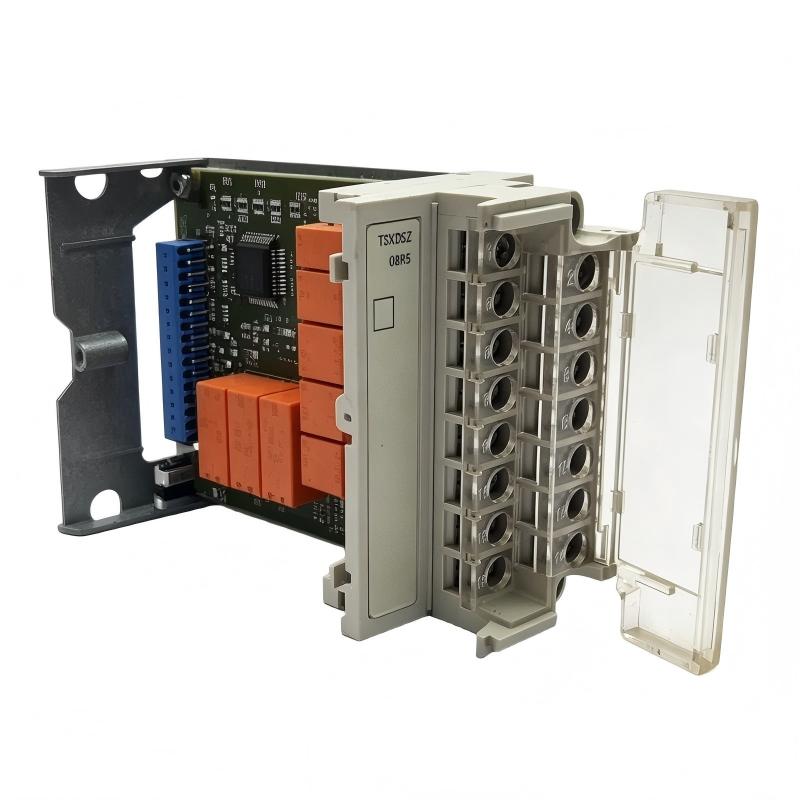

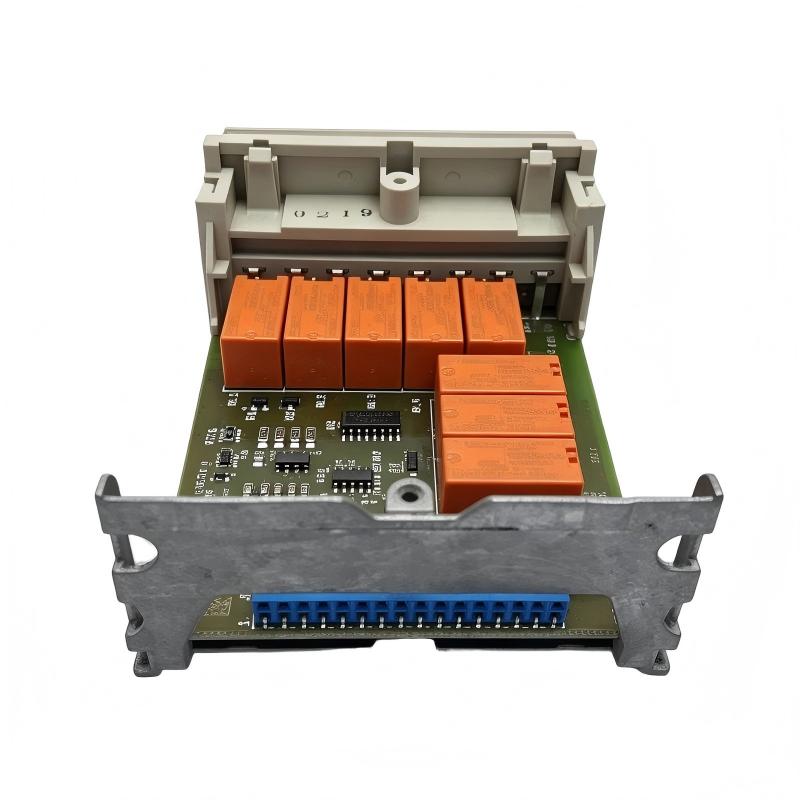

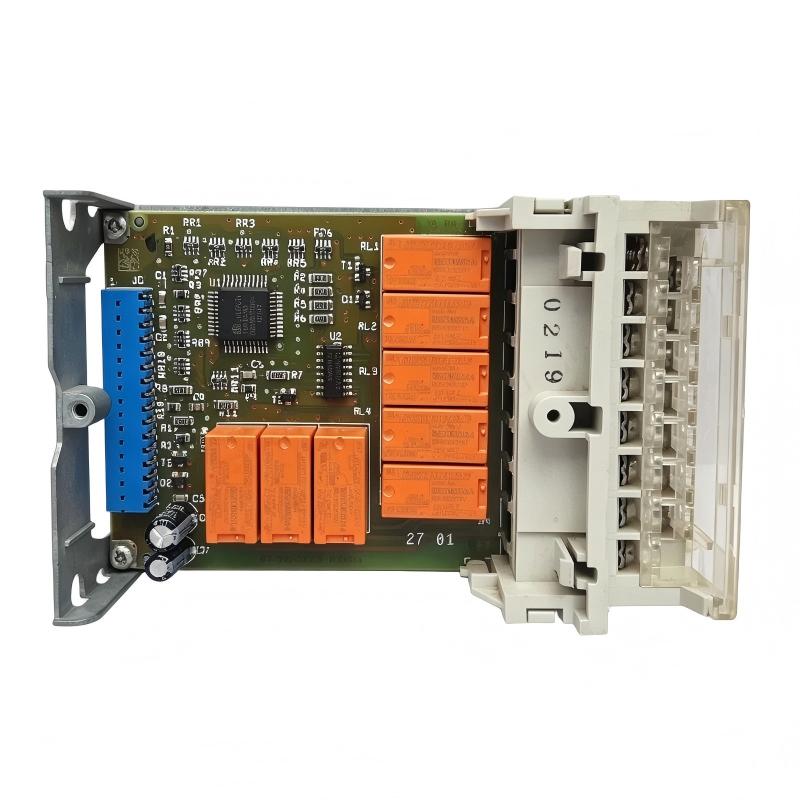

The Schneider TSXDSZ08R5 Relay Discrete Output Module is designed to provide reliable output control for industrial automation systems. As an important PLC expansion component, it creates a connection between automation software logic and physical equipment in the field.
In industrial environments, PLC output modules play a critical role in executing machine operations. When the controller sends a command, the output module activates external devices such as valves, contactors, and indicators to complete automated processes.
The relay-based design of the TSXDSZ08R5 provides excellent flexibility for applications involving different types of electrical loads. This makes it a practical choice for engineers working on machine upgrades, automation maintenance, and industrial control system expansion.
With reliable switching performance and a durable industrial design, the Schneider TSXDSZ08R5 helps companies maintain stable production operations while improving automation system flexibility.
Technical Specifications
Specification
Details
Product Type
Relay Discrete Output Module
Manufacturer
Schneider Electric
Model Number
TSXDSZ08R5
Product Series
Modicon TSX Micro
Output Type
Relay Output
Number of Outputs
8 Outputs
Contact Type
Normally Open (NO)
Output Voltage Range
19...264 V AC / 10...34 V DC
Output Current
3 A
Switching Technology
Electromechanical Relay
Application
Industrial Digital Output Control
Installation Method
PLC Rack Mounting
Connection Type
Terminal Connection
Dimensions
260 × 180 × 55 mm
Weight
0.36 kg (0.80 lb)
Recommended Related Models
Model
Product Type
Schneider TSXDSY08T2
Discrete Output Module
Schneider TSXDSY08T22
Discrete Output Module
Schneider TSXDSY32T2K
Discrete Output Module
Schneider TSXDSY16R5
Relay Discrete Output Module
Schneider TSXDMZ28DT
Discrete Mixed I/O Module
Popular Related Models
Model
Product Type
Schneider TSX3721001
Modicon TSX Micro PLC Controller
Schneider TSX3705001
Modicon TSX Micro PLC Controller
Schneider BMXDDO1602
Modicon X80 Discrete Output Module
Schneider BMXP342020
Modicon M340 Processor Module
Schneider BMEP582040
Modicon M580 Processor Module
Industrial Applications and Usage Areas
The Schneider TSXDSZ08R5 Relay Discrete Output Module is a dependable PLC output expansion module designed for industrial automation systems requiring flexible load control and reliable switching performance. As part of the Schneider Modicon automation platform, this module provides relay-based output control for connecting PLC logic programs with external field devices.
The TSXDSZ08R5 uses relay output technology, allowing it to control a wide range of industrial loads including contactors, solenoid valves, alarms, indicator lamps, and auxiliary control circuits. Compared with transistor output modules, relay outputs provide greater flexibility when working with different voltage levels and load types.
Designed for automation engineers, system integrators, and maintenance professionals, the Schneider TSXDSZ08R5 offers stable operation, electrical isolation, and convenient integration into existing PLC control systems.
Typical application areas include:
Industrial machine automation
Packaging and assembly equipment
Motor control systems
Valve and actuator control
Production line automation
Industrial electrical cabinets
Process control equipment
OEM machinery
Factory automation projects
The Schneider TSXDSZ08R5 helps improve PLC system capability by providing reliable relay switching control between automation programs and industrial equipment.
Reliable Switching Performance and Application Advantages
The Schneider TSXDSZ08R5 Relay Discrete Output Module combines flexible relay switching technology with industrial reliability. It is designed for applications where stable control, compatibility with different loads, and long service life are important.
Advantage
Description
Relay Switching Technology
Provides flexible control for AC and DC electrical loads.
8 Output Channels
Allows multiple field devices to be controlled through one module.
Electrical Isolation Design
Helps separate PLC control circuits from external loads.
Wide Application Compatibility
Suitable for different industrial devices and control systems.
Stable Automation Performance
Supports reliable operation in industrial environments.
Easy System Maintenance
Simplifies troubleshooting, replacement, and PLC system upgrades.
Technical FAQs
Q1: What is the main function of the Schneider TSXDSZ08R5 module? A: The TSXDSZ08R5 is a relay output module that receives PLC commands and switches external electrical devices according to the programmed control logic.
Q2: How many output channels does the TSXDSZ08R5 provide? A: The module provides 8 relay output channels for industrial control applications.
Q3: What type of output technology does the TSXDSZ08R5 use? A: The module uses mechanical relay output technology, providing flexible switching capability for different load types.
Q4: What devices can be controlled by the TSXDSZ08R5? A: It can control industrial devices such as contactors, solenoid valves, indicator lamps, alarms, and auxiliary relays.
Q5: What should be checked if a relay output does not operate? A: Check the PLC program logic, module status, wiring connections, external power supply, and the condition of the connected device.
Q6: What causes relay output failure during operation? A: Common causes include excessive load current, unsuitable load type, damaged relay contacts, incorrect wiring, or frequent switching beyond application requirements.
Q7: Can the TSXDSZ08R5 control both AC and DC loads? A: Yes. Relay outputs provide flexibility for controlling compatible AC and DC electrical circuits.
Q8: How can users extend relay service life? A: Using suitable loads, adding protective components for inductive devices, maintaining correct wiring, and avoiding overload conditions can improve relay durability.
Q9: What is the difference between relay output and transistor output modules? A: Relay outputs offer wider load compatibility and electrical isolation, while transistor outputs generally provide faster switching for electronic control applications.
Q10: Why is the TSXDSZ08R5 suitable for industrial automation systems? A: Its reliable relay switching, flexible load compatibility, and PLC integration capability make it suitable for various industrial control applications.
