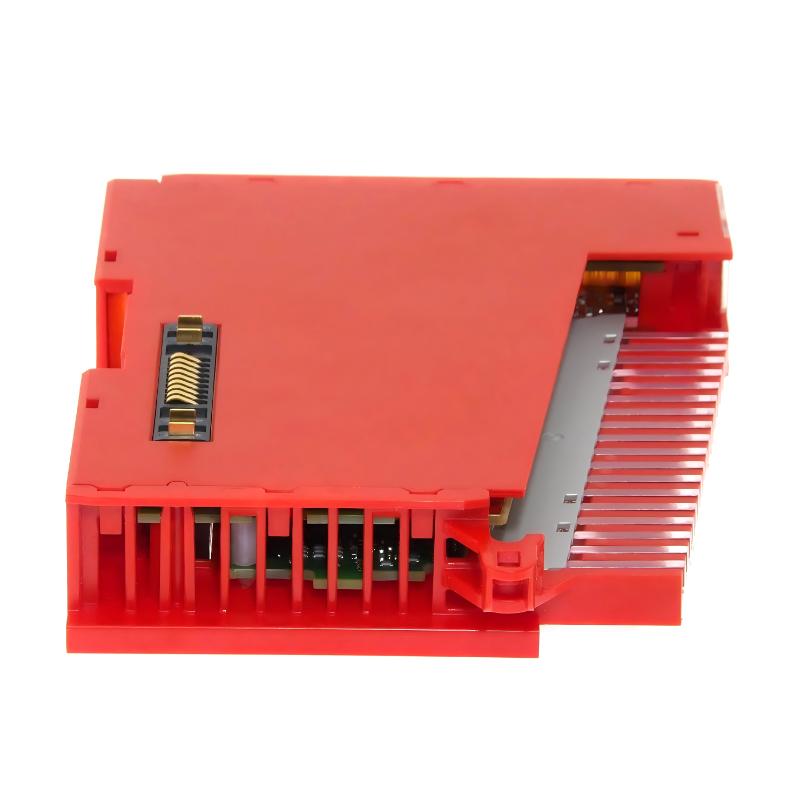

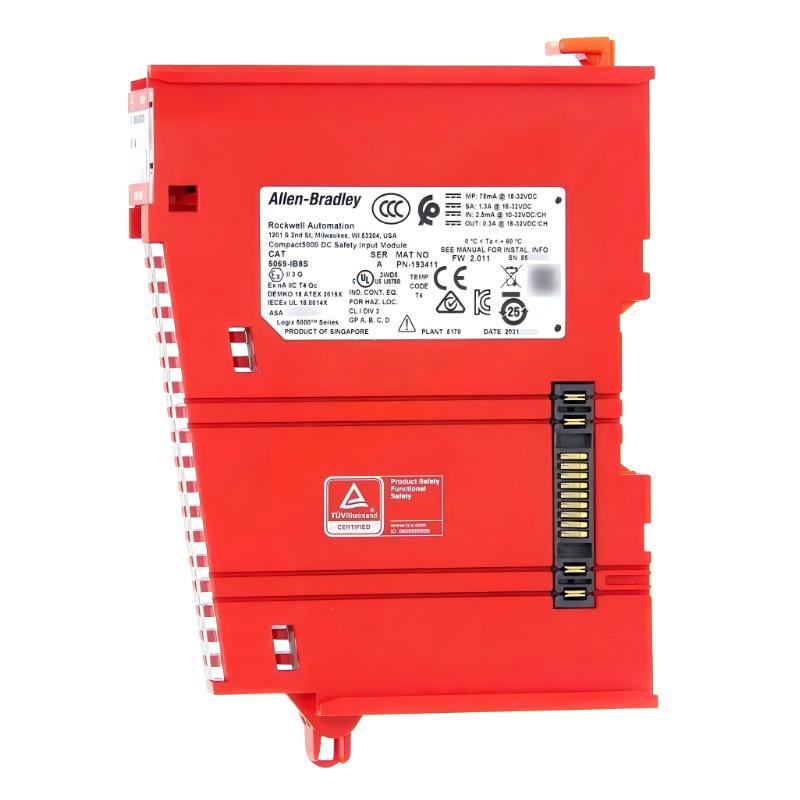

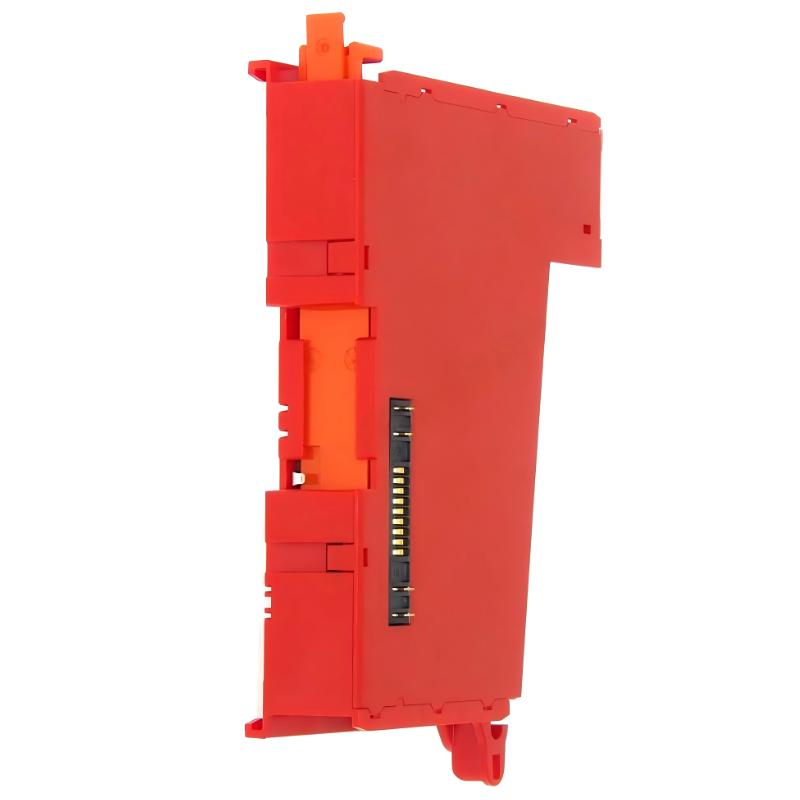

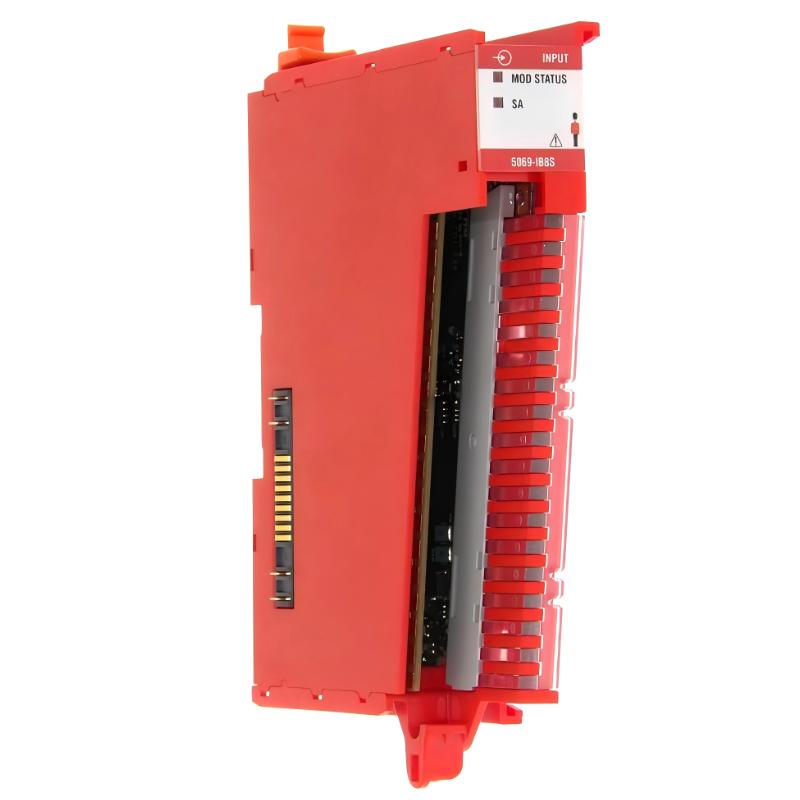

Allen Bradley 5069-IB8S Compact 5000 DC Digital Safety Input Module
Allen Bradley 5069-IB8S Compact 5000 DC Digital Safety Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:5069-IB8S Product Origin:USA Product Dimensions:144.57 x 25.56 x 109.09 mm Product Weight:0.175 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 5069-IB8S Compact 5000 DC Digital Safety Input Module delivers reliable monitoring of safety devices in industrial automation systems. Designed for integration with CompactLogix 5069 controllers, it supports critical applications requiring high-speed input detection and compliance with international safety standards. Its compact form factor, diagnostic capabilities, and flexible integration options make it a preferred choice for OEM machinery, conveyor safety, and process automation safety solutions.
Technical Specifications
Parameter
Specification
Product Type
Digital Safety Input Module
Series
Compact 5000
Model Number
5069-IB8S
Input Channels
8 Digital Safety Inputs
Input Voltage
24 V DC
Safety Level
SIL 3 / PL e
Communication
Connected via Compact 5000 Safety Network
Mounting Type
DIN Rail / Panel Mount
Operating Environment
Industrial automation systems
Dimensions
144.57 × 25.56 × 109.09 mm
Weight
0.175 kg
Recommended Related Models
Model Number
Product Name
5069-IB16S
Compact 5000 Digital Safety Input Module, 16 Channels
5069-OB8S
Compact 5000 Digital Safety Output Module, 8 Channels
5069-OB16S
Compact 5000 Digital Safety Output Module, 16 Channels
5069-SDN
Compact 5000 Safety Network Adapter Module
Popular Related Models
Model Number
Product Name
5069-IB4S
Compact 5000 Digital Safety Input Module, 4 Channels
5069-IB8
Compact 5000 Standard Digital Input Module, 8 Channels
5069-OB8
Compact 5000 Standard Digital Output Module, 8 Channels
5069-IB16
Compact 5000 Standard Digital Input Module, 16 Channels
Applications
• Machine Safety Monitoring
Monitors safety devices such as emergency stops, safety gates, and light curtains.
• Industrial Automation Systems
Integrated into CompactLogix 5000 controllers for safety-critical applications.
• Conveyor and Material Handling Safety
Ensures safe operation of automated conveyor lines and robotic handling systems.
• Packaging Machinery
Used to monitor interlocks and emergency stop functions in packaging lines.
• OEM Equipment Safety Integration
Embedded into custom machinery to meet safety standards.
• Process Control Safety
Monitors high-risk zones in chemical, pharmaceutical, or food processing systems.
• Retrofit and Upgrade Projects
Enhances safety monitoring in existing automation installations.
• Safety Compliance Enforcement
Ensures adherence to ISO 13849, IEC 61508, and other industrial safety standards.
Key Advantages
• High-Speed Digital Inputs
Provides rapid detection of safety device state changes.
• Compact Design
Fits easily into tight control panel layouts.
• Integrated Safety Functions
Supports SIL 3 / PL e safety levels for critical applications.
• Flexible Wiring and Mounting
Simplifies integration with Compact 5000 safety architecture.
• Reliable Industrial Operation
Engineered for continuous use in demanding industrial environments.
• Seamless Integration with Controllers
Works natively with CompactLogix 5069 controllers for safety logic.
• Diagnostic Capabilities
Provides status and fault diagnostics for improved maintenance efficiency.
• Cost-Effective Safety Solution
Delivers essential safety monitoring functionality in a small form factor.
Technical FAQs
1. What is the primary function of the 5069-IB8S?
It monitors safety devices such as emergency stops, safety gates, and light curtains in industrial systems.
2. Which safety standards does it comply with?
It supports SIL 3 (IEC 61508) and PL e (ISO 13849) safety requirements.
3. How many inputs does the module provide?
It provides 8 digital safety inputs.
4. What voltage range does it operate on?
It operates on 24 V DC digital inputs.
5. Can it be integrated with CompactLogix controllers?
Yes, it works natively with CompactLogix 5069 controllers and the Compact 5000 safety architecture.
6. Is it suitable for high-speed applications?
Yes, it provides fast input response suitable for safety-critical monitoring.
7. Does it offer diagnostic feedback?
Yes, it provides status and fault diagnostics to support maintenance and troubleshooting.
8. Can multiple modules be used in a system?
Yes, multiple modules can be networked for expanded safety input capabilities.
9. What is the module’s operating environment?
It is designed for industrial automation environments with standard operating conditions.
10. Is it compatible with retrofitted machines?
Yes, it can enhance safety monitoring in existing automation systems.
