Introduction

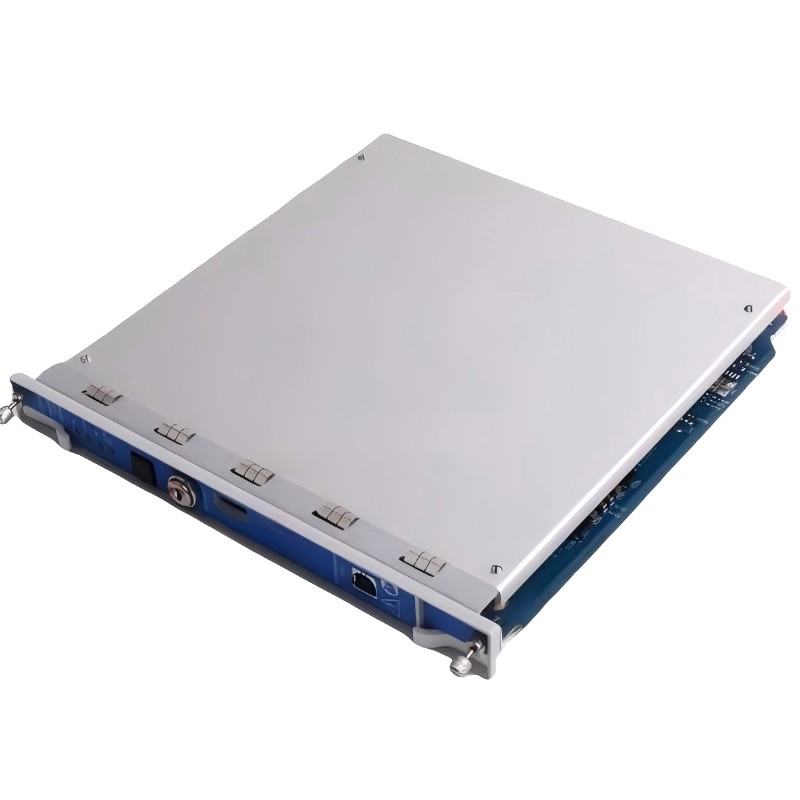

The Bently Nevada 3500/25 125800-02 Isolation Keyer I/O Module is a specialized interface component designed to handle keyphasor and speed input signals within the 3500 monitoring system. It plays a critical role in ensuring accurate phase reference and signal stability for rotating machinery analysis. By providing electrical isolation and signal conditioning, it enhances system reliability in environments with high electromagnetic interference and demanding industrial operating conditions.

Technical Specifications

Parameter	Specification
Dimensions	241.3 mm × 24.4 mm × 103.1 mm
Weight	0.46 kg
Function Type	Keyphasor / Speed I/O Module
Signal Isolation	Electrical isolation between field and system
Operating Temperature	-20°C to +60°C
Mounting Type	Bently Nevada 3500 rack-mounted module
Material	Industrial-grade electronic housing

Recommended Related Models

Model	Product Name
3500/22M 138607-01	TDI Communication Interface Module
3500/42M 135489-01	Proximitor Monitoring Module
3500/15-03-03-00	Power Module
3500/32 125712-01	Relay Output Control Module

Popular Related Models

Model	Product Name
3500/25 125800-01	Isolation Keyer I/O Module Variant
3500/25 125800-03	Enhanced Keyphasor Input Module
3500/20 125720-01	Rack Interface I/O Module
3500/05 131151-01	Half-height Blank Front Panel Cover

Applications

• Interfaces keyphasor and speed signals within Bently Nevada 3500 monitoring systems.
Ensures stable signal conditioning for rotating machinery diagnostics.

• Supports turbine, compressor, and generator monitoring applications.
Provides accurate phase reference for vibration and shaft speed analysis.

• Enables signal isolation between field devices and monitoring modules.
Reduces electrical noise interference in industrial environments.

• Integrates into 3500 rack systems for multi-channel monitoring configurations.
Maintains reliable data transmission in critical protection systems.

Key Advantages

• Improves signal integrity in harsh electrical environments.
Ensures clean and stable keyphasor input for accurate machine analysis.

• Provides electrical isolation between field wiring and system electronics.
Reduces risk of ground loop interference and signal distortion.

• Compact and rack-optimized design.
Fits seamlessly into Bently Nevada 3500 system architecture.

• High reliability for continuous industrial operation.
Engineered for long-term use in vibration monitoring and protection systems.

• Supports stable performance under electrical noise and vibration conditions.
Ideal for power plants and heavy industrial facilities.

Technical FAQs

1. Does this module process vibration signals directly?
No, it is used for keyphasor and speed signal conditioning, not vibration processing.

2. Is the module compatible with all 3500 rack systems?
Yes, it is designed for integration with standard Bently Nevada 3500 series racks.

3. What is the main purpose of isolation in this module?
It electrically isolates field inputs from system electronics to reduce noise and interference.

4. Can it operate in high electrical noise environments?
Yes, it is specifically designed for industrial environments with high EMI conditions.

5. Does it require external configuration before installation?
No external configuration is required for standard operation within supported systems.

6. Can the module be hot-swapped during operation?
Yes, it supports safe replacement in powered rack systems under proper procedures.

7. Does it affect system vibration measurement accuracy?
No, it provides signal conditioning but does not directly alter vibration data processing.

8. Is grounding required for this module?
Proper rack grounding is recommended to ensure optimal noise reduction performance.

9. Can it be used with third-party monitoring systems?
It is primarily designed for Bently Nevada 3500 architecture and may not be compatible externally.

10. Does it require regular calibration?
No calibration is typically required under normal operating conditions.
