Introduction

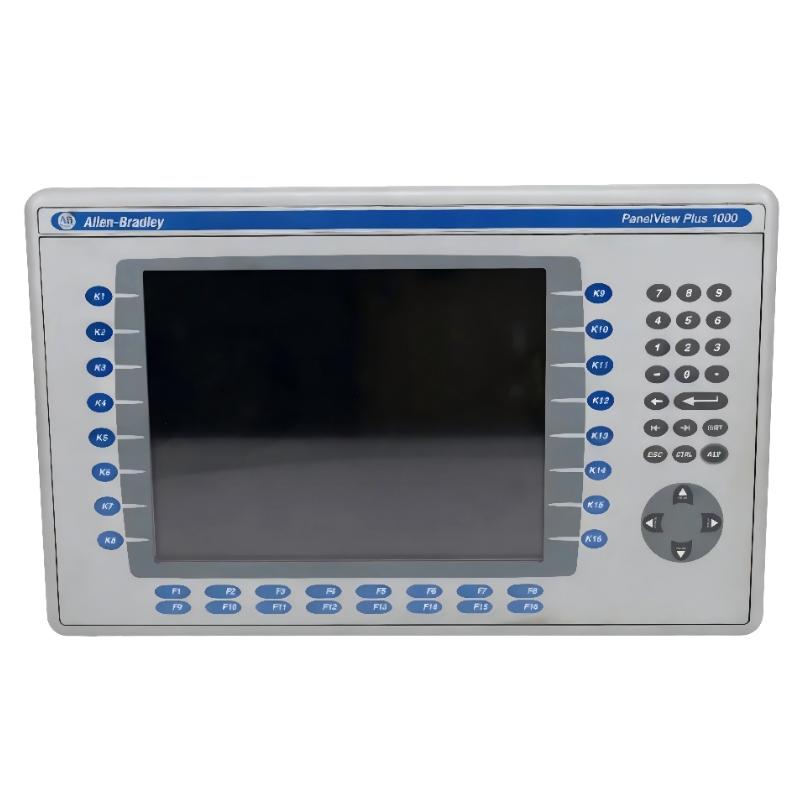

The Allen-Bradley 2711P-B10C4A9 PanelView Plus 6 1000 Operator Interface is a rugged industrial HMI designed to deliver reliable operator interaction with automation systems. Featuring a 10-inch color display and combined keypad/touch input, it provides clear visualization and efficient control of industrial processes. Built on Windows CE and supporting Ethernet communication, it remains widely used in manufacturing, process control, and machine automation environments where stable HMI performance is required.

Technical Specifications

Parameter	Specification
Dimensions	399 mm × 55 mm × 248 mm
Weight	2.8 kg
Display	10.4-inch color TFT LCD
Input Type	Keypad + Touchscreen
Communication	Ethernet, RS-232
Operating System	Windows CE 6.0
Mounting Type	Panel mount
Protection Rating	IP65 / NEMA 4X front

Recommended Related Models

Model	Product Name
2711P-B10C22A9P	PanelView Plus 7 1000 Operator Interface
2711P-T10C4D8	PanelView Plus 6 1000 Touch Version
2711P-K10C4A8	PanelView Plus 6 1000 Keypad Version
2711P-RP1	PanelView Logic Module for PV+ systems

Popular Related Models

Model	Product Name
2711P-B10C4A9	PanelView Plus 6 1000 Keypad/Touch HMI
2711P-T10C22A9P	PanelView Plus 7 1000 Standard Terminal
2711P-K10C4A9	PanelView Plus 6 1000 Keypad Terminal
2711P-RDT10C	PanelView Display Terminal 1000 Series

Applications

• Provides operator visualization and control for industrial automation systems.
Used in production lines, packaging machines, and process control stations for real-time monitoring.

• Enables HMI interaction with PLC systems via Ethernet and RS-232 communication.
Supports seamless integration with ControlLogix and CompactLogix platforms.

• Displays machine status, alarms, and process parameters.
Helps operators quickly respond to abnormal conditions in manufacturing environments.

• Supports SCADA-level data visualization at the machine interface level.
Improves operational efficiency and reduces downtime through intuitive control access.

Key Advantages

• High-resolution 10-inch color touchscreen display.
Provides clear visualization of complex industrial processes in real time.

• Dual communication support (Ethernet & RS-232).
Ensures flexible integration with legacy and modern control systems.

• Rugged industrial design for harsh environments.
Withstands vibration, temperature variation, and electrical noise.

• Windows CE-based operating system.
Supports stable runtime performance for FactoryTalk View ME applications.

• Flexible keypad + touch input interface.
Allows fast operator interaction even in demanding production environments.

Technical FAQs

1. Does this PanelView Plus 6 support Ethernet communication?
Yes, it supports Ethernet communication for PLC connectivity and remote data exchange.

2. Is it compatible with ControlLogix PLC systems?
Yes, it is fully compatible with Allen-Bradley ControlLogix and CompactLogix platforms.

3. Can it run FactoryTalk View ME applications?
Yes, it is designed to run FactoryTalk View Machine Edition runtime applications.

4. Does it support both touchscreen and keypad input?
Yes, it features a combined keypad and touchscreen interface for flexible operation.

5. Is it suitable for harsh industrial environments?
Yes, it is rated for industrial use with protection against vibration and electrical noise.

6. What operating system does it use?
It runs Windows CE 6.0 with extended industrial HMI features.

7. Can it be mounted in standard control cabinets?
Yes, it is designed for panel mounting in industrial control enclosures.

8. Does it support remote diagnostics?
Yes, through Ethernet connectivity it supports remote monitoring and troubleshooting.

9. Is firmware or software update required during use?
Occasional updates may be required depending on FactoryTalk compatibility and system version.

10. Is it still widely supported in modern systems?
It is a legacy PanelView Plus 6 model, but still used in many installed industrial systems worldwide.
