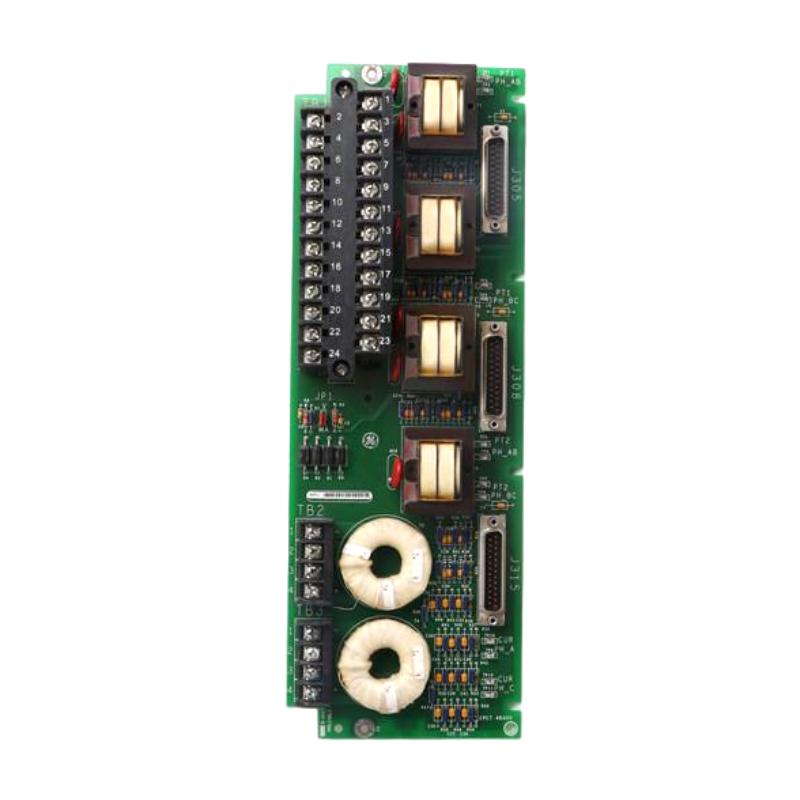

GE Fanuc IS200EPCTG1A Exciter PT/CT Terminal Block
GE Fanuc IS200EPCTG1A Exciter PT/CT Terminal Block
0.0
Points
Brand:GE Fanuc PLC Item No.:IS200EPCTG1A Product Origin:USA Product Dimensions:238 x 86 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE Fanuc IS200EPCTG1A Exciter PT/CT Terminal Block is a critical component for accurate and safe exciter system operation. By providing secure connections for potential and current transformers, it ensures reliable signal transmission to exciter modules. Its industrial-grade design guarantees durability and safety, making it ideal for high-reliability applications in power generation and industrial automation.
Technical Specifications
Specification
Details
Module Type
PT/CT Terminal Block
Compatible Systems
GE Fanuc IS200 Series PLC & Exciter Modules
Connection Type
Screw terminal blocks
Redundancy
Supports redundant PT/CT wiring setups
Operating Temperature
-20°C to 70°C (-4°F to 158°F)
Weight
0.45 kg
Dimensions
238 x 86 mm
Certifications
CE Compliant
Recommended Related Models
GE Fanuc IS200EXC Excitation Control Module
IS200EMIOH1A Main I/O Board
IS200EGDMH1A Grounding Detector Module
Popular Related Models
GE Fanuc IS200EPCTG2A Exciter PT/CT Terminal Block
IS200PSU Power Supply Module
IS200RTU Remote Terminal Unit
Applications
The GE Fanuc IS200EPCTG1A Exciter PT/CT Terminal Block is designed for secure and precise connection of potential transformers (PT) and current transformers (CT) in exciter control systems. Common applications include:
Generator excitation systems in power plants
Industrial turbines and large motor control systems
Power distribution networks requiring accurate voltage and current monitoring
Automation systems with redundant excitation control architectures
Critical infrastructure installations where precise PT/CT connections ensure system safety
This terminal block provides reliable signal interfacing between transformers and the exciter system, ensuring accurate and safe operation.
Advantages
Secure Connections: High-quality terminal design prevents loose or faulty wiring.
Industrial Reliability: Built to withstand vibration, temperature fluctuations, and electrical noise.
Ease of Integration: Compatible with GE Fanuc IS200 exciter modules and rack systems.
Simplified Maintenance: Clearly labeled terminals and robust construction allow fast inspections and replacements.
Enhanced Safety: Ensures accurate PT/CT signal delivery, critical for safe excitation control.
Technical FAQs
What is the primary function of the IS200EPCTG1A?
Provides secure connections for PT and CT signals in exciter systems.
Is it compatible with all IS200 exciter modules?
Yes, fully compatible with GE Fanuc IS200 PLC and exciter systems.
What type of connections are used?
Screw terminal blocks with clear labeling for PT/CT wiring.
What is the operating temperature range?
-20°C to 70°C (-4°F to 158°F).
Is it suitable for harsh industrial environments?
Yes, designed to resist vibration, electrical interference, and temperature variations.
Can it support redundant PT/CT configurations?
Yes, multiple terminal blocks can be configured for redundancy.
Does it provide visual diagnostics?
No, it is a passive terminal block; diagnostics are performed at the connected modules.
What maintenance is required?
Periodic inspection of wiring and terminal tightness is recommended.
Does it meet industrial safety standards?
Yes, CE compliant and built for industrial transformer connections.
What is the recommended mounting method?
Standard IS200 rack mounting for secure and accessible installation.
