Introduction

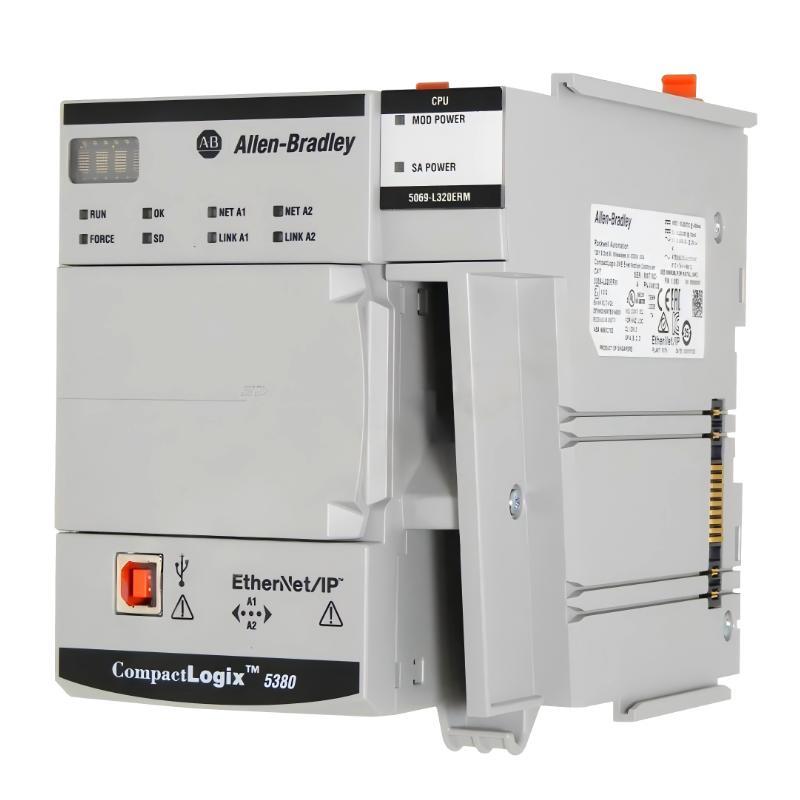

The Allen Bradley 5069-L320ERM CompactLogix 5380 Controller delivers a perfect balance of high-performance control, compact form factor, and robust security features. Designed for machine builders and system integrators, it offers scalable I/O integration, fast processing, and secure operation for modern industrial automation systems. Ideal for both new installations and upgrades, it ensures reliable, efficient, and safe control in demanding environments.

Technical Specifications

Feature	Specification
Product Type	CompactLogix 5380 Controller
Manufacturer	Allen Bradley
Model Number	5069-L320ERM
Dimensions (H × W × D)	143.97 × 101.66 × 136.81 mm
Weight	0.768 kg (1.69 lb)

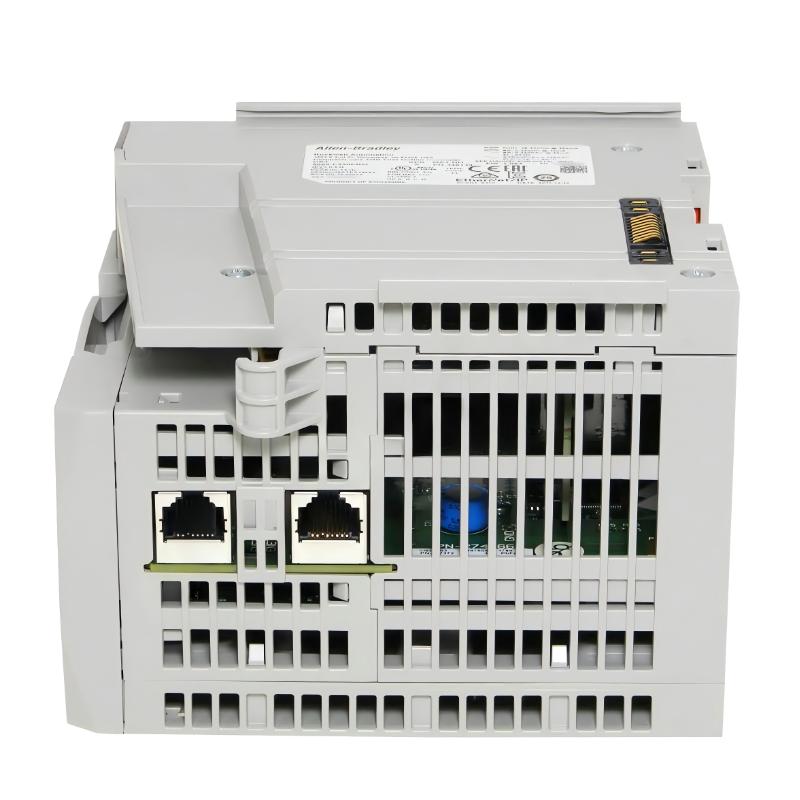

Communication Ports	Dual EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Mounting	DIN Rail or Panel Mountable
Expansion Compatibility	5069 Compact I/O Modules
Operating Temperature	0–60 °C (32–140 °F)
Security Features	Access Control, Secure Firmware Management
Certifications	UL, CE, cUL, CSA

Applications

The Allen Bradley 5069-L320ERM CompactLogix 5380 Controller is designed for versatile industrial automation, providing high-speed control with reliability and flexibility. Typical applications include:

Automated assembly lines in manufacturing plants
Robotics integration for precision production
Packaging and material handling systems
Process control in chemical and food industries
Automotive assembly and machine control
Industrial monitoring and data acquisition
Water and wastewater treatment automation
Energy management and utility systems

Its compact design allows installation in limited spaces while maintaining powerful processing capabilities.

Advantages

High-Performance Processing: Executes complex automation tasks with minimal latency.
Scalable Expansion: Compatible with the 5069 Compact I/O modules for flexible system growth.
EtherNet/IP Connectivity: Dual ports for network flexibility and simplified system integration.
Robust Security Features: Ensures safe operation and prevents unauthorized access.
Reliable 24/7 Operation: Engineered for continuous performance in harsh industrial environments.
Advanced Diagnostics: Quickly identifies system issues for efficient maintenance.
Space-Saving Design: Compact footprint suitable for dense control cabinets.
Seamless Integration: Works efficiently with Studio 5000 software and other Rockwell Automation products.

Technical FAQs

What programming software is compatible with this controller?
Studio 5000 Logix Designer supports full programming, configuration, and maintenance of this controller.
Does it support EtherNet/IP communication?
Yes. Dual EtherNet/IP ports provide fast and reliable industrial network connectivity.
Can this controller handle motion control applications?
Yes. It supports integrated motion control with compatible hardware modules.
Is the controller compatible with CompactLogix I/O modules?
Yes. Fully compatible with 5069 Compact I/O modules for scalable automation solutions.
Does it support online editing of programs?
Yes. Programs can be modified online without stopping the system.
Can the controller perform remote diagnostics?
Yes. Remote monitoring and troubleshooting are possible over EtherNet/IP networks.
What security features are included?
It includes access control, secure firmware management, and protection against unauthorized changes.
How many concurrent tasks can the controller execute?
The controller supports multiple tasks with priority-based scheduling to handle complex operations efficiently.
Is it suitable for Industrial Internet of Things (IIoT) applications?
Yes. It can collect, process, and transmit data across industrial networks for IIoT integration.
What environmental conditions can it operate under?
Rated for industrial temperature ranges (0–60 °C / 32–140 °F) and vibration-tolerant for factory conditions.
