Introduction

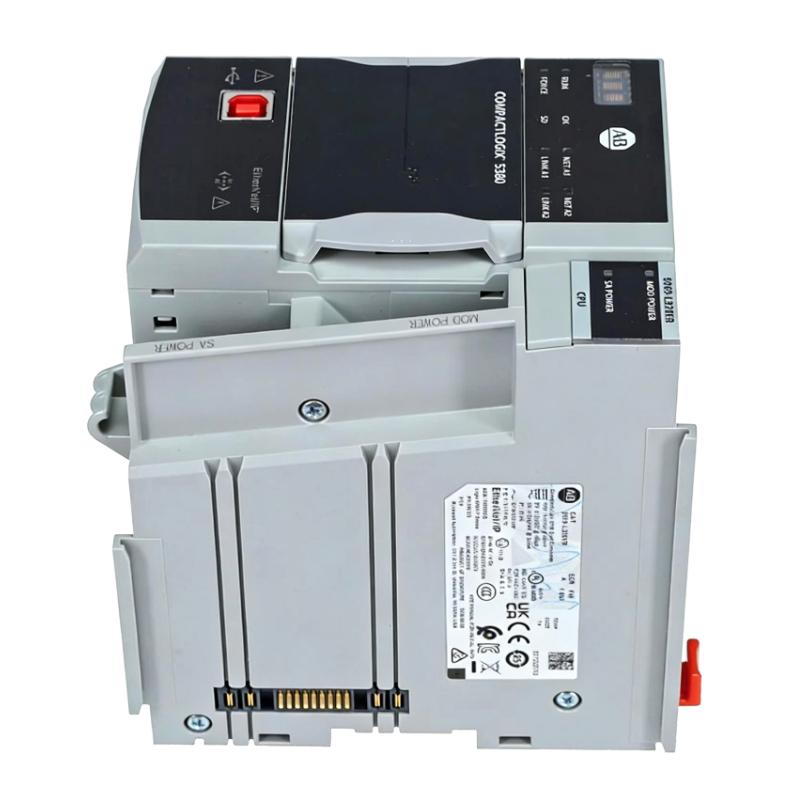

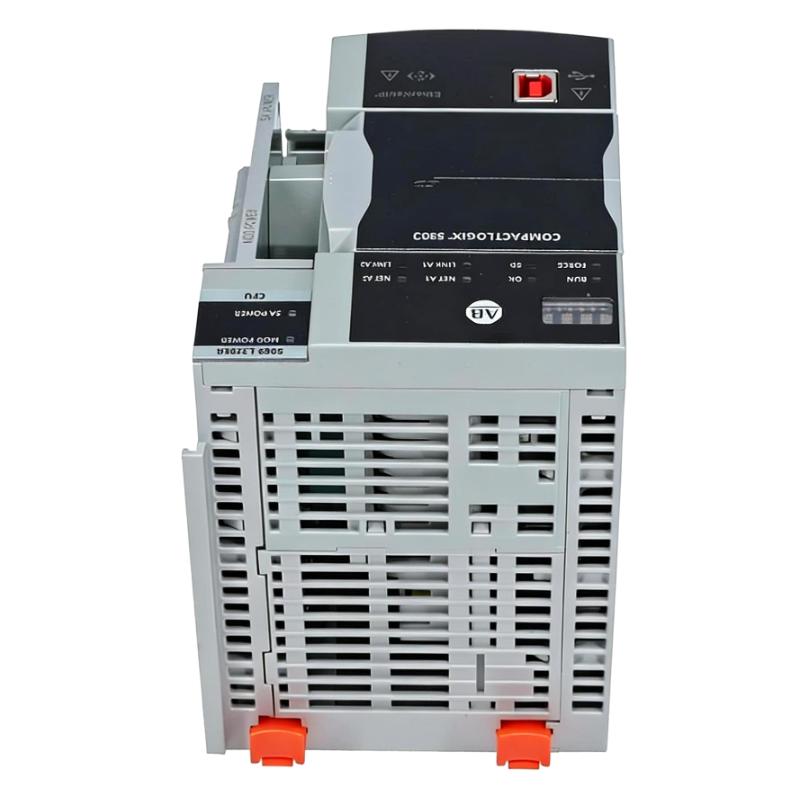

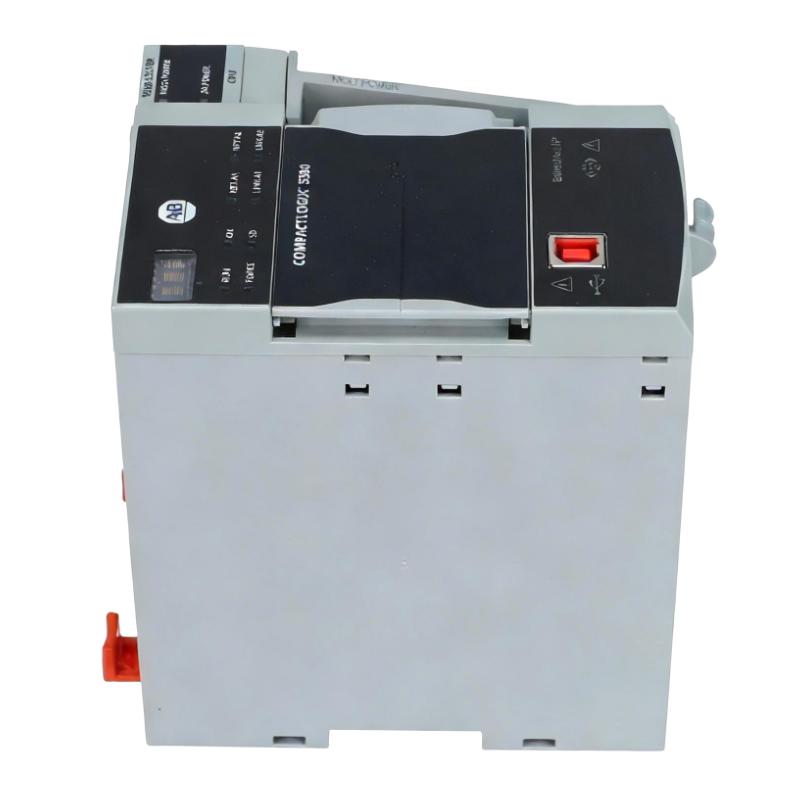

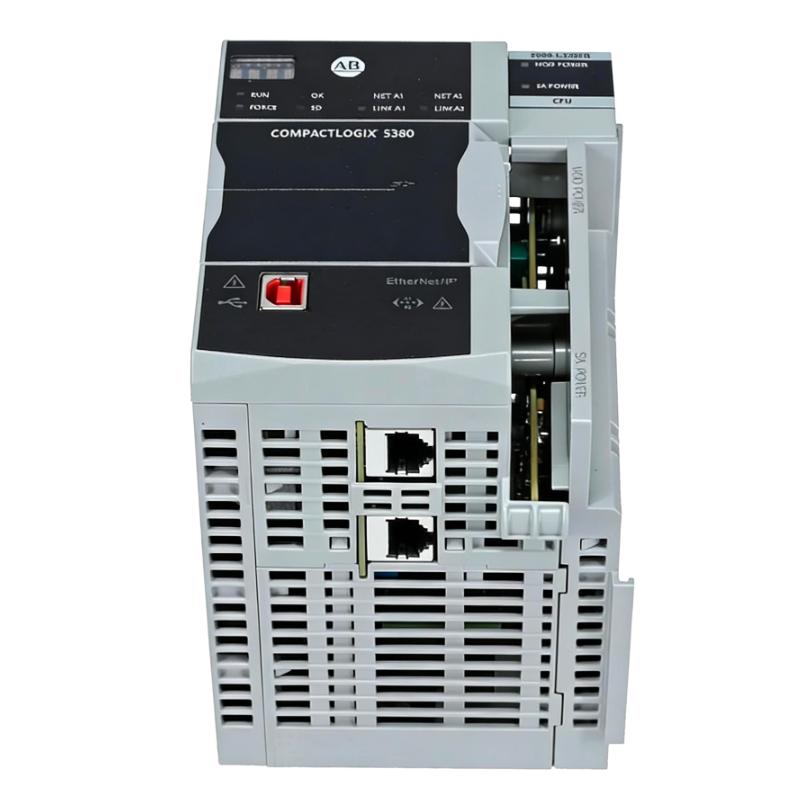

The Allen Bradley 5069-L320ERP CompactLogix 5380 Controller delivers high-performance automation in a compact, secure, and scalable package. Designed for manufacturers, system integrators, and industrial operators, it ensures reliable machine control, flexible network connectivity, and secure operation. Its combination of performance, diagnostics, and compact design makes it ideal for applications that demand precision, reliability, and efficiency.

Technical Specifications

Feature	Specification
Product Type	CompactLogix 5380 Controller
Manufacturer	Allen Bradley
Model Number	5069-L320ERP
Dimensions (H × W × D)	143.97 × 101.66 × 136.81 mm
Weight	0.768 kg (1.69 lb)
Communication Ports	Dual EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Mounting	DIN Rail / Panel Mount
Expansion Compatibility	5069 Compact I/O Modules
Operating Temperature	0–60 °C (32–140 °F)
Security Features	Access Control, Secure Firmware Management
Certifications	UL, CE, cUL, CSA

Applications

The Allen Bradley 5069-L320ERP CompactLogix 5380 Controller is ideal for demanding industrial automation environments that require reliable performance and flexible control. Its applications include:

High-speed assembly and production lines
Robotics and motion control integration
Packaging and material handling systems
Industrial process control in chemical and food industries
Automotive manufacturing and machine automation
Water and wastewater treatment plants
Energy management and utility automation
Industrial data acquisition and real-time monitoring

Designed for both new installations and system upgrades, it provides dependable control in compact spaces.

Advantages

Enhanced Processing Power: Handles complex logic, motion, and communication tasks efficiently.
Compact and Flexible Design: Fits into tight spaces while supporting modular I/O expansion.
EtherNet/IP Network Compatibility: Dual ports enable fast, reliable industrial communications.
Robust Security Features: Protects your automation system against unauthorized access.
Scalable Architecture: Expandable with 5069 Compact I/O modules for future-proof operations.
Advanced Diagnostics: Quickly identify issues and reduce downtime.
Reliable 24/7 Operation: Built for continuous industrial performance.
Seamless Integration: Works smoothly with Studio 5000 Logix Designer software.

Technical FAQs

Which software is used to program the 5069-L320ERP?
Studio 5000 Logix Designer provides full configuration and programming capabilities.
Does this controller support EtherNet/IP networks?
Yes, it features dual EtherNet/IP ports for robust and flexible industrial communication.
Can it handle motion control tasks?
Yes. When paired with compatible hardware, it supports motion and coordinated control.
Is the controller compatible with 5069 Compact I/O modules?
Yes. It is fully compatible, enabling scalable and modular system expansion.
Can programs be modified online?
Yes. Online edits are supported to reduce downtime during maintenance.
Does it allow remote monitoring?
Yes. Diagnostic and operational data can be accessed remotely through connected networks.
What security features does it provide?
Includes access control, secure firmware management, and protection from unauthorized modifications.
How many tasks can it manage concurrently?
The controller supports multiple tasks using priority-based scheduling for efficient operation.
Is it suitable for Industrial IoT (IIoT) applications?
Yes. It can manage, process, and transmit industrial data for IoT-enabled systems.
What environmental conditions can it withstand?
Rated for industrial temperature ranges (0–60 °C / 32–140 °F) and vibration-tolerant for factory use.
