Introduction

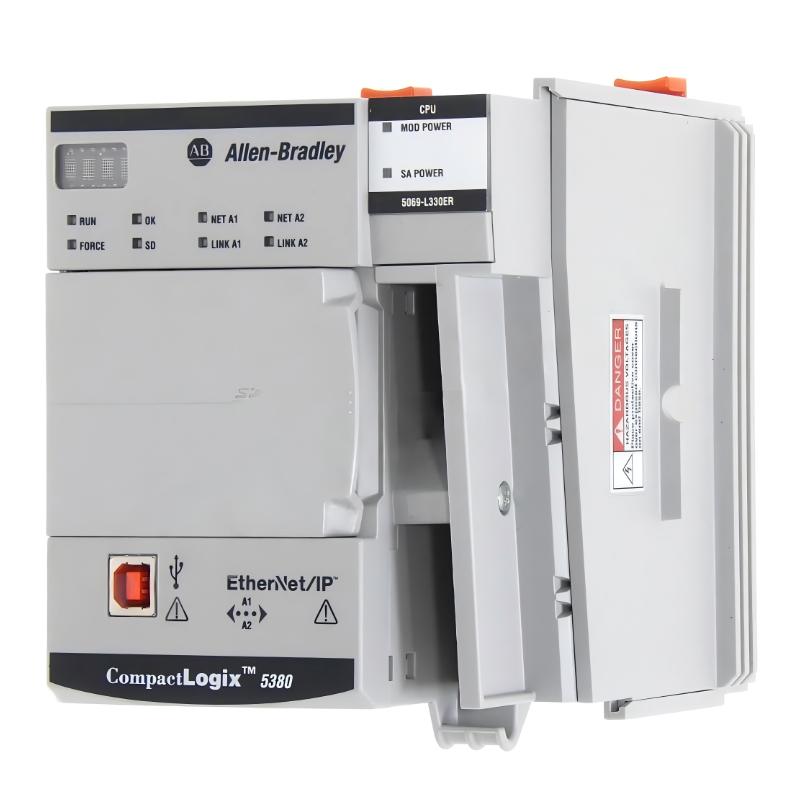

The Allen Bradley 5069-L330ER CompactLogix 5380 Controller offers an ideal combination of high-speed control, modular expansion, and reliable operation for industrial automation. Designed for demanding manufacturing applications, it provides robust performance, secure connectivity, and flexible integration with CompactLogix I/O systems. Its compact form factor and advanced features make it a dependable choice for both new systems and upgrades.

Technical Specifications

Feature	Specification
Product Type	CompactLogix 5380 Controller
Manufacturer	Allen Bradley
Model Number	5069-L330ER
Dimensions (H × W × D)	143.97 × 101.66 × 136.81 mm
Weight	0.768 kg (1.69 lb)
Communication Ports	Dual EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Mounting	DIN Rail / Panel Mount
Expansion Compatibility	5069 Compact I/O Modules
Operating Temperature	0–60 °C (32–140 °F)
Security Features	Access Control, Secure Firmware Management
Certifications	UL, CE, cUL, CSA

Applications

The Allen Bradley 5069-L330ER CompactLogix 5380 Controller is engineered for high-performance automation and control in a variety of industrial environments. Typical applications include:

Complex assembly lines in automotive and electronics industries
Robotics integration and coordinated motion control
Packaging, material handling, and conveyor systems
Industrial process control in chemical and food manufacturing
Energy management and utility automation
Water and wastewater treatment operations
Industrial monitoring and data acquisition
Critical manufacturing infrastructure with high uptime requirements

Its compact design allows for flexible deployment in control cabinets of limited space.

Advantages

Powerful Processing Performance: Handles demanding logic and motion tasks efficiently.
Compact, Space-Saving Design: Ideal for crowded control panels and compact installations.
Dual EtherNet/IP Ports: Enable high-speed networking and simplified system integration.
Reliable and Secure Operation: Built to maintain continuous operation with enhanced security features.
Expandable Architecture: Compatible with 5069 Compact I/O modules for modular system growth.
Advanced Diagnostic Capabilities: Provides real-time monitoring and troubleshooting.
Optimized for Studio 5000: Seamless programming and system configuration.
Scalable and Future-Proof: Supports both current and expanding automation needs.

Technical FAQs

Which software is required to program this controller?
The 5069-L330ER is programmed using Studio 5000 Logix Designer.
Does the controller support EtherNet/IP?
Yes, it includes dual EtherNet/IP ports for industrial network connectivity.
Can it be used for motion control applications?
Yes, it supports motion control tasks with compatible hardware modules.
Is it compatible with 5069 Compact I/O modules?
Yes, providing flexible and scalable system expansion.
Does it allow online program editing?
Yes, online edits are supported to minimize system downtime.
Can remote diagnostics be performed?
Yes, the controller supports remote monitoring through EtherNet/IP networks.
What security features are included?
Includes access control, secure firmware management, and protection against unauthorized modifications.
How many tasks can the controller execute concurrently?
Multiple tasks can run simultaneously using priority-based scheduling.
Is it suitable for IIoT and smart manufacturing applications?
Yes, it supports data collection, processing, and network integration for IIoT systems.
What environmental conditions can it operate under?
Rated for 0–60 °C (32–140 °F) and designed to withstand industrial vibration and operational stress.
