Introduction

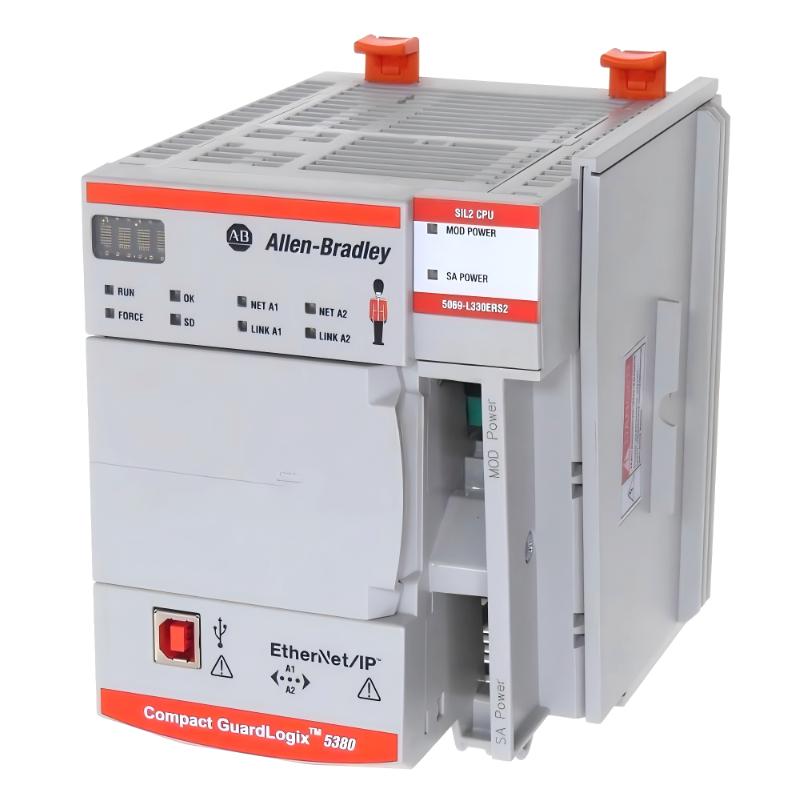

The Allen Bradley 5069-L330ERS2 CompactLogix 5380 Security Controller combines high-speed control, modular scalability, and advanced security features in a compact and efficient platform. Engineered for machine builders and industrial operators, it delivers reliable processing, secure communications, and flexible I/O expansion. This controller is ideal for applications requiring both operational efficiency and cybersecurity in modern industrial environments.

Technical Specifications

Specification	Details
Manufacturer	Allen Bradley
Product Family	CompactLogix 5380
Model Number	5069-L330ERS2
Product Type	Security Controller
Dimensions (H × W × D)	143.97 × 101.7 × 136.81 mm
Weight	0.768 kg (1.69 lb)
Communication Ports	Dual EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Mounting	DIN Rail / Panel Mount
Expansion Compatibility	5069 Compact I/O Modules
Operating Temperature	0–60 °C (32–140 °F)
Security Features	Access Control, Secure Firmware Management

Applications

The Allen Bradley 5069-L330ERS2 CompactLogix 5380 Security Controller is designed for secure and high-performance automation applications where reliability and cybersecurity are essential. Typical applications include:

Safety-critical manufacturing processes
Robotic assembly and coordinated motion systems
Automotive production lines
Packaging and material handling operations
Process control in pharmaceutical and food industries
Industrial monitoring and data acquisition systems
Water and wastewater treatment facilities
Smart factory and Industry 4.0 implementations

Its compact design ensures flexibility for integration into tight control cabinets without sacrificing performance.

Advantages

Integrated Security Functions: Protects automation systems from unauthorized access.
High-Performance Processing: Handles complex control and motion applications efficiently.
Compact Footprint: Saves valuable panel space in dense installations.
Dual EtherNet/IP Ports: Enable flexible networking and high-speed communication.
Scalable I/O Expansion: Compatible with 5069 Compact I/O modules for system growth.
Advanced Diagnostics: Simplifies troubleshooting and reduces downtime.
Reliable 24/7 Operation: Designed for continuous operation in industrial environments.
Seamless Studio 5000 Integration: Easy programming, configuration, and maintenance.

Technical FAQs

Which programming environment is required?
Studio 5000 Logix Designer is used for programming, configuration, and diagnostics.
Does the controller support EtherNet/IP communication?
Yes. Dual EtherNet/IP ports enable fast and reliable industrial networking.
Can it manage motion control applications?
Yes. The controller supports motion tasks when paired with compatible motion devices.
Is it compatible with 5069 Compact I/O modules?
Yes. Modular I/O expansion is supported for scalable automation systems.
Can program changes be made online?
Yes. Online editing is supported, minimizing production downtime.
Are remote diagnostics and monitoring possible?
Yes. The controller supports remote monitoring through network-connected systems.
What security features does it provide?
Includes access control, secure firmware management, and protection from unauthorized modifications.
How many tasks can run simultaneously?
Multiple tasks can be executed with priority-based scheduling for efficient operation.
Is the controller suitable for IIoT applications?
Yes. Its connectivity and processing power enable integration with smart manufacturing networks.
What environmental conditions can it operate under?
Rated for industrial temperature ranges (0–60 °C / 32–140 °F) and designed to withstand factory vibration.
