Introduction

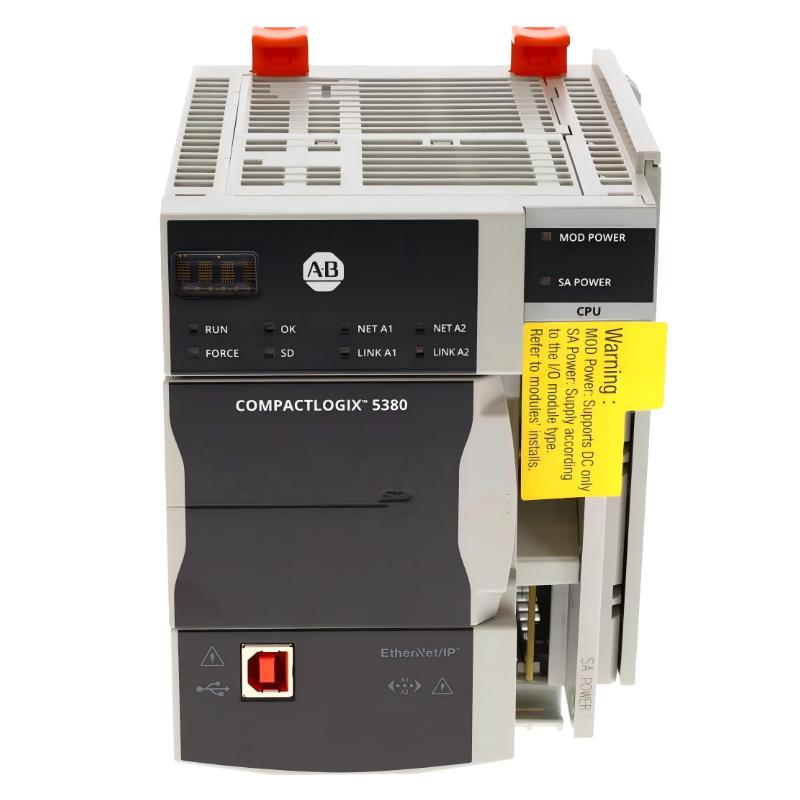

The Allen Bradley 5069-L340ERP CompactLogix 5380 Controller delivers a robust, scalable, and secure automation solution for industrial operations. Designed for high-performance applications, it provides seamless connectivity, advanced diagnostics, and flexible I/O expansion. Its compact footprint and reliable operation make it ideal for machine builders, system integrators, and manufacturers seeking efficient, high-speed control with future-ready scalability.

Technical Specifications

Specification	Details
Manufacturer	Allen Bradley
Product Family	CompactLogix 5380
Model Number	5069-L340ERP
Product Type	Controller
Dimensions (H × W × D)	143.97 × 101.66 × 136.81 mm
Weight	0.768 kg (1.69 lb)
Communication Ports	Dual EtherNet/IP
Motion Capability	Integrated motion support
I/O Expansion	5069 Compact I/O modules (up to 31)
Programming Software	Studio 5000 Logix Designer
Mounting Type	DIN rail / panel mount
Operating Temperature	0–60 °C (32–140 °F)
Security Features	Access Control, Secure Firmware Management

Applications

The Allen Bradley 5069-L340ERP CompactLogix 5380 Controller is designed for demanding automation applications that require reliable performance, flexible connectivity, and modular expansion. Its key applications include:

High-speed industrial assembly lines
Robotic integration and motion control systems
Automotive manufacturing and precision machining
Packaging, material handling, and conveyor automation
Process control in chemical, food, and beverage industries
Smart factories and IIoT-enabled manufacturing
Industrial data acquisition and real-time monitoring
Energy and utility management systems

Its compact form factor ensures seamless integration into panels with space constraints while maintaining robust computing capabilities.

Advantages

High-Performance Processing: Handles complex logic, motion, and I/O tasks efficiently.
Compact and Flexible Design: Fits into tight control cabinets without compromising functionality.
Dual EtherNet/IP Ports: Facilitate high-speed networking and simplified system integration.
Expandable Architecture: Supports up to 31 5069 Compact I/O modules.
Reliable Operation: Industrial-grade design for 24/7 continuous use.
Enhanced Security Features: Protects your automation system from unauthorized access.
Advanced Diagnostics: Streamlines troubleshooting and reduces unplanned downtime.
Optimized for Studio 5000: Simplifies programming, configuration, and maintenance.
Scalable for Future Needs: Allows seamless expansion for growing automation requirements.
High Network Capacity: Supports multiple EtherNet/IP devices and distributed I/O nodes.

Technical FAQs

What software is used to program this controller?
Studio 5000 Logix Designer is used for programming, configuration, and diagnostics.
Does the controller support motion control applications?
Yes, it supports integrated motion tasks when paired with compatible motion hardware.
How many I/O modules can be connected locally?
Up to 31 Compact 5000 I/O modules can be added for scalable system expansion.
Which communication protocols are supported?
EtherNet/IP is the primary protocol for networking and industrial communication.
Can program modifications be done online?
Yes. Online editing is supported to minimize production downtime.
Does it support remote diagnostics?
Yes, diagnostic information and status monitoring can be accessed remotely.
What security features are included?
The controller provides access control, secure firmware management, and protection against unauthorized changes.
How many concurrent tasks can it manage?
Multiple tasks can run simultaneously with priority-based scheduling.
Is it suitable for smart manufacturing and IIoT applications?
Yes, its processing power, connectivity, and modular architecture make it ideal for modern industrial networks.
What environmental conditions can the controller operate under?
Rated for 0–60 °C (32–140 °F) and industrial vibration-tolerant conditions.
