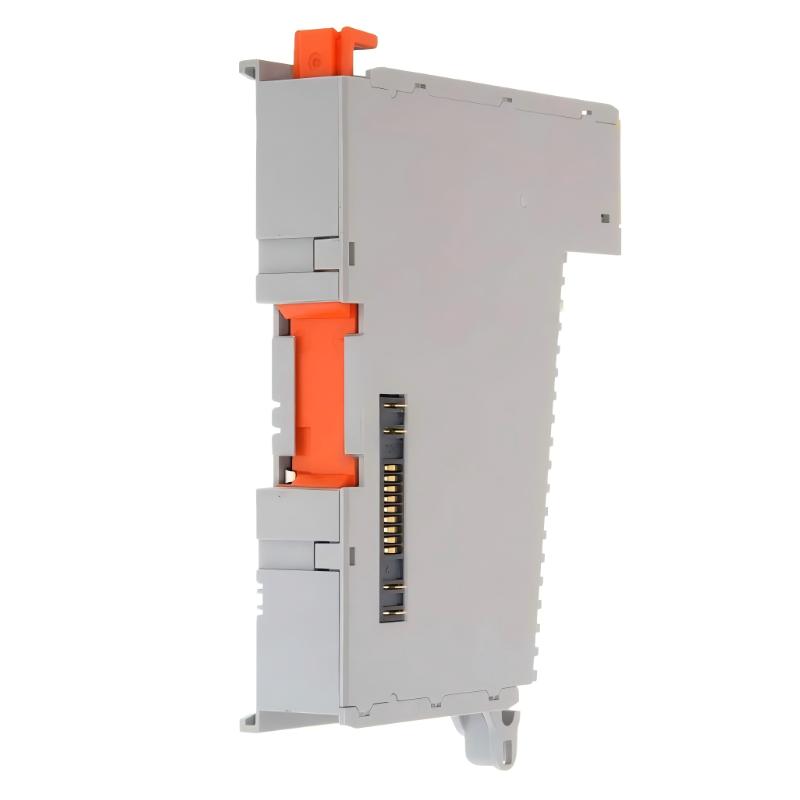

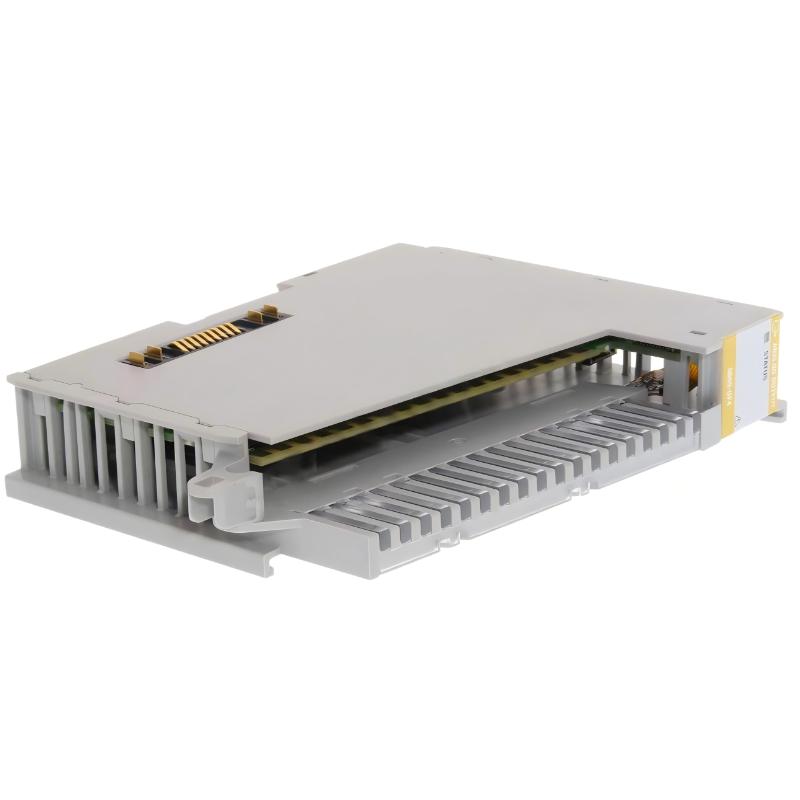

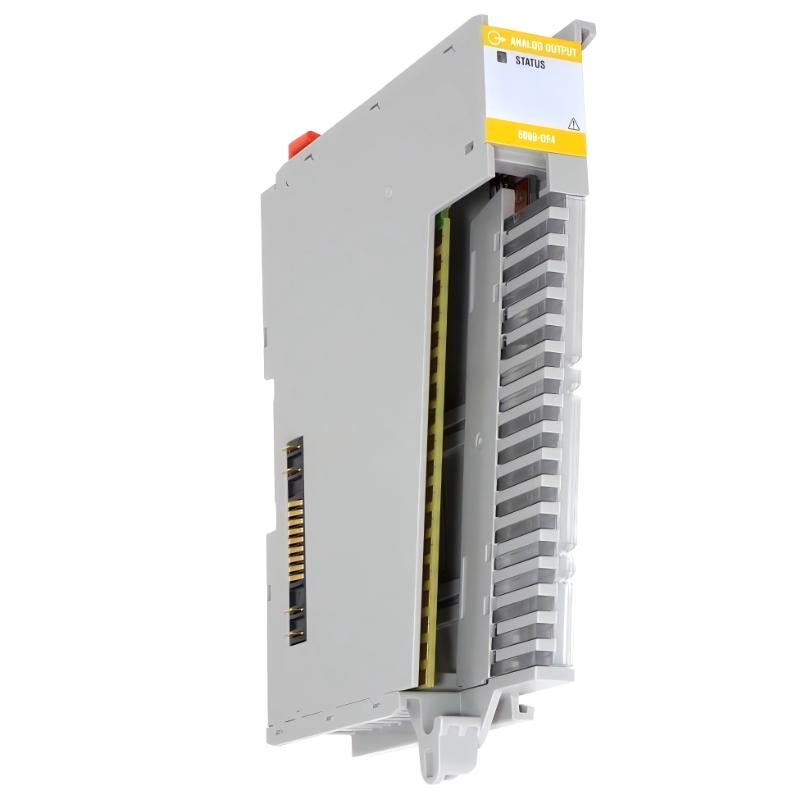

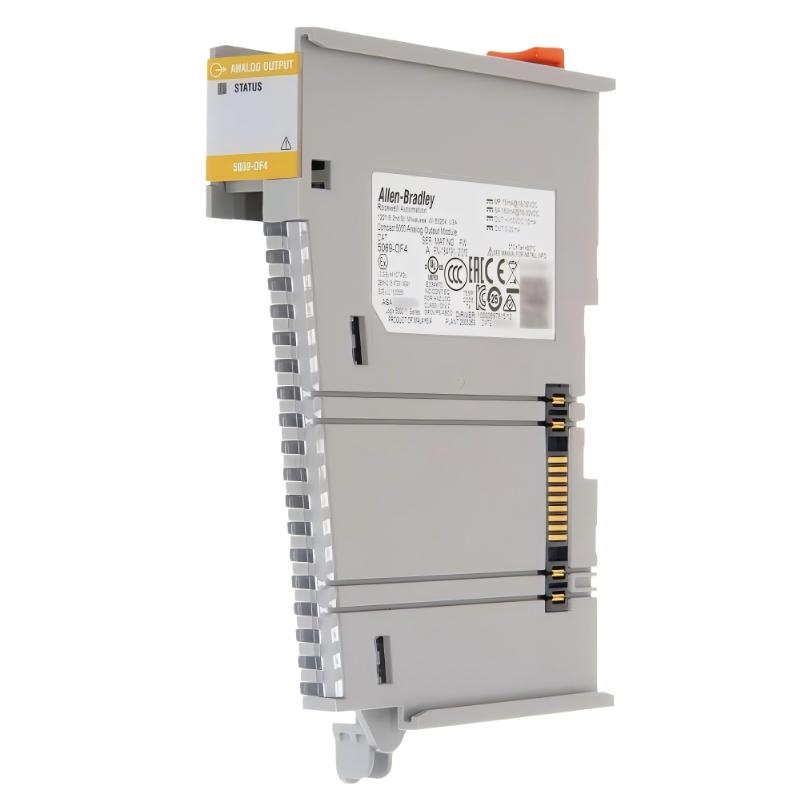

Allen Bradley 5069-OF4 Compact 5000 Analog Current/Voltage Output Module

Applications

The Allen Bradley 5069-OF4 Compact 5000 Analog Output Module is designed to provide precise current and voltage outputs for industrial automation systems. Its typical applications include:

• Process control in chemical, pharmaceutical, and food & beverage industries
• Temperature, flow, and pressure control loops
• High-accuracy analog signal generation for industrial machinery
• Automation of valves, actuators, and motor drives
• Integration with CompactLogix 5380 or CompactLogix 5069 controllers
• Energy management systems requiring analog control signals
• Testing and calibration equipment for industrial sensors
• Machine OEMs requiring compact, reliable analog output solutions

Advantages

• Flexible Output Modes: Supports both current (4–20 mA) and voltage (0–10 V) outputs
• High Accuracy: Precision analog output ensures reliable control signals
• Compact Design: Saves panel space with only 22 mm width
• Seamless Integration: Works with Allen Bradley CompactLogix controllers for streamlined automation
• Scalable Architecture: Multiple modules can be installed for multi-channel applications
• Diagnostics Support: Provides advanced monitoring and fault reporting
• Reliable Industrial Operation: Rated for continuous operation in harsh industrial environments
• Easy Wiring: Spring-clamp terminal blocks allow fast and secure connections
• Optimized for Studio 5000: Supports programming and monitoring through standard engineering tools
• Consistent Performance: Maintains output stability under varying temperature and load conditions

Technical FAQs

1. What types of analog outputs does the 5069-OF4 support?
   It supports both current (4–20 mA) and voltage (0–10 V) outputs.
2. How many channels does this module provide?
   The module provides 4 analog output channels.
3. What is the maximum load resistance for current output?
   The module supports up to 500 Ω load for 4–20 mA current output.
4. Is the module compatible with CompactLogix controllers?
   Yes, it is designed to integrate seamlessly with CompactLogix 5380 and 5069 controllers.
5. Can this module be used for PID loop control?
   Yes, it is suitable for use in analog control loops including PID applications.
6. Does it offer diagnostics for each channel?
   Yes, individual channel diagnostics provide fault and status information.
7. What is the update rate for analog outputs?
   The module supports high-speed updates suitable for fast process control applications.
8. Is the module hot-swappable?
   No, it must be powered down before installation or removal.
9. What is the operating temperature range?
   Rated for 0–60 °C (32–140 °F) operation.
10. What mounting options are available?
    It mounts on standard DIN rails within a CompactLogix control system.
