Introduction

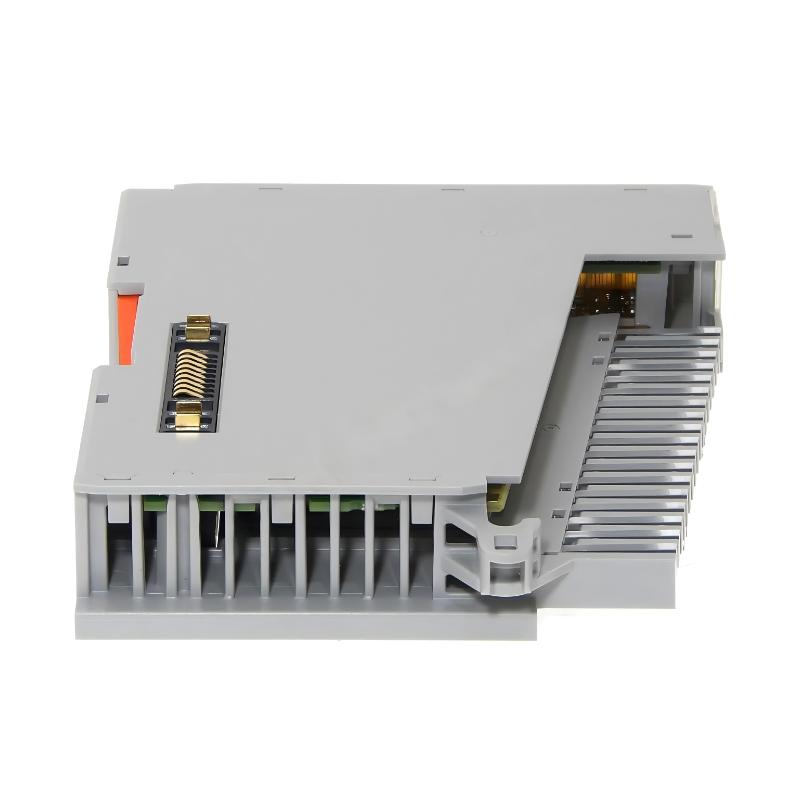

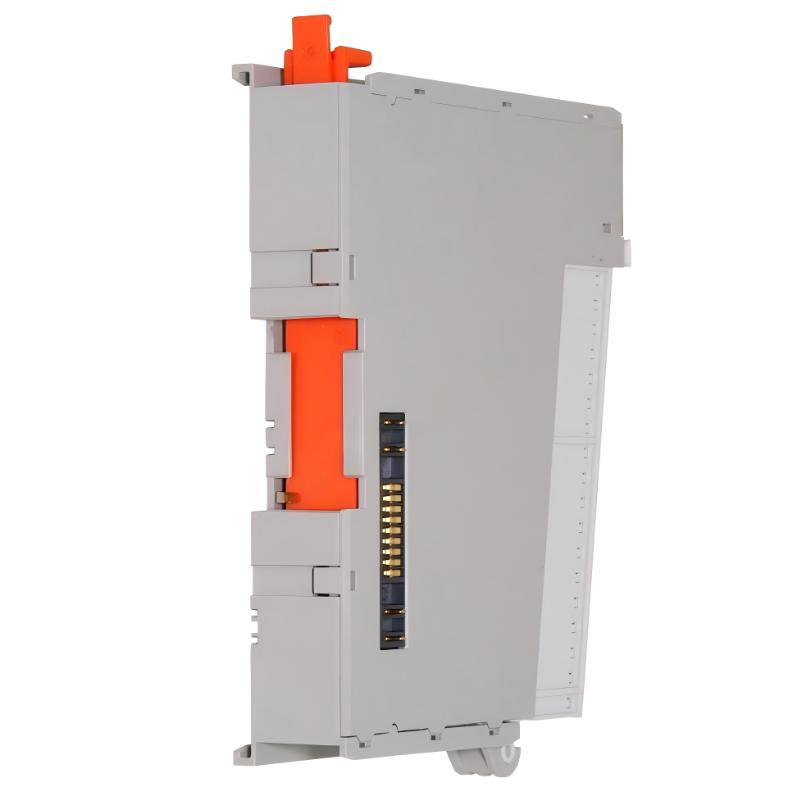

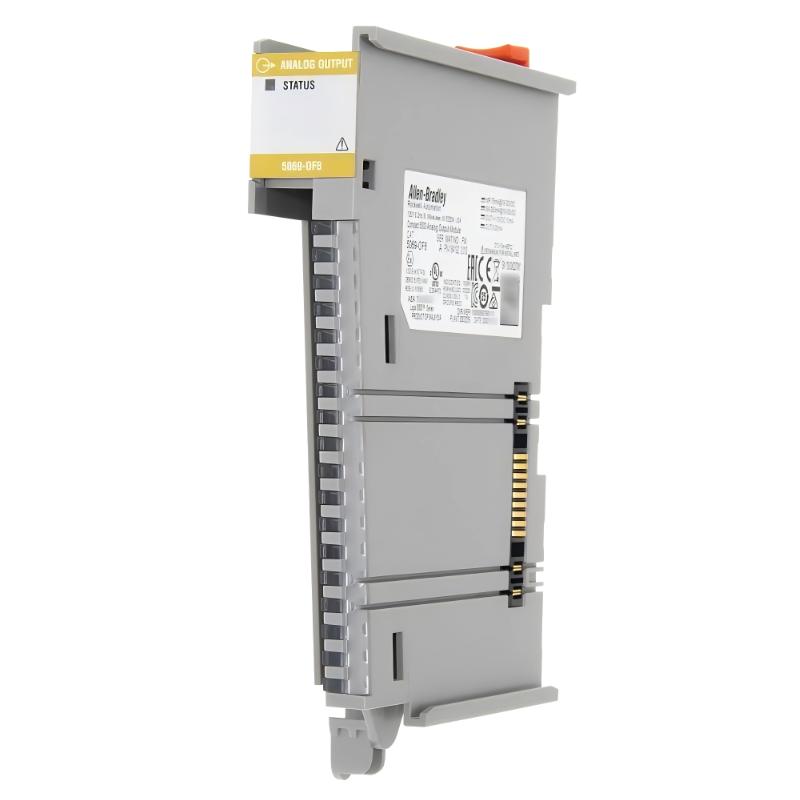

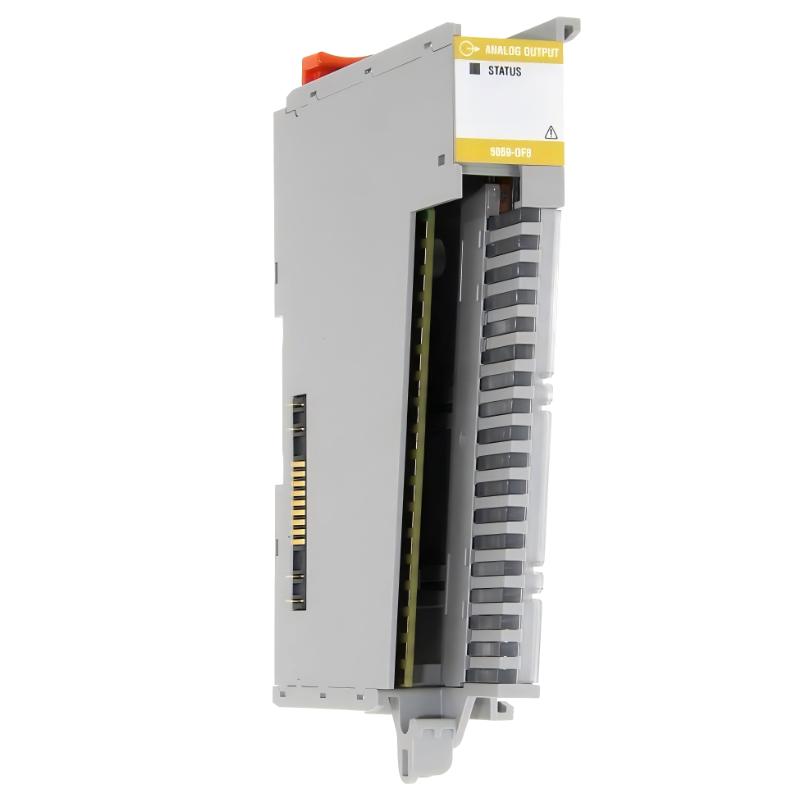

The Allen Bradley 5069-OF8 Compact 5000 Analog Output Module delivers high-density, high-accuracy analog signal control for advanced industrial automation systems. With eight configurable output channels, it provides flexible control of actuators, valves, and process devices in a compact footprint. Designed for seamless integration with CompactLogix controllers, it enhances system scalability, reduces wiring complexity, and ensures reliable performance in continuous industrial operations.

Technical Specifications

Specification	Details
Manufacturer	Allen Bradley
Product Family	Compact 5000 Analog Output
Model Number	5069-OF8
Product Type	Analog Output Module
Channels	8
Output Types	4–20 mA, 0–10 V
Dimensions (H × W × D)	144.57 × 25.56 × 109.09 mm
Weight	0.175 kg (0.39 lb)
Mounting	DIN Rail
Compatibility	CompactLogix 5069 / 5380 Controllers
Wiring	Spring-clamp terminals
Operating Temperature	0–60 °C (32–140 °F)

Applications

The Allen Bradley 5069-OF8 Compact 5000 Analog Output Module is designed for precision analog signal control in modern industrial automation systems. It is widely used in applications that require stable, accurate, and scalable output performance, including:

Process control systems in chemical and petrochemical plants
Flow, pressure, and temperature regulation loops
Pharmaceutical and food & beverage production lines
Automated valve and actuator positioning systems
Industrial machine control and OEM equipment design
Energy management and power distribution systems
Water treatment and environmental control systems
Advanced test and calibration equipment setups

Its multi-channel capability makes it ideal for systems requiring multiple simultaneous analog control signals.

Advantages

8 High-Precision Output Channels: Enables efficient multi-loop process control
Flexible Signal Types: Supports current and voltage analog outputs
Compact Form Factor: Saves valuable panel space in dense control cabinets
Seamless System Integration: Fully compatible with CompactLogix 5069 controllers
Stable Signal Performance: Ensures consistent output accuracy under varying loads
Advanced Diagnostics: Real-time channel status monitoring and fault detection
Scalable Architecture: Easily expands within Compact 5000 I/O systems
Industrial Reliability: Built for continuous operation in demanding environments
Fast Response Time: Suitable for dynamic process control applications
Simplified Wiring Design: Spring-clamp terminals for efficient installation

Technical FAQs

How many output channels does the 5069-OF8 provide?
It provides 8 independent analog output channels.
What signal types are supported?
It supports both analog current (4–20 mA) and voltage (0–10 V) outputs.
Can this module be used for closed-loop control systems?
Yes, it is suitable for PID and other closed-loop process control applications.
Is it compatible with CompactLogix controllers?
Yes, it is fully compatible with Allen Bradley CompactLogix 5380 and 5069 platforms.
Does each channel have diagnostics?
Yes, each output channel includes individual diagnostics and status monitoring.
What is the typical update speed?
The module supports fast output updates suitable for real-time control applications.
Can voltage and current outputs be used simultaneously?
Yes, channels can be configured independently for voltage or current output.
Is the module hot-swappable?
No, power should be removed before installation or removal.
What mounting method is used?
It is designed for DIN rail mounting in industrial control cabinets.
What environments is it suitable for?
It is designed for industrial environments with temperatures from 0–60 °C (32–140 °F).
