Introduction

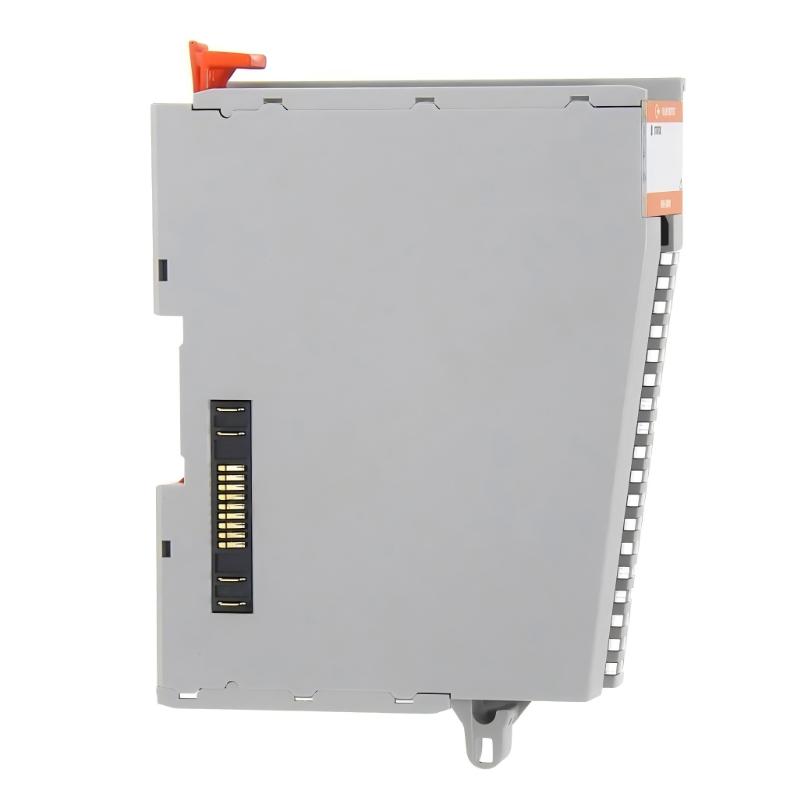

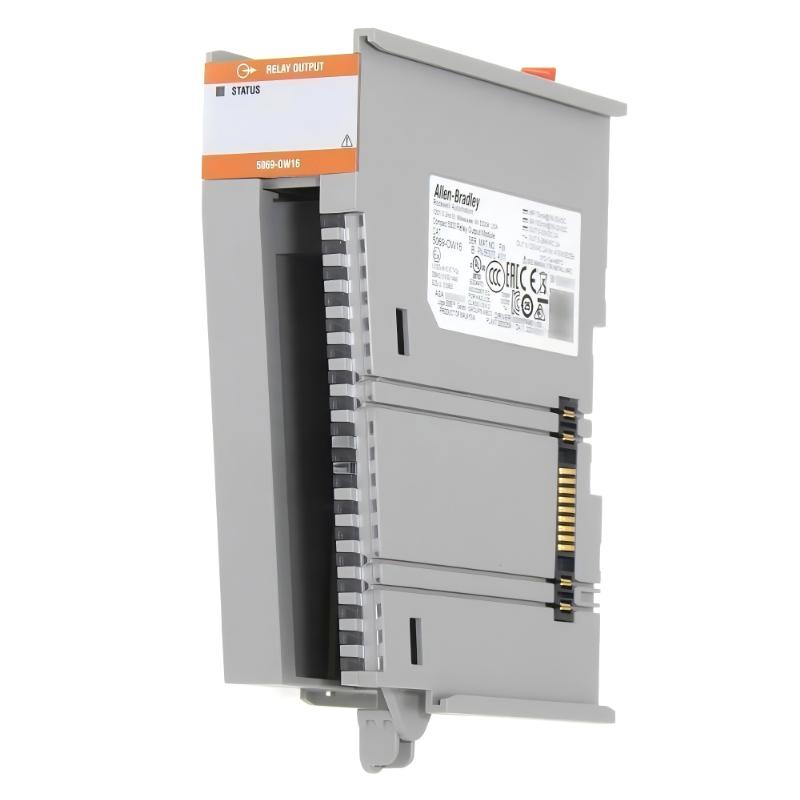

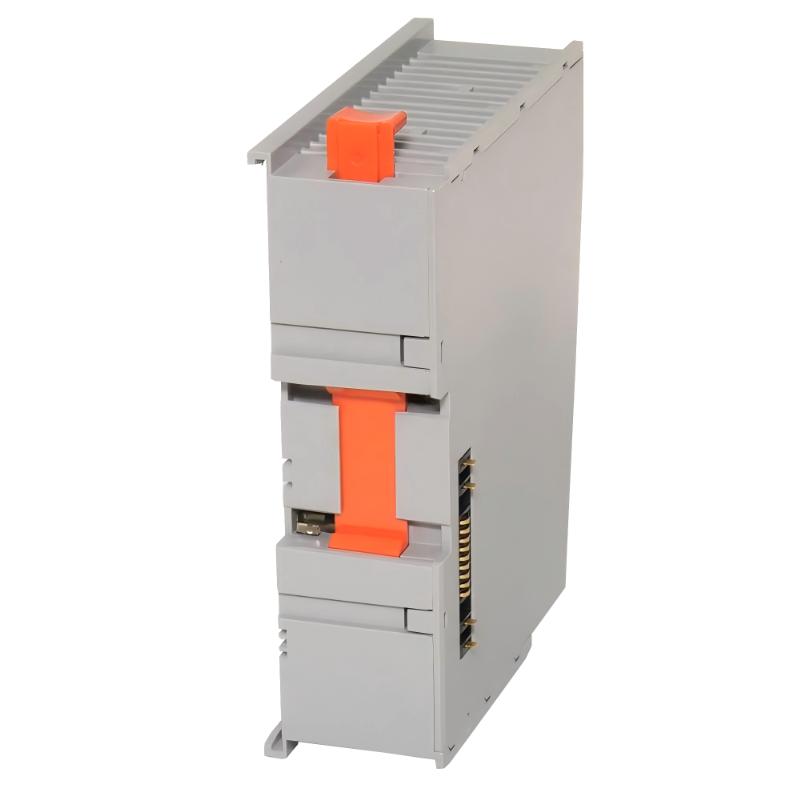

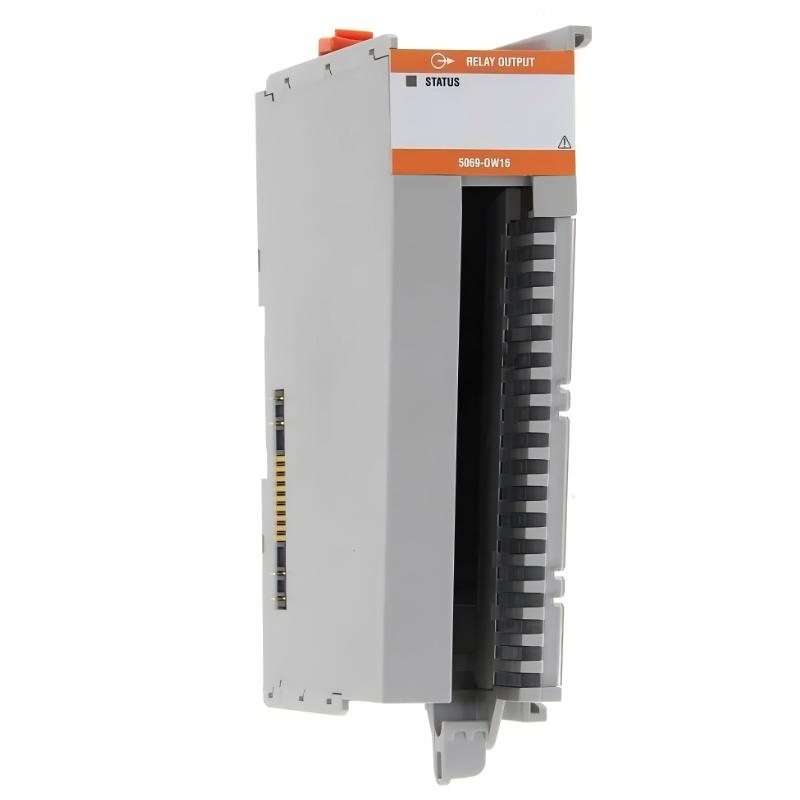

The Allen Bradley 5069-OW16 Compact 5000 Relay Output Module delivers a compact and reliable solution for switching a wide range of industrial loads. With 16 independently controlled relay outputs, it provides flexibility for machine control, process automation, and general-purpose switching applications. Designed for seamless integration within the CompactLogix ecosystem, it offers a dependable and space-efficient alternative to traditional relay-based control systems.

Technical Specifications

Specification	Details
Manufacturer	Allen Bradley
Product Family	Compact 5000 I/O
Model Number	5069-OW16
Product Type	Relay Output Module
Output Channels	16 (Normally Open)
Output Type	Relay (Form A)
Switching Function	AC/DC Load Control
Dimensions (H × W × D)	144.6 × 36 × 105.4 mm
Weight	0.24 kg (0.53 lb)
Mounting	DIN Rail
Compatibility	CompactLogix 5069 / 5380 Controllers
Wiring Method	Spring-clamp terminals
Operating Temperature	0–60 °C (32–140 °F)

Applications

The Allen Bradley 5069-OW16 Compact 5000 Relay Output Module is designed for industrial automation systems requiring reliable switching of AC and DC loads through compact relay-based outputs. It is commonly used in:

Industrial machine control systems
Motor starters and contactor control circuits
Conveyor and material handling systems
Packaging and production machinery
Lighting and alarm control systems in industrial plants
Process automation requiring isolated switching outputs
Retrofit upgrades from legacy relay output systems
General-purpose discrete output control in CompactLogix architectures

Its relay-based design makes it suitable for applications where electrical isolation and flexible load switching are required.

Advantages

16 Relay Outputs: High-density output configuration for complex control systems
Universal Load Switching: Supports both AC and DC switching applications
Electrical Isolation: Relay architecture provides strong isolation between field and control circuits
Compact Design: Reduces cabinet space requirements while maintaining high output density
Flexible Integration: Works seamlessly with CompactLogix 5069 and 5380 platforms
Robust Industrial Design: Suitable for harsh industrial environments and continuous operation
Simple Wiring: Spring-clamp terminals for fast and reliable installation
High Compatibility: Ideal replacement for traditional relay-based I/O systems
Reliable Switching Performance: Designed for stable operation in industrial duty cycles
Scalable System Architecture: Easily combined with other Compact 5000 I/O modules

Technical FAQs

What type of outputs does the 5069-OW16 provide?
It provides 16 normally open relay outputs.
What load types can it switch?
It supports both AC and DC loads depending on application requirements.
Is electrical isolation provided?
Yes, relay outputs provide inherent galvanic isolation between field devices and controller logic.
Can it be used with CompactLogix 5380 controllers?
Yes, it is fully compatible with CompactLogix 5380 and Compact 5000 systems.
What is the typical switching delay?
Relay switching typically operates in the millisecond range suitable for general industrial control.
Can it drive inductive loads?
Yes, but proper suppression (such as surge protection devices) is recommended for inductive loads.
Is the module suitable for high-speed switching?
No, relay outputs are intended for general-purpose switching, not high-speed applications.
Does each channel operate independently?
Yes, each of the 16 relay channels is individually controlled.
Can it be used as a direct replacement for solid-state outputs?
Yes, but response time and lifetime characteristics differ from solid-state modules.
What environmental conditions is it rated for?
It is designed for industrial environments with typical operating ranges of 0–60 °C (32–140 °F).
