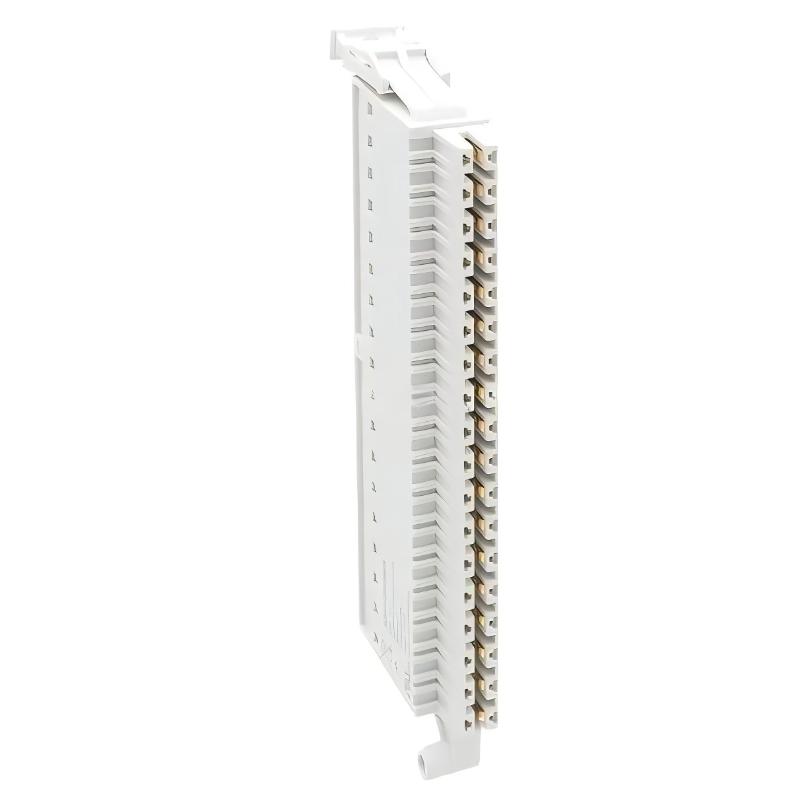

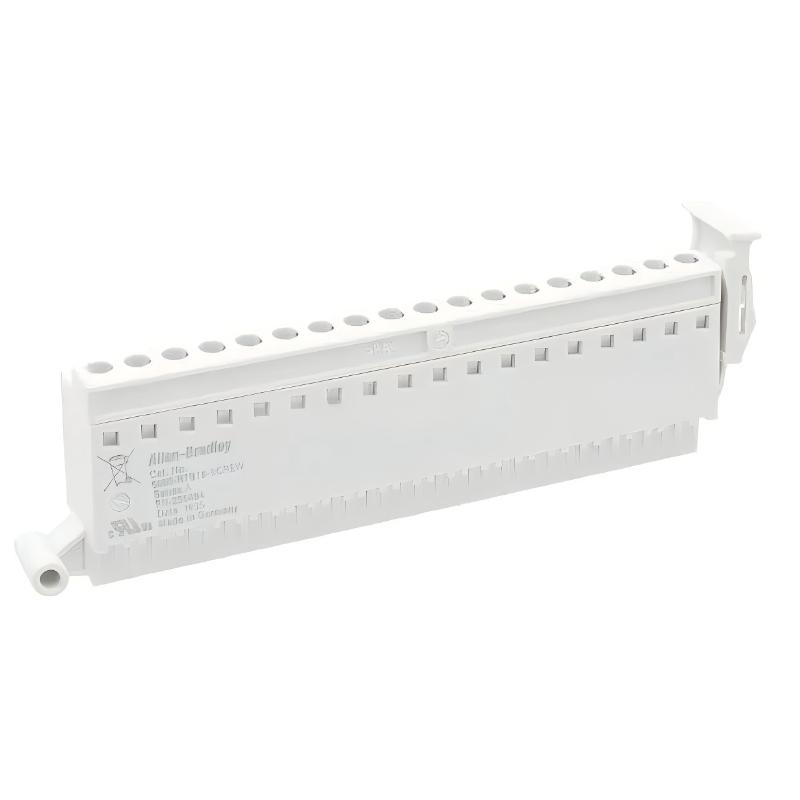

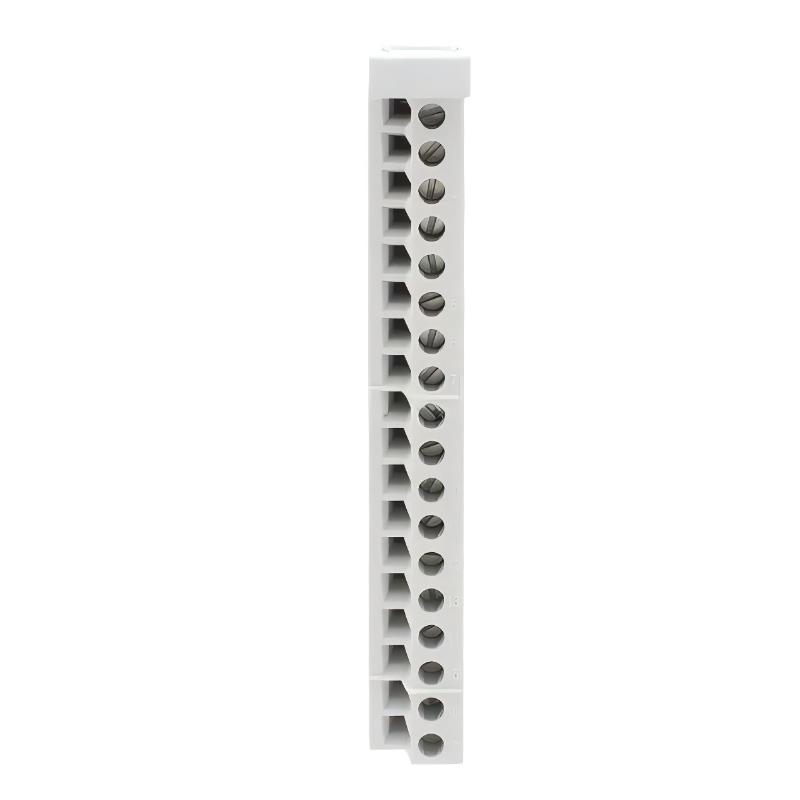

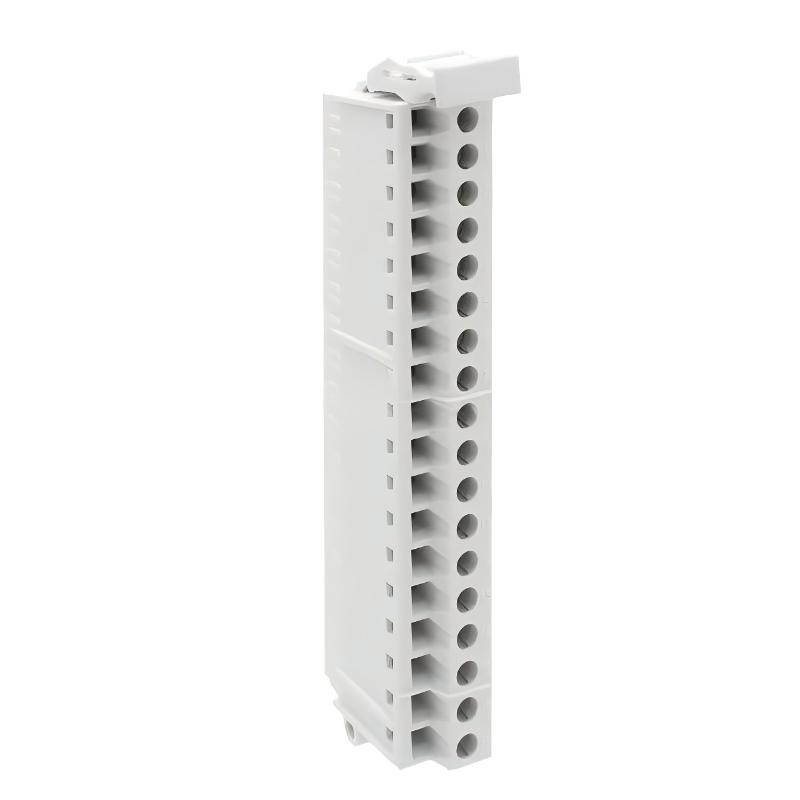

Allen Bradley 5069-RTB18-SCREW Compact 5000 I/O Terminal Blocks

Applications

The Allen Bradley 5069-RTB18-SCREW Compact 5000 I/O Terminal Block is designed for secure and reliable field wiring connections in industrial automation systems. It is commonly used in:

• CompactLogix 5380 and Compact GuardLogix I/O systems
• Industrial machine control panels
• Process automation wiring interfaces
• Packaging and material handling systems
• Distributed I/O architectures over EtherNet/IP
• OEM machine builds requiring modular wiring solutions
• Retrofit upgrades for modern Compact 5000 platforms
• Factory automation systems with high-density I/O requirements

It serves as the critical interface between field devices and I/O modules, ensuring stable electrical connectivity in demanding environments.

Advantages

• Secure Screw-Termination Design: Ensures strong and stable wiring connections
• 18-Pin Configuration: Supports high-density I/O module integration
• Reliable Field Wiring Interface: Reduces wiring errors and improves system stability
• Modular System Compatibility: Designed for Compact 5000 I/O platform architecture
• Industrial-Grade Construction: Built for vibration and harsh factory conditions
• Easy Installation and Replacement: Simplifies maintenance and system upgrades
• Consistent Electrical Contact: Maintains signal integrity in control systems
• Space-Efficient Design: Optimized for dense control cabinet layouts
• Standardized Connection Interface: Reduces engineering complexity across projects
• Supports Scalable I/O Expansion: Works seamlessly in multi-module systems

Technical FAQs

1. What is the purpose of the 5069-RTB18-SCREW?
   It provides a removable screw-type terminal interface for Compact 5000 I/O modules.
2. How many pins does this terminal block support?
   It supports 18 wiring points for field connections.
3. Is this terminal block required for Compact 5000 I/O modules?
   Yes, most Compact 5000 I/O modules require a separate RTB for field wiring.
4. What type of wiring connection does it use?
   It uses screw-clamp terminals for secure mechanical connection.
5. Is it compatible with CompactLogix 5380 controllers?
   Yes, it is designed for use within Compact 5000 I/O systems paired with CompactLogix controllers.
6. Can it be reused after removal?
   Yes, it is a removable terminal block designed for maintenance and replacement.
7. What wire sizes are supported?
   It typically supports standard industrial wiring ranges used in control panels.
8. Does it improve signal reliability?
   Yes, proper screw torque and secure termination help maintain stable signal integrity.
9. Is special tooling required for installation?
   Only standard screwdrivers are required for wiring termination.
10. What environment is it designed for?
    It is rated for industrial environments with typical 0–60 °C operating conditions.
