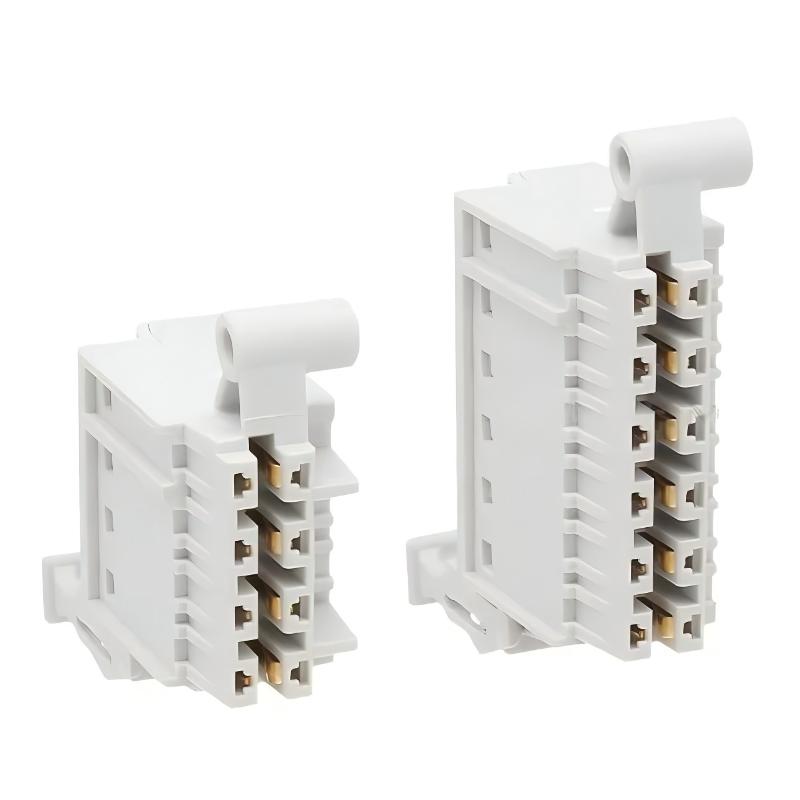

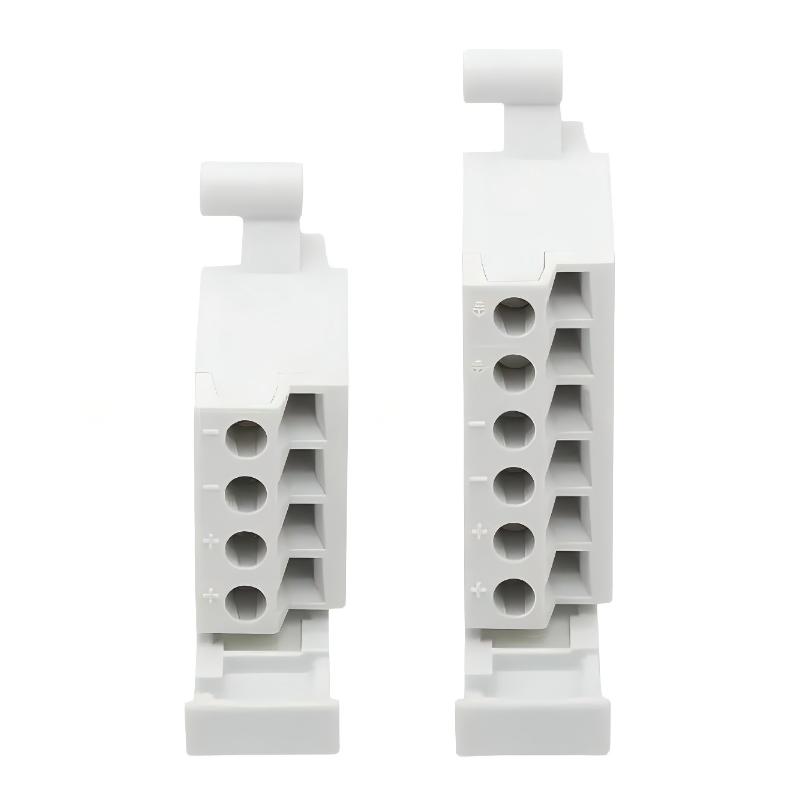

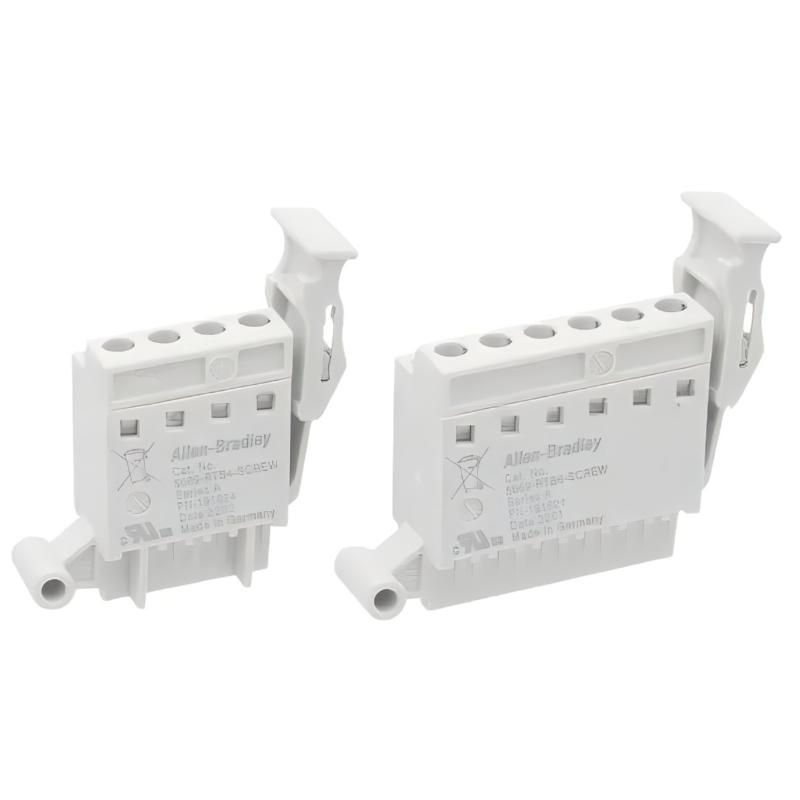

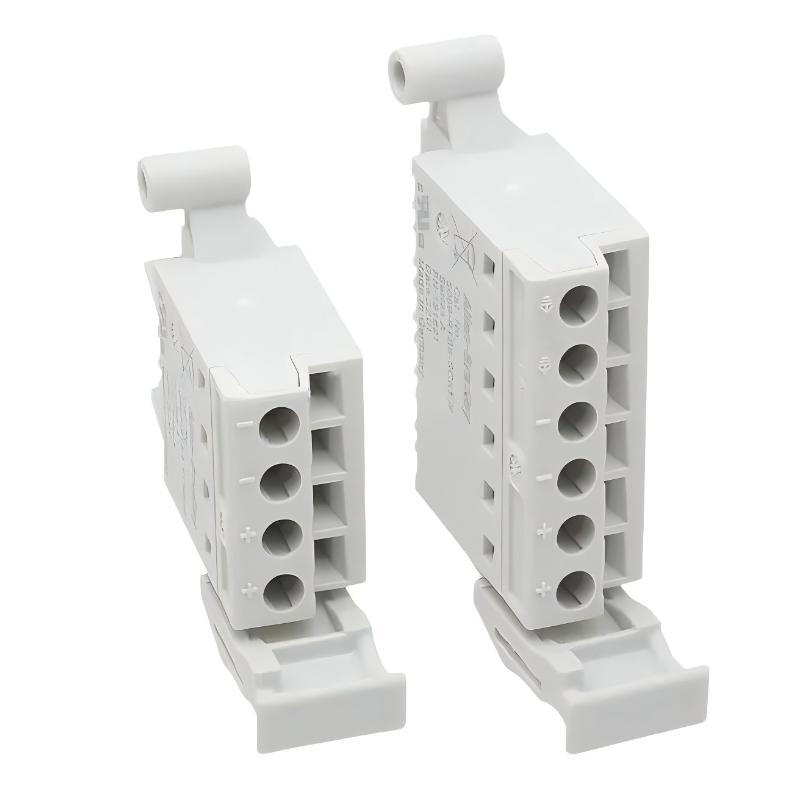

Allen Bradley 5069-RTB64-SCREW Compact 5000 I/O Power Terminal RTB Kit

Applications

The Allen Bradley 5069-RTB64-SCREW Compact 5000 I/O Power Terminal RTB Kit is designed to provide secure and reliable power termination for Compact 5000 I/O systems. It is commonly used in:

• CompactLogix 5380 and Compact GuardLogix 5380 controller systems
• Compact 5000 I/O power distribution interfaces
• Industrial control panels requiring modular power wiring
• Machine automation systems with distributed I/O architectures
• OEM equipment builds using CompactLogix platforms
• Retrofit upgrades from legacy PLC wiring systems
• Factory automation systems with high-density I/O configurations
• EtherNet/IP-based industrial control networks

It ensures stable and safe power connectivity between controller, I/O modules, and field devices.

Advantages

• Dual Configuration Support: Includes both 4-pin and 6-pin terminal options
• Reliable Power Termination: Ensures stable and secure electrical connections
• Modular System Design: Fully compatible with Compact 5000 I/O architecture
• Simplified Installation: Reduces wiring complexity in control panels
• Industrial-Grade Durability: Built for vibration and harsh operating environments
• Consistent Electrical Performance: Helps maintain stable system power distribution
• Space-Efficient Design: Ideal for compact control cabinet layouts
• Standardized Integration: Designed for seamless use across CompactLogix platforms
• Improved Maintenance Efficiency: Easy removal and replacement during servicing
• Supports Scalable Architectures: Works in both small and large I/O systems

Technical FAQs

1. What is the purpose of the 5069-RTB64-SCREW?
   It provides a removable screw-type terminal solution for supplying power to Compact 5000 I/O systems.
2. What configurations are included in this kit?
   It includes both 4-pin and 6-pin power terminal blocks.
3. Which systems is it compatible with?
   It is designed for Compact 5000 I/O systems used with CompactLogix 5380 and related controllers.
4. Does it connect directly to I/O modules?
   Yes, it is used as the power interface for Compact 5000 I/O modules and system power distribution.
5. What type of wiring connection does it use?
   It uses screw-clamp terminals for secure mechanical and electrical connection.
6. Is it reusable after removal?
   Yes, it is designed as a removable terminal block kit.
7. Does it require special tools for installation?
   No, standard screwdrivers are sufficient for wiring termination.
8. Can it be used in both AC and DC systems?
   It is designed for Compact 5000 system power architectures that typically operate on industrial DC power distribution.
9. Is it necessary for Compact 5000 I/O systems?
   Yes, power terminal RTBs are required for proper system power connection.
10. What environments is it designed for?
    Industrial environments with standard operating ranges of 0–60 °C (32–140 °F).
