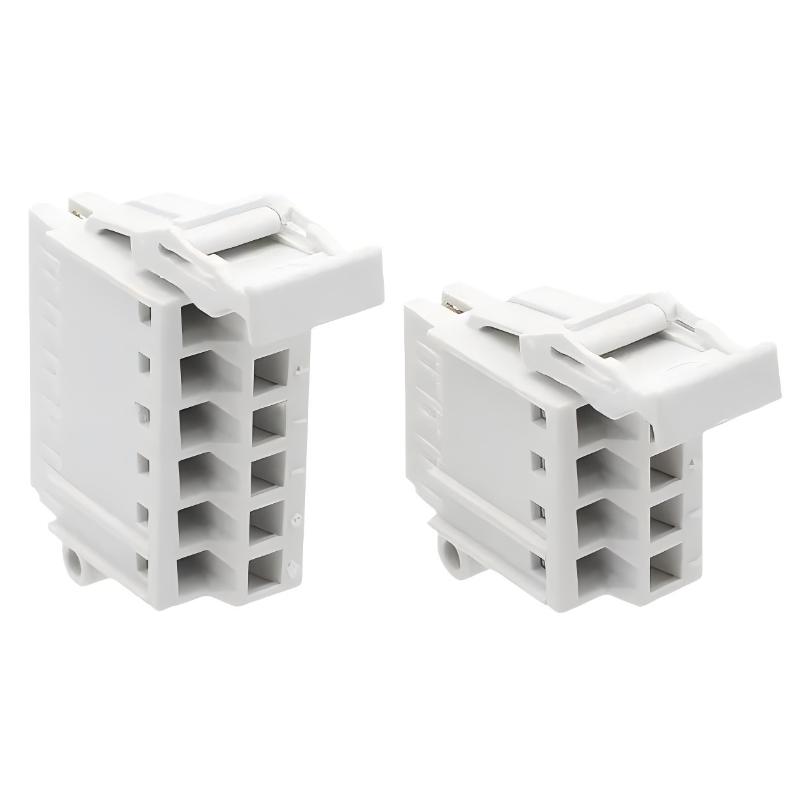

Allen Bradley 5069-RTB64-SPRING Compact 5000 I/O Power Terminal RTB Kit

Applications

The Allen Bradley 5069-RTB64-SPRING Compact 5000 I/O Power Terminal RTB Kit is engineered to provide secure, reliable, and maintenance-friendly power connections for Compact 5000 I/O systems. Common applications include:

• Power distribution for CompactLogix 5380 and Compact GuardLogix I/O systems
• Industrial machine control panels and automation cabinets
• Distributed I/O architectures in manufacturing systems
• OEM equipment requiring standardized power termination
• Retrofits and upgrades from legacy power wiring systems
• Factory automation with high-density I/O module integration
• Systems using EtherNet/IP networks for industrial communication
• Modular control panel layouts where easy maintenance is a priority

Its spring-clamp design allows fast, tool-free wiring while maintaining secure connections under industrial conditions.

Advantages

• Spring-Clamp Terminals: Fast, secure, and tool-free connections
• Dual Pin Configuration: Includes both 4-pin and 6-pin terminals for versatile applications
• Reliable Power Interface: Ensures consistent power delivery to Compact 5000 I/O modules
• Maintenance-Friendly: Quick disconnection and reconnection without compromising system integrity
• Modular System Compatibility: Fully integrates with Compact 5000 I/O platform
• Industrial Durability: Built to withstand vibration and harsh operating conditions
• Space-Efficient Design: Ideal for compact control cabinet layouts
• Enhanced System Reliability: Maintains stable electrical contact over long-term use
• Standardized for CompactLogix Systems: Simplifies wiring design and engineering
• Scalable Architecture Support: Compatible with multi-module I/O expansions

Technical FAQs

1. What is the purpose of the 5069-RTB64-SPRING?
   It provides a spring-terminal interface for supplying power to Compact 5000 I/O systems.
2. What pin configurations are included?
   The kit includes 4-pin and 6-pin terminal blocks for flexible power distribution.
3. Which systems is it compatible with?
   Designed for Compact 5000 I/O modules and CompactLogix 5380 controllers.
4. Does it connect directly to I/O modules?
   Yes, it acts as the power interface between the system power bus and I/O modules.
5. Is special tooling required?
   No, the spring-clamp design allows secure connections without tools.
6. Can it be reused after removal?
   Yes, it is designed for maintenance and replacement in modular systems.
7. Does it improve electrical reliability?
   Yes, the spring clamp ensures consistent and vibration-resistant connections.
8. Is it suitable for both AC and DC power?
   It is intended for standard industrial DC power distribution in Compact 5000 systems.
9. Is this kit required for Compact 5000 I/O systems?
   Yes, proper power connection requires RTB kits for the I/O modules.
10. What environment is it rated for?
    Industrial applications with operating temperatures from 0–60 °C (32–140 °F).
