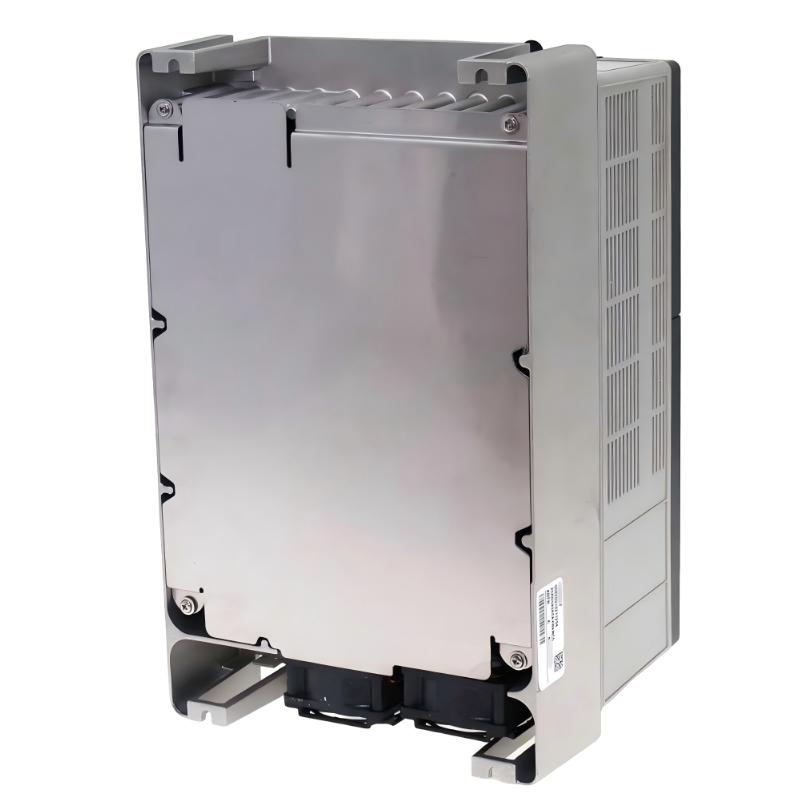

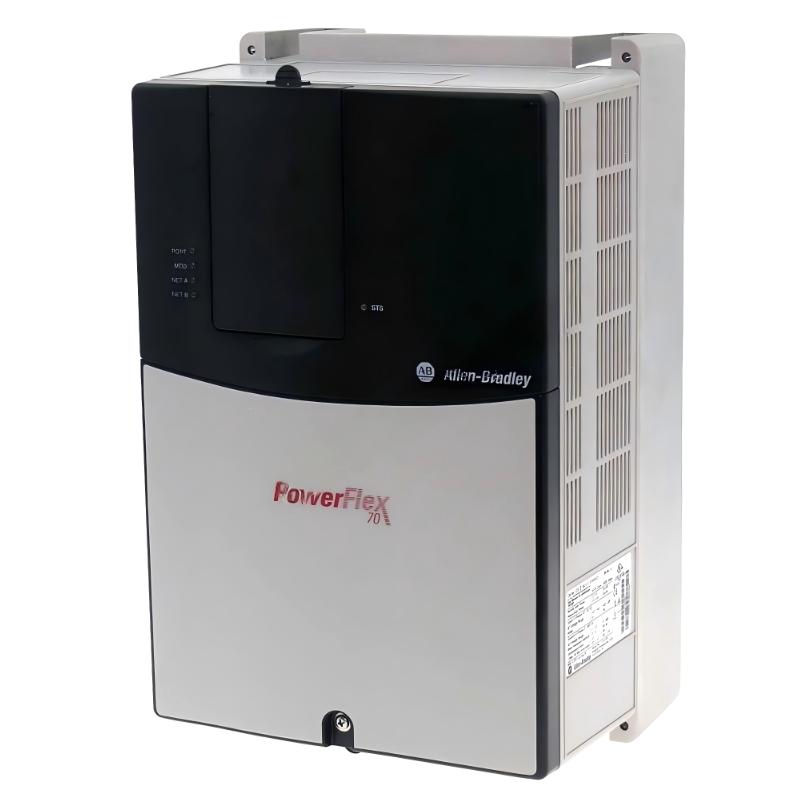

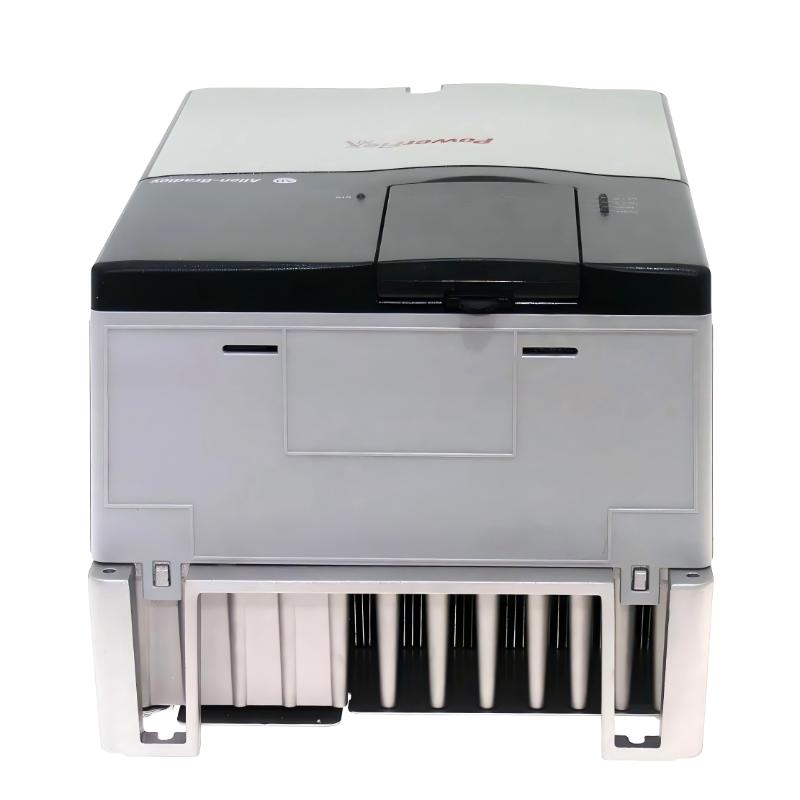

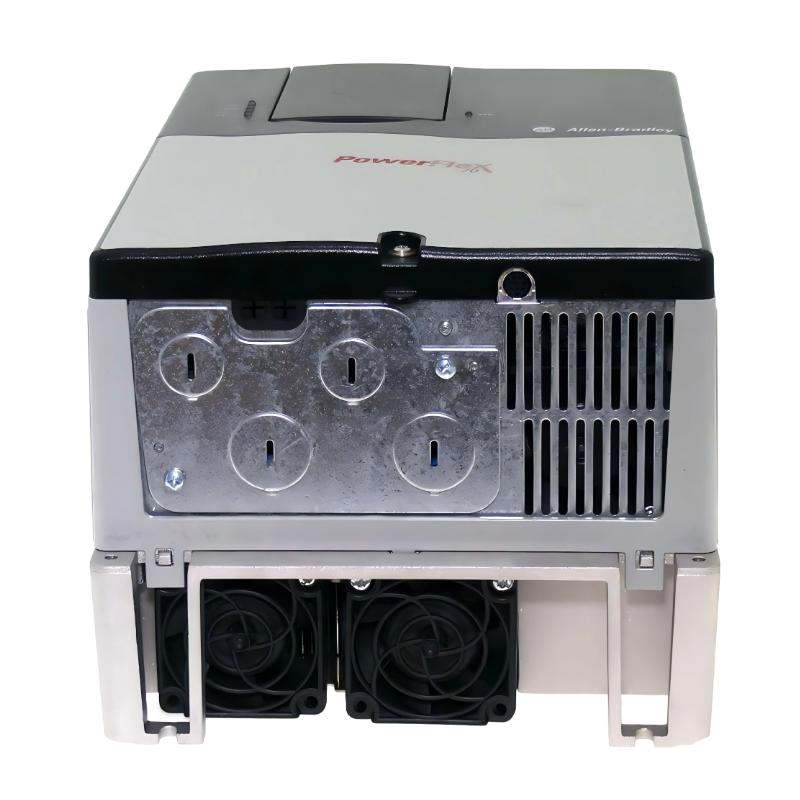

Allen Bradley 20AD040A0AYNANC0/A PowerFlex 70 AC Drive
Allen Bradley 20AD040A0AYNANC0/A PowerFlex 70 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20AD040A0AYNANC0/A Product Origin:USA Product Dimensions:350 x 219.9 x 179.8 mm Product Weight:9.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20AD040A0AYNANC0/A PowerFlex 70 AC Drive is a high-performance variable frequency drive designed for precise motor control in demanding industrial environments. It provides advanced control algorithms, robust protection features, and flexible integration options, making it suitable for a wide range of automation and process control applications. Despite being a mature platform, it remains widely installed in legacy industrial systems due to its reliability and proven performance.
Technical Specifications
Parameter
Specification
Product Model
20AD040A0AYNANC0/A
Series
PowerFlex 70
Type
AC Variable Frequency Drive
Input Voltage
480V AC, 3-phase
Output Current
40 A
Power Rating
30 HP (22 kW)
Enclosure
IP20 / NEMA Type 1 (panel mount)
Control Method
V/Hz, Sensorless Vector Control
Communication
Modbus, PROFIBUS, CAN (optional modules)
Overload Capacity
Up to 150% short duration
Protection
Overvoltage, undervoltage, thermal, short-circuit
Operating Temperature
0°C to 50°C
Humidity
5%–95% non-condensing
Dimensions
350 × 219.9 × 179.8 mm
Weight
9.25 kg
Recommended Related Models
Model
Product Name
20AC040A0AYNANC0
Allen Bradley PowerFlex 70 AC Drive 40A Standard Variant
20AD030A0AYNANC0
Allen Bradley PowerFlex 70 AC Drive 30A Version
20AE040A0AYNANC0
Allen Bradley PowerFlex 700 AC Drive 40A Upgrade Model
20AD050A0AYNANC0
Allen Bradley PowerFlex 70 AC Drive 50A High Capacity Model
Popular Related Models
Model
Product Name
20AD014A0AYNANC0
Allen Bradley PowerFlex 70 AC Drive 14A Compact Version
20AD022A0AYNANC0
Allen Bradley PowerFlex 70 AC Drive 22A Mid Range Model
20AD072A0AYNANC0
Allen Bradley PowerFlex 70 AC Drive 72A Heavy Duty Model
20AD100A0AYNANC0
Allen Bradley PowerFlex 70 AC Drive 100A Industrial High Power Model
Applications
• Variable speed motor control in industrial automation systems
Used to regulate speed, torque, and direction of three-phase AC motors in conveyors, pumps, and production machinery.
• Oil & gas process equipment control
Applied in compressors, pumps, and pipeline systems where stable motor control improves process efficiency and safety.
• Power generation auxiliary systems
Controls motors in cooling fans, feedwater pumps, and balance-of-plant equipment in power stations.
• Water and wastewater treatment plants
Ensures precise control of pumps and aeration systems for stable fluid handling and energy optimization.
• Manufacturing and material handling systems
Widely used in conveyor systems, mixers, and industrial automation lines requiring adjustable speed operation.
• Heavy-duty industrial machinery
Provides robust motor control for demanding applications with fluctuating load conditions.
Key Advantages
• High-performance sensorless vector control
Delivers precise motor control with or without feedback for improved torque response.
• Strong overload capability for demanding applications
Supports short-term overload conditions to handle transient load spikes in industrial processes.
• High energy efficiency operation
Optimizes motor power usage, reducing energy consumption in continuous operation systems.
• Integrated protective functions
Includes overvoltage, undervoltage, short-circuit, and thermal protection for enhanced system safety.
• Flexible communication and integration options
Supports industrial protocols such as Modbus, PROFIBUS, and CAN for system connectivity.
• Rugged industrial-grade construction
Designed for harsh environments with high vibration, EMI, and temperature variations.
Technical FAQs
Q1: What is the main function of this PowerFlex 70 drive?
A1: It controls the speed and torque of AC motors in industrial applications.
Q2: Is this a variable frequency drive (VFD)?
A2: Yes, it is a three-phase AC variable frequency drive.
Q3: What voltage level does it support?
A3: It typically operates at 480V AC three-phase systems.
Q4: Does it support sensorless vector control?
A4: Yes, it supports both V/Hz and sensorless vector control modes.
Q5: Can it be used in harsh environments?
A5: Yes, it is designed for industrial environments with vibration and EMI exposure.
Q6: What industries commonly use it?
A6: Manufacturing, oil & gas, water treatment, and power generation.
Q7: Does it support braking functions?
A7: Yes, it includes brake IGBT capability depending on configuration.
Q8: Can it integrate with PLC systems?
A8: Yes, it supports multiple industrial communication protocols.
Q9: What protection features are included?
A9: Overcurrent, overvoltage, undervoltage, and thermal protection are included.
Q10: Is this model still in production?
A10: It is listed as end-of-life with a planned discontinuation timeline.
