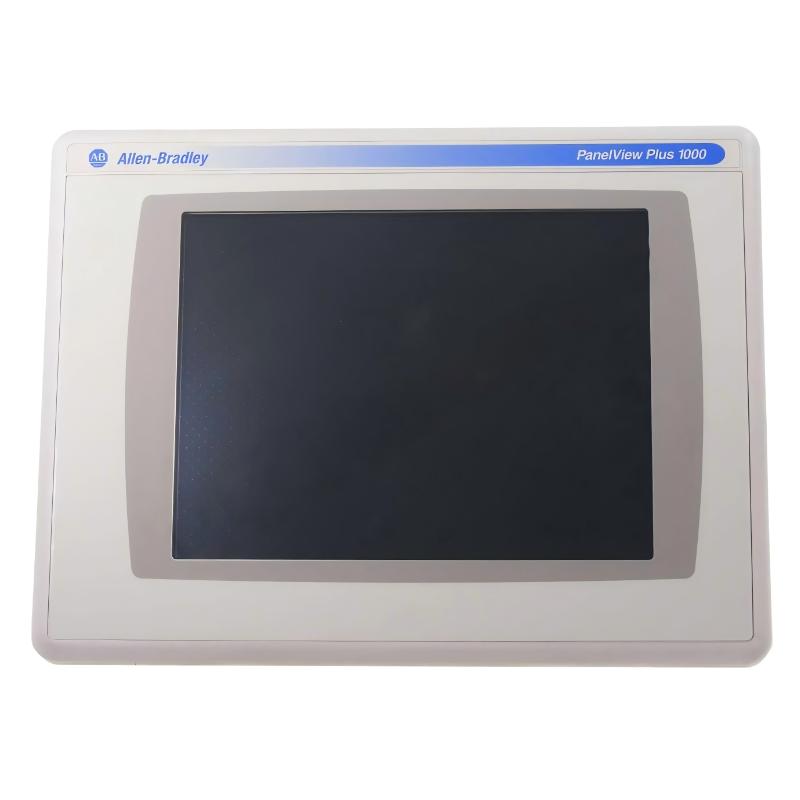

Allen Bradley 2711P-T10C4D1 PanelView Plus 1000 Operator Interface
Allen Bradley 2711P-T10C4D1 PanelView Plus 1000 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-T10C4D1 Product Origin:USA Product Dimensions:329 x 55 x 248 mm Product Weight:2.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2711P-T10C4D1 PanelView Plus 1000 Operator Interface is a widely used industrial HMI designed for machine-level and process-level visualization. It enables operators to interact with PLC-controlled systems through a graphical touchscreen interface, improving operational efficiency and system visibility. Although it belongs to a legacy product family, it remains highly prevalent in industrial installations due to its reliability, robust design, and long-term field performance.
Technical Specifications
Parameter
Specification
Product Model
2711P-T10C4D1
Series
PanelView Plus 1000
Display Type
Color TFT LCD
Display Size
10.4 inch
Resolution
640 × 480
Input Method
Resistive touchscreen
Communication Ports
Ethernet, RS-232, USB
Input Power
18–32 VDC
Memory
64 MB RAM / 64 MB Flash
Software
FactoryTalk View ME
Processor
Industrial embedded CPU
Operating Temperature
0°C to 55°C
Protection
Industrial enclosure (panel mount)
Dimensions
329 × 55 × 248 mm
Weight
2.6 kg
Recommended Related Models
Model
Product Name
2711P-T10C4D2
Allen-Bradley PanelView Plus 1000 Ethernet Enhanced Version
2711P-T12C4D1
Allen-Bradley PanelView Plus 1250 Operator Interface
2711P-T9C4D1
Allen-Bradley PanelView Plus 900 Compact HMI
2711P-K10C4D1
Allen-Bradley PanelView Plus 1000 Keypad Variant
Popular Related Models
Model
Product Name
2711P-T7C4D1
Allen-Bradley PanelView Plus 7 Standard HMI
2711P-T6M5D
Allen-Bradley PanelView Plus 600 Touch Terminal
2711P-K7C4A8
Allen-Bradley PanelView Plus Keypad HMI
2711PC-T10C4D8
Allen-Bradley PanelView Plus Compact 1000
Applications
• Industrial machine visualization and operator control in PLC systems
Used to provide real-time monitoring and control of production equipment such as conveyors, packaging lines, and assembly machines.
• Process automation in manufacturing environments
Enables operators to adjust process parameters and monitor system status in chemical, food & beverage, and general manufacturing plants.
• SCADA and plant-level monitoring systems
Serves as a local HMI node for displaying alarms, trends, and process variables within distributed control architectures.
• Water and wastewater treatment control panels
Supports pump control, tank level monitoring, and filtration system visualization in utility automation systems.
• OEM machine control interfaces
Integrated into packaged machinery to provide a standardized operator interface for end users.
• Legacy system maintenance and retrofit applications
Widely used in installed base systems where PanelView Plus 1000 terminals remain in long-term operation.
Key Advantages
• High-resolution 10.4-inch color touchscreen interface
Provides clear visualization of industrial processes and intuitive operator interaction.
• Flexible industrial communication options
Supports Ethernet and RS-232 connectivity for integration with a wide range of Allen-Bradley controllers.
• Rugged industrial-grade design
Built for harsh factory environments with resistance to vibration, EMI, and continuous operation demands.
• Stable runtime performance for HMI applications
Optimized for FactoryTalk View Machine Edition runtime environments.
• Broad PLC compatibility within Rockwell ecosystem
Works seamlessly with ControlLogix, CompactLogix, SLC 500, and PLC-5 systems.
• Proven long lifecycle in industrial installations
Still widely supported in legacy automation systems despite discontinued status.
Technical FAQs
Q1: What is the main function of this PanelView Plus 1000?
A1: It is an HMI used for operator interaction, monitoring, and control of PLC-based systems.
Q2: Is this model still in production?
A2: No, it is a discontinued product but still widely used in existing systems.
Q3: What software is used for programming?
A3: FactoryTalk View Studio Machine Edition is used for configuration and runtime development.
Q4: What communication ports does it support?
A4: It supports Ethernet and RS-232 communication interfaces.
Q5: What PLC systems is it compatible with?
A5: It works with ControlLogix, CompactLogix, SLC 500, and PLC-5 controllers.
Q6: Does it use touchscreen or keypad input?
A6: This model uses a resistive touchscreen interface.
Q7: What type of display does it have?
A7: A 10.4-inch color TFT LCD display with 640×480 resolution.
Q8: Can it be used in SCADA systems?
A8: Yes, it is commonly used as a local HMI within SCADA architectures.
Q9: Is it suitable for harsh environments?
A9: Yes, it is designed for industrial environments with electrical noise and vibration.
Q10: What industries commonly use it?
A10: Manufacturing, water treatment, packaging, and process industries.
