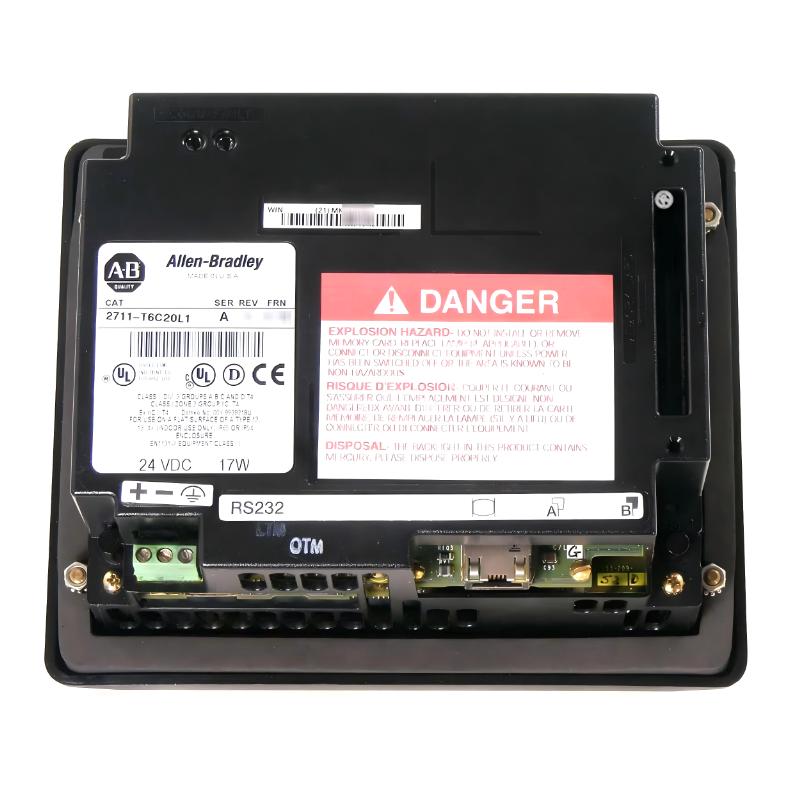

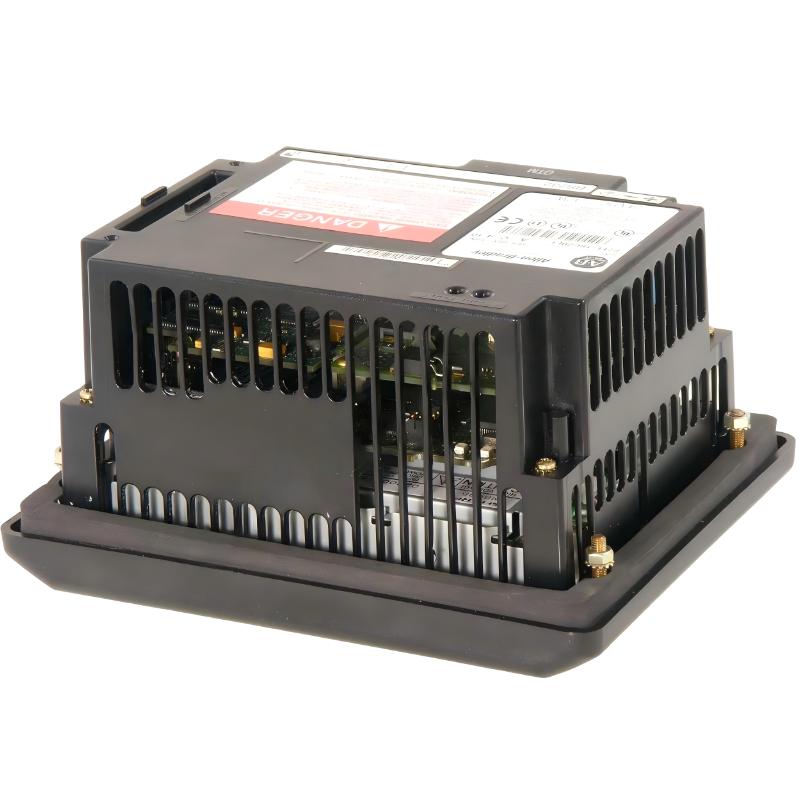

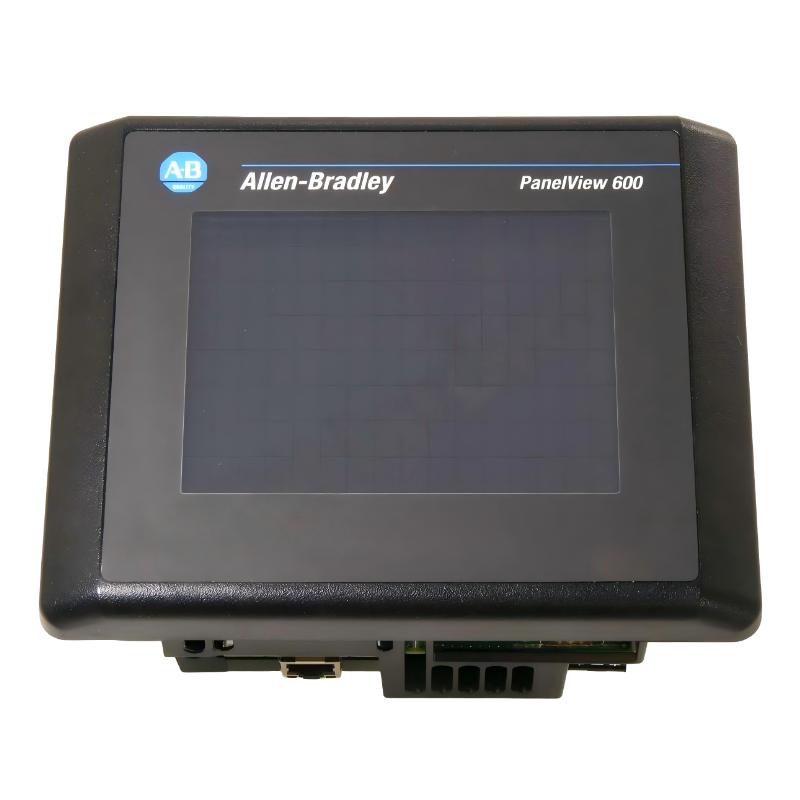

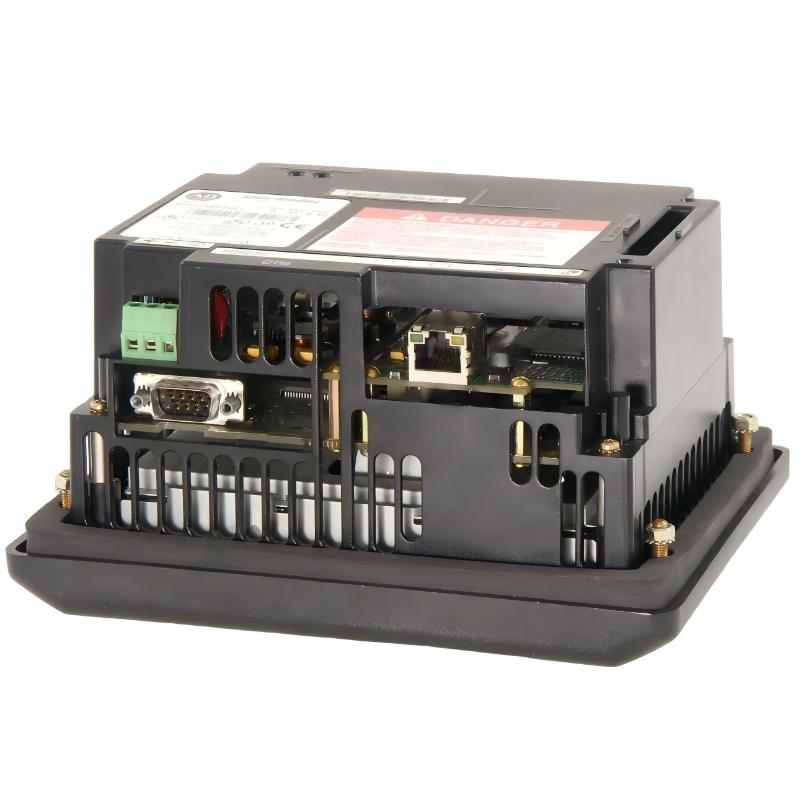

Allen Bradley 2711-T6C20L1 PanelView 600 Operator Interface
Allen Bradley 2711-T6C20L1 PanelView 600 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711-T6C20L1 Product Origin:USA Product Dimensions:185 x 96 x 152 mm Product Weight:1.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2711-T6C20L1 PanelView 600 Operator Interface is a compact industrial HMI designed for machine-level visualization and control. It enables operators to interact directly with PLC-controlled systems through a color touchscreen interface, improving operational efficiency and process visibility. Despite being a legacy product, it remains widely used due to its durability, simplicity, and long-term reliability in industrial environments.
Technical Specifications
Parameter
Specification
Product Model
2711-T6C20L1
Series
PanelView 600
Display Type
Color TFT LCD
Display Size
6 inch
Resolution
320 × 240
Input Type
Resistive touchscreen
Communication
Ethernet, RS-232
Input Voltage
18–32 VDC
Memory
240 KB application memory
Software
PanelBuilder 32
Operating Temperature
0°C to 55°C
Mounting Type
Panel mount
Dimensions
185 × 96 × 152 mm
Weight
1 kg
Recommended Related Models
Model
Product Name
2711-T6C20
Allen-Bradley PanelView 600 Standard Touch Terminal
Allen-Bradley PanelView 600 Enhanced Communication Variant
Popular Related Models
Model
Product Name
2711P-T7C4D1
Allen-Bradley PanelView Plus 7 Standard HMI
2711P-T6M5D
Allen-Bradley PanelView Plus 600 Touch Terminal
2711P-K7C4A8
Allen-Bradley PanelView Plus Keypad HMI
2711PC-T10C4D8
Allen-Bradley PanelView Plus Compact 1000
Applications
• Machine-level HMI control in industrial automation systems
Provides operators with real-time control and monitoring of PLC-driven machinery such as conveyors, packaging systems, and assembly lines.
• Small to mid-scale manufacturing process visualization
Used in production environments to display process status, alarms, and operational parameters for efficient machine supervision.
• Water and utility automation systems
Supports monitoring and control of pumps, tanks, and basic process loops in water treatment and utility plants.
• OEM control panel integration
Widely integrated into original equipment manufacturer (OEM) machines for standardized operator interaction.
• Legacy industrial system maintenance and retrofit projects
Commonly deployed in long-life installed systems where PanelView 600 platforms remain operational.
• Basic SCADA sub-system visualization nodes
Acts as a local operator interface within distributed SCADA architectures for alarm and status display.
Key Advantages
• 6-inch color touchscreen with intuitive operator interaction
Provides clear visualization of machine status and simple touch-based control.
• Stable industrial communication interface
Supports Ethernet/IP and RS-232 communication for integration with Allen-Bradley PLC systems.
• Compact and rugged industrial design
Built for vibration-heavy and electrically noisy factory environments.
• Reliable long lifecycle performance
Widely used in legacy systems due to proven durability and stable operation.
• Flexible PLC connectivity within Rockwell ecosystem
Works with PLC-5, SLC 500, and ControlLogix (via appropriate configuration).
• Low-maintenance operator interface solution
Designed for long-term industrial use with minimal maintenance requirements.
Technical FAQs
Q1: What is the main function of the 2711-T6C20L1?
A1: It is a PanelView 600 HMI used for operator control and monitoring of PLC systems.
Q2: What display size does it have?
A2: It uses a 6-inch color TFT display.
Q3: What communication ports are available?
A3: Ethernet and RS-232 printer communication ports.
Q4: Is it touchscreen or keypad based?
A4: It is a resistive touchscreen operator interface.
Q5: What PLC systems is it compatible with?
A5: Commonly used with PLC-5, SLC 500, and ControlLogix systems.
Q6: What software is used for programming?
A6: PanelBuilder 32 software is used for development and configuration.
Q7: Is this model still in production?
A7: No, it is a legacy discontinued model but still widely installed.
Q8: What type of power supply does it use?
A8: It operates on 18–32 VDC industrial power input.
Q9: Can it be used in SCADA systems?
A9: Yes, typically as a local HMI node within SCADA architectures.
Q10: What industries commonly use it?
A10: Manufacturing, water treatment, packaging, and legacy automation systems.
