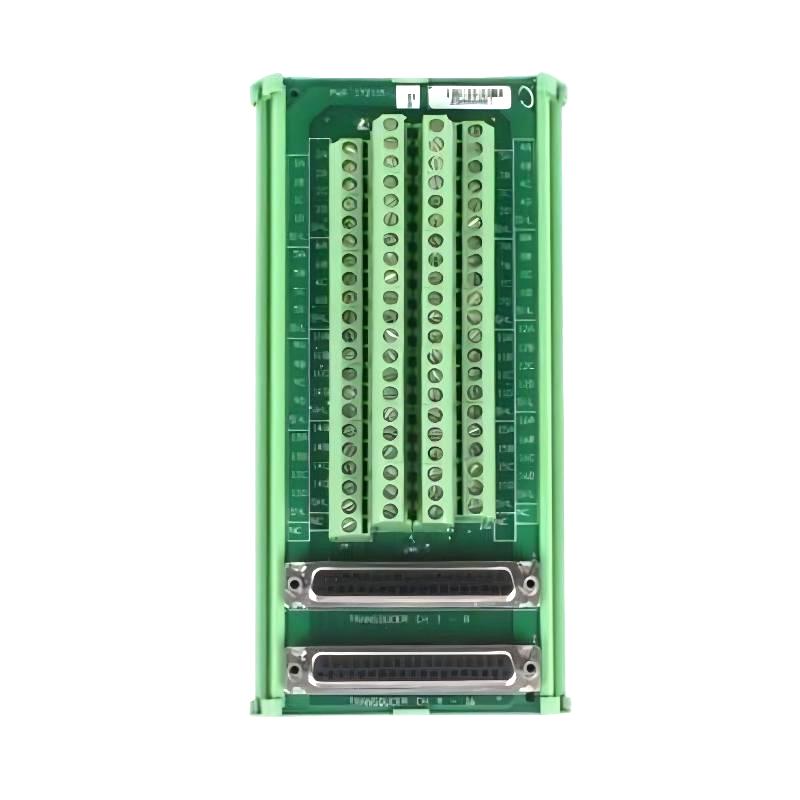

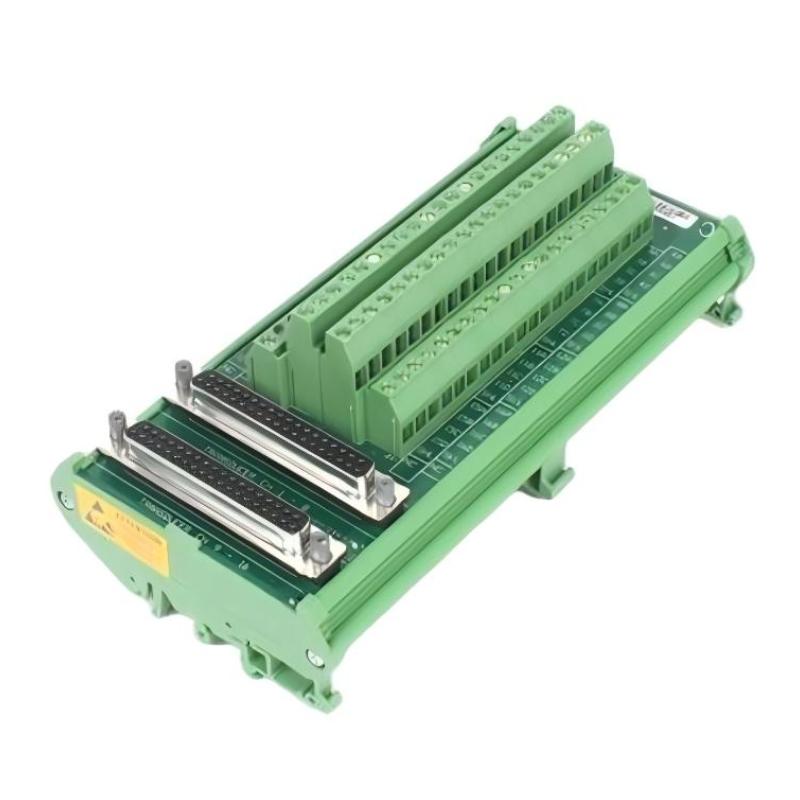

Bently Nevada 3500/65 172115-01 RTD/Isolation Tip TC External Termination Block
Bently Nevada 3500/65 172115-01 RTD/Isolation Tip TC External Termination Block
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/65 Product Origin:USA Product Dimensions:150 × 100 × 50 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/65 RTD/Isolation Tip TC External Termination Block ensures precise and reliable temperature signal termination for RTD and thermocouple sensors. By combining organized wiring with electrical isolation, it protects sensitive monitoring modules and maintains signal integrity. Its compact design and robust construction make it ideal for industrial installations requiring accurate multi-channel temperature monitoring.
Technical Specifications
Specification Item
Description
Product Type
RTD/TC External Termination Block
Model
3500/65
Part Number
172115-01
Dimensions
150 × 100 × 50 mm
Weight
0.8 kg
Primary Function
Electrically isolated termination of RTD and TC signals
Installation Method
External rack/panel mounting
Operating Mode
Continuous industrial operation
System Compatibility
Bently Nevada 3500 series
Application Environment
Industrial temperature monitoring
Construction
Industrial-grade termination block
Recommended Related Models
Bently Nevada 3500/65 16-Channel Temperature Monitor
Bently Nevada 3500/61 Temperature Monitor
Bently Nevada 3500/22M Transient Data Interface Module
Popular Related Models
Bently Nevada 3500 Series RTD/TC Termination Blocks
Bently Nevada Multi-Channel Temperature Monitoring Modules
Bently Nevada Industrial Machinery Protection Systems
Applications
The Bently Nevada 3500/65 RTD/Isolation Tip TC External Termination Block is designed to provide organized and electrically isolated termination for RTD and thermocouple signals in 3500 monitoring systems. It ensures accurate temperature readings and protects sensitive modules from electrical noise or transient voltages. Typical applications include industrial process plants, turbines, generators, and rotating machinery where reliable temperature monitoring is essential for predictive maintenance and machinery protection.
Advantages
Organized Signal Termination: Provides a structured interface for RTD and thermocouple connections.
Electrical Isolation: Protects control and monitoring modules from electrical faults and transient voltages.
Compact and Efficient: Dimensions of 150 × 100 × 50 mm allow easy integration in control panels or racks.
Reliable Industrial Design: Built for continuous operation in harsh industrial environments.
Simplified Maintenance: Streamlines wiring and troubleshooting for temperature monitoring systems.
Technical FAQs
What is the primary function of this termination block?
To provide organized and electrically isolated connections for RTD and thermocouple signals.
Which systems typically use this block?
Bently Nevada 3500 machinery monitoring and temperature measurement systems.
Is it suitable for continuous operation?
Yes, designed for 24/7 industrial use.
Does it protect modules from electrical faults?
Yes, it electrically isolates signals to prevent damage from transients.
Where is it installed?
Mounted externally to 3500 system racks as part of the temperature monitoring setup.
Can it simplify field wiring and maintenance?
Yes, it centralizes connections and reduces wiring complexity.
Does it integrate with RTD and TC sensors?
Yes, it supports both RTD and thermocouple inputs.
What are the physical dimensions of the module?
150 × 100 × 50 mm.
What is the approximate weight?
Approximately 0.8 kg.
Is it designed for industrial-grade reliability?
Yes, built to withstand demanding operational conditions.
