Brand:Epro PLC Item No.:PR6424/009-000 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

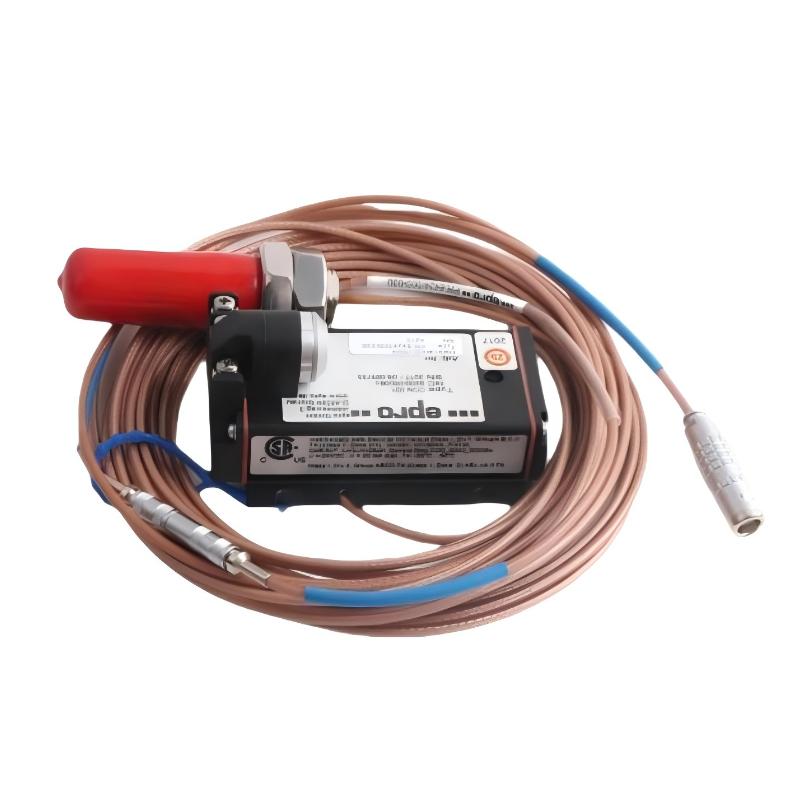

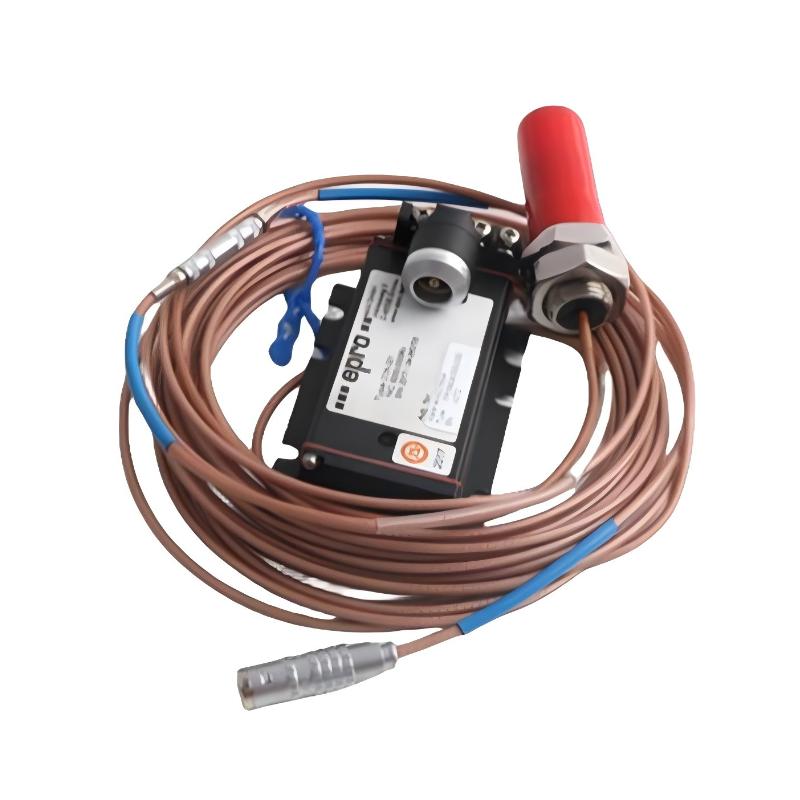

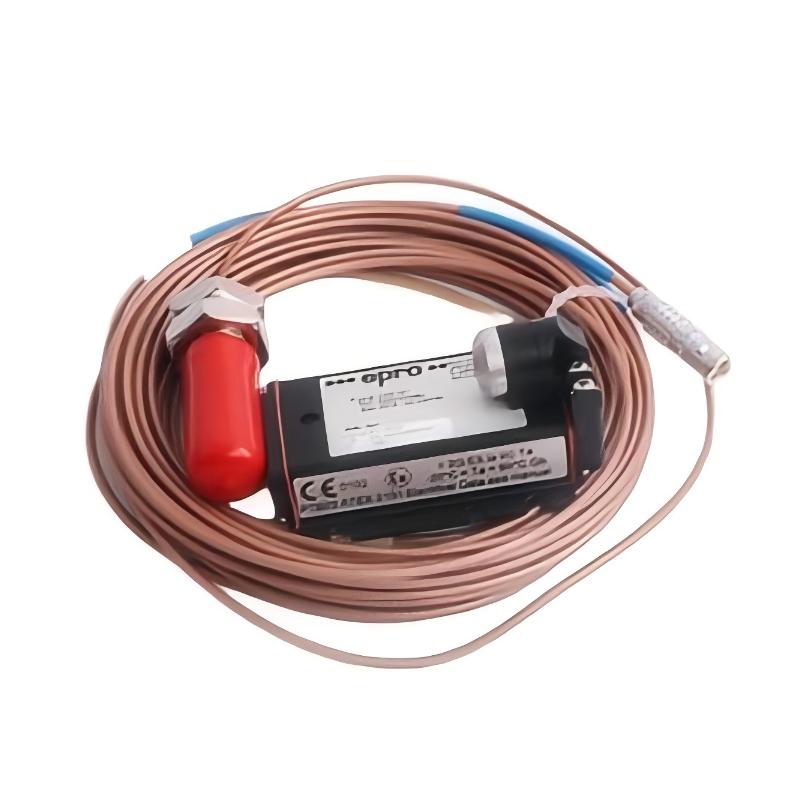

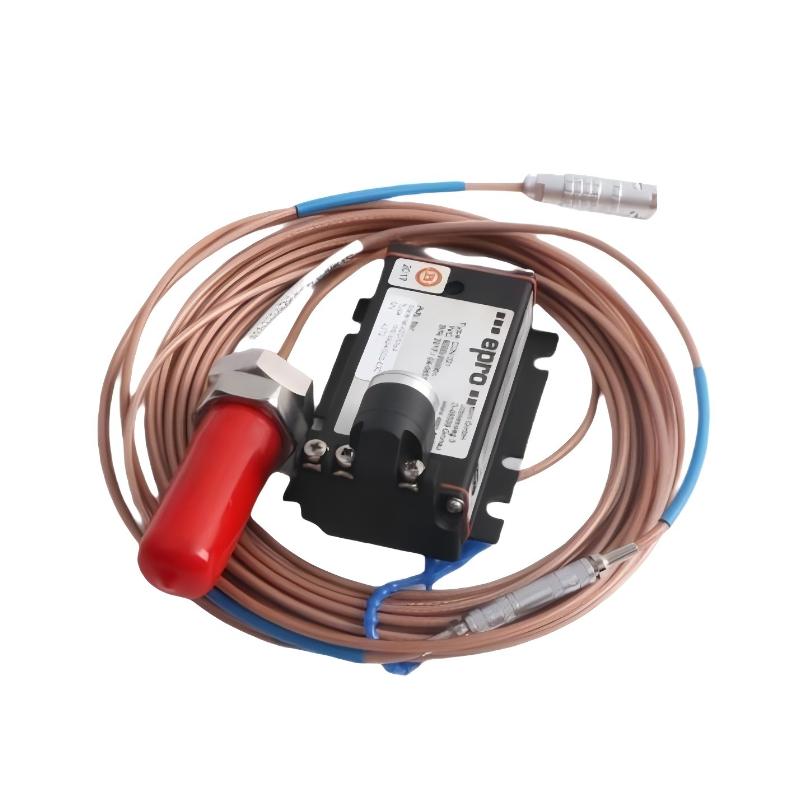

The PR6424/009-000 is part of the EPRO 16 mm eddy current sensor family designed for precise, continuous monitoring of shaft motion in rotating machinery. It provides high-resolution displacement signals that support condition monitoring and machinery protection systems.
Its robust construction ensures reliable operation under demanding industrial conditions, making it suitable for long-term deployment in critical assets.
Technical Specifications
Parameter
Specification
Model
PR6424/009-000
Series
EPRO PR6424
Sensor Type
Eddy current non-contact displacement sensor
Sensor Head Diameter
16 mm
Measurement Type
Shaft vibration, position, eccentricity
Sensitivity
4 V/mm (±1.5% linearity typical family value)
Nominal Air Gap
~2.7 mm
Operating Temperature
-35°C to +180°C (system dependent)
Target Material
Ferromagnetic steel shafts
Weight
0.2 kg (0.44 lb)
System Compatibility
EPRO CON-series signal converters
Applications
The Epro PR6424/009-000 16 mm Eddy Current Sensor is a high-precision non-contact displacement probe designed for critical rotating machinery where continuous shaft monitoring and reliable condition diagnostics are required.
It is widely used in:
Steam turbine shaft vibration and axial displacement monitoring
Gas turbine rotor position and eccentricity measurement
Hydro turbine condition monitoring systems
Centrifugal compressors and high-speed rotating equipment protection
Industrial pumps and fan shaft monitoring applications
Predictive maintenance and API 670-style machinery protection systems
This sensor is part of the EPRO PR6424 series, engineered for stable operation in harsh industrial environments with long-term measurement reliability.
Advantages
High-precision eddy current non-contact measurement technology
Designed for continuous turbomachinery monitoring
Stable long-term drift performance for accurate diagnostics
High linearity for precise shaft displacement readings
Strong resistance to vibration, temperature variation, and industrial noise
Compatible with EPRO CON-series signal converters
Suitable for radial and axial shaft measurement applications
Robust stainless-steel industrial sensor construction
Proven design for critical asset protection systems
Optimized for long service life in demanding environments
Technical FAQs (10 Technical Questions)
1. What is the main function of this sensor?
It measures shaft displacement and vibration using eddy current technology.
2. What machinery is it typically used on?
Turbines, compressors, pumps, and other rotating equipment.
3. Does it require an external converter?
Yes, it works with EPRO CON-series signal converters.
4. Can it measure both static and dynamic motion?
Yes, it measures both shaft position and vibration.
5. Is it suitable for harsh environments?
Yes, it is designed for high temperature, vibration, and industrial conditions.
6. What is the measurement principle?
It uses eddy current induction to detect changes in shaft distance.
7. What happens if calibration is incorrect?
Measurement accuracy and protection reliability will be affected.
8. Can it be used on small shafts?
It is optimized for larger shafts (typically ≥80 mm diameter).
9. Does cable configuration affect performance?
Yes, system calibration must match the installed cable setup.
10. What industries use this sensor?
Power generation, oil & gas, petrochemical, marine, and heavy industry.
