Brand:Epro PLC Item No.:PR6424/01+CON011 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

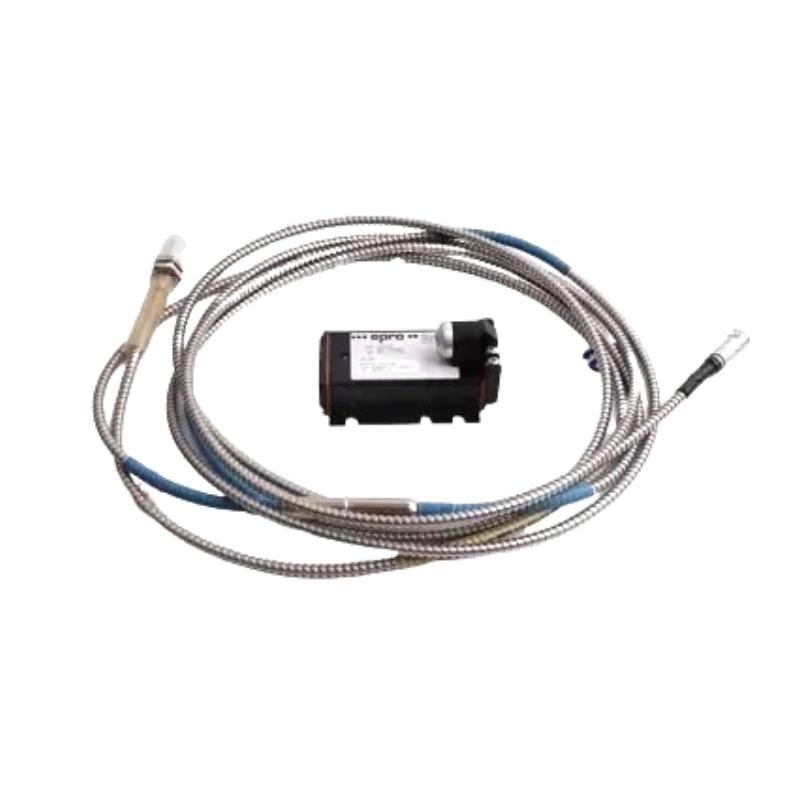

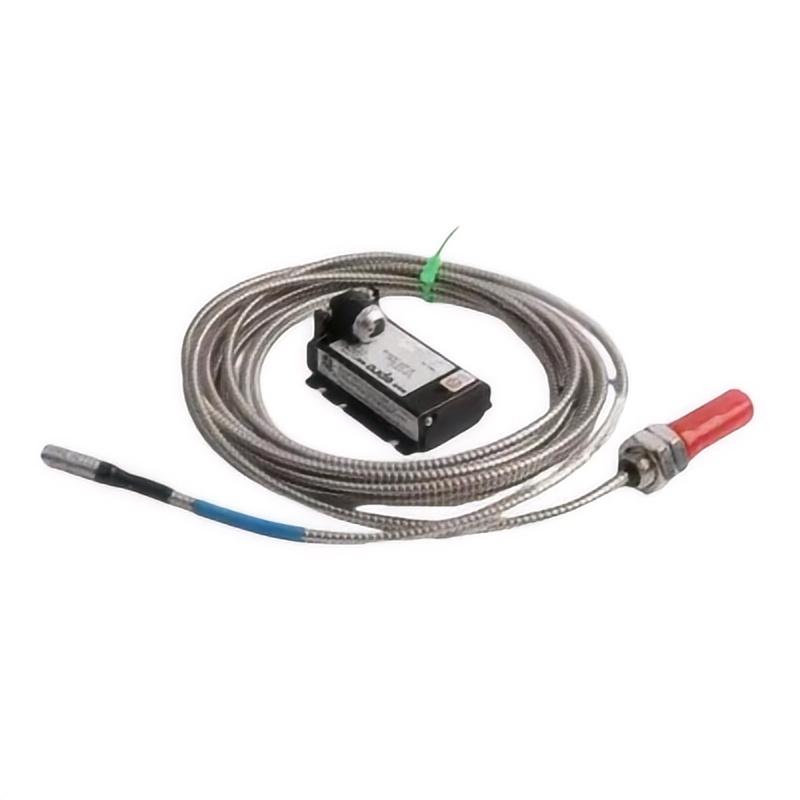

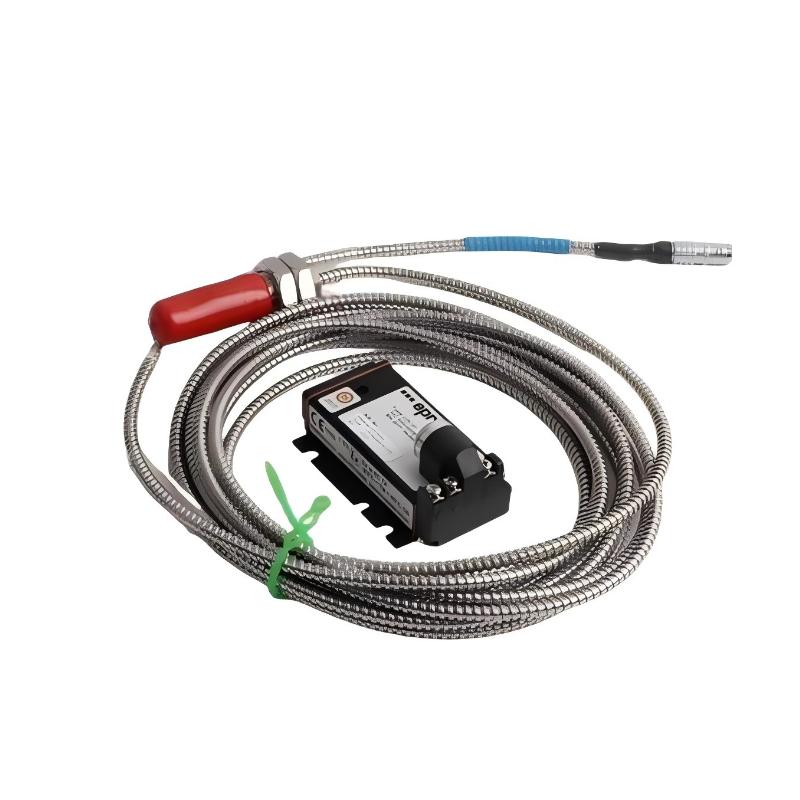

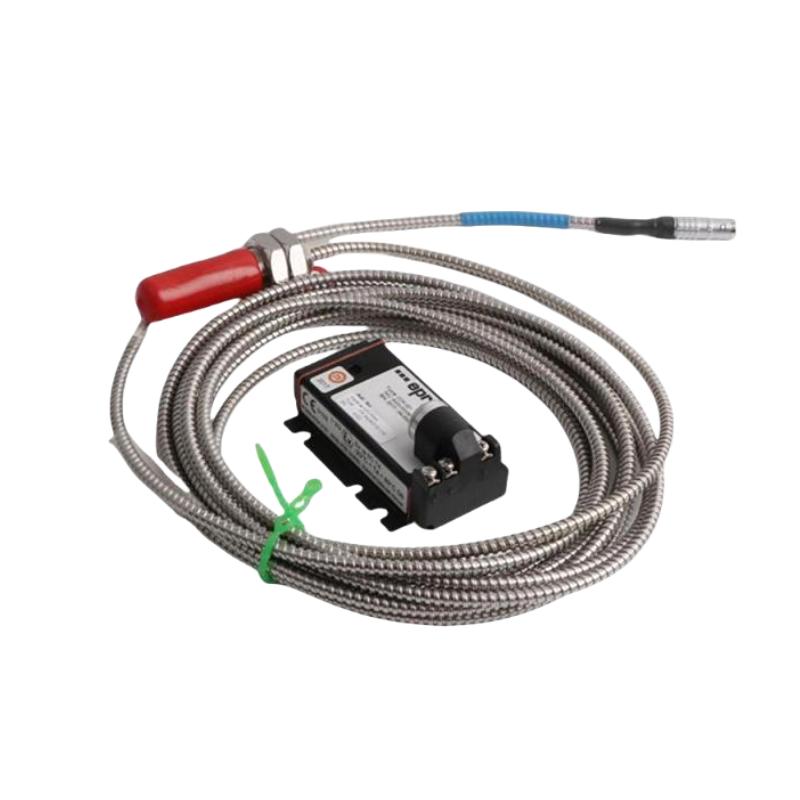

The PR6424/01 + CON011 system combines a 16 mm eddy current sensor with a dedicated signal converter to deliver high-precision monitoring of rotating machinery. The sensor provides non-contact displacement measurement, while the CON011 module processes the signal into a usable output for control and protection systems.
This configuration is widely used in critical industrial environments where accurate and stable condition monitoring is required for safe and efficient operation.
Technical Specifications
Parameter
Specification
Model
PR6424/01 + CON011
Series
EPRO PR6424 System
Sensor Type
Eddy current non-contact displacement sensor
Sensor Head Diameter
16 mm
Measurement Type
Shaft vibration, position, eccentricity
Converter Type
CON011 signal conditioning module
Output Signal
-2 V to -18 V / +4 V to -20 V (system dependent)
Sensitivity
4 V/mm
Nominal Air Gap
2.7 mm
Operating Temperature
-35°C to +180°C (probe), CON011 up to +100°C
Target Material
Ferromagnetic steel shafts
System Compatibility
EPRO PR6424 series
Weight
0.8 kg (1.76 lb)
Applications
The Epro PR6424/01 + CON011 16 mm Eddy Current Sensor system is a high-performance non-contact displacement and vibration monitoring solution designed for critical rotating machinery where continuous condition monitoring and protection-grade accuracy are required.
It is widely used in:
Steam turbine shaft vibration, axial displacement, and differential expansion monitoring
Gas turbine rotor dynamics, eccentricity, and vibration analysis
Hydro turbine stability and shaft position monitoring systems
Centrifugal and axial compressors in oil & gas and power generation plants
Industrial pumps, fans, and gearbox vibration diagnostics
API 670-compliant machinery protection and predictive maintenance systems
The integrated CON011 signal converter transforms the raw eddy current probe signal into a standardized analog output, enabling seamless integration into control and monitoring systems for real-time diagnostics and protection logic.
Advantages
Complete probe + signal converter system for industrial monitoring
High-precision eddy current non-contact measurement technology
Stable linear output for accurate vibration and displacement analysis
Strong resistance to EMI, vibration, and harsh environmental conditions
Optimized for long-term turbomachinery operation stability
Compatible with EPRO PR6424 16 mm sensor family architecture
CON011 provides standardized analog signal output for PLC/DCS integration
Suitable for both static (position) and dynamic (vibration) measurements
Proven reliability in API 670-class protection systems
Designed for continuous-duty critical asset monitoring
Technical FAQs (10 Technical Questions)
1. What is the function of the CON011 in this system?
It converts the eddy current probe signal into a standardized voltage output for monitoring and control systems.
2. What does the PR6424/01 sensor measure?
It measures shaft vibration, position, and eccentricity using eddy current technology.
3. Is this system suitable for turbines and compressors?
Yes, it is widely used in turbines, compressors, and other rotating machinery.
4. What is the measurement principle?
It uses eddy current induction to detect changes in the gap between probe and shaft.
5. Can it measure both static and dynamic signals?
Yes, it supports both shaft position (static) and vibration (dynamic) monitoring.
6. Is calibration required?
Yes, system calibration is required between probe, cable, and CON011 module.
7. Can components from other PR6424 series be used?
Only compatible PR6424 probes designed for CON011 systems should be used.
8. What happens if the system is not calibrated?
Measurement accuracy and protection reliability will be significantly degraded.
9. Is it suitable for harsh environments?
Yes, both probe and converter are designed for industrial vibration and temperature conditions.
10. What industries use this system?
Power generation, oil & gas, petrochemical, marine, and heavy industrial sectors.
