Allen Bradley 2198-D032-ERS3 Kinetix 5700 Dual-axis Servo Drive
Allen Bradley 2198-D032-ERS3 Kinetix 5700 Dual-axis Servo Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:2198-D032-ERS3 Product Origin:USA Product Dimensions:451 x 55 x 267.5 mm Product Weight:4.16 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

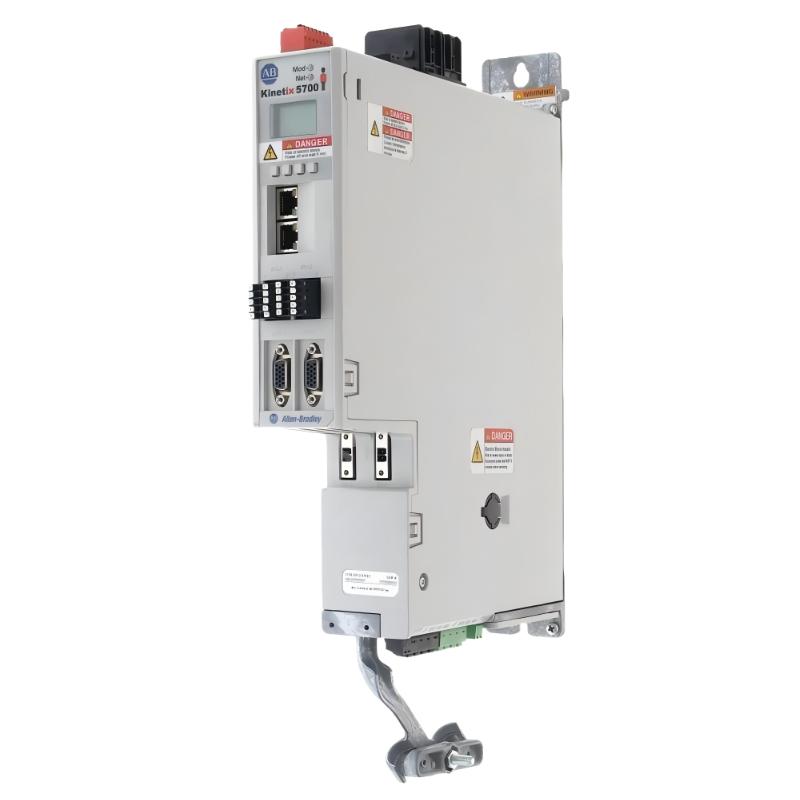

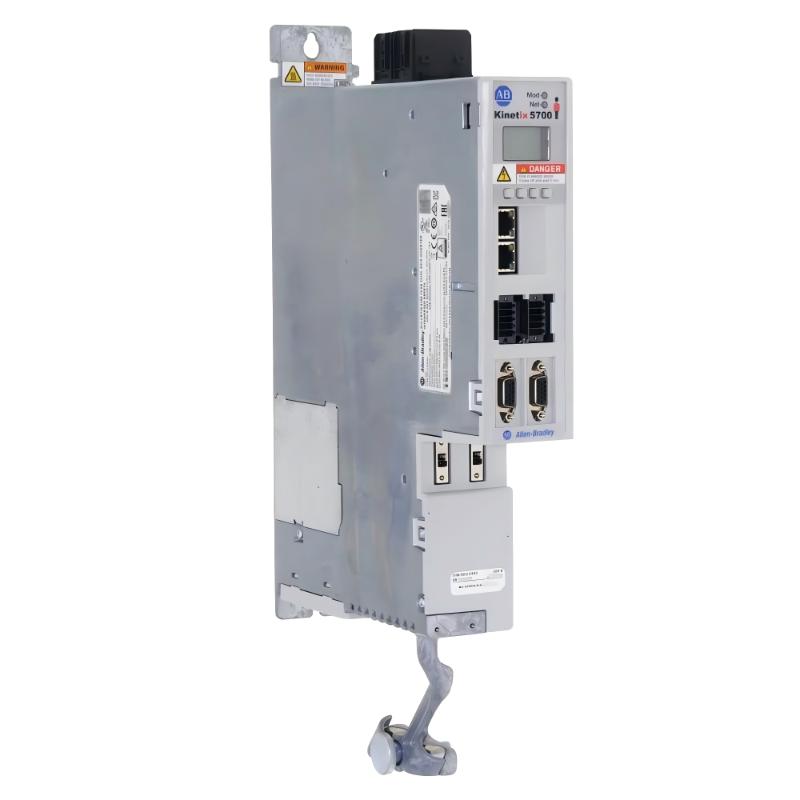

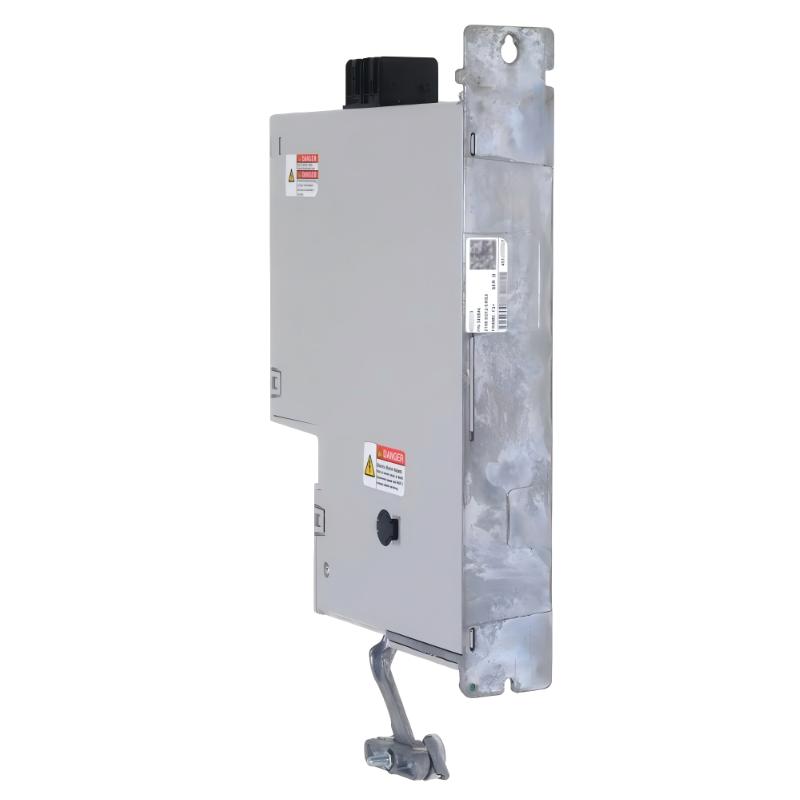

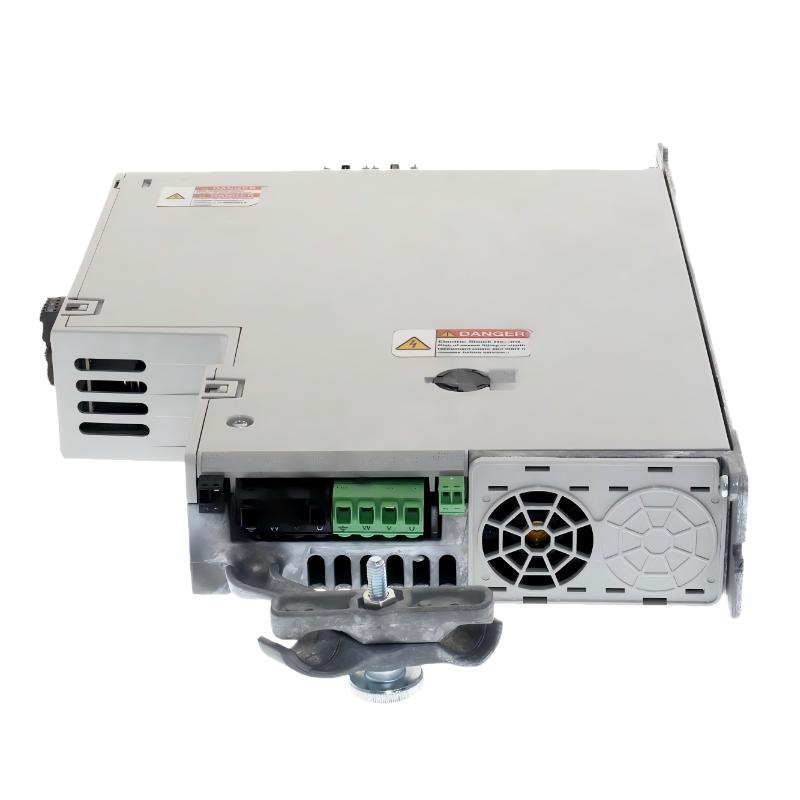

The Allen-Bradley 2198-D032-ERS3 Kinetix 5700 Dual-Axis Servo Drive is a high-performance motion control solution designed for advanced industrial automation systems. It combines two servo axes into a single compact module, enabling efficient machine design without compromising motion precision or speed.
Technical Specifications
Parameter
Specification
Product Type
Dual-Axis Servo Drive
Series
Kinetix 5700
Control Network
EtherNet/IP
Number of Axes
2
Continuous Output Current
2 × 13 A
Peak Output Current
Up to 2 × 32 A
Output Power
Up to 8.9 kW (480V)
Input Voltage
3-phase 380–480V AC
PWM Frequency
4 kHz
Mounting Type
Panel-mounted drive module
Dimensions
451 × 55 × 267.5 mm
Weight
4.16 kg
Recommended Related Models
Model
Product Name
2198-S086-ERS3
Kinetix 5700 Dual-Axis Servo Drive
2198-S130-ERS3
Kinetix 5700 High-Power Dual-Axis Servo Drive
2198-D012-ERS3
Kinetix 5700 Low Power Dual-Axis Servo Drive
2198-H025-ERS3
Kinetix 5700 Integrated Safety Servo Drive
Popular Related Models
Model
Product Name
2198-D020-ERS3
Kinetix 5700 Dual-Axis Servo Drive
2198-D040-ERS3
Kinetix 5700 Dual-Axis Servo Drive (Higher Current Variant)
2198-S086-ERS2
Kinetix 5700 Servo Drive Module
2198-DBR1
Kinetix 5700 Shunt Module
Applications
• High-performance multi-axis motion control in industrial automation systems
• Packaging, filling, and labeling production lines requiring synchronized servo motion
• Conveyor and material handling systems with coordinated axis movement
• Automotive manufacturing assembly lines with precision positioning control
• Robotics and gantry systems requiring fast, deterministic motion response
• Semiconductor and electronic production equipment with tight motion accuracy requirements
• General machine building applications using EtherNet/IP integrated motion networks
Key Advantages
• Dual-axis architecture reduces cabinet space and simplifies system design
• Integrated EtherNet/IP communication enables real-time motion control integration
• Supports Device Level Ring (DLR) for network redundancy and stability
• High power density design suitable for compact machine layouts
• Seamless compatibility with Allen-Bradley ControlLogix and CompactLogix systems
• Advanced motion control performance with synchronized multi-axis operation
• Factory-integrated safety functions improve machine-level protection and compliance
Technical FAQs
1. What motion system is the 2198-D032-ERS3 part of?
It belongs to the Allen-Bradley Kinetix 5700 servo drive family for EtherNet/IP-based motion control.
2. Does it support dual-axis control independently?
Yes, it integrates two servo axes within a single drive module.
3. What communication protocol does it use?
It uses EtherNet/IP for both control and diagnostics.
4. Can it be used in synchronized multi-axis systems?
Yes, it is designed for coordinated motion across multiple drives.
5. Does it support network redundancy?
Yes, Device Level Ring (DLR) is supported for resilient networking.
6. Is it compatible with Rockwell PLCs?
Yes, it integrates directly with ControlLogix and CompactLogix platforms.
7. What type of motors does it support?
It is designed for Kinetix servo motors used in high-performance applications.
8. Does it include safety functionality?
Yes, it supports integrated safety features depending on system configuration.
9. Is it suitable for high-speed applications?
Yes, it is optimized for fast dynamic response and precise positioning.
10. Can it be used in compact machines?
Yes, its dual-axis design helps reduce overall cabinet footprint.
