Brand:Allen Bradley PLC Item No.:25C-D013N114 Product Origin:USA Product Dimensions:220 x 109 x 184 mm Product Weight:2.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

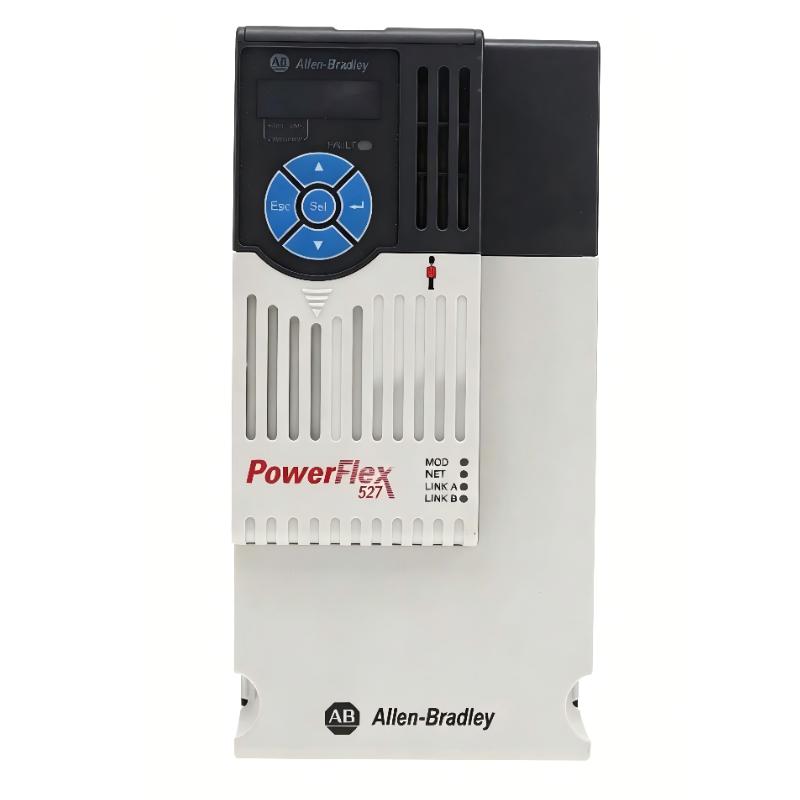

The Allen-Bradley 25C-D013N114 PowerFlex 527 AC Drive is a high-integration industrial drive designed for advanced motion applications within Rockwell Automation’s Logix ecosystem. It combines drive control, communication, and safety functions into a compact platform optimized for EtherNet/IP-based machine architectures.
Technical Specifications
Parameter
Specification
Product Type
AC Drive
Series
PowerFlex 527
Rated Power
5.5 kW / 7.5 HP
Input Voltage
380–480 VAC, 3-phase
Output Current
13 A
Control Type
Integrated Motion Control
Communication
EtherNet/IP (Dual Port)
Safety Function
Integrated Safety (e.g., STO)
Frame Size
Frame C
Protection Class
IP20 / Open Type
Dimensions
220 × 109 × 184 mm
Weight
2.3 kg
Recommended Related Models
Model
Product Name
25C-D010N114
PowerFlex 527 4 kW / 5 HP AC Drive
25B-D013N114
PowerFlex 525 7.5 HP AC Drive
2198-D032-ERS3
Kinetix 5700 Dual-Axis Servo Drive
20-750-ENETR
PowerFlex 750-Series EtherNet/IP Communication Module
Popular Related Models
Model
Product Name
25C-D006N114
PowerFlex 527 3 kW AC Drive
25C-D017N114
PowerFlex 527 Higher Output AC Drive
25B-D010N114
PowerFlex 525 5 HP AC Drive
2198-S086-ERS3
Kinetix 5700 Servo Drive Module
Applications
• High-performance integrated motion control systems using EtherNet/IP architecture
• Servo-like coordinated machine automation in packaging and assembly lines
• Multi-axis synchronized conveyor and material handling systems
• Automotive production lines requiring precise speed and torque regulation
• Robotics, gantry, and automated positioning equipment
• Machine builder solutions requiring tight integration with Logix controllers
• Industrial systems requiring built-in safety and deterministic communication
Key Advantages
• Embedded dual-port EtherNet/IP enables flexible linear and ring network topology
• Integrated motion control reduces need for external motion controllers
• Seamless integration with ControlLogix and Studio 5000 environments
• Built-in safety functions improve machine-level protection and compliance
• High efficiency 7.5 HP / 5.5 kW performance in compact Frame C design
• Device-Level Ring (DLR) support enhances network reliability and uptime
• Optimized for Logix-based automation architecture for simplified engineering
Technical FAQs
1. What is the main purpose of the PowerFlex 527?
It is designed for integrated motion control applications using EtherNet/IP networks.
2. Does it require a PLC to operate?
Yes, it is intended to work tightly with Allen-Bradley Logix controllers.
3. What communication protocol does it use?
It uses EtherNet/IP for both control and diagnostics.
4. Is it suitable for standalone speed control?
No, it is optimized for coordinated motion systems rather than standalone VFD use.
5. Does it support network redundancy?
Yes, Device-Level Ring (DLR) is supported.
6. Can it be used for multi-axis systems?
Yes, it is designed for synchronized multi-axis motion control.
7. What safety features are included?
It includes integrated safety functions such as Safe Torque Off (STO).
8. What motor types are supported?
Primarily AC induction and servo-style motor control within Logix systems.
9. Is tuning required during commissioning?
Yes, motion tuning and configuration are required via Studio 5000.
10. Can it be used in legacy PLC systems?
It is mainly intended for modern Logix PAC-based systems.
