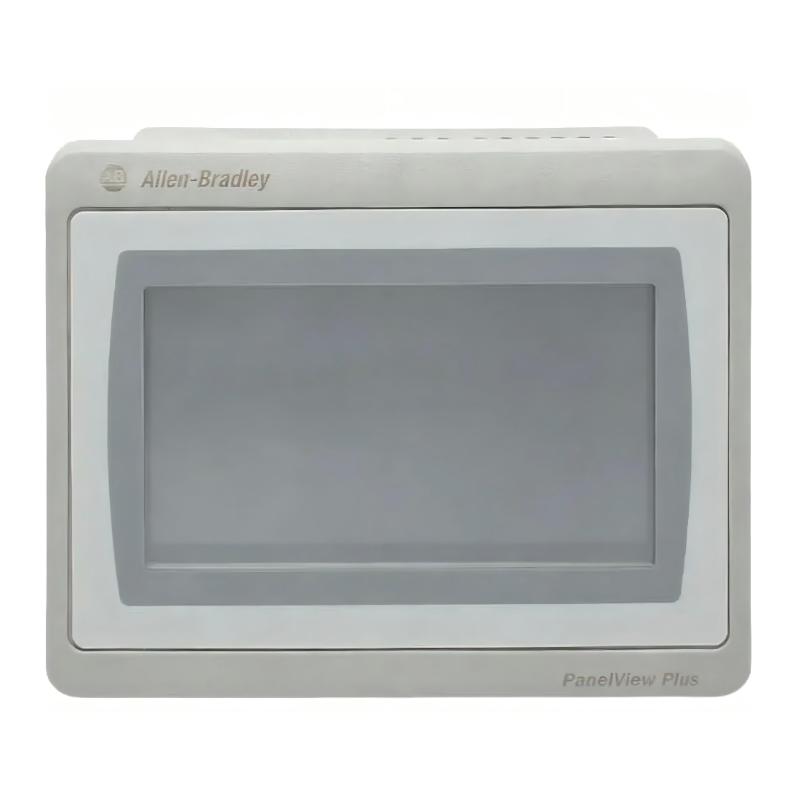

Allen Bradley 2711P-T4W21D8S PanelView Plus 7 Operator Interface
Allen Bradley 2711P-T4W21D8S PanelView Plus 7 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-T4W21D8S Product Origin:USA Product Dimensions:135 x 56.5 x 110 mm Product Weight:0.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2711P-T4W21D8S PanelView Plus 7 Operator Interface is a compact industrial HMI designed for machine-level visualization and control. It provides operators with intuitive access to real-time system data, alarms, and process status through a responsive color touchscreen display.
Technical Specifications
Parameter
Specification
Product Type
HMI Operator Interface
Series
PanelView Plus 7
Display Size
4.3 inch widescreen TFT
Resolution
480 × 272 WQVGA
Input Type
Resistive touchscreen
Communication
EtherNet/IP
Ports
1 × Ethernet, USB, RS-232
Power Supply
24 VDC
Operating System
Windows CE
Protection Rating
IP66 (front)
Front Dimensions
135 × 110 × 56.5 mm
Weight
0.44 kg
Recommended Related Models
Model
Product Name
2711P-T7C21D8S
PanelView Plus 7 7-inch Standard Terminal
2711P-T10C21D8S
PanelView Plus 7 10-inch Performance Terminal
2711P-T6M5D8
PanelView Plus 7 Compact HMI Terminal
2711P-B7C22D9P
PanelView Plus 7 Performance 7-inch Terminal
Popular Related Models
Model
Product Name
2711P-T4W21D8S
PanelView Plus 7 4-inch Standard Terminal
2711P-T5C21D8S
PanelView Plus 7 Compact 5-inch HMI
2711P-T6C21D8S
PanelView Plus 7 6-inch Operator Interface
2711P-T10C22D9P
PanelView Plus 7 Performance 10-inch Terminal
Applications
• Industrial machine visualization and operator control in automated production systems
• Packaging, filling, and assembly line monitoring with real-time HMI feedback
• Conveyor and material handling system status display and control
• Water treatment and utility plant process visualization and alarm management
• Automotive manufacturing line operator interface and diagnostics
• OEM machine builder HMI integration for compact control panels
• Distributed control system (DCS) visualization for industrial processes
Key Advantages
• Compact 4.3-inch widescreen design ideal for space-limited control panels
• Seamless EtherNet/IP communication for Rockwell Automation control systems
• High-resolution color TFT display improves operator visibility and usability
• Supports Windows CE-based platform for stable industrial runtime performance
• Integrated USB and Ethernet ports for flexible connectivity and data transfer
• Rugged industrial design with IP66-rated front protection for harsh environments
• Easy integration with ControlLogix and CompactLogix PLC systems
Technical FAQs
1. What communication protocol does this PanelView support?
It supports EtherNet/IP for integration with Rockwell Automation controllers.
2. Is this HMI suitable for small control cabinets?
Yes, its compact size makes it ideal for space-constrained installations.
3. What operating system does it run?
It runs a Windows CE-based industrial operating system.
4. Does it support touchscreen operation?
Yes, it uses an analog resistive touchscreen interface.
5. How many communication ports are available?
It typically includes one Ethernet port plus USB and optional serial interfaces.
6. Can it be used with ControlLogix PLCs?
Yes, it is fully compatible with ControlLogix and CompactLogix systems.
7. Is it suitable for harsh industrial environments?
Yes, the front panel is IP66 rated for dust and water resistance.
8. Does it support remote monitoring?
Yes, it supports Ethernet-based remote connectivity depending on configuration.
9. Can applications be updated easily?
Yes, applications can be transferred via USB or network connection.
10. Is it suitable for OEM machine integration?
Yes, it is widely used by machine builders for compact HMI solutions.
