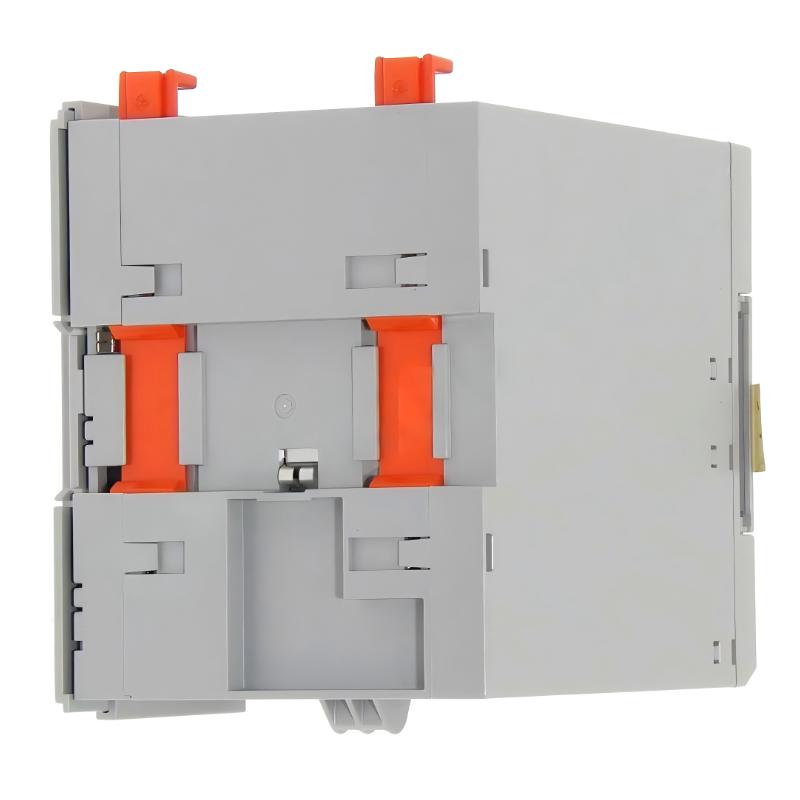

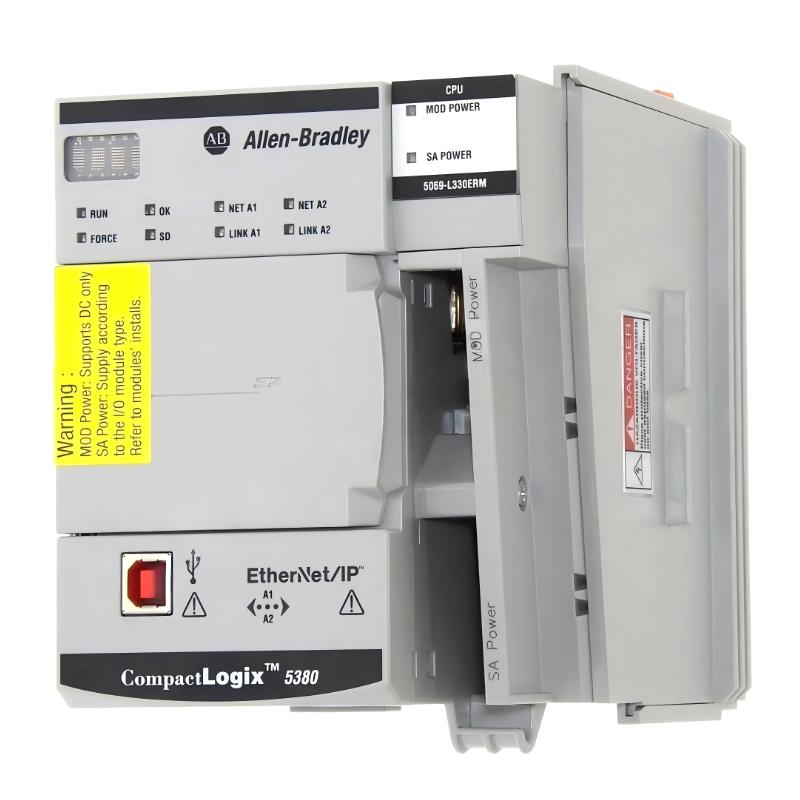

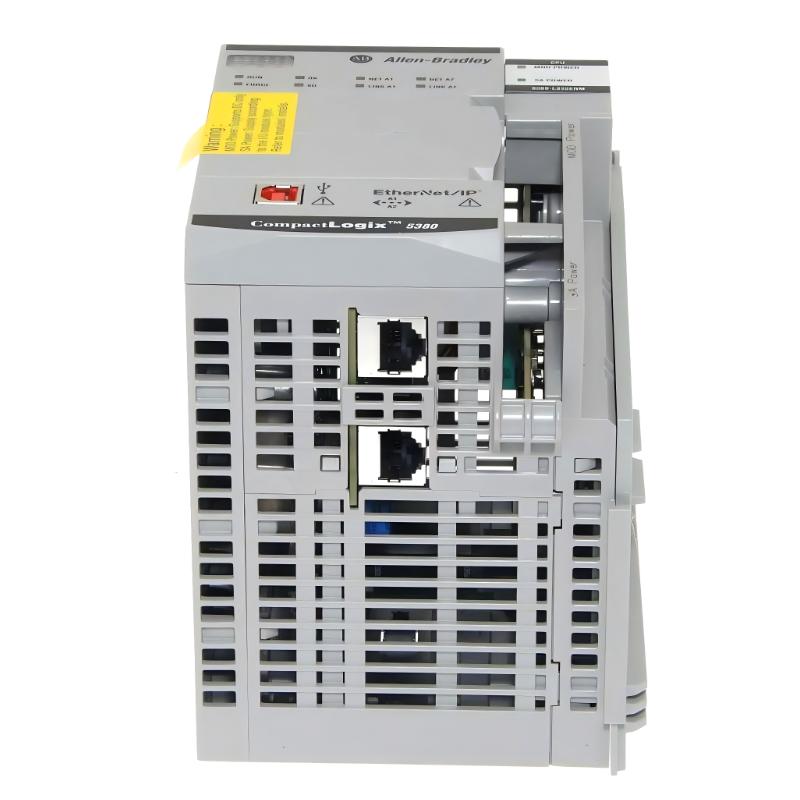

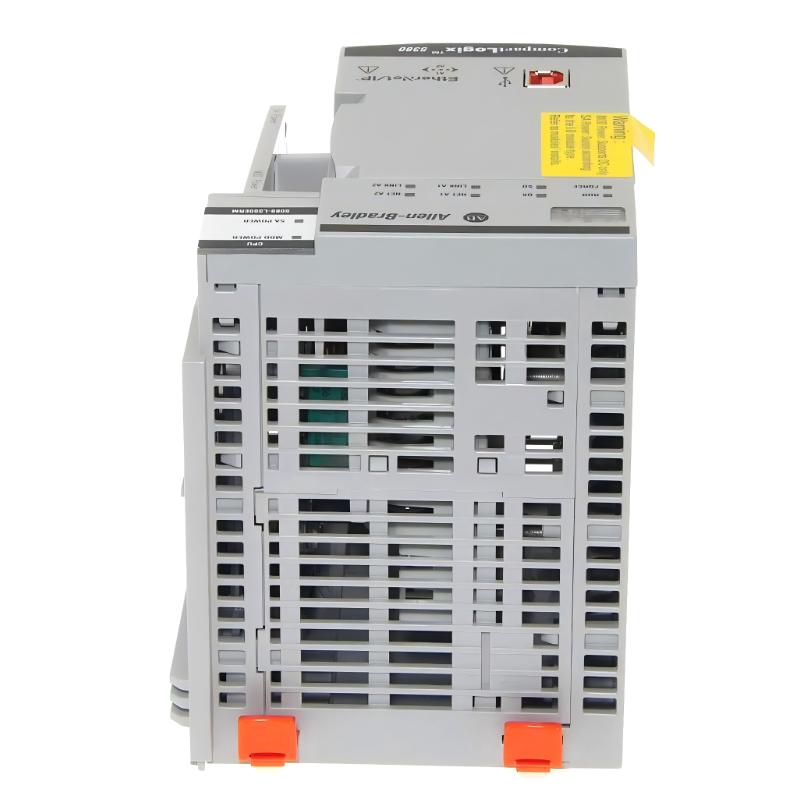

Allen Bradley 5069-L330ERM CompactLogix 5380 Controller

Applications

• High-performance machine control in industrial automation systems using EtherNet/IP architecture

• Packaging, filling, labeling, and assembly line control with synchronized logic execution

• Multi-station conveyor systems requiring distributed I/O coordination

• Automotive manufacturing production lines with high-speed data exchange

• Process automation in water treatment, energy, and chemical industries

• OEM machine builder platforms requiring scalable controller architecture

• Integrated motion control systems with EtherNet/IP-based servo networks

Key Advantages

• Integrated EtherNet/IP ports support linear, star, and Device Level Ring (DLR) topologies

• High-speed processing enables deterministic control for complex industrial applications

• Supports up to 60 EtherNet/IP devices for scalable system expansion

• Compact design simplifies DIN-rail installation in control cabinets

• Seamless integration with Studio 5000 Logix Designer environment

• Advanced diagnostics improve system troubleshooting and reduce downtime

• Supports integrated motion control for coordinated multi-axis systems

Technical FAQs

1. What is the primary function of the 5069-L330ERM?
It is a CompactLogix 5380 controller used for industrial automation and machine control.

2. Does it support EtherNet/IP communication?
Yes, it features integrated EtherNet/IP ports for controller-to-device communication.

3. How many I/O modules can it support?
It supports up to 31 local I/O modules.

4. Can it handle motion control applications?
Yes, it supports integrated motion over EtherNet/IP with multiple axes.

5. Is Device Level Ring (DLR) supported?
Yes, it supports DLR for network redundancy.

6. What programming software is used?
It is programmed using Studio 5000 Logix Designer.

7. How many Ethernet nodes can it handle?
Up to approximately 60 EtherNet/IP nodes.

8. Does it support remote diagnostics?
Yes, it includes built-in diagnostic and status tools.

9. Is it suitable for OEM machines?
Yes, it is widely used in OEM machine control systems.

10. Can it be used in safety systems?
Standard version is not safety-rated; safety variants exist in GuardLogix series.
