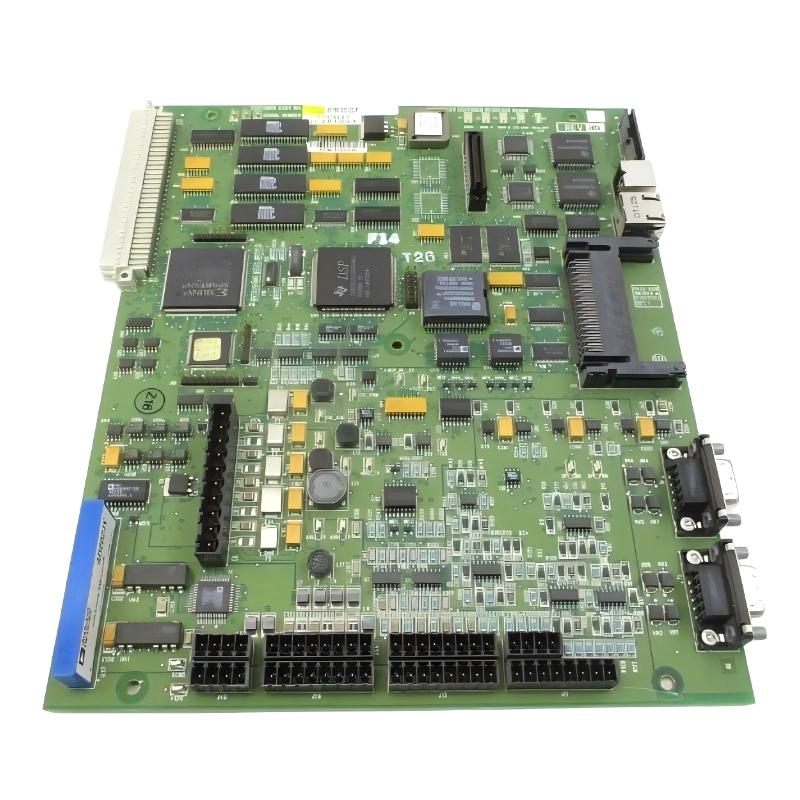

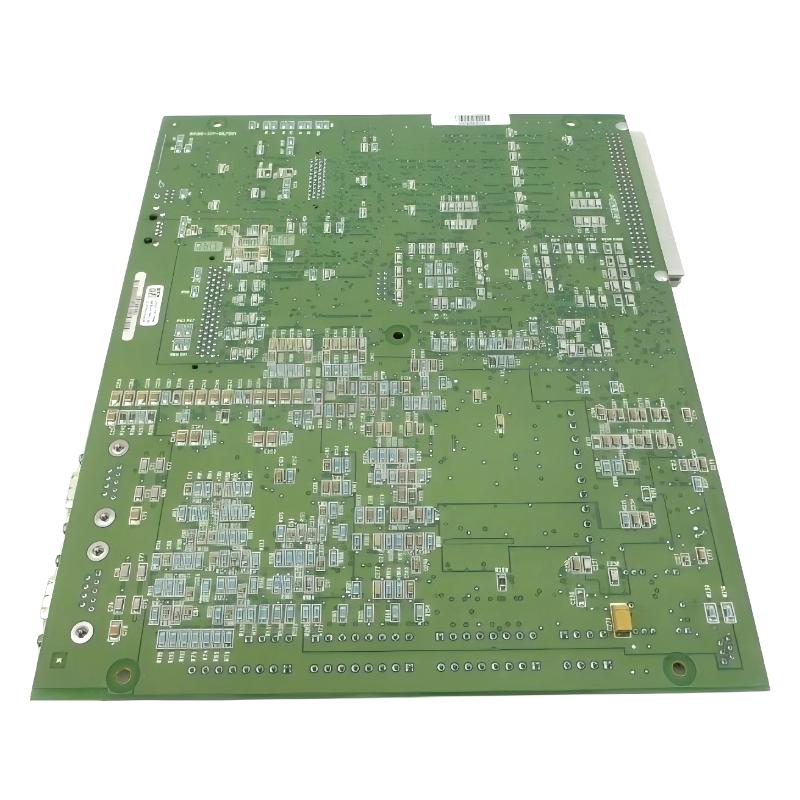

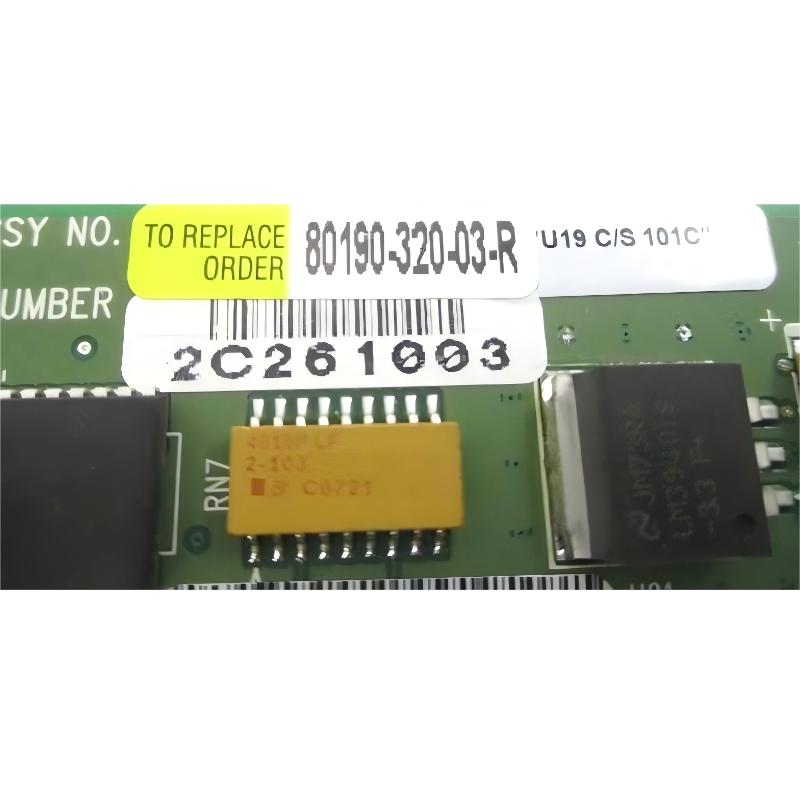

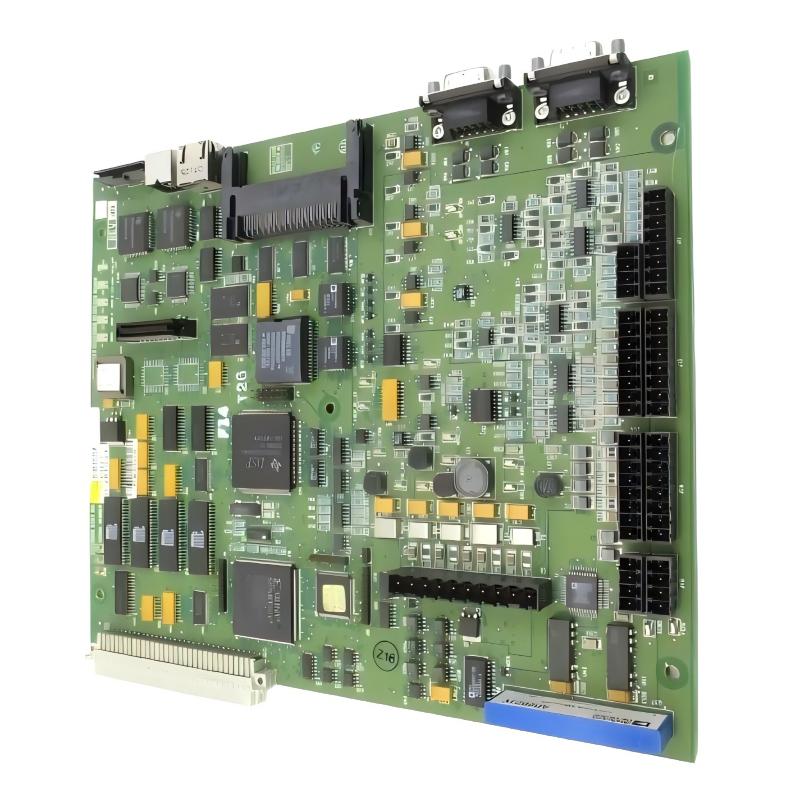

Allen Bradley 80190-320-03-R Customer Interface Board
Allen Bradley 80190-320-03-R Customer Interface Board
0.0
Points
Brand:Allen Bradley PLC Item No.:80190-320-03-R Product Origin:USA Product Dimensions:180 x 25 x 150 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 80190-320-03-R Customer Interface Board is a critical component used in PowerFlex 7000 medium-voltage drive systems. It serves as the primary interface between the operator and the drive, enabling configuration, monitoring, and control functions within complex industrial automation environments.
Technical Specifications
Parameter
Specification
Product Type
Customer Interface Board (CIB)
Compatible System
PowerFlex 7000 Series
Function
Drive user interface & control communication
Communication
Industrial network dependent (system-configured)
I/O Capability
Multiple digital & analog channels (system-based)
Operating Voltage
Drive-supplied internal power
Operating Temperature
-20°C to +60°C
Storage Temperature
-40°C to +85°C
Mounting Type
Drive-integrated module
Dimensions
180 × 25 × 150 mm
Weight
0.36 kg
Recommended Related Models
Model
Product Name
80190-220-01-R
PowerFlex 7000 Gate Driver Interface Board
80190-320-02-R
PowerFlex 7000 Control Interface Module
80190-450-04-R
PowerFlex 7000 Feedback Processing Board
20-750-ENETR
PowerFlex 750-Series EtherNet/IP Communication Module
Popular Related Models
Model
Product Name
80190-320-01-R
PowerFlex 7000 Interface Board Variant
80190-320-02-R
PowerFlex 7000 Customer Interface Board
80190-450-02-R
PowerFlex 7000 Control Board Module
20-COMM-E
PowerFlex EtherNet/IP Communication Adapter
Applications
• PowerFlex 7000 medium-voltage drive interface and control system integration
• Industrial motor control systems requiring operator interaction and parameter adjustment
• Large-scale process automation in oil, gas, and petrochemical plants
• Water treatment and pumping station drive monitoring and control systems
• Electrical power management systems with centralized drive supervision
• Retrofit and maintenance replacement for legacy Allen-Bradley drive platforms
Key Advantages
• Provides direct user-to-drive interface for PowerFlex 7000 systems
• Enables real-time monitoring, configuration, and fault diagnostics
• Improves operational efficiency through centralized control access
• Designed for high-reliability operation in harsh industrial environments
• Supports multiple industrial communication protocols depending on system configuration
• Enhances maintenance efficiency by simplifying troubleshooting and parameter access
• Robust board design suitable for continuous operation in high-demand applications
Technical FAQs
1. What is the main function of the 80190-320-03-R?
It acts as a customer interface board for PowerFlex 7000 drive systems, enabling user control and monitoring.
2. Which drive series is it compatible with?
It is primarily used with Allen-Bradley PowerFlex 7000 medium-voltage drives.
3. Does it support communication with PLC systems?
Yes, it can interface with industrial networks depending on system configuration.
4. Can it be used for diagnostics?
Yes, it provides access to drive status, alarms, and fault information.
5. Is it a standalone controller?
No, it works as part of a larger drive system architecture.
6. Does it support multiple I/O signals?
Yes, it manages multiple digital and analog signals for drive interaction.
7. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade conditions with high reliability.
8. Can it be replaced easily in the field?
Yes, it is designed for modular replacement in compatible drive systems.
9. Does it require programming?
Basic configuration is done through the drive system; it is not independently programmed like a PLC.
10. What industries commonly use it?
It is widely used in energy, water treatment, mining, and heavy industry sectors.
