Brand:Allen Bradley PLC Item No.:VPL-B1304E-PK12AA Product Origin:USA Product Dimensions:Frame Size: 130 mm Product Weight:9.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

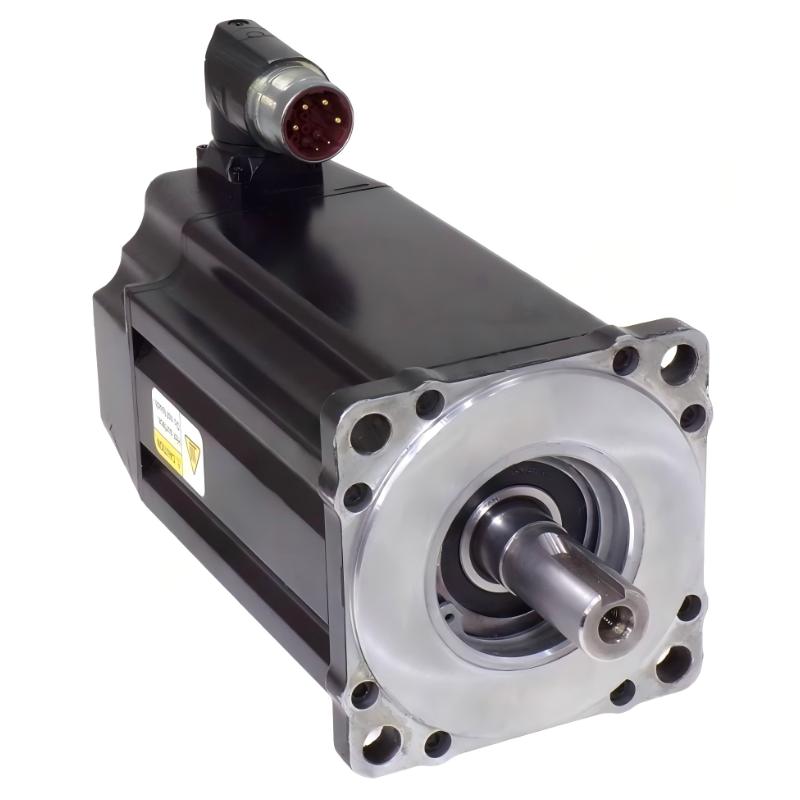

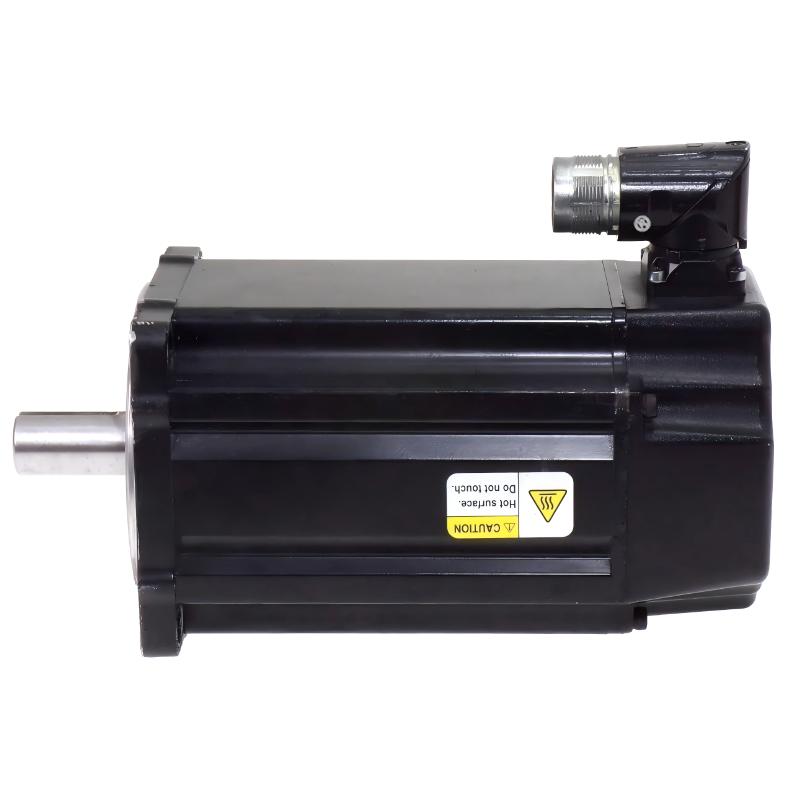

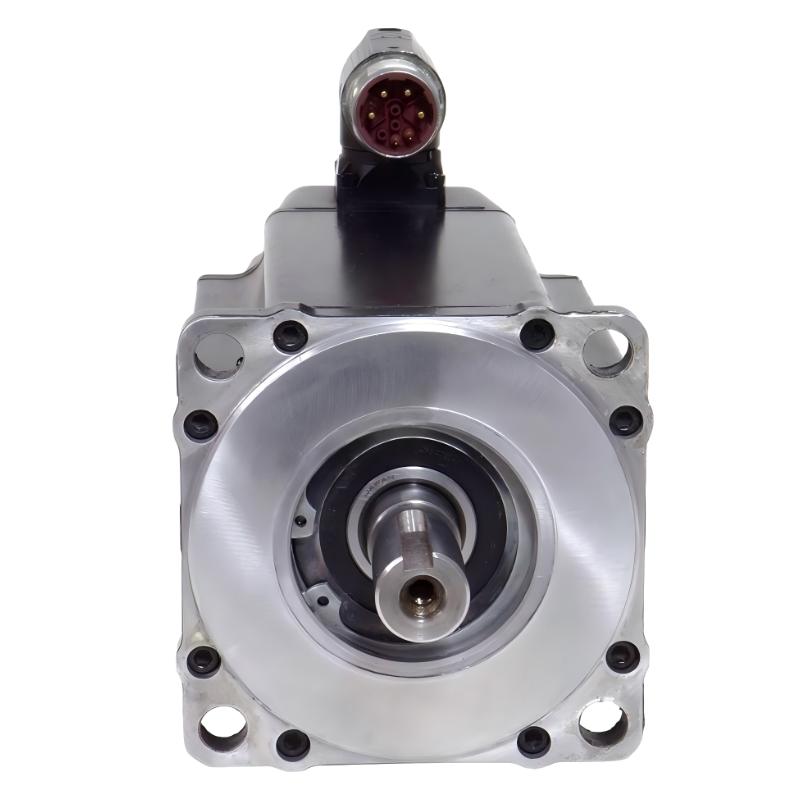

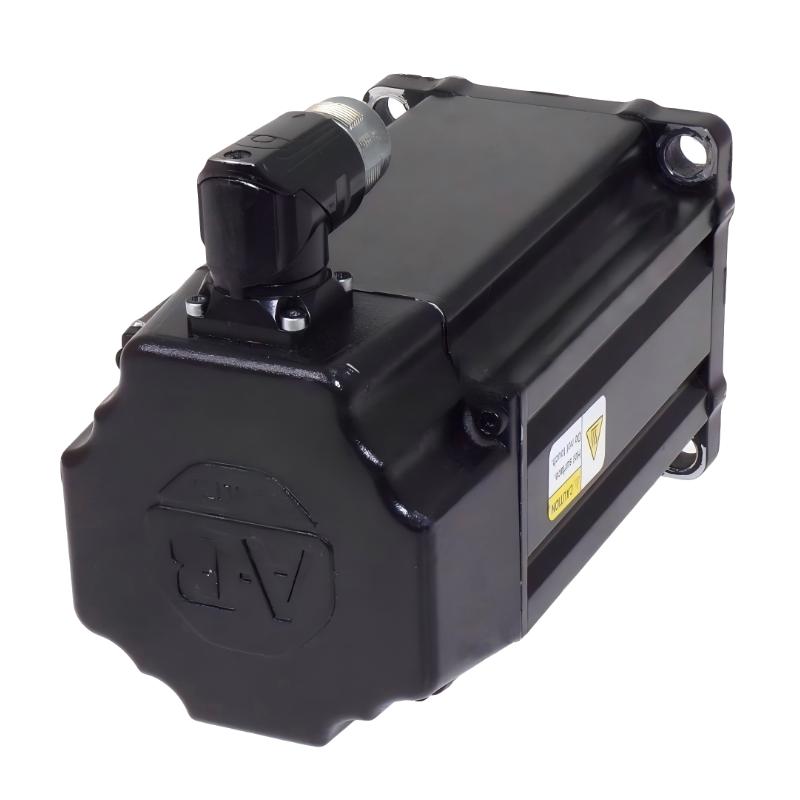

The Allen-Bradley VPL-B1304E-PK12AA Kinetix VP Servo Motor is a high-performance low-inertia motor designed for advanced industrial motion control applications. It provides fast dynamic response, high precision feedback, and robust torque performance, making it ideal for modern automated production systems.
Technical Specifications
Parameter
Specification
Product Type
Rotary Servo Motor
Series
Kinetix VP
Frame Size
130 mm
Rated Voltage
400–480 V AC
Rated Speed
~3500 rpm
Motor Type
Low-inertia synchronous servo motor
Feedback
18-bit single-turn + 12-bit multi-turn encoder
Protection Rating
IP66
Magnet Stacks
4
Shaft Type
Keyless shaft
Connector Type
SpeedTec DIN connector
Brake
No holding brake (variant-dependent)
Mounting
IEC metric flange
Weight
9.1 kg
Recommended Related Models
Model
Product Name
VPL-B1154E-PK12AA
Kinetix VP Servo Motor 115 mm Frame
VPL-B1654E-PK12AA
Kinetix VP High-Torque Servo Motor 165 mm Frame
MPL-B330P-MJ72AA
MP-Series 100 mm Low-Inertia Servo Motor
MPL-B350P-MJ74AA
MP-Series High Power Servo Motor 130 mm Class
Popular Related Models
Model
Product Name
VPL-B1304C-PK12AA
Kinetix VP Servo Motor Multi-turn Encoder Variant
VPL-B1304E-CK12AA
Kinetix VP Servo Motor Alternative Encoder Configuration
MPL-A430P-MJ72AA
MP-Series High Torque Servo Motor
MPL-B320P-MJ72AA
MP-Series Medium Frame Servo Motor
Applications
• High-speed packaging and labeling systems requiring fast dynamic response
• Precision motion control in robotics and pick-and-place automation
• Conveyor synchronization in high-throughput manufacturing lines
• Semiconductor and electronics assembly equipment with tight positioning accuracy
• CNC auxiliary axes and feeder mechanisms in machine tools
• OEM machine designs integrated with Kinetix servo drive platforms
• Automated inspection systems requiring stable torque and smooth motion control
Key Advantages
• 130 mm frame size delivers strong torque density in a compact industrial design
• Low-inertia rotor enables rapid acceleration and deceleration for high-speed cycles
• Multi-turn high-resolution encoder ensures precise feedback and positioning accuracy
• 480V AC class supports efficient operation in industrial power environments
• IP66-rated enclosure provides strong protection against dust and water ingress
• Seamless integration with Allen-Bradley Kinetix servo drive systems
• High-speed capability up to ~3500 rpm for demanding motion applications
Technical FAQs
1. What drive systems is this motor compatible with?
It is designed for Allen-Bradley Kinetix servo drives, including Kinetix 5500, 5700, and VP-compatible platforms.
2. What type of motor is it?
It is a low-inertia permanent magnet AC servo motor from the Kinetix VP series.
3. Does it support absolute positioning?
Yes, it uses an 18-bit single-turn and 12-bit multi-turn encoder for high-resolution positioning.
4. What is the rated speed?
The motor is rated around 3500 rpm depending on winding configuration.
5. Is it suitable for high dynamic applications?
Yes, it is optimized for fast acceleration and precise motion control.
6. Does it include a brake?
This variant typically does not include a holding brake.
7. What voltage class does it use?
It operates in the 400–480V AC industrial servo class.
8. Is it suitable for harsh environments?
Yes, it has an IP66 protection rating for industrial durability.
9. Can it be used in multi-axis systems?
Yes, it is commonly used in synchronized multi-axis motion setups.
10. Does it require tuning after installation?
Yes, tuning is required through the connected Kinetix servo drive.
