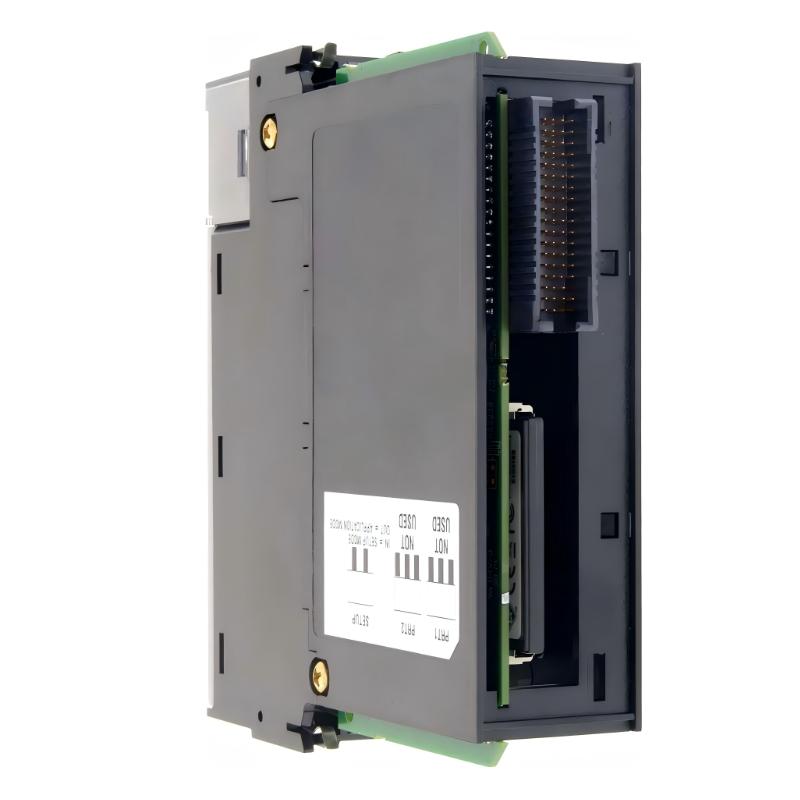

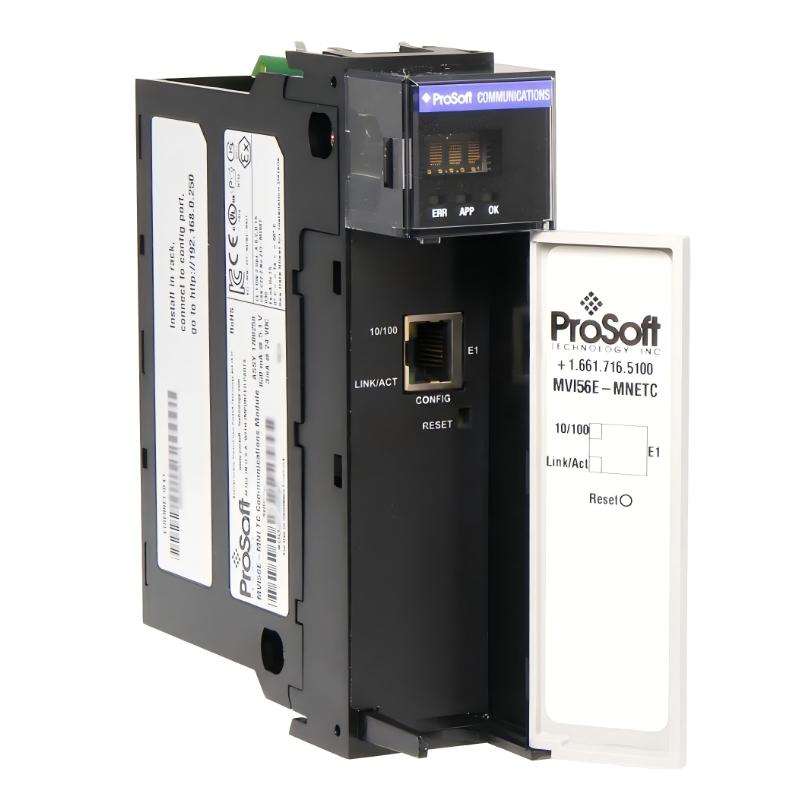

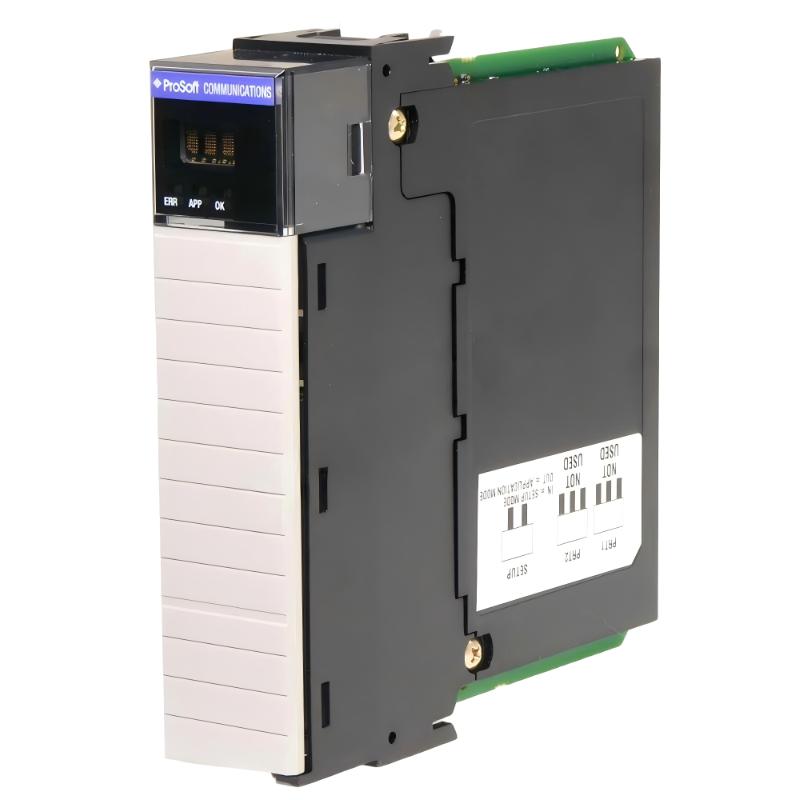

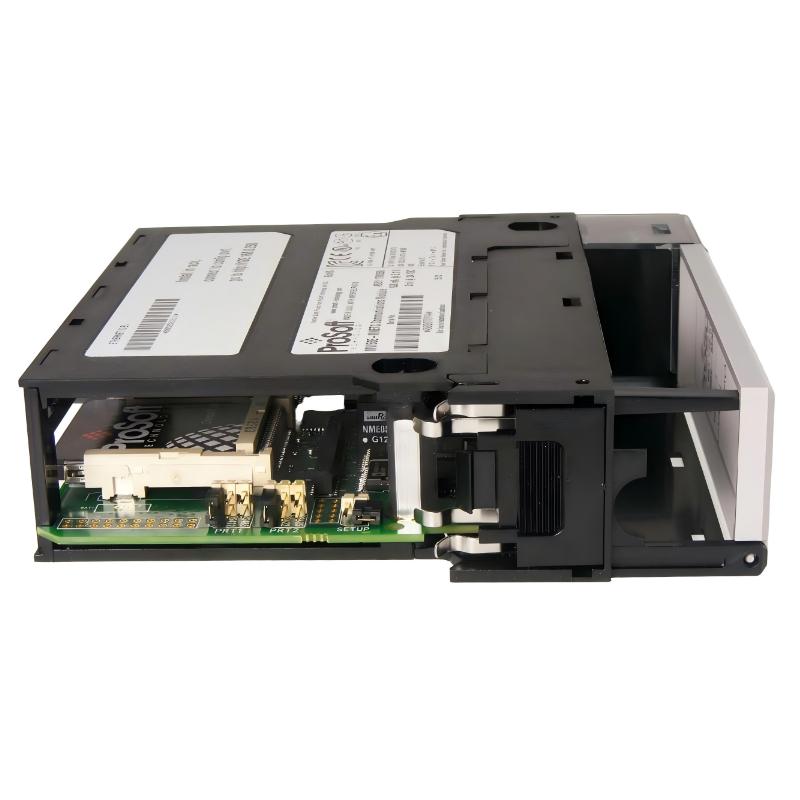

ProSoft MVI56E-MNETC Enhanced Modbus TCP/IP Client Communication Module

Applications

• In industrial automation systems, the module is used to enable Rockwell ControlLogix PLCs to communicate with Modbus TCP/IP devices such as remote I/O stations, drives, meters, and third-party PLC systems.

• It is widely deployed in process plants where a single PLC must manage multiple Modbus TCP/IP servers, enabling centralized control and data acquisition across distributed equipment networks.

• In SCADA architectures, it is used as a communication interface to collect real-time process data from Modbus-enabled field instruments for monitoring, visualization, and alarm management.

• It is applied in system integration projects where different vendors’ control systems must be connected under a unified Modbus TCP/IP communication layer without replacing existing hardware.

• It is suitable for industrial retrofit and expansion projects where legacy control systems need to be upgraded with high-performance Ethernet-based Modbus communication.

Key Advantages

• It supports multi-client Modbus TCP/IP communication, allowing a single ControlLogix controller to interact with multiple servers simultaneously for efficient network control.

• It provides both client and server functionality, enabling flexible integration with SCADA systems, PLC networks, and distributed automation architectures.

• It improves communication performance through optimized data handling, ensuring stable and fast data exchange in multi-device environments.

• It integrates directly into the ControlLogix backplane, reducing external wiring complexity and simplifying system architecture.

• It is designed for industrial reliability, maintaining stable operation in demanding environments with continuous communication loads.

Technical FAQs

1. What is the main function of this module?
It enables Modbus TCP/IP communication between ControlLogix PLCs and external Modbus devices.

2. Does it support both client and server modes?
Yes, it supports both Modbus TCP/IP client and server operations.

3. Which PLC platform is it designed for?
It is designed for Rockwell Automation ControlLogix systems.

4. Can it communicate with multiple devices at once?
Yes, it supports multiple simultaneous Modbus TCP/IP connections.

5. Where is it commonly used?
It is used in manufacturing, process control, and SCADA systems.

6. Is it suitable for system integration projects?
Yes, it is widely used to connect multi-vendor automation systems.

7. Does it require external gateways?
No, it integrates directly into the PLC chassis.

8. Can it be used in retrofit applications?
Yes, it is commonly used for upgrading legacy systems.

9. What type of network does it use?
It uses Ethernet-based Modbus TCP/IP communication.

10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial communication environments.
