Introduction

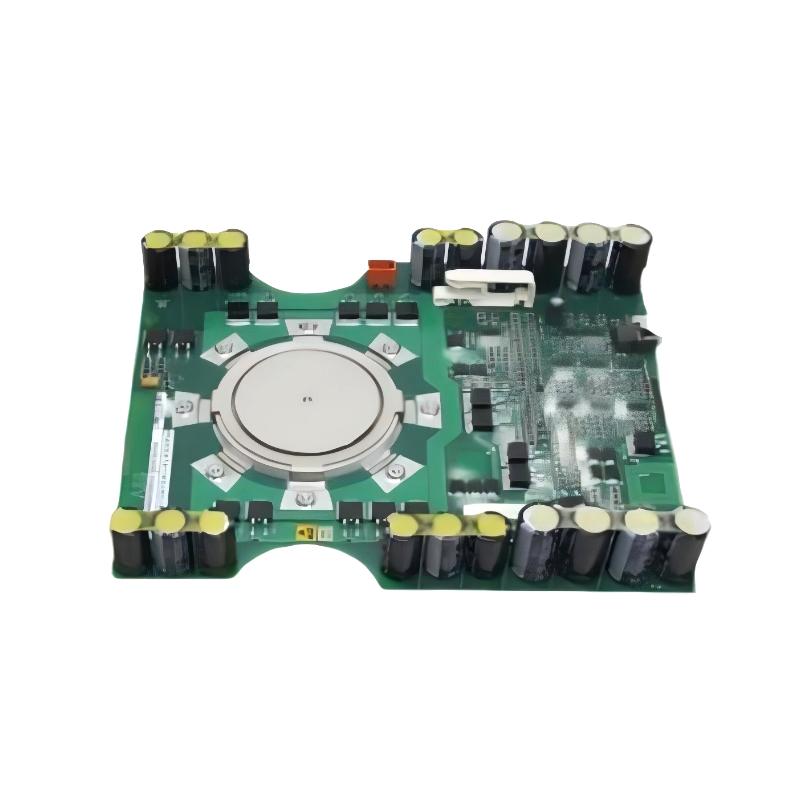

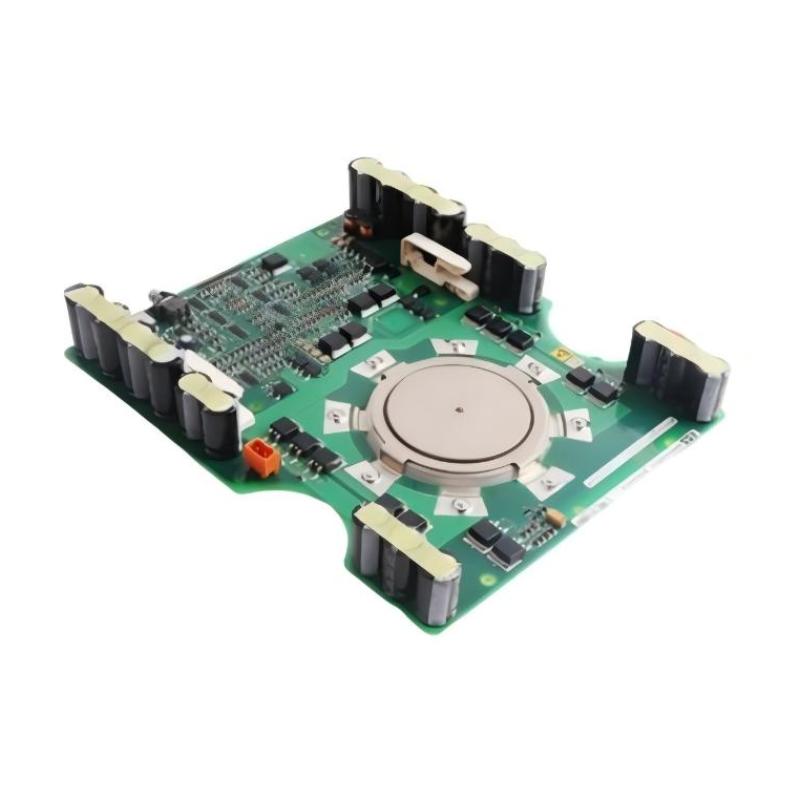

The ABB GV C704 AE01 3BHB003230R0101 Medium Voltage Power Supply Driver Board is a key control component within ABB MV power systems. It delivers accurate drive and regulation signals to power supply stages, helping maintain voltage stability and system integrity. Designed to meet ABB’s stringent standards, this board is ideal for both replacement and maintenance of critical medium-voltage installations.

Technical Specifications

Parameter	Description
Product Type	Medium Voltage Power Supply Driver Board
Manufacturer	ABB
Function	Power Supply Drive & Control
System Compatibility	ABB Medium Voltage Drive & Power Systems
Installation	MV Control Cabinet
Dimensions	200 × 150 × 100 mm
Weight	2.5 kg

Recommended Related Models

ABB GV C703 AE01 3BHB003229R0101 – Power supply control board for ABB MV systems
ABB GV C705 AE01 3BHB003231R0101 – Enhanced driver board for medium-voltage power units
ABB GV C710 AE01 3BHB003240R0101 – Voltage control and monitoring board for MV platforms
ABB GV C720 AE01 3BHB003250R0101 – Power interface board for ABB medium-voltage drives

Popular Related Models

ABB GV C702 AE01 3BHB003228R0101 – Power control interface board for MV converters
ABB GV C715 AE01 3BHB003245R0101 – Drive coordination board for medium-voltage systems
ABB GV C730 AE01 3BHB003260R0101 – System power management board for ABB MV solutions
ABB GV C750 AE01 3BHB003280R0101 – Advanced power supply control board for heavy-duty MV applications

Where It Excels in Real-World Use

The ABB GV C704 AE01 Power Supply Driver Board is engineered for demanding medium-voltage environments where precision, stability, and long-term reliability are non-negotiable:

Medium-voltage drive and converter systems
Power supply control within ABB MV automation platforms
Energy, utilities, and heavy industrial processes
Voltage regulation and gate drive coordination
Maintenance and replacement in long-running ABB MV installations

Advantages

Purpose-built for medium-voltage power electronics, ensuring safe and stable operation
Delivers precise drive and control signals to power supply stages
Robust industrial design suited for harsh electrical environments
Supports consistent system performance under continuous load
ABB-original board guarantees electrical compatibility and long service life

Technical FAQs

What is the main function of the GV C704 AE01 board?
It acts as a driver and control interface for power supply sections in ABB medium-voltage systems.
Which types of systems use this board?
It is typically used in ABB medium-voltage drives, converters, and power control platforms.
Is this board involved in voltage regulation?
Yes. It supports control and regulation of power supply behavior within MV systems.
Can it be used as a direct replacement?
Yes. It is designed for direct replacement in compatible ABB configurations.
Does the board perform power conversion itself?
No. It controls and drives power supply stages rather than converting power directly.
Is software configuration required?
Configuration is generally handled at the system or controller level, not on the board itself.
How is the board installed?
It is mounted inside the cabinet and connected to the system backplane or power assembly.
Is it suitable for continuous operation?
Yes. It is designed for long-term, continuous industrial use.
What happens if this board fails?
Power supply control may become unstable or unavailable, making timely replacement critical.
Why choose an original ABB medium-voltage board?
Original boards ensure correct electrical behavior, system safety, and long-term reliability.
