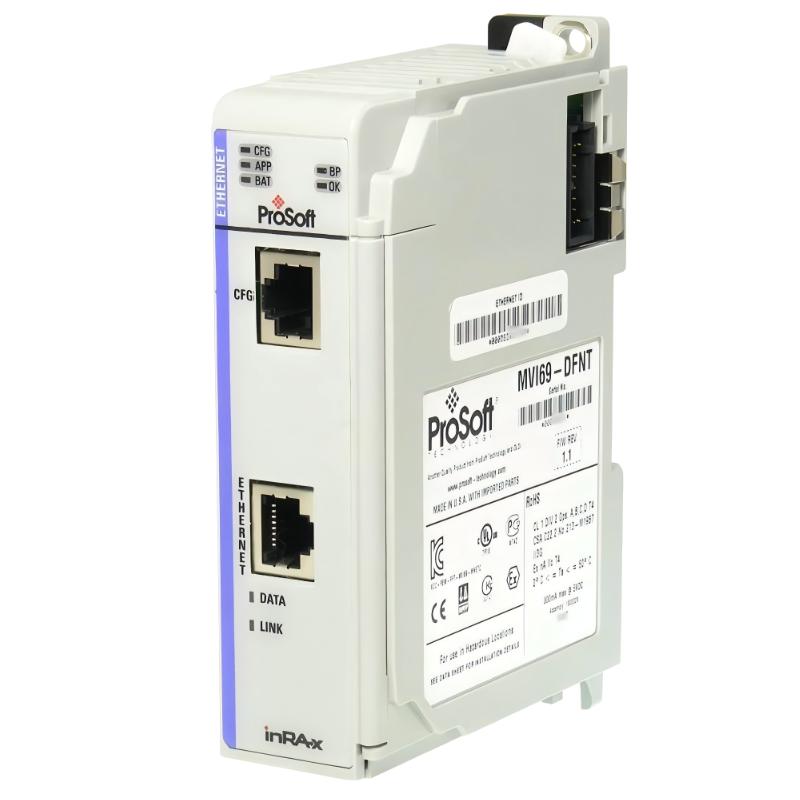

ProSoft MVI69-DFNT EtherNet/IP Client/Server Communication Module

Applications

• In Rockwell CompactLogix systems, the MVI69-DFNT is used to enable seamless communication between PLCs and EtherNet/IP devices such as drives, remote I/O, HMIs, and third-party controllers.

• It is deployed in industrial plants where centralized PLC control must integrate multiple Ethernet-based automation networks for real-time data exchange and process supervision.

• In SCADA architectures, the module is used to collect field data from distributed EtherNet/IP devices and map it directly into PLC memory for monitoring and control.

• It is applied in retrofit and system expansion projects where existing CompactLogix or MicroLogix 1500 LRP systems must communicate with modern Ethernet-based industrial equipment.

• It is suitable for manufacturing and process industries where reliable multi-device communication is required for sequencing, coordination, and operational optimization.

Key Advantages

• It provides both EtherNet/IP client and server functionality, enabling flexible integration with a wide range of industrial automation devices.

• It supports high-speed data exchange between the PLC backplane and external Ethernet networks for efficient real-time control.

• It integrates directly into the CompactLogix/MicroLogix 1769 chassis, eliminating the need for external gateways or additional hardware.

• It allows scalable network expansion, making it suitable for both small machine control systems and large distributed automation networks.

• It is designed for industrial-grade reliability, ensuring stable communication performance under continuous operation and harsh environments.

Technical FAQs

1. What is the main function of this module?
It enables EtherNet/IP communication between CompactLogix or MicroLogix PLCs and external devices.

2. Does it support both client and server modes?
Yes, it operates as both an EtherNet/IP client and server.

3. Which PLC platforms is it compatible with?
It is designed for CompactLogix and MicroLogix 1500 LRP systems.

4. What types of devices can it communicate with?
It can communicate with PLCs, drives, HMIs, and other EtherNet/IP-compatible devices.

5. Is it suitable for system integration projects?
Yes, it is widely used for multi-vendor industrial integration.

6. Does it require external gateways?
No, it installs directly into the PLC backplane.

7. Can it be used in SCADA systems?
Yes, it is commonly used for data acquisition and supervisory control.

8. Is it suitable for retrofit applications?
Yes, it is often used to upgrade legacy automation systems.

9. What communication protocol does it use?
It uses EtherNet/IP over industrial Ethernet networks.

10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use.
