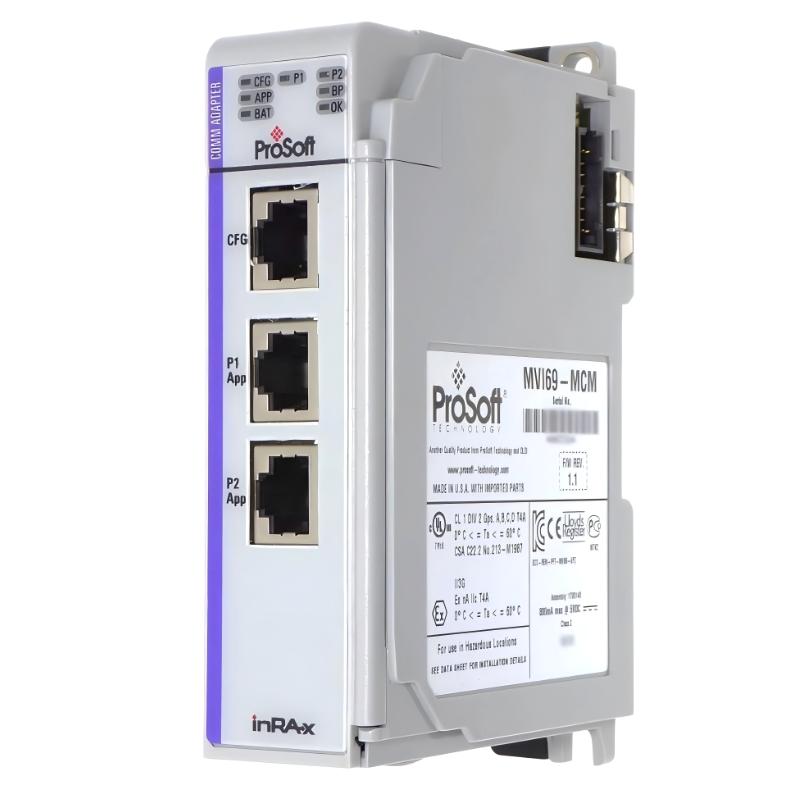

ProSoft MVI69-MCM Modbus Master/Slave Communication Module

Applications

• In CompactLogix and MicroLogix 1769 systems, the MVI69-MCM is used to enable communication between Rockwell PLCs and Modbus-compatible devices such as drives, sensors, third-party PLCs, and process controllers.

• It is widely applied in industrial automation systems where Modbus RTU devices must be integrated into a centralized PLC architecture for real-time data exchange and control.

• In process industries, it is used to collect operational data from distributed Modbus networks and map it into PLC memory for monitoring, sequencing, and supervisory control.

• It is deployed in retrofit and modernization projects where legacy Modbus equipment must be connected to modern Rockwell Automation control platforms without hardware replacement.

• It is suitable for manufacturing and utility environments where multi-device communication and cross-vendor interoperability are required for stable plant operation.

Key Advantages

• It supports both Modbus Master and Slave functionality, allowing flexible deployment in a wide range of industrial network architectures.

• It provides high-speed backplane communication with the PLC, ensuring fast and efficient data transfer between controller and field devices.

• It integrates directly into the 1769 backplane as a single-slot module, eliminating the need for external communication gateways.

• It supports both Modbus RTU and ASCII protocols, increasing compatibility with a wide variety of industrial equipment.

• It is designed for industrial-grade reliability, ensuring stable continuous operation in harsh electrical and environmental conditions.

Technical FAQs

1. What is the main function of this module?
It enables Modbus communication between CompactLogix/MicroLogix PLCs and external Modbus devices.

2. Does it support both Master and Slave modes?
Yes, it can be configured as either Modbus Master or Modbus Slave.

3. Which PLC platforms is it compatible with?
It is designed for CompactLogix and MicroLogix 1500 LRP systems.

4. What communication protocols does it support?
It supports Modbus RTU and Modbus ASCII.

5. Is it suitable for system integration projects?
Yes, it is widely used for multi-vendor industrial integration.

6. Does it require external gateways?
No, it installs directly into the PLC backplane.

7. Can it be used in retrofit applications?
Yes, it is commonly used to modernize legacy Modbus systems.

8. What type of data handling does it support?
It supports register-based mapping between PLC memory and Modbus devices.

9. Is it suitable for SCADA systems?
Yes, it is often used for data acquisition and supervisory control.

10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial communication use.
