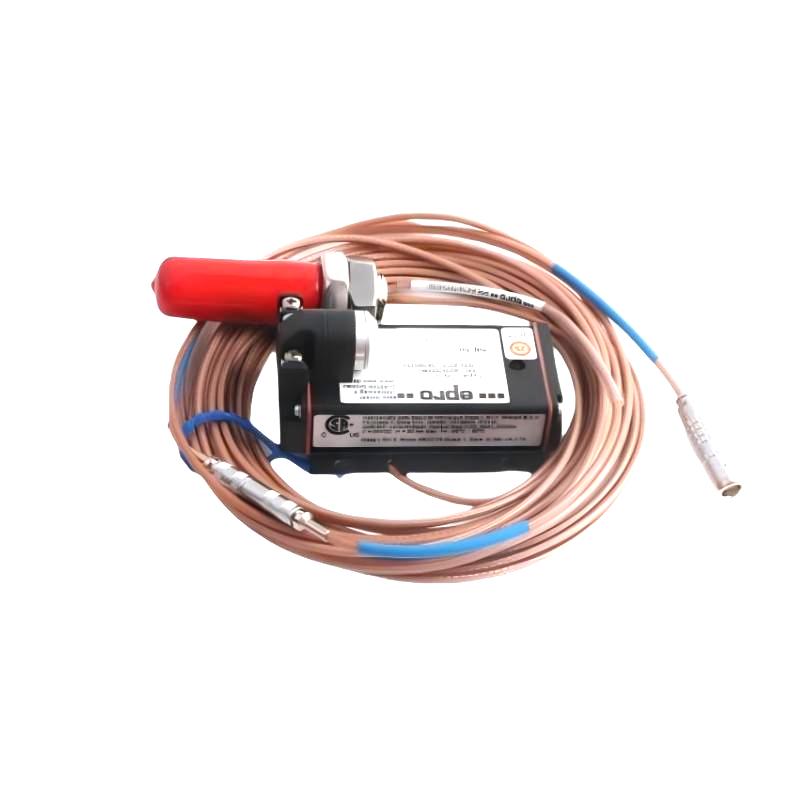

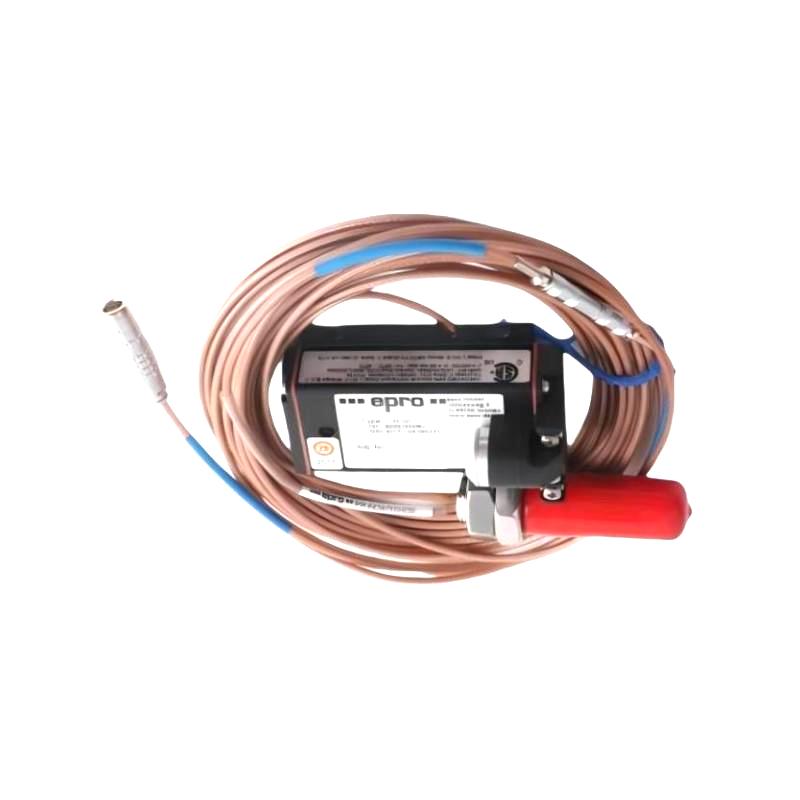

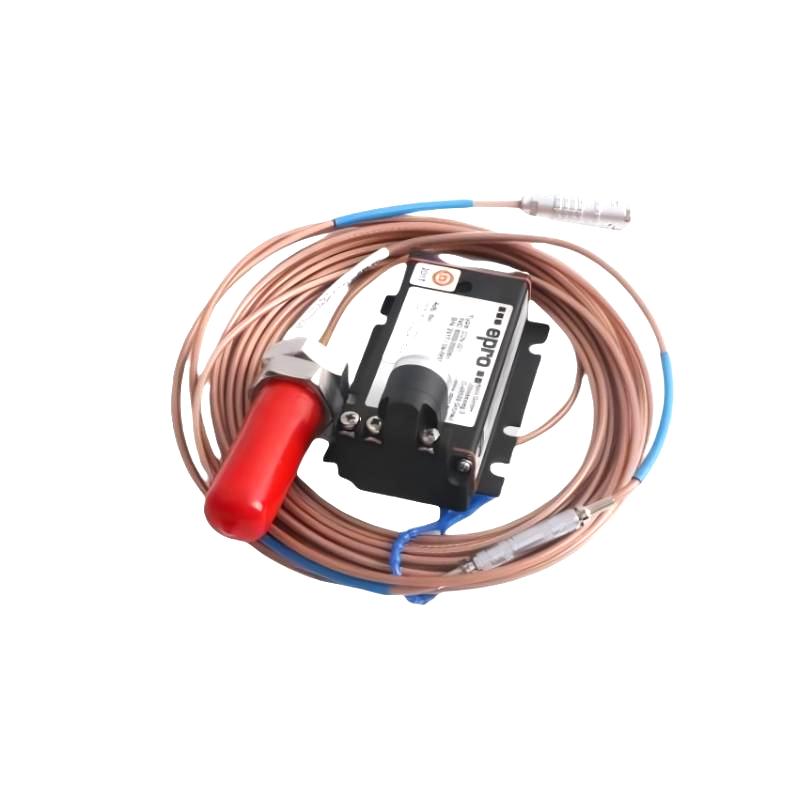

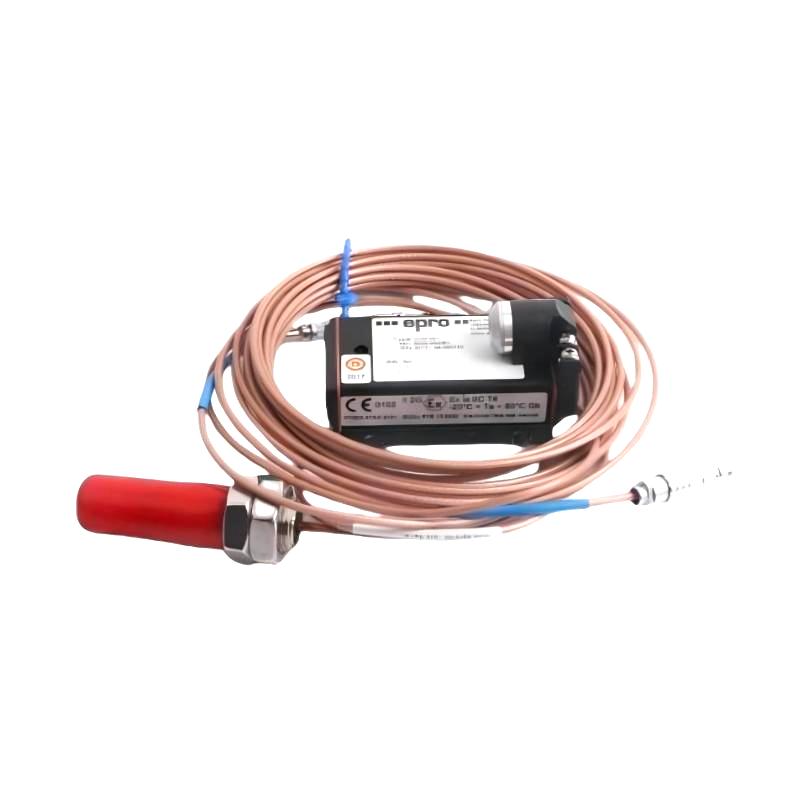

Epro PR6424/013-030+CON021 16 mm Eddy Current Sensor
Epro PR6424/013-030+CON021 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/013-030+CON021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The EPRO PR6424/013-030+CON021 is a 16 mm eddy-current sensor system engineered for high-accuracy monitoring in rotating machinery. By combining a precision probe with a dedicated signal converter, it ensures stable and reliable measurement output in demanding industrial environments.
This system is widely deployed in critical asset monitoring applications where measurement consistency, safety, and long-term reliability are essential.
Technical Specifications
Parameter
Specification
Model
PR6424/013-030+CON021
Product Type
16 mm Eddy Current Sensor System
Sensor Head Diameter
16 mm
Measurement Principle
Eddy-current non-contact sensing
Signal Converter
CON021 module
Sensitivity
4 V/mm (±1.5%)
Linear Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180 °C
Target Material
Ferromagnetic steel
Frequency Response
Up to 20 kHz (system dependent)
Installation Type
Fixed industrial turbomachinery mounting
Weight
0.32 kg (0.71 lb)
Applications
The PR6424/013-030+CON021 system is widely applied in turbomachinery environments where stable signal conditioning and reliable measurement output are essential:
Steam and gas turbines in power generation plants
Centrifugal and axial compressors in oil & gas facilities
Industrial pumps and high-speed rotating machinery
Hydro turbine generator systems
Large rotating equipment in petrochemical and refinery plants
It is commonly used in API 670-based protection and condition monitoring systems to ensure continuous asset safety.
Advantages
Integrated probe + CON021 signal converter for stable signal processing
Strong resistance to vibration, temperature variation, and EMI interference
Reliable long-term stability for predictive maintenance systems
Accurate detection of shaft displacement, vibration, and eccentricity
Suitable for continuous 24/7 industrial operation
Proven suitability for harsh turbomachinery environments
Technical FAQs
1. What is the function of the CON021 module in this system?
It converts raw eddy-current probe signals into a stable conditioned output for monitoring systems.
2. What parameters does this system measure?
It measures shaft displacement, vibration, position, and eccentricity.
3. Is it suitable for turbine applications?
Yes, it is widely used in steam, gas, and hydro turbine systems.
4. Does it require physical contact with the shaft?
No, it uses non-contact eddy-current measurement technology.
5. Can it operate in harsh industrial environments?
Yes, it is designed for high temperature, vibration, and EMI-prone conditions.
6. Is it suitable for continuous monitoring?
Yes, it supports 24/7 condition monitoring applications.
7. What shaft materials is it optimized for?
It is optimized for conductive ferromagnetic steel shafts.
8. Does it support axial and radial measurement?
Yes, depending on system configuration, both measurement directions are supported.
9. How does it handle electrical noise?
The CON021 module provides strong signal conditioning and noise suppression.
10. What is its role in predictive maintenance?
It enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear.
