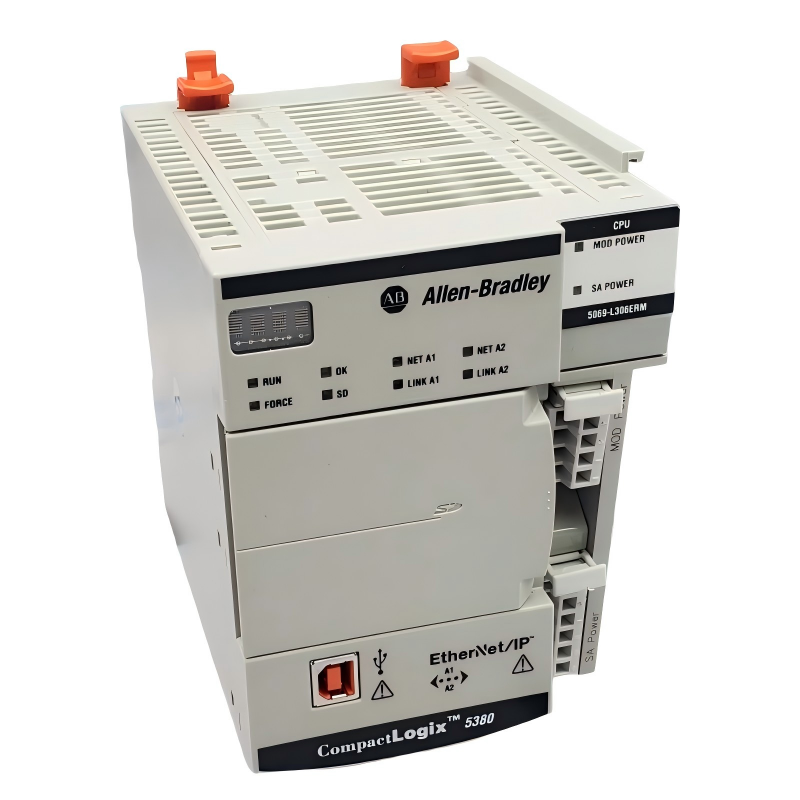

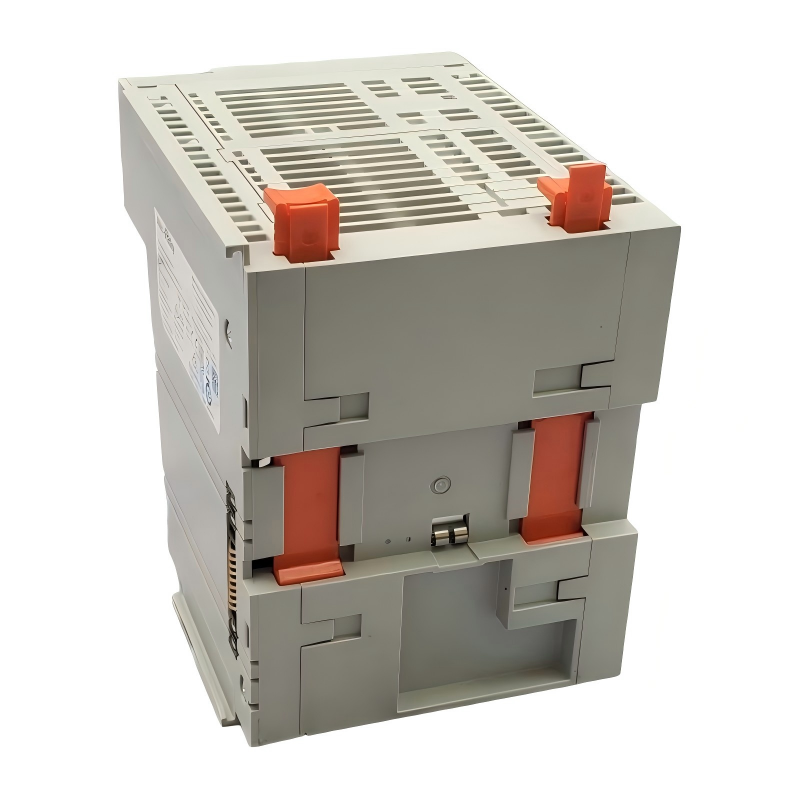

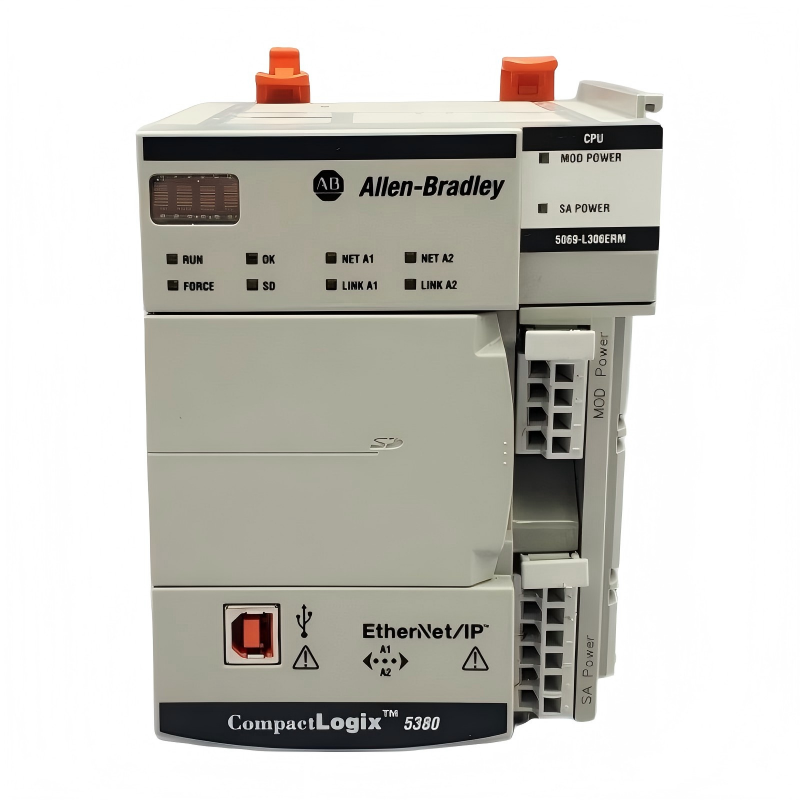

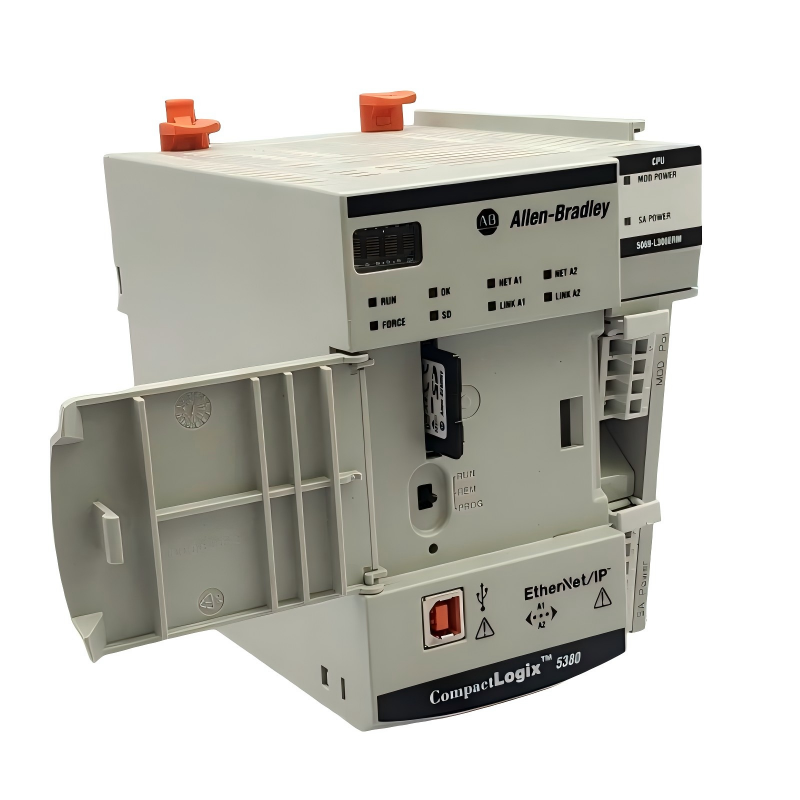

Allen Bradley 5069-L306ERM CompactLogix 5380 Controller
Allen Bradley 5069-L306ERM CompactLogix 5380 Controller
0.0
Points
Brand:Allen Bradley PLC Item No.:5069-L306ERM Product Origin:USA Product Dimensions:143.97 x 98.1 x 136.81 mm Product Weight:0.768 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5069-L306ERM is a CompactLogix 5380 controller engineered for high-performance automation systems requiring integrated motion, scalable I/O architecture, and reliable real-time control.
It serves as the core processing unit in Compact 5000-based automation systems, delivering consistent execution performance for complex industrial machinery and synchronized production environments.
Technical Specifications
Parameter
Specification
Model
Allen-Bradley 5069-L306ERM
Controller Type
CompactLogix 5380 Controller
Memory
0.6 MB class
Dimensions
143.97 × 98.1 × 136.81 mm
Weight
0.768 kg (1.69 lb)
Communication
EtherNet/IP
Motion Capability
Integrated motion support
I/O System
Compact 5000 Series
Programming Software
Studio 5000
Installation
DIN rail mounting system
Applications
The Allen-Bradley 5069-L306ERM CompactLogix 5380 Controller is designed for high-performance industrial automation systems that require deterministic control, scalable architecture, and integrated motion capability within Compact 5000 environments.
Typical applications include:
High-speed packaging and bottling lines
Automotive assembly and robotic coordination systems
Material handling and conveyor synchronization systems
Food & beverage production automation
Multi-axis motion control machines
Smart factory distributed control systems (IIoT-ready environments)
It is widely selected for systems where reliability, motion coordination, and network scalability are critical.
Advantages
This controller delivers a strong combination of performance and system integration benefits:
Integrated motion control for synchronized multi-axis systems
High-speed EtherNet/IP communication architecture
Scalable Compact 5000 I/O expansion capability
Optimized processing for complex industrial logic
Enhanced diagnostics for faster fault detection and recovery
Compact footprint suitable for dense control cabinets
Robust industrial-grade reliability for continuous operation
Technical FAQs (10 Technical Questions)
Q1: Does the 5069-L306ERM support integrated motion control?
Yes, it supports integrated motion for coordinated axis control.
Q2: What network protocol does it use?
It uses EtherNet/IP for industrial communication.
Q3: Can it be used in distributed I/O architectures?
Yes, it supports Compact 5000 distributed I/O systems.
Q4: Is it suitable for high-speed automation tasks?
Yes, it is designed for deterministic high-speed control.
Q5: Does it support multiple communication ports?
Yes, it includes multiple Ethernet interfaces for network flexibility.
Q6: Can it integrate with Studio 5000?
Yes, programming and configuration are done via Studio 5000.
Q7: Does it support remote diagnostics?
Yes, it includes advanced system monitoring and diagnostics tools.
Q8: Can it be used in motion-heavy applications?
Yes, it is optimized for multi-axis motion environments.
Q9: Is it compatible with Compact 5000 modules?
Yes, it is fully compatible with the 5069 Compact 5000 I/O family.
Q10: Does it support industrial security features?
Yes, it supports controller-level security and access control mechanisms.
