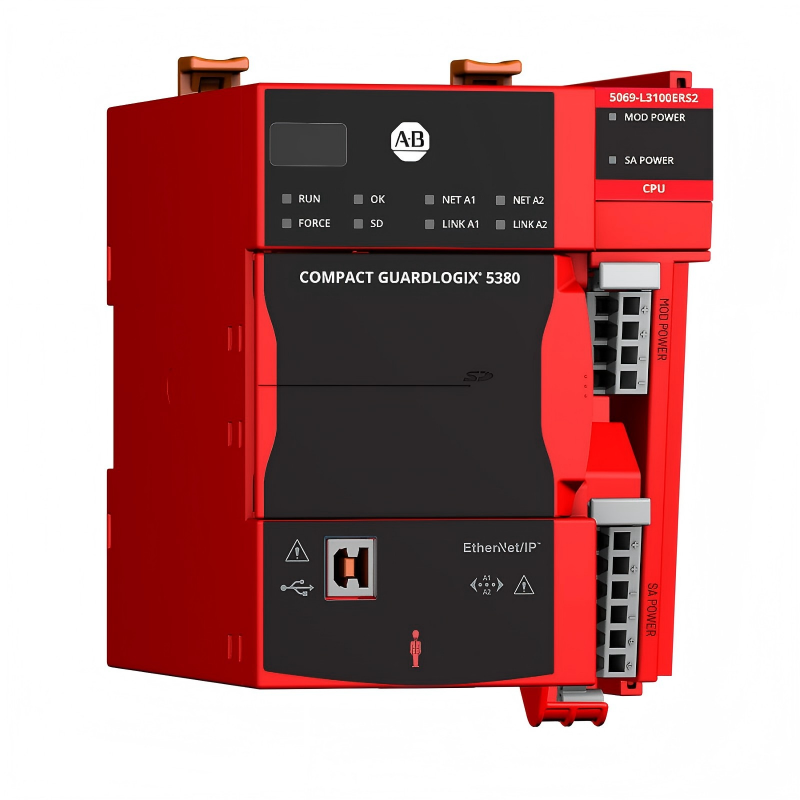

Allen Bradley 5069-L3100ERS2 Compact GuardLogix 5380 Security Controller

Applications

The Allen-Bradley 5069-L3100ERS2 Compact GuardLogix 5380 Security Controller is designed for high-integrity industrial automation systems where safety, deterministic control, and secure operation are mission-critical.

It is commonly deployed in:

• Safety-critical production lines with SIL2 / PLd requirements
• Automotive robotic assembly and interlocked machinery systems
• High-speed packaging systems with integrated safety zones
• Material handling systems requiring safety-rated motion coordination
• Pharmaceutical and regulated manufacturing environments
• Smart factory architectures with CIP Safety integration

Its architecture is optimized for systems requiring both standard control and safety logic execution in a single controller platform.

Advantages

This controller provides a strong combination of safety compliance and high-performance control:

• Integrated SIL2 / PLd safety controller architecture
• Unified standard + safety logic execution in one platform
• High-speed EtherNet/IP communication for real-time control
• Supports scalable Compact 5000 I/O expansion
• Advanced diagnostics for safety and system fault detection
• Designed for secure industrial communication environments
• Reduces hardware complexity in safety-rated machine designs

Technical FAQs (10 Technical Questions)

Q1: Does the 5069-L3100ERS2 support safety-rated control?
Yes, it is designed for SIL2 / PLd safety applications.

Q2: Can safety and standard logic run in the same controller?
Yes, both are executed within a unified GuardLogix environment.

Q3: What communication protocol is used?
It uses EtherNet/IP with support for CIP Safety.

Q4: Is it suitable for motion control systems?
It is primarily focused on safety + logic control; motion support depends on system configuration.

Q5: Can it integrate with Compact 5000 I/O modules?
Yes, it is fully compatible with the 5069 Compact 5000 family.

Q6: What programming environment is required?
Studio 5000 is used for configuration and programming.

Q7: Does it support remote diagnostics?
Yes, it includes advanced diagnostic and fault reporting tools.

Q8: Is it suitable for multi-machine safety systems?
Yes, it is commonly used in distributed safety architectures.

Q9: Does it support industrial cybersecurity features?
Yes, it includes controller-level security and access control mechanisms.

Q10: Can it operate in high-reliability continuous production systems?
Yes, it is designed for 24/7 industrial operation environments.
