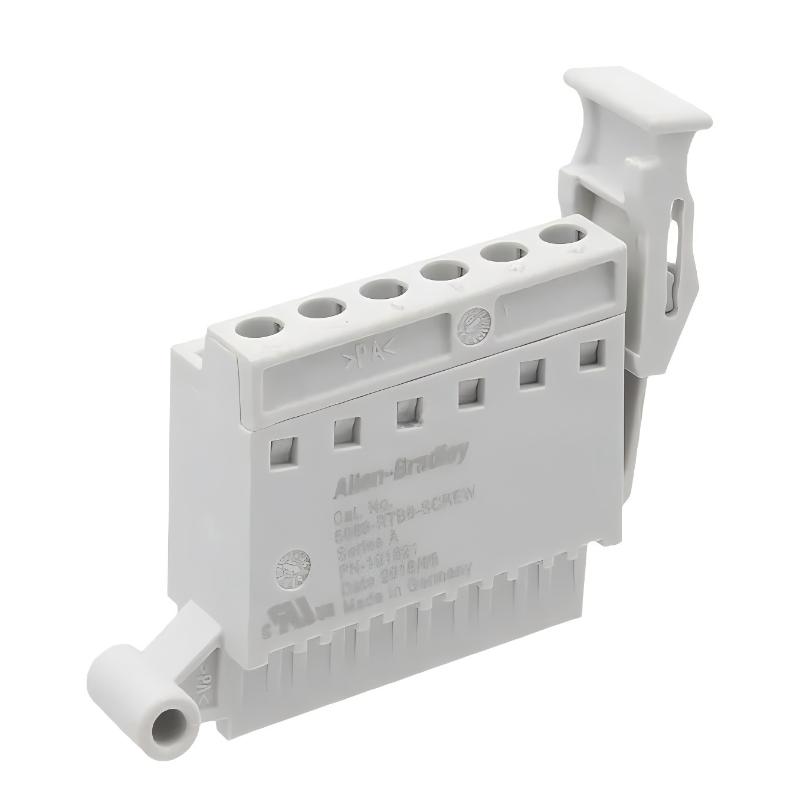

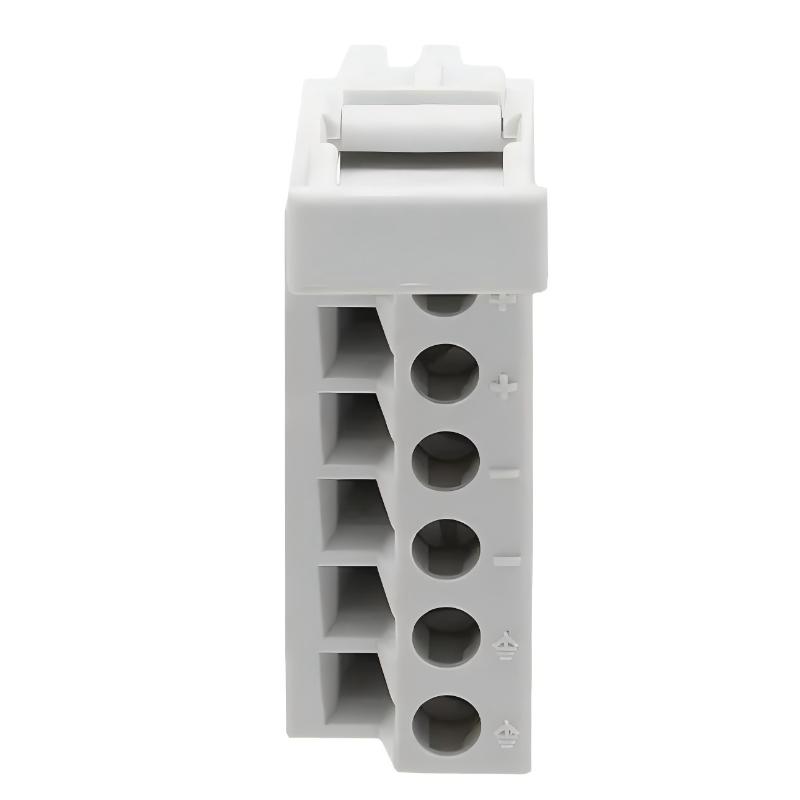

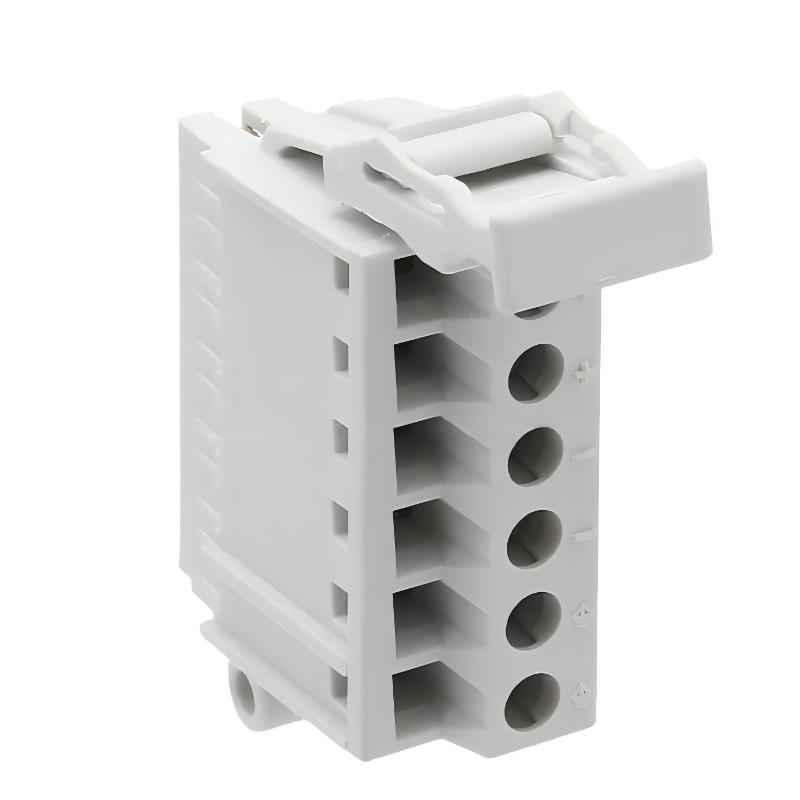

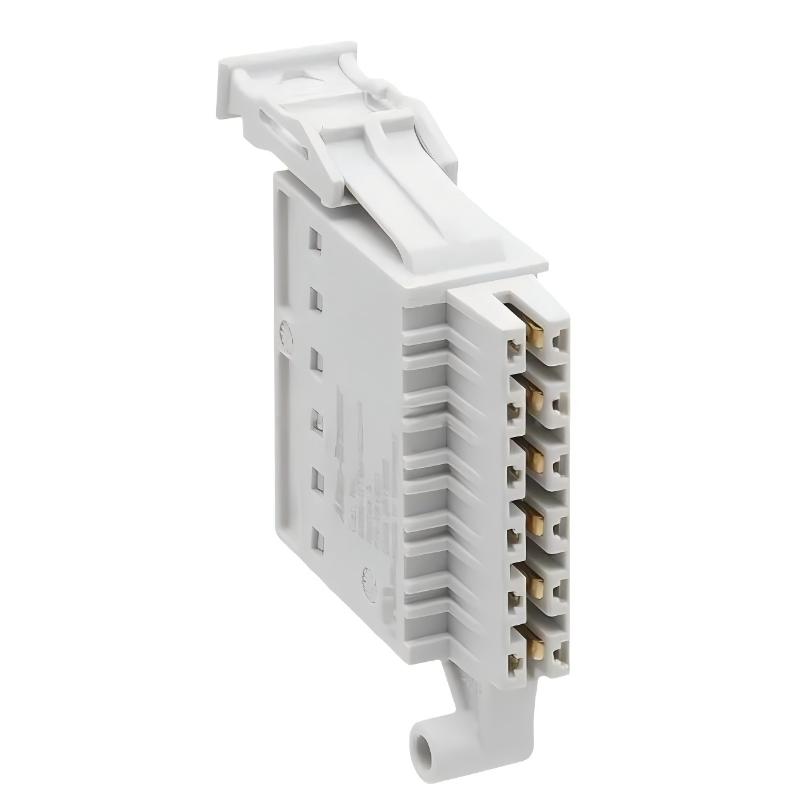

Allen Bradley 5069-RTB6-SCREW Compact 5000 I/O Terminal Blocks

Applications

The Allen-Bradley 5069-RTB6-SCREW is a removable terminal block designed for Compact 5000 I/O systems, providing secure and reliable field wiring termination for industrial automation applications.

It is commonly used in:

• CompactLogix 5380 and GuardLogix 5380 I/O wiring systems
• Distributed control cabinets in factory automation
• Machine-level sensor and actuator wiring interfaces
• High-density I/O installations requiring compact termination solutions
• Industrial control panels with modular Compact 5000 architecture
• Retrofit upgrades of legacy PLC wiring systems

Its 6-pin screw terminal design ensures stable electrical connections in vibration-prone industrial environments.

Advantages

• Secure screw-clamp wiring for stable industrial connections
• Compact 6-pin design optimized for high-density I/O modules
• Tool-friendly installation and replacement process
• Reliable mechanical retention in vibration-heavy environments
• Designed specifically for Compact 5000 I/O architecture
• Reduces wiring errors through structured terminal layout
• Supports long-term maintenance efficiency in control cabinets

Technical FAQs (10 Technical Questions)

Q1: What modules is the 5069-RTB6-SCREW compatible with?
It is compatible with Allen-Bradley Compact 5000 I/O modules.

Q2: What type of wiring method does it use?
It uses screw-clamp termination for field wiring.

Q3: How many terminals does it provide?
It provides 6 pin termination points.

Q4: Is it suitable for high-vibration environments?
Yes, screw-type retention ensures stable connections under vibration.

Q5: Can it be reused after removal?
Yes, it is designed as a removable terminal block for reuse.

Q6: Does it require special tools for installation?
No, standard industrial screwdrivers are sufficient.

Q7: Is it used for signal or power wiring?
It is used for sensor/actuator and I/O signal wiring depending on module configuration.

Q8: Does it support safety systems?
Yes, it can be used within GuardLogix and safety-rated I/O systems.

Q9: Is it part of the Compact 5000 ecosystem?
Yes, it is part of the 5069 Compact 5000 accessory lineup.

Q10: Can it be replaced without rewiring the entire system?
Yes, it supports modular replacement of terminal blocks.
