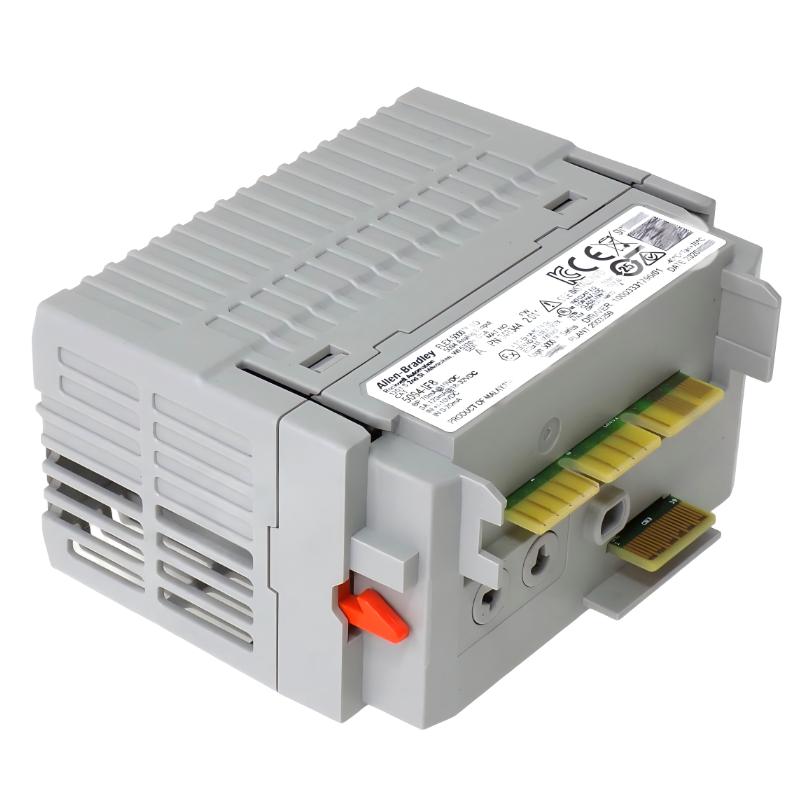

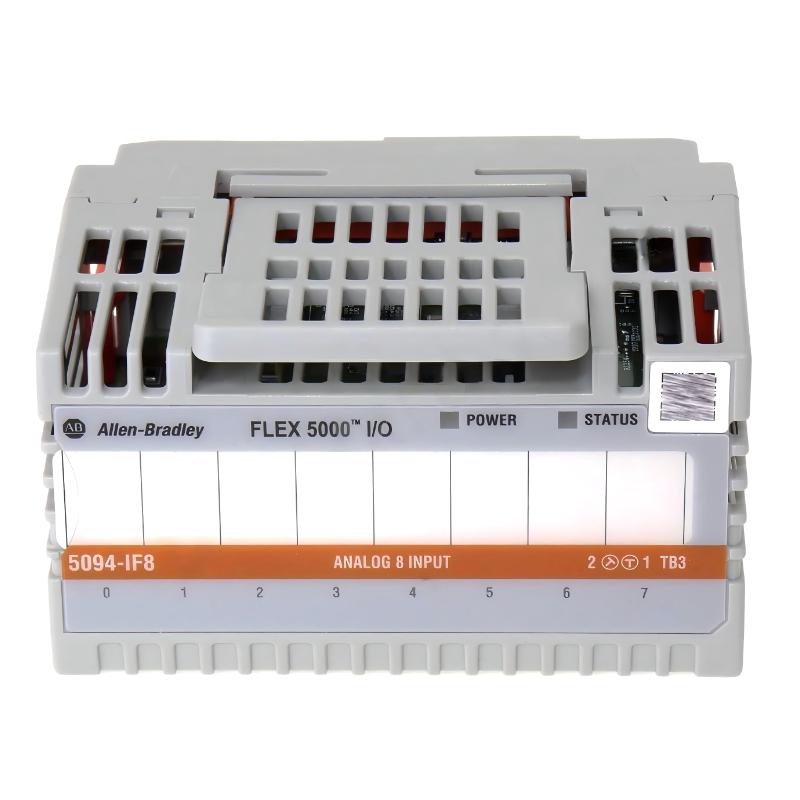

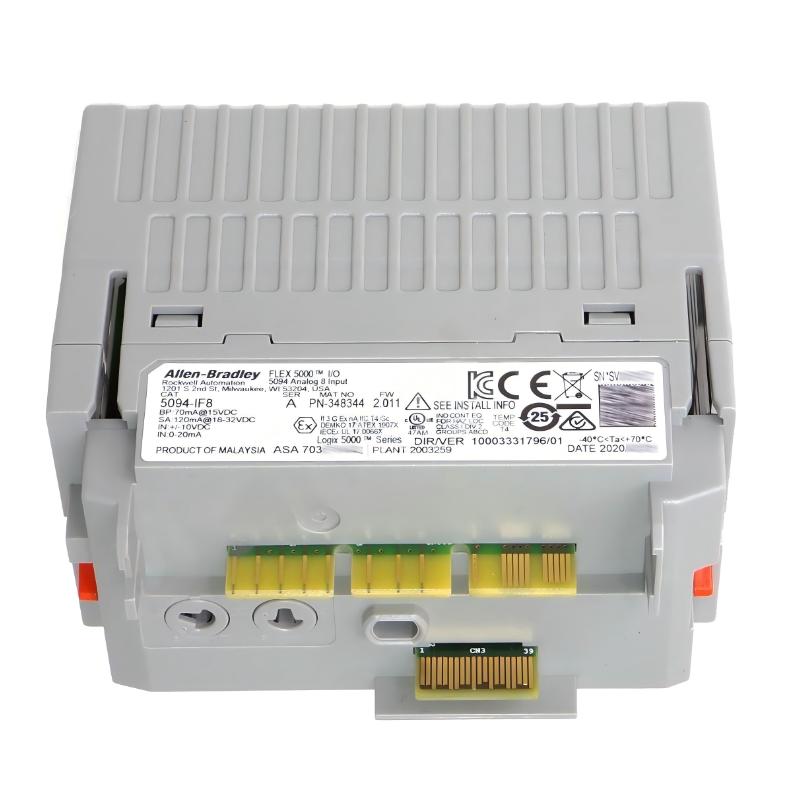

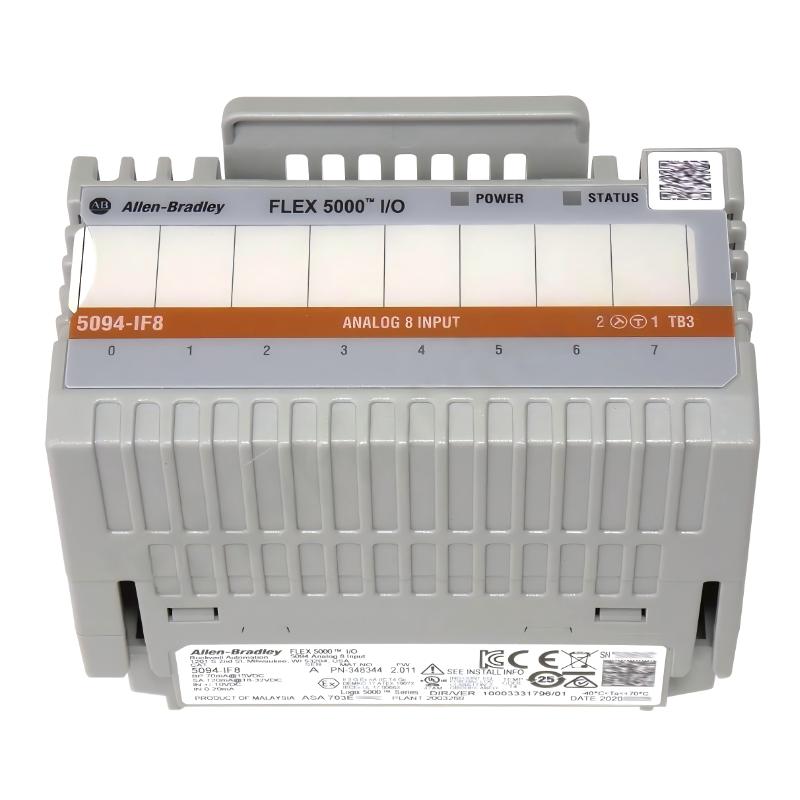

Allen Bradley 5094-IF8 Flex 5000 Analog Input Module
Allen Bradley 5094-IF8 Flex 5000 Analog Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:5094-IF8 Product Origin:USA Product Dimensions:94 x 54 x 87 mm Product Weight:0.104 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5094-IF8 is a FLEX 5000 8-channel analog input module engineered for high-performance industrial data acquisition. It enables accurate conversion of field analog signals into digital data for use in Logix-based control systems.
Designed for scalability and reliability, it is widely used in modern automation systems requiring precise process monitoring and flexible I/O expansion.
Technical Specifications
Parameter
Specification
Model
Allen-Bradley 5094-IF8
Product Type
FLEX 5000 Analog Input Module
Input Channels
8 single-ended
Input Types
Voltage / Current
Voltage Range
0–5V / 0–10V / ±10V
Current Range
0–20 mA / 4–20 mA
Resolution
16-bit class (FLEX 5000 standard)
Diagnostics
Channel-level fault detection
Communication System
EtherNet/IP via FLEX 5000 adapter
Weight
0.104 kg (0.229 lb)
Applications
The Allen-Bradley 5094-IF8 FLEX 5000 Analog Input Module is designed for high-precision analog signal acquisition in distributed industrial automation systems, supporting voltage and current measurement within scalable FLEX 5000 architectures.
Typical applications include:
Process automation and continuous production monitoring
Industrial temperature, pressure, and flow signal acquisition
Energy management and utility monitoring systems
Automotive and high-speed manufacturing lines
OEM machine control systems requiring analog feedback integration
Distributed control architectures in smart factories
Its multi-channel analog capability enables efficient consolidation of field signals into a single modular I/O system.
Advantages
8-channel high-density analog input design
Supports both voltage and current industrial signals
High-resolution measurement for stable process control
Channel-level configuration flexibility
Integrated diagnostics for signal fault detection
Seamless integration with FLEX 5000 EtherNet/IP architecture
Designed for scalable distributed automation systems
Technical FAQs (10 Technical Questions)
Q1: What types of signals does the 5094-IF8 support?
It supports standard industrial voltage and current inputs including 0–10V and 4–20mA.
Q2: How many input channels are available?
It provides 8 single-ended analog input channels.
Q3: Can each channel be configured independently?
Yes, each channel can be individually configured for voltage or current input types.
Q4: Is it suitable for real-time process control?
Yes, it is designed for fast and accurate analog data acquisition.
Q5: Does it support diagnostics per channel?
Yes, it provides channel-level diagnostics and fault reporting.
Q6: Can it be used in harsh industrial environments?
Yes, it is designed for industrial-grade reliability and noise immunity.
Q7: Does it require external signal conditioning?
No, it directly accepts standard industrial analog signals.
Q8: Is it compatible with FLEX 5000 adapters?
Yes, it integrates through FLEX 5000 EtherNet/IP adapters.
Q9: What software is used for configuration?
It is configured using Studio 5000 Logix Designer.
Q10: Is it suitable for distributed I/O systems?
Yes, it is optimized for modular distributed automation architectures.
