Brand:Allen Bradley PLC Item No.:5094-MB Product Origin:USA Product Dimensions:94 x 37.5 x 85 mm Product Weight:0.071 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

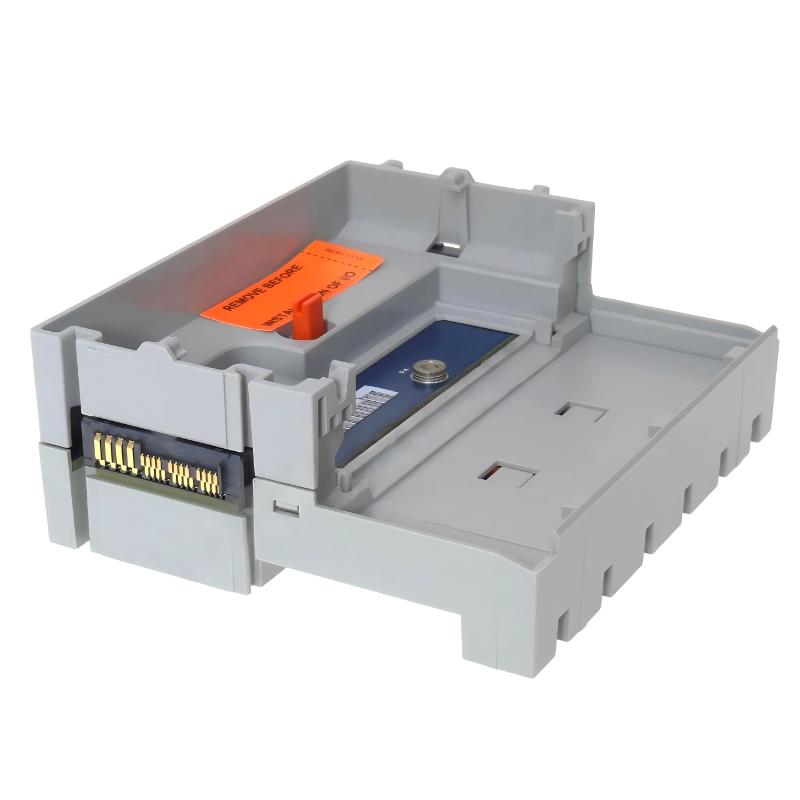

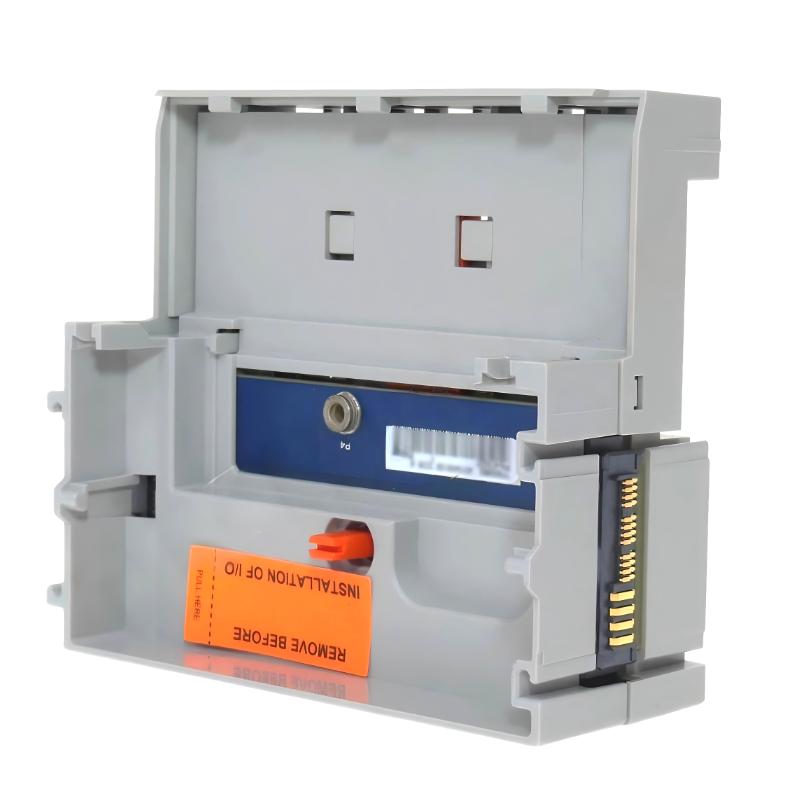

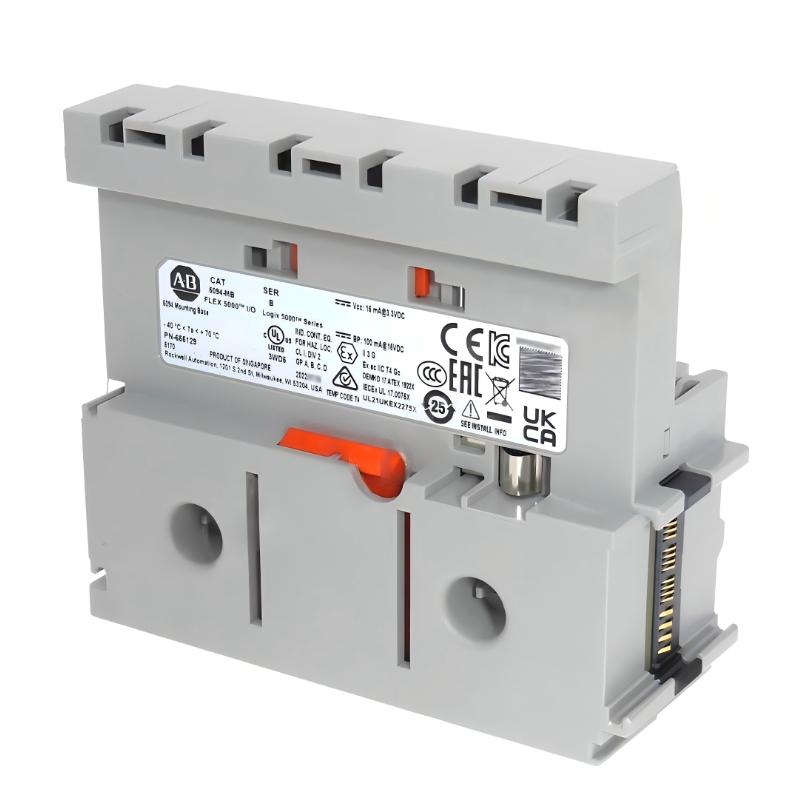

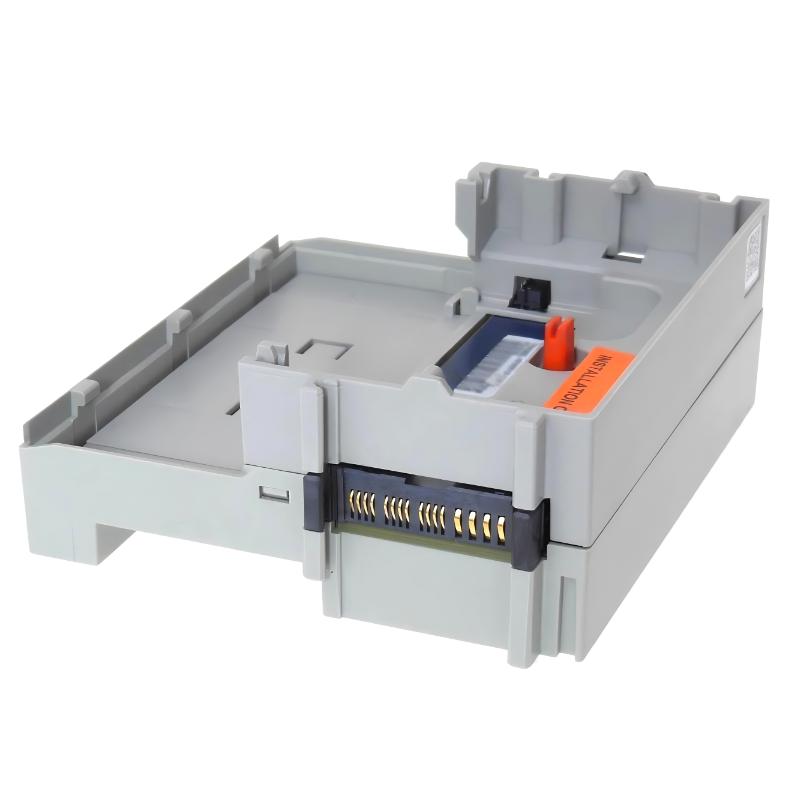

The Allen-Bradley 5094-MB is a FLEX 5000 mounting base designed to form the structural and electrical backbone of distributed I/O systems. It connects I/O modules to the backplane while ensuring secure mechanical positioning within industrial control cabinets.
As a key infrastructure component of the FLEX 5000 ecosystem, it enables scalable, modular, and serviceable automation system design.
Technical Specifications
Parameter
Specification
Model
Allen-Bradley 5094-MB
Product Type
FLEX 5000 Mounting Base
Function
Mechanical mounting + backplane connection
System Compatibility
FLEX 5000 I/O Series
Installation Method
DIN rail mounting
Dimensions
94 × 37.5 × 85 mm
Weight
0.071 kg (0.157 lb)
Applications
The Allen-Bradley 5094-MB FLEX 5000 Mounting Base is a core mechanical and electrical foundation component used in FLEX 5000 distributed I/O systems. It provides structural mounting, backplane connectivity, and power distribution for FLEX 5000 I/O modules.
It is widely used in:
Distributed I/O cabinets in factory automation systems
Automotive production and assembly line control panels
High-density FLEX 5000 modular I/O installations
Machine-level control systems requiring scalable I/O expansion
Process automation systems in energy and utilities
OEM machine builds using Rockwell Logix-based architectures
As a base component, it ensures stable module alignment and reliable system communication within the FLEX 5000 platform.
Advantages
Provides mechanical mounting foundation for FLEX 5000 I/O modules
Enables backplane communication and power distribution
Supports modular system expansion without rewiring
Designed for DIN-rail installation in industrial panels
Allows hot configuration changes depending on system setup
Improves serviceability and module replacement efficiency
Engineered for long-term industrial reliability
Technical FAQs (10 Technical Questions)
Q1: What is the main function of the 5094-MB?
It serves as the mounting base for FLEX 5000 I/O modules, enabling mechanical and electrical connection.
Q2: Does it carry communication signals?
Yes, it provides backplane connectivity for module communication.
Q3: Is it required for FLEX 5000 systems?
Yes, it is a mandatory structural component for FLEX 5000 I/O installations.
Q4: Can it be reused when replacing modules?
Yes, the mounting base remains installed while modules can be replaced.
Q5: Does it support DIN rail mounting?
Yes, it is designed for standard industrial DIN rail installation.
Q6: Does it provide power distribution?
Yes, it distributes system power across connected modules.
Q7: Is it compatible with all FLEX 5000 modules?
Yes, it supports the FLEX 5000 module ecosystem with compatible terminal bases.
Q8: Does it require configuration in software?
No, it is a passive hardware component and does not require software setup.
Q9: Can modules be added without removing the base?
Yes, modules are installed and removed while the base remains fixed.
Q10: Is it suitable for harsh industrial environments?
Yes, it is designed for industrial-grade durability and stability.
