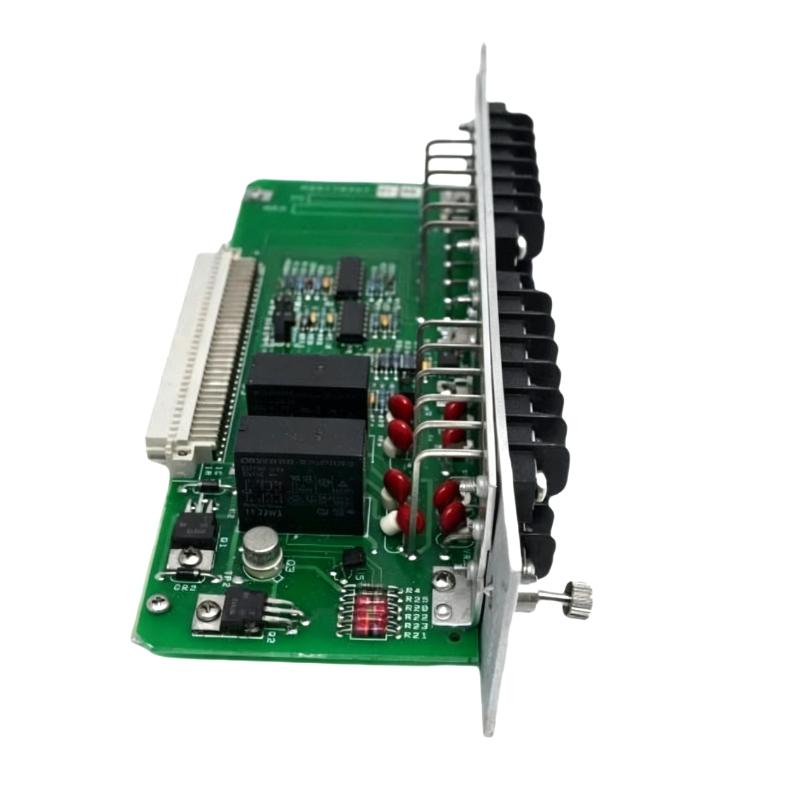

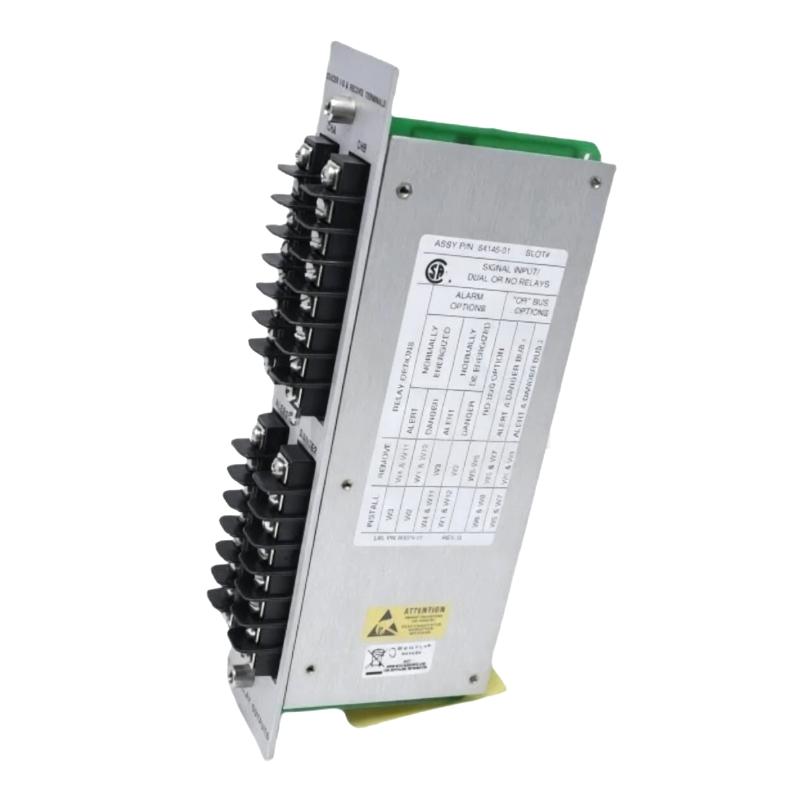

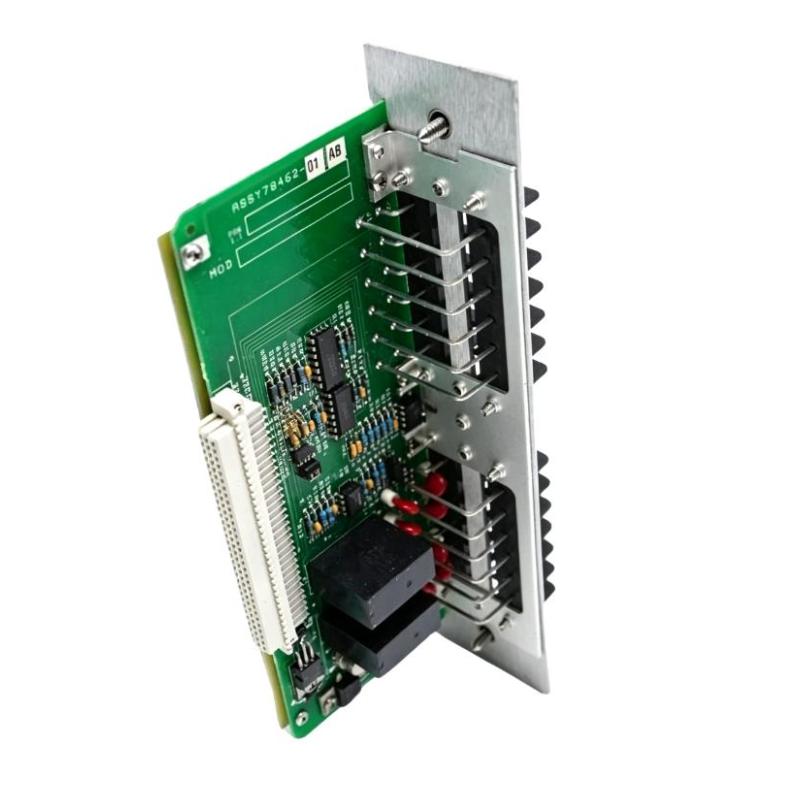

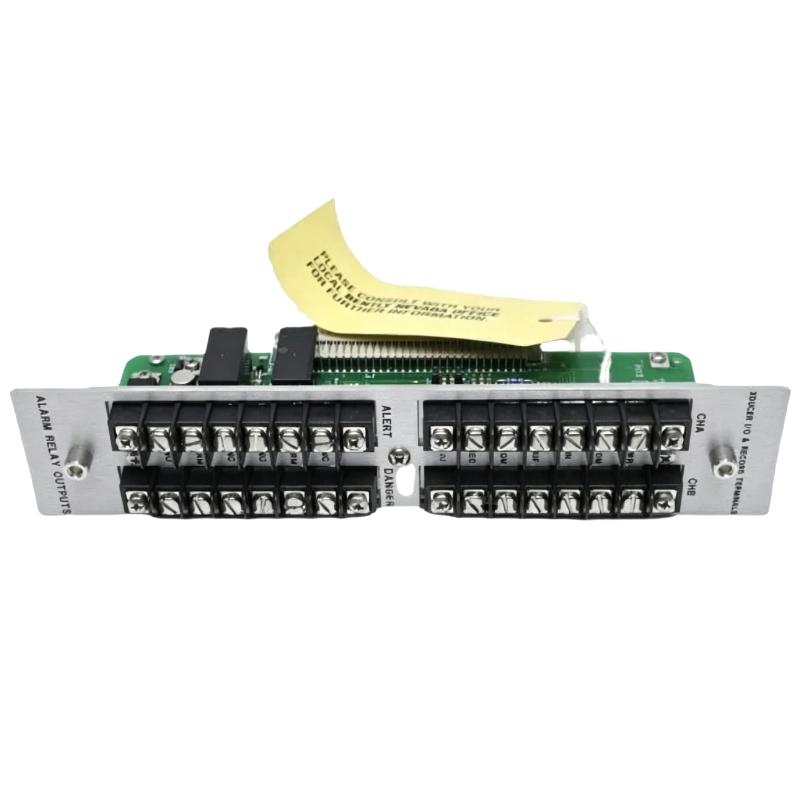

Bently Nevada 84145-01 XDUCR I/O and Recording Terminal

Applications

• In Bently Nevada monitoring and protection systems, the 84145-01 XDUCR I/O terminal is used as an interface point for connecting vibration transducers, sensors, and external recording devices in machinery condition monitoring setups.

• It is widely applied in turbine and compressor monitoring systems where sensor signal routing and data acquisition are required for real-time diagnostics and protection logic.

• In oil & gas and petrochemical plants, it is used to interface proximity probes and vibration monitoring systems with control and recording equipment for continuous asset supervision.

• It is deployed in power generation facilities to support centralized vibration monitoring systems, ensuring reliable signal transmission from field sensors to monitoring racks.

• It is suitable for industrial automation environments requiring structured I/O termination and signal distribution for condition monitoring and protection systems.

Key Advantages

• It provides reliable signal termination and distribution for multiple transducer inputs, ensuring stable communication between field sensors and monitoring systems.

• It is designed for integration with Bently Nevada 3300 and related monitoring architectures, maintaining signal integrity across the system.

• It supports robust industrial operation with strong resistance to electrical noise, vibration, and harsh environmental conditions.

• It enables organized wiring and simplified maintenance, improving system reliability and troubleshooting efficiency.

• It is built for long-term continuous operation in critical machinery protection applications.

Technical FAQs

1. What is the main function of this terminal?
It provides I/O termination and signal routing for vibration and proximity monitoring systems.

2. What systems is it compatible with?
It is commonly used in Bently Nevada 3300 series monitoring systems.

3. What types of signals does it handle?
It handles transducer inputs such as vibration and proximity probe signals.

4. Is it an active or passive device?
It is a passive interface terminal module.

5. Where is it typically installed?
It is installed in monitoring racks or control cabinet termination areas.

6. Does it process signals?
No, it only routes and terminates signals without processing.

7. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade signal reliability.

8. Can it be used with multiple channels?
Yes, it supports multi-channel sensor termination depending on configuration.

9. Is it part of the 3500 system?
It is more commonly associated with 3300-series architectures.

10. What industries use it most?
Oil & gas, power generation, petrochemical, and heavy industry.
