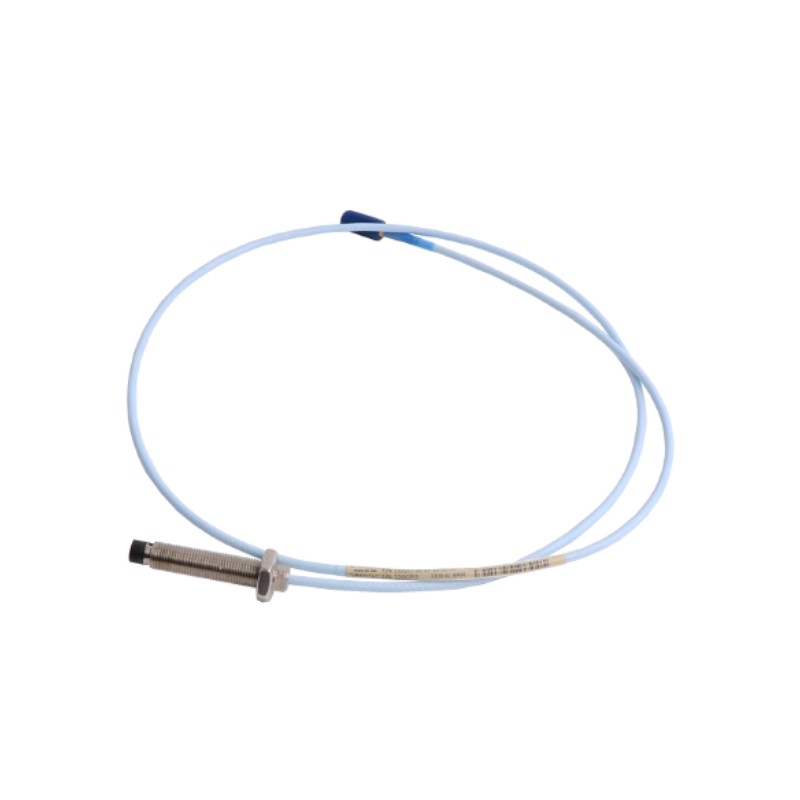

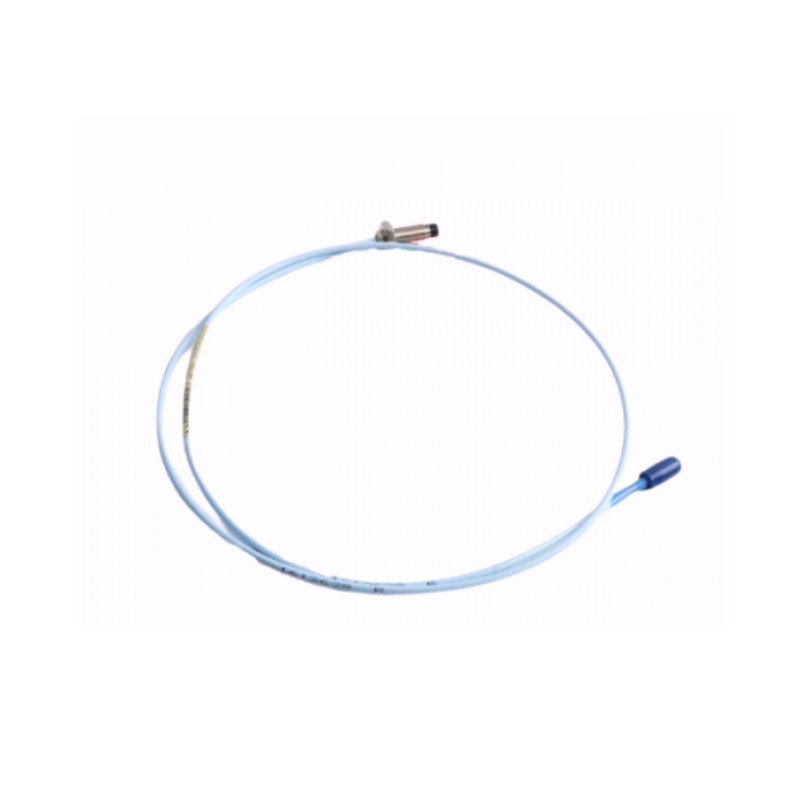

The Bently Nevada 330104-00-03-90-11-00 Proximity Probe Module is a high-end non-contact eddy current sensor designed for precision measurement of shaft vibration, displacement, and position in mission-critical rotating machinery. As part of the industry-standard 3300 XL 8 mm proximity transducer system, this configuration is engineered for environments where long-distance signal routing, harsh operating conditions, and maximum measurement reliability are required.
This model is distinguished by its 30 mm probe case length, ultra-long 9.0-meter system cable, and FluidLoc cable with armored protection and connector sealing (11 option). These enhancements significantly improve resistance to oil ingress, mechanical stress, and environmental contamination, making it highly suitable for offshore platforms, large turbine trains, and distributed monitoring architectures.
The extended cable length provides exceptional flexibility for installations where monitoring cabinets are located far from the machine, without compromising signal integrity or measurement stability.
Technical Specifications
Product Overview
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-03-90-11-00 |
| Product Series | 3300 XL 8 mm |
| Measurement Principle | Eddy Current Non-Contact Sensing |
| Probe Type | Armored Industrial Probe |
| Thread | M10 × 1 |
| Primary Function | Shaft vibration & position monitoring |
| Installation | Fixed machinery mounting |
| Application Class | Critical rotating machinery protection |
Electrical Performance
| Parameter | Specification |
|---|---|
| Output Signal | Linear voltage proportional to gap |
| Sensitivity | ~200 mV/mil (typical 7.87 V/mm) |
| Frequency Response | Up to 10 kHz |
| Signal Stability | High long-term stability |
| EMI Resistance | Industrial grade shielding |
| Compatibility | 3300 XL Proximitor systems |
| Measurement Type | Static + dynamic vibration |
The 3300 XL system architecture is designed for high linearity and interchangeability between probe, extension cable, and proximitor modules, ensuring consistent measurement performance across installations.
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Case Length | 30 mm |
| Total System Length | 9.0 meters (29.5 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Armored FluidLoc cable with sealing |
| Housing Material | Stainless steel (AISI 303/304) |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Net Weight | ~0.323 kg |
| Shipping Weight | ~2.0 kg |
The 9-meter configuration is one of the longest variants in the 3300 XL probe family, intended for large-scale turbine trains or remote-mounted monitoring systems.
Environmental & Durability Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -51°C to +177°C |
| Probe Tip Limit | Up to +218°C |
| Cable Temperature Rating | Up to +260°C |
| Humidity Resistance | Up to 93% non-condensing |
| Vibration Resistance | High (continuous duty) |
| Shock Resistance | Industrial grade |
| Corrosion Resistance | High (stainless steel body) |
| Cable Protection | FluidLoc sealed design |
The FluidLoc sealing system is specifically designed to prevent oil migration through the cable assembly, improving long-term signal integrity in turbine and compressor environments.
Recommended Related Models
- Bently Nevada 330130 Proximitor Sensor
- Bently Nevada 330101 Extension Cable
- Bently Nevada 3500/42M Vibration Monitor
- Bently Nevada 3500/22M TDI Module
- Bently Nevada 3500/25 Keyphasor Module
- Bently Nevada 3500/15 Power Supply Module
- Bently Nevada 330103 Proximity Probe Series
- Bently Nevada 330180 Proximitor System
These components are commonly integrated into full machine protection architectures for continuous condition monitoring.
