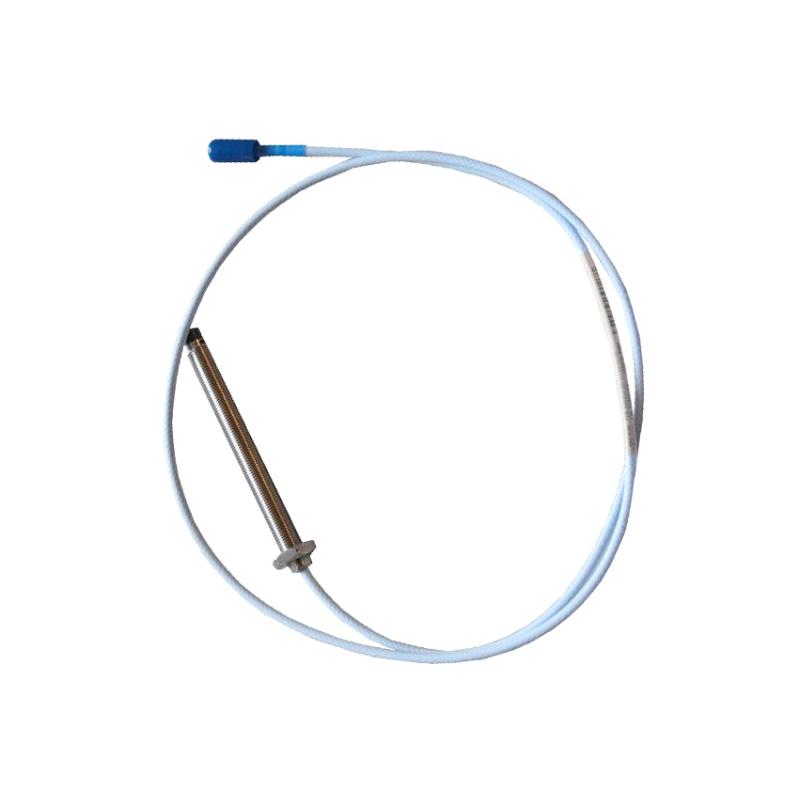

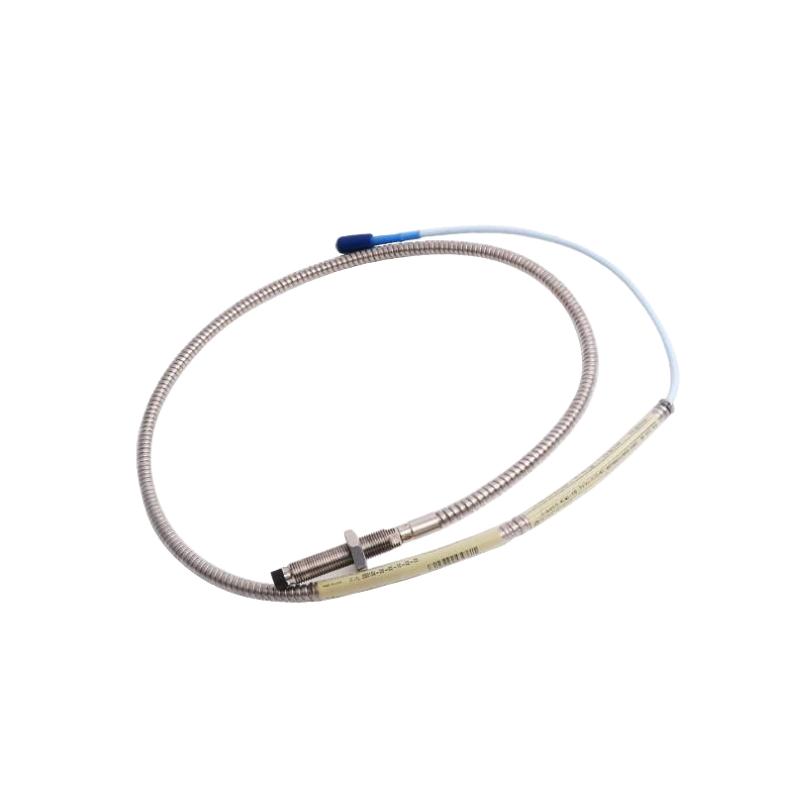

The Bently Nevada 330104-00-04-50-11-00 Proximity Probe Module is a precision-engineered eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, displacement, and position in critical rotating machinery. As part of the widely deployed 3300 XL 8 mm proximity transducer system, this model delivers exceptional signal stability, rugged mechanical strength, and long-term operational reliability in demanding industrial environments.
This configuration includes a 40 mm probe case length (code 04), a 5.0-meter system cable length (code 50), and a FluidLoc + ClickLoc connector system (code 11). The FluidLoc design enhances resistance to oil ingress and moisture contamination, making it particularly suitable for turbine trains, compressors, and oil & gas applications where environmental exposure is severe.
With its extended cable reach and reinforced sealing architecture, this probe is optimized for installations where monitoring systems are located far from rotating equipment, without compromising measurement accuracy or signal integrity.
Technical Specifications
Product Overview
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-04-50-11-00 |
| Series | 3300 XL 8 mm Proximity System |
| Measurement Principle | Eddy Current (Non-Contact) |
| Function | Shaft Vibration & Position Monitoring |
| Thread Type | M10 × 1 Metric |
| Probe Type | Armored Industrial Probe |
| Installation | Fixed Mounting |
| Application | Rotating Machinery Protection |
Electrical Performance
| Parameter | Specification |
|---|---|
| Output Signal | Linear Voltage Output |
| Sensitivity | ~200 mV/mil (7.87 V/mm typical) |
| Frequency Response | Up to 10 kHz |
| Measurement Type | Static + Dynamic Vibration |
| EMI Resistance | Industrial-grade shielding |
| Signal Stability | High long-term stability |
| System Compatibility | Bently Nevada 3300 XL systems |
| Output Impedance | 50 Ω |
The probe provides highly linear response characteristics, ensuring reliable vibration trending and early fault detection in rotating machinery systems.
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Case Length | 40 mm |
| Unthreaded Length | 0 mm |
| Total System Length | 5.0 meters (16.4 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | FluidLoc sealed industrial cable |
| Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Approximate Net Weight | ~0.45 kg |
| Shipping Weight | ~2.0 kg |
The 5-meter configuration offers strong installation flexibility for large machinery trains and remote-mounted monitoring cabinets.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -52°C to +177°C |
| Probe Tip Temperature | Up to +218°C |
| Cable Temperature Rating | Up to +260°C |
| Humidity Resistance | Up to 93% non-condensing |
| Vibration Resistance | High (continuous duty) |
| Shock Resistance | Industrial grade |
| Corrosion Resistance | Excellent |
| Cable Protection | FluidLoc fluid-resistant sealing system |
FluidLoc technology is specifically designed to prevent oil migration through the cable assembly, improving long-term reliability in turbine and compressor environments.
Recommended Related Models
- Bently Nevada 330130 Proximitor Sensor
- Bently Nevada 330101 Extension Cable
- Bently Nevada 3500/42M Vibration Monitor
- Bently Nevada 3500/25 Keyphasor Module
- Bently Nevada 3500/22M TDI Module
- Bently Nevada 3500/15 Power Supply Module
- Bently Nevada 330103 Proximity Probe Series
- Bently Nevada 330180 Proximitor System
These components are typically integrated into full machinery protection systems for continuous condition monitoring.
