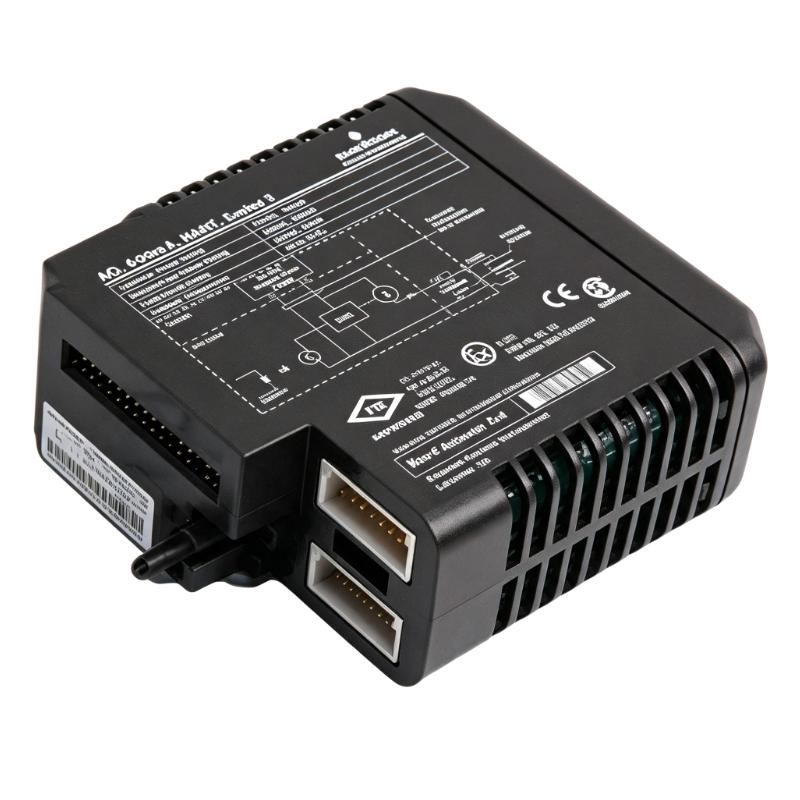

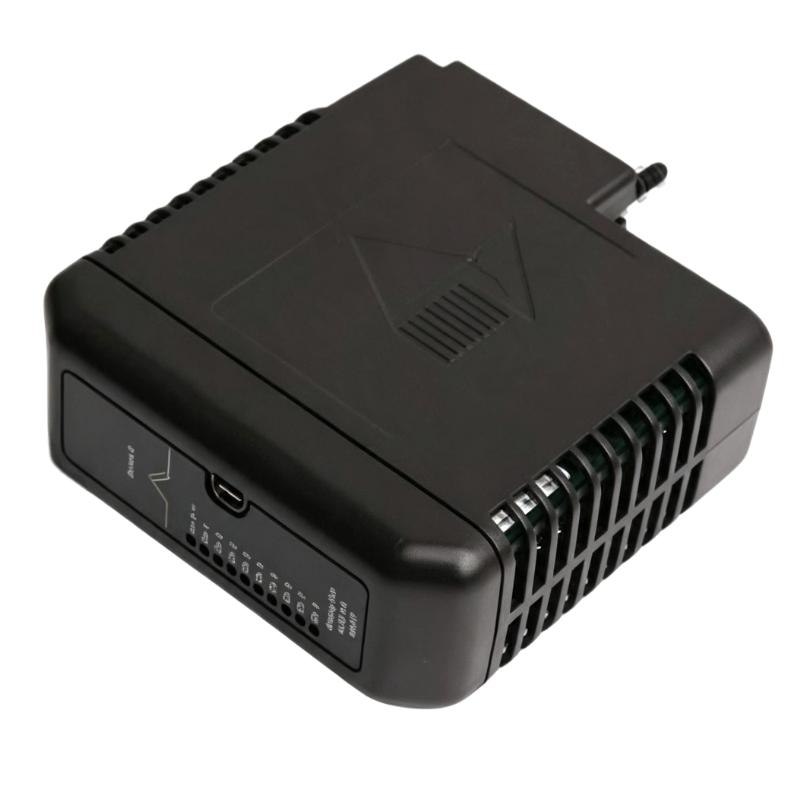

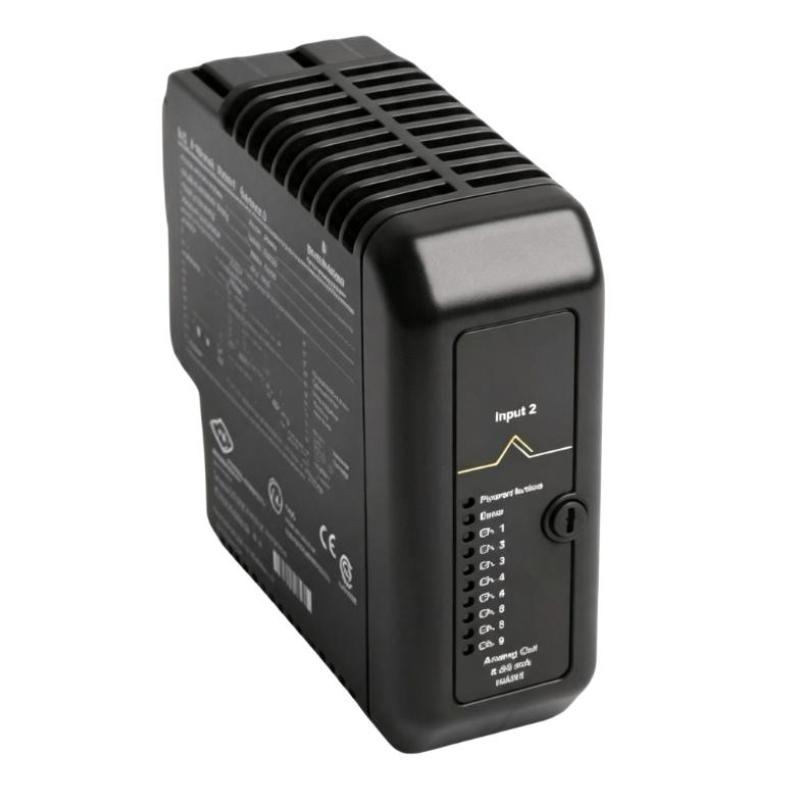

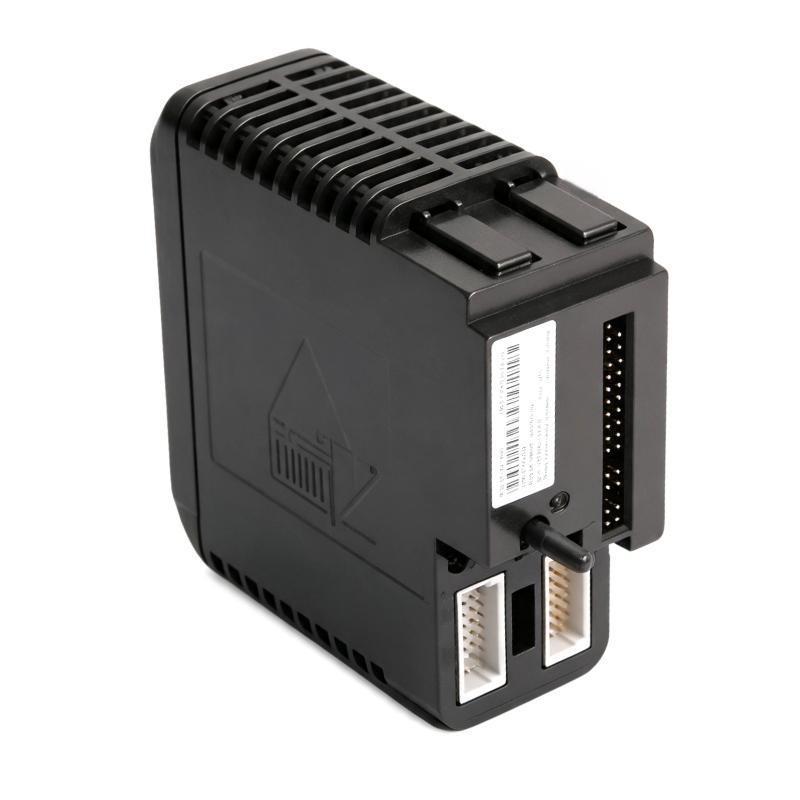

Emerson VE4003S4 Thermocouple Analog Input Card

Applications

• In Emerson DeltaV distributed control systems, the VE4003S4 is used to acquire thermocouple and millivolt signals for accurate temperature monitoring in industrial process automation environments.

• It is widely applied in oil & gas and petrochemical plants where precise temperature measurement is required for reactors, furnaces, pipelines, and separation units.

• In power generation facilities, it is used to monitor turbine exhaust temperatures, boiler systems, and auxiliary thermal processes to ensure safe and efficient operation.

• It is deployed in chemical and manufacturing industries where multi-point temperature data is required for process stability and quality control.

• It is suitable for continuous condition monitoring systems where stable, noise-resistant low-voltage signal acquisition is essential.

Key Advantages

• It supports multiple thermocouple types and millivolt inputs, enabling flexible temperature measurement across diverse industrial applications.

• It provides high-resolution analog-to-digital conversion, ensuring accurate and stable temperature signal acquisition.

• It integrates seamlessly into the Emerson DeltaV I/O architecture, allowing consistent configuration and system diagnostics.

• It features strong electrical isolation between channels and system-side electronics, improving noise immunity in harsh industrial environments.

• It is designed for long-term reliability in 24/7 process control systems with stable performance under thermal and electrical stress.

Technical FAQs

1. What is the main function of this card?
It converts thermocouple and millivolt signals into digital temperature data for the control system.

2. What types of sensors does it support?
It supports thermocouples and low-level millivolt input signals.

3. How many input channels does it have?
It typically provides 8 input channels.

4. Does it support cold junction compensation?
Yes, it includes cold junction compensation for accurate thermocouple readings.

5. What system is it compatible with?
It is part of the Emerson DeltaV S-Series I/O platform.

6. Where is it commonly used?
It is used in process industries such as oil & gas, power generation, and chemical processing.

7. Can it handle millivolt signals?
Yes, it is designed for thermocouple and mV-level inputs.

8. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.

9. Does it require external signal conditioning?
No, it includes built-in signal conditioning for thermocouple inputs.

10. What is its main advantage over standard analog input cards?
It can directly read low-level thermocouple signals that standard analog cards cannot process accurately.
