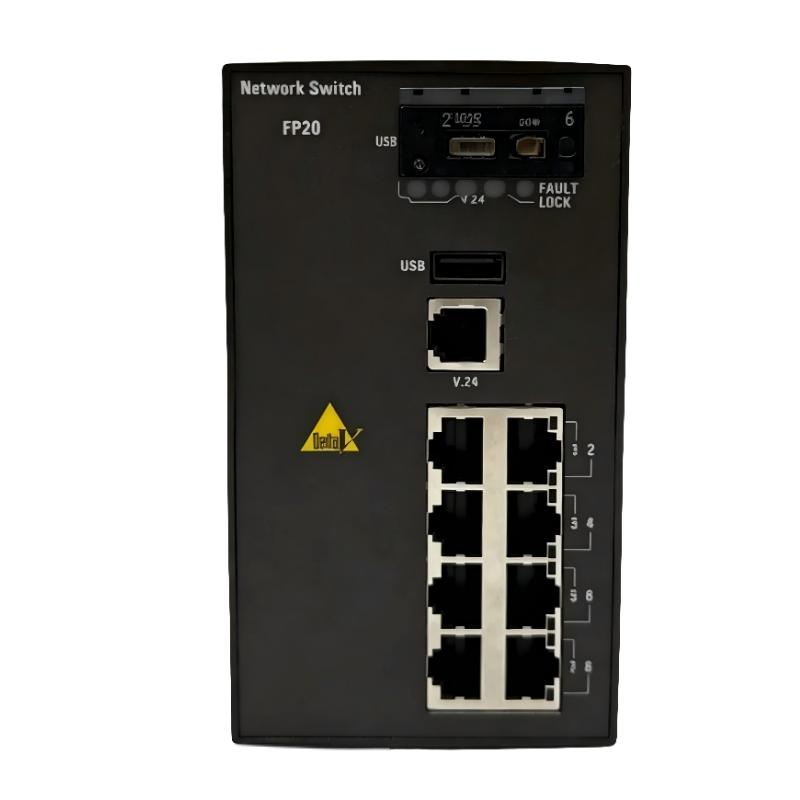

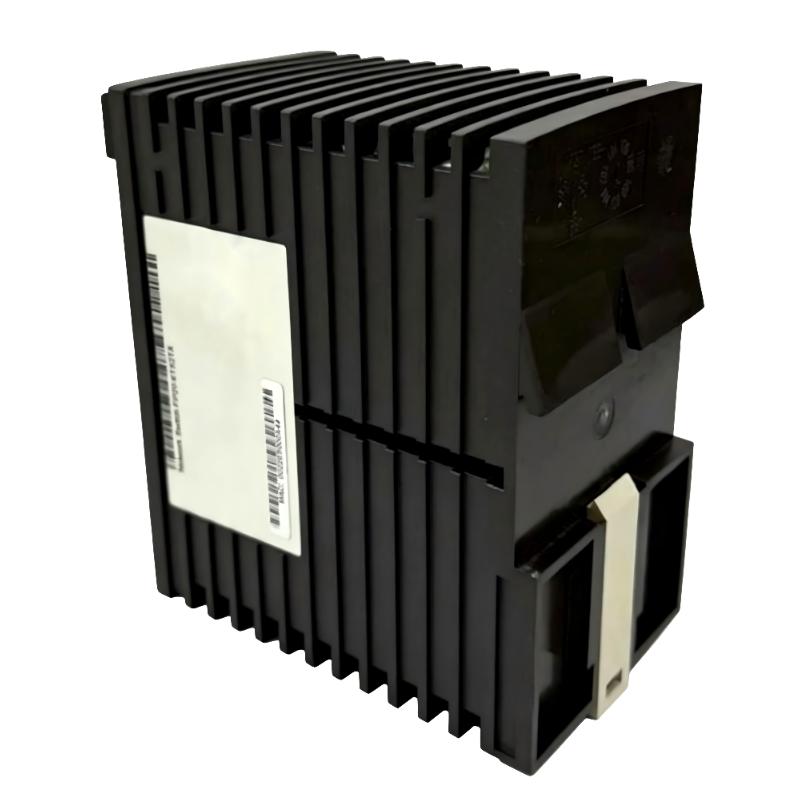

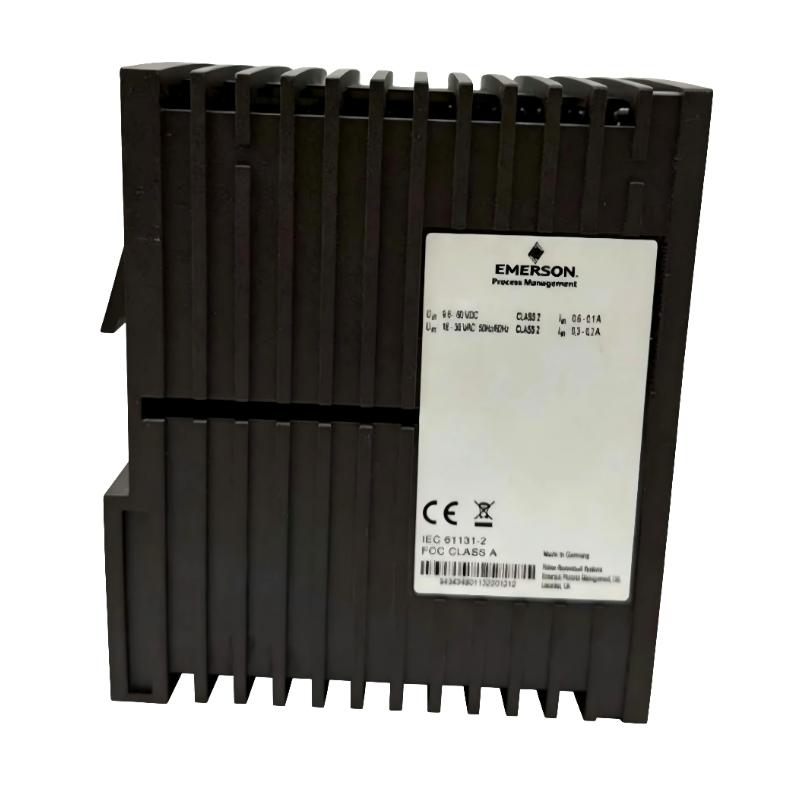

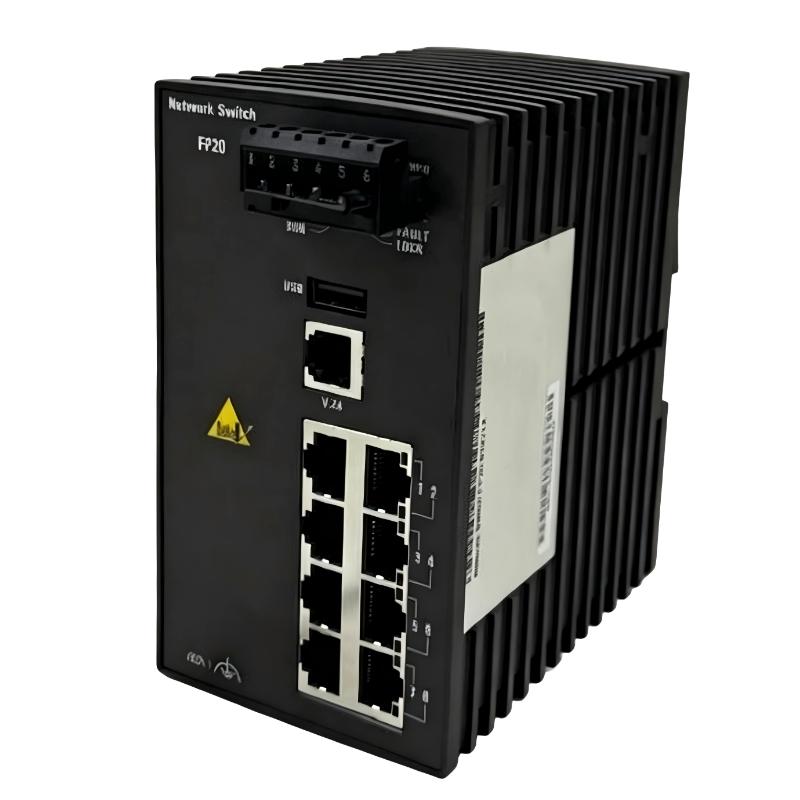

Emerson VE6022P4 Ethernet Switch

Applications

• In Emerson DeltaV control system architectures, the VE6022P4 Ethernet switch is used to provide high-speed industrial network connectivity between controllers, workstations, I/O subsystems, and other automation devices.

• It is widely applied in process industries such as oil & gas, chemical processing, and power generation where stable and deterministic Ethernet communication is required for real-time control and monitoring.

• In plant-wide automation systems, it supports segmentation and distribution of DeltaV network traffic, improving system organization and communication reliability.

• It is deployed in control cabinets as part of DeltaV infrastructure to ensure robust communication between redundant controllers and network nodes.

• It is suitable for large-scale industrial Ethernet networks requiring compact, reliable, and high-performance switching capabilities.

Key Advantages

• It provides multiple Fast Ethernet ports to support dense device connectivity in DeltaV control networks.

• It is designed for industrial environments, offering strong resistance to vibration, electrical noise, and temperature fluctuations.

• It ensures stable and efficient data exchange between distributed control system components.

• It integrates seamlessly with Emerson DeltaV architectures, simplifying network deployment and expansion.

• It supports continuous 24/7 operation in mission-critical automation systems where network reliability is essential.

Technical FAQs

1. What is the main function of the VE6022P4?
It acts as an industrial Ethernet switch for DeltaV control system communication.

2. Is it a managed or unmanaged switch?
It is an industrial managed switch used in DeltaV network architectures.

3. What type of ports does it have?
It typically includes a mix of Fast Ethernet and Gigabit uplink ports depending on configuration.

4. Where is it installed?
It is installed in DeltaV control cabinets or industrial network racks.

5. What systems is it compatible with?
It is designed for Emerson DeltaV distributed control systems.

6. Does it support redundancy?
Yes, it can be used within redundant network topologies.

7. Is it suitable for harsh environments?
Yes, it is designed for industrial automation conditions.

8. Does it execute control logic?
No, it only handles Ethernet communication between devices.

9. What industries use it?
Oil & gas, petrochemical, power generation, and manufacturing.

10. Is it used in modern DeltaV systems?
Yes, it is commonly used in installed industrial Ethernet infrastructures.
