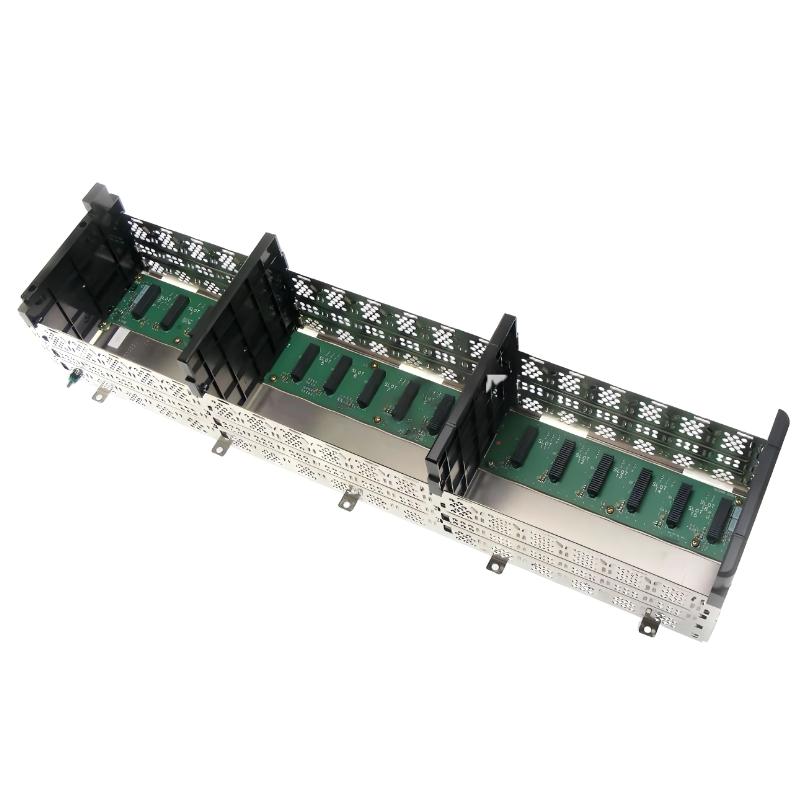

Allen Bradley 1756-A17 ControlLogix 17-slot Chassis

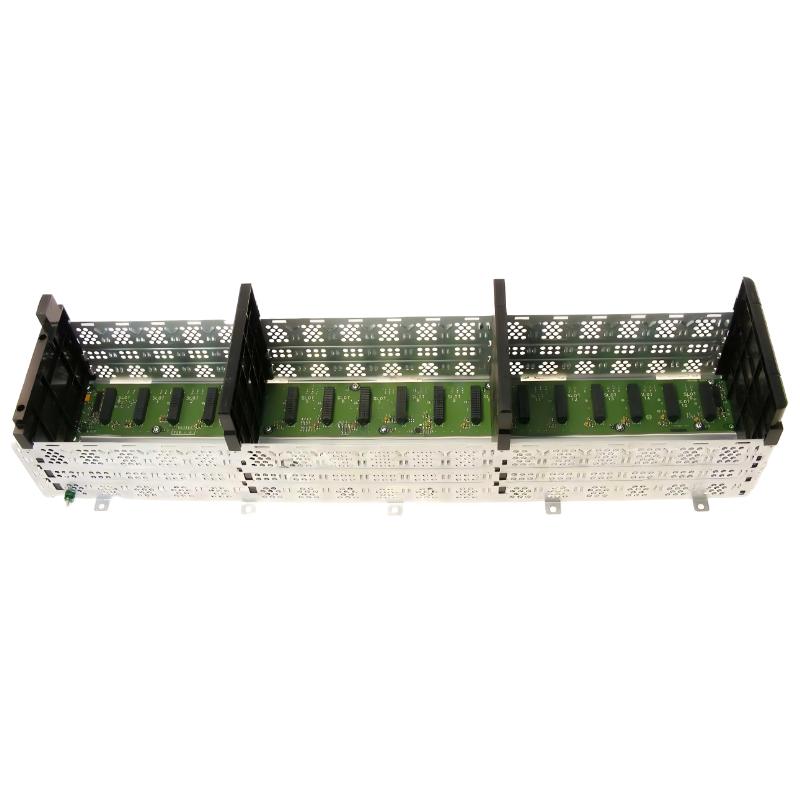

Allen Bradley 1756-A17 ControlLogix 17-slot Chassis
0.0
Points
Brand:Allen Bradley PLC Item No.:1756-A17 Product Origin:USA Product Dimensions:965 x 203 x 508 mm Product Weight:2.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1756-A17 ControlLogix Chassis is designed as a core structural component of ControlLogix automation systems. It provides a stable and scalable platform for integrating multiple control, communication, and I/O modules in a single unified rack.
Its 17-slot architecture is ideal for complex automation systems requiring high module density and flexible configuration. The chassis ensures reliable backplane communication and mechanical stability, making it a fundamental part of large industrial control infrastructures.
Technical Specifications
Parameter
Specification
Model
1756-A17
Slot Count
17 slots
System Type
ControlLogix chassis
Mounting
Panel mounting
Dimensions
965 × 203 × 508 mm
Weight
2.2 kg
