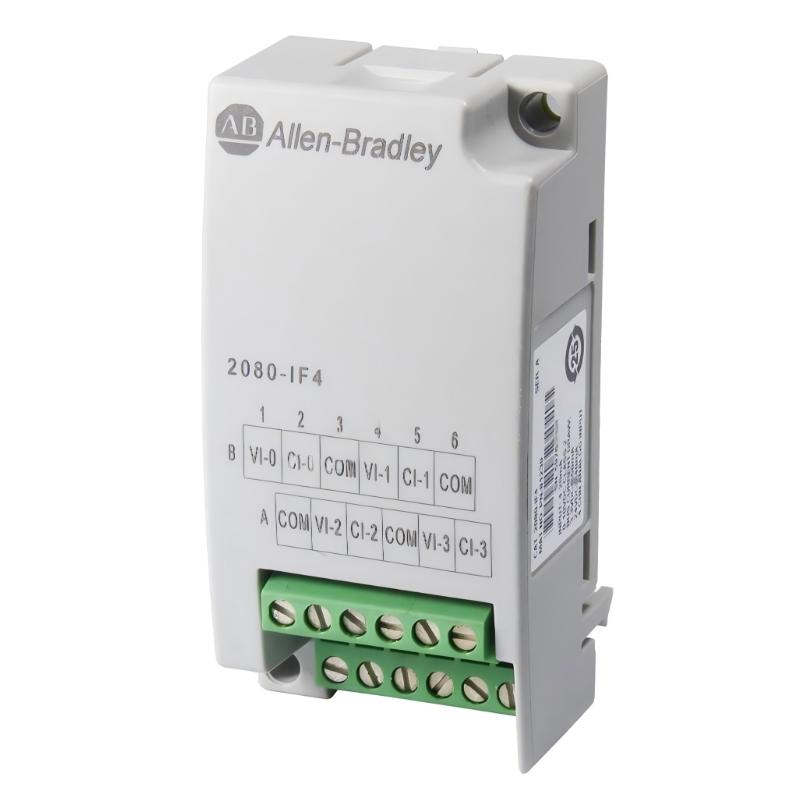

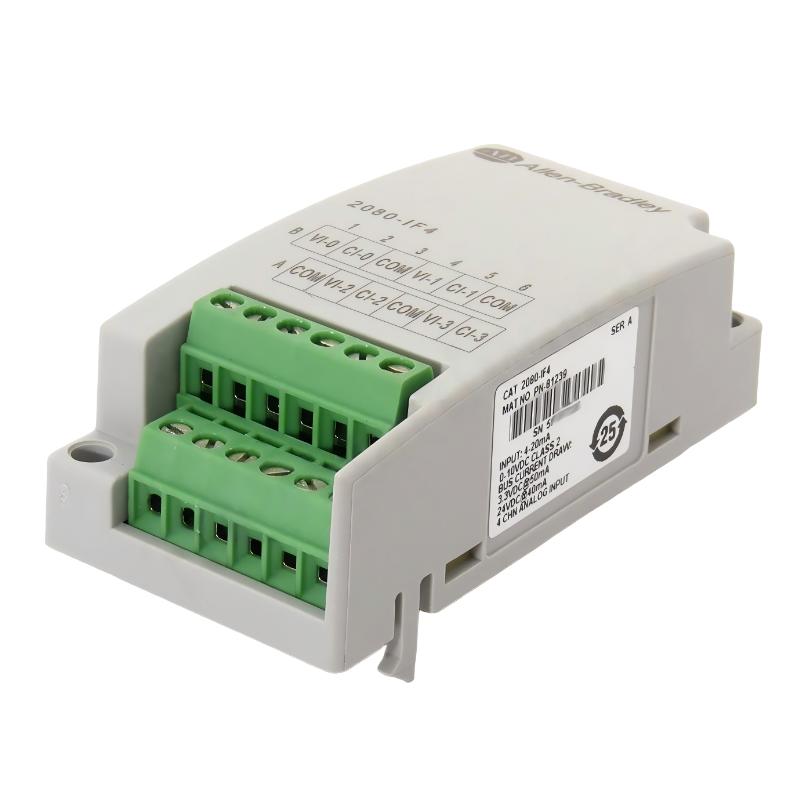

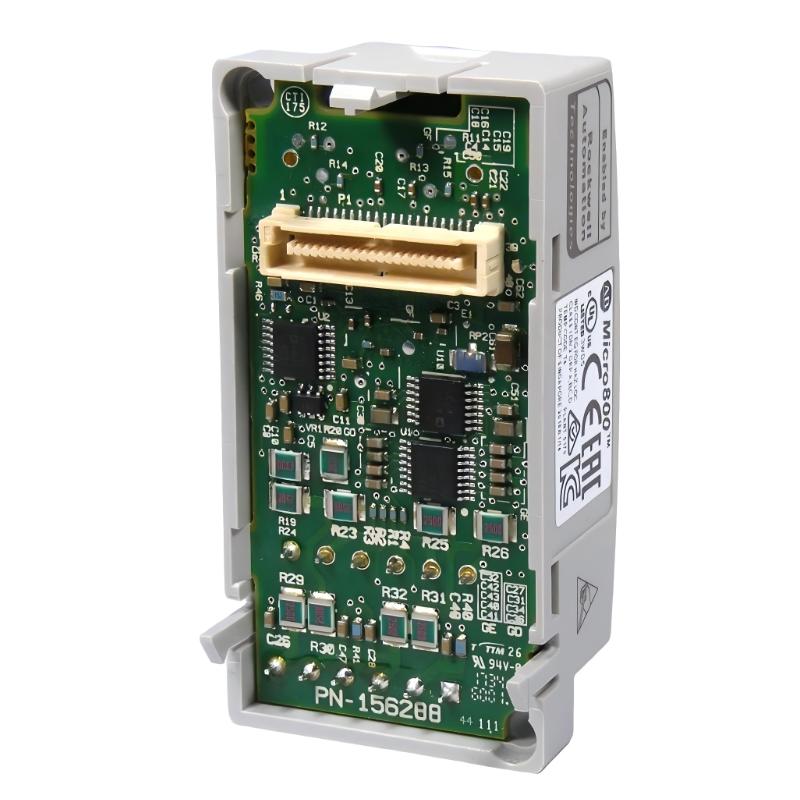

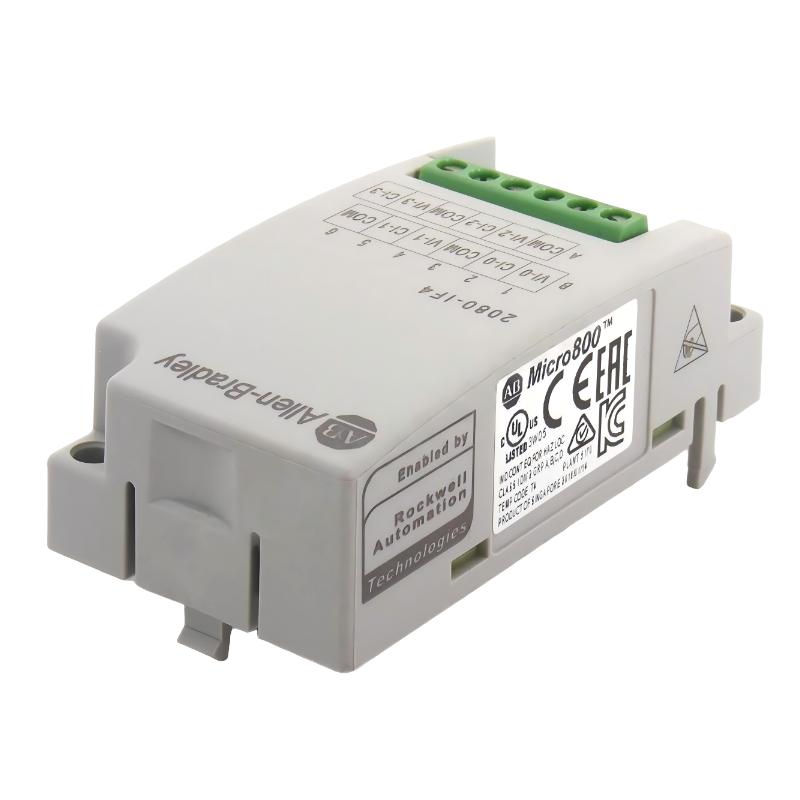

Allen Bradley 2080-IF4 Micro800 4-channel Current/Voltage Analog Input Module

Applications

• Compact machine automation systems such as packaging, labeling, and light assembly equipment requiring multi-channel analog signal acquisition.

• Micro PLC-based control systems where space-saving plug-in I/O expansion is required without adding external racks.

• Small-scale process control applications including pumps, HVAC units, and simple flow or pressure monitoring systems.

• OEM equipment designs that require integrated analog feedback for sensors and transmitters.

• Factory automation subsystems where distributed control and localized signal processing improve efficiency.

• Test benches and laboratory automation systems requiring flexible analog input configuration.

Key Advantages

• Provides four configurable analog input channels supporting both voltage (0–10V) and current (0–20 mA / 4–20 mA) signals.

• Compact plug-in design eliminates the need for external I/O racks and reduces panel space requirements.

• Direct integration with Micro800 controllers enables simplified system architecture and faster deployment.

• Flexible channel configuration allows mixed signal monitoring within a single module.

• Suitable for cost-sensitive automation systems requiring reliable analog data acquisition.

• Designed for easy installation and minimal wiring complexity in compact control environments.

Technical FAQs

Q1: What signal types does the 2080-IF4 support?
It supports 0–10V voltage inputs and 0–20 mA / 4–20 mA current inputs.

Q2: Can each channel be configured independently?
Yes, each of the four channels can be individually configured in software.

Q3: Is the module isolated between channels?
No, it is a non-isolated module sharing a common reference.

Q4: Which PLCs are compatible with this module?
It is designed for Micro800 controllers such as Micro820, Micro830, and Micro850.

Q5: Does it require external power?
No, it is powered directly through the Micro800 controller backplane.

Q6: Can it handle 4–20 mA industrial sensors?
Yes, it is fully compatible with standard industrial current loop transmitters.

Q7: What is the resolution of the analog conversion?
It uses 12-bit resolution for signal conversion.

Q8: Can unused channels be disabled?
Yes, channels can be individually enabled or disabled in configuration.

Q9: Is it suitable for high-noise environments?
It is designed for industrial environments but lacks galvanic isolation.

Q10: Does it support hot swapping?
It depends on system configuration, but generally plug-in replacement requires controller safety procedures.
