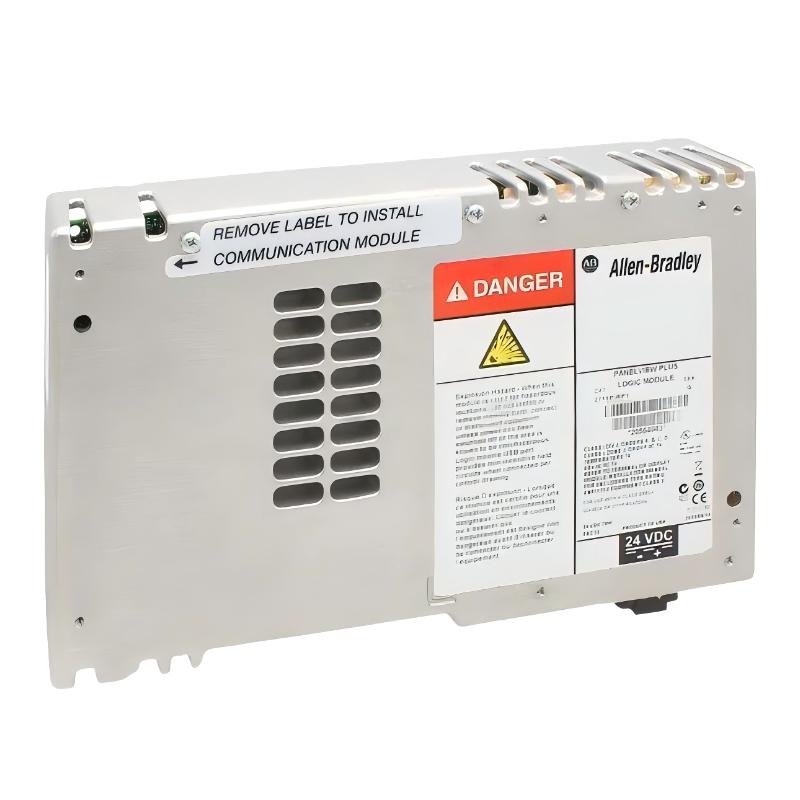

Allen Bradley 2711P-RP1 PanelView Plus Logic Module

Applications

• PanelView Plus HMI systems used in manufacturing lines for real-time machine status visualization and operator control.

• Industrial automation panels requiring centralized processing for touchscreen operator interfaces.

• Process control systems in chemical, water treatment, and energy industries using Rockwell HMI architecture.

• OEM machine control panels integrating HMI visualization with PLC communication networks.

• Equipment monitoring systems requiring reliable runtime execution of FactoryTalk View ME applications.

• Retrofit and replacement projects for legacy PanelView Plus 700–1500 series terminals.

Key Advantages

• Integrates CPU, memory, and communication interfaces into a single replaceable logic module design.

• Supports FactoryTalk View ME runtime applications for flexible HMI development and deployment.

• Compatible with PanelView Plus 700–1500 display units for wide application coverage.

• Provides Ethernet, serial, and USB communication interfaces for industrial connectivity.

• Modular architecture allows easy field replacement without replacing the entire HMI terminal.

• Stable operation with industrial-grade design suitable for continuous 24/7 use.

Technical FAQs

Q1: What is the main function of the 2711P-RP1 module?
It runs the HMI system by handling processing, memory, and communication tasks.

Q2: Which PanelView terminals is it compatible with?
It is compatible with PanelView Plus 700, 1000, 1250, and 1500 series terminals.

Q3: Does it store the HMI application?
Yes, it stores and executes FactoryTalk View ME runtime applications.

Q4: Can it be replaced independently of the display?
Yes, the logic module can be replaced separately from the touchscreen display module.

Q5: What communication ports are available?
It includes Ethernet, RS-232, and USB interfaces.

Q6: Does it require software configuration after replacement?
Yes, firmware alignment and application download are typically required.

Q7: What happens if the logic module fails?
The HMI system will not boot or will lose application execution capability.

Q8: Is it compatible with PanelView Plus 6 or 7 systems?
No, it is not compatible with newer PanelView Plus generations.

Q9: Does it contain non-volatile memory?
Yes, it includes flash memory for application storage.

Q10: Can firmware be upgraded?
Yes, but only within supported PanelView Plus hardware versions.
